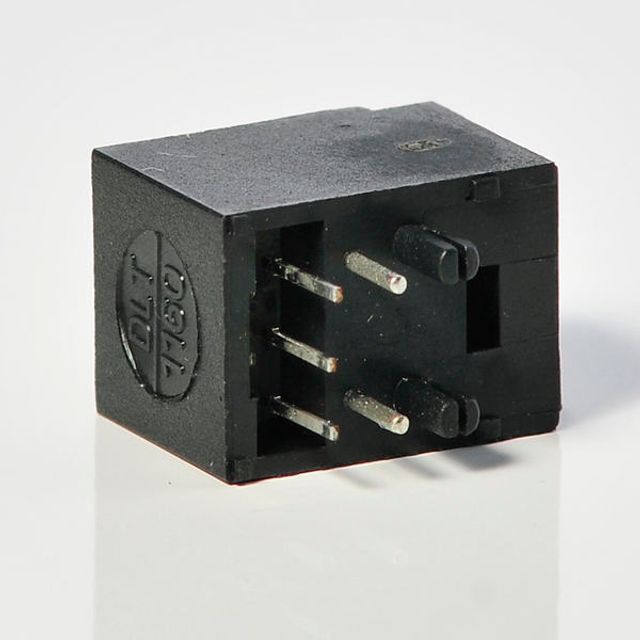

Toslink High speed audio transmission AX-DLT2160 TOTX147
- $0.50 / >=1000 pieces
- 1000 pieces
- Aixin Opto-Electrical Technology Co., Ltd.
- Guangdong, China
- Mr james lu
| Type: | Toslink Connector; | fiber coupling: | -21~-25db; |
| color: | black/gray/pink; | Brand: | AIXIN; |
| Port: | HK; | Model Number: | DLT2160; |
| Pin function: | 1.GND 2.Vcc 3.Vin; | Packaging: | Tray; |
| Supply Ability: | 300000 Pieces per Month; | Supplier Type: | Original manufacturer; |
| Packaging Detail: | Tray 100 100 pcs 13.5*27*3 cm Inner box 20 tray/box 2000 pcs 29*29*22 cm Outer box 2 inner box/outer box 4000 pcs 60*31*25.8 cm; | Place of Origin: | Guangdong, China; |
| operating transfer rate: | 25Mbps; | Vcc: | 2.7-5.5 V; |
| Payment Terms: | Western Union,T/T; |
Features
· High speed signal transmission
( 25 Mbps, NRZ signal )
· Input TTL compatible
· +3~+5V power source
Descriptions
The light transmitting unit is a standard-package product with connector and opto-electric component packaged with LED and drive IC. The function of unit changes the electric signal into light signal and be transmitted by plastic fiber.
The unit is operated at single+3V~ +5V and the input signal is TTL compatible. The DLT2160A has a maximum operating speed of 25Mbps. The light signal is coupled into plastic fiber by connector. The unit has high performance at low dissipation current, steady light output and efficient light coupling.
Applications
· Audio equipment
· DVD player/Digical TV player
· PC, Notebook
· Sound card

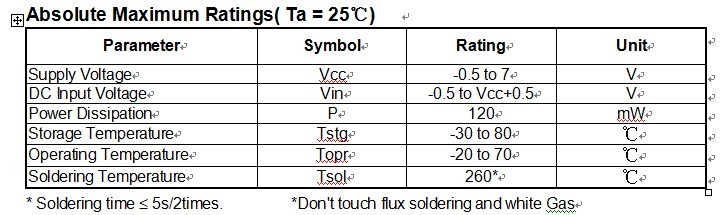

Device Selection Guide
|
Chip |
Operating Voltage (Vcc) |
Dissipation Current(mA) |
Fiber Coupling Light Output (dBm) |
|
|||
|
IC Material |
LED λp(nm) |
||||||
|
Typ. |
Min. |
Typ. |
Max. |
||||
|
Si |
650 |
2.7~5.5 |
5.5 |
-21 |
- |
-15 |
|
Package Dimensions
Notes: 1.All dimensions are in millimeters.
2.General Tolerance:±0.2mm
Pin Function
1. GND 2. Vcc 3. Vin
The DLT1110A light transmitting unit satisfies EIAJ CP-1201 digital audio interface standard.
Reliability Test Items
|
No. |
Item |
Test Condition |
Test Hour/Cycle |
Samples |
Number (n) Failure (c) |
|
1 |
Soldering Heat |
260°C±5°C |
5 sec./2times |
22 |
n=22, c=0 |
|
2 |
High temp. & Hum. storage |
Ta=40°C, 90%RH |
500 |
22 |
n=22, c=0 |
|
3 |
High temp. storage |
Ta=80°C |
500 |
22 |
n=22, c=0 |
|
4 |
Low Temp. storage |
Ta=-30°C |
500 |
22 |
n=22, c=0 |
|
5 |
Temp. cycling |
-30°C ~ 80°C (30min) (5min) (30min) |
20 |
22 |
n=22, c=0 |
|
6 |
High Temp. Operation life |
Ta=60°C, Vcc=5V ON |
500 |
22 |
n=22, c=0 |
|
7 |
Repeated operation |
500 times |
Coupling force < 2 kg 0.4kg<Detaching force <2kg |
22 |
n=22, c=0 |
|
8 |
Terminal Strength(tension) |
Weight: 500 g 30 sec./each terminal |
|
22 |
n=22, c=0 |
|
9 |
Terminal Strength(bending) |
Weight: 500 g 2 times/each terminal |
|
22 |
n=22, c=0 |
|
10 |
Mechanical Shock |
Acceleration: 1000m/s2 Pulse width: 6 ms 3 times/ X,Y,Z direction |
|
22 |
n=22, c=0 |
|
11 |
Vibration |
Frequency range: 10~55 Hz /sweep 1 min Overallamplitude:1.5 mm 2H./X,Y,Z direction |
|
22 |
n=22, c=0 |
Measuring Method

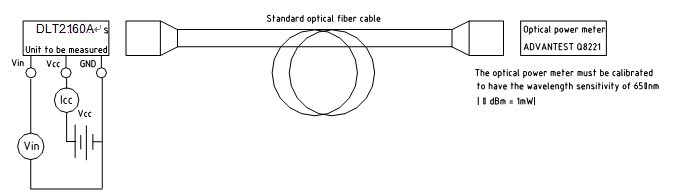

*1 Measuring method of optical output coupling fiber

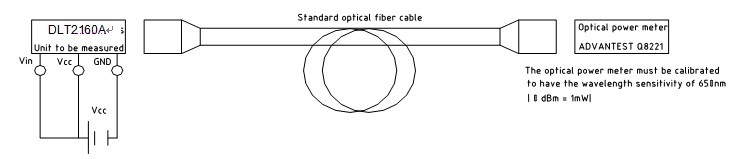

2 Input voltage/power dissipation measuring method

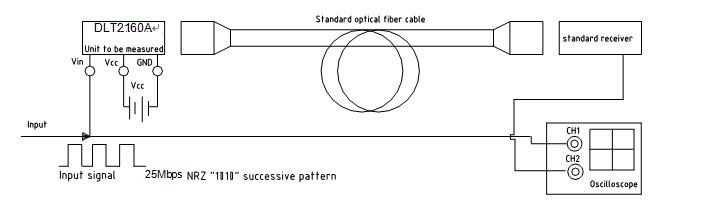

3 Pulse response and jitter measuring method

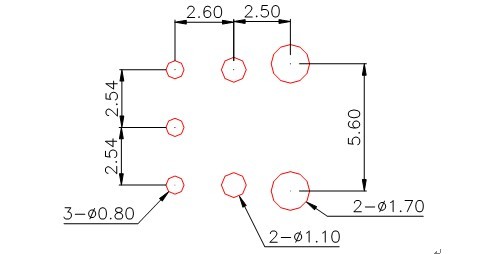

PCB Layout For Electrical Circuit
Notes:
1. Unit:mm
2. Unspecified tolerance: ±0.3mm
3.Substrate Thickness:1.6mm
Precautions for Using Method
1.Connect a by-pass capacitor (0.1uF) close to the DLT2160A within 7 mm of the unit
lead frame.
2.Take proper electrostatic-discharge (ESD) precautions while handling these devices.
These devices are sensitive to ESD.

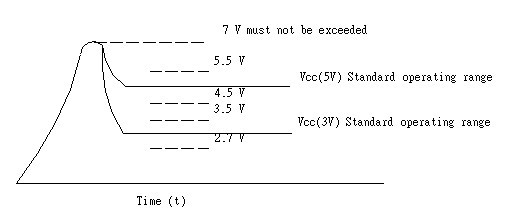

- 1. Please follow the conditions described in the diagram below.
Package
|
Item |
Quantity |
Total |
Size(long*width*high) |
|
Tray |
100 |
100 pcs |
13.5*27*1.8cm |
|
Inner box |
20 tray/box |
2000 pcs |
29*29*18.5 cm |
|
Outer box |
2 inner box/outer box |
4000 pcs |
60*31*21.8 cm |
