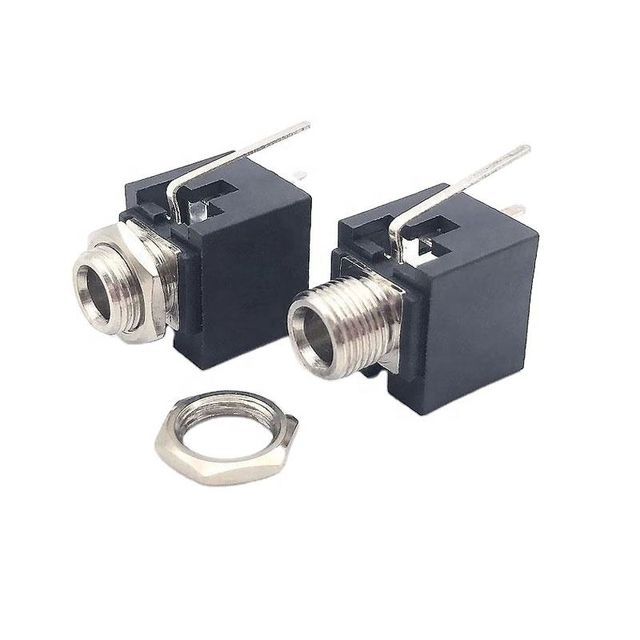

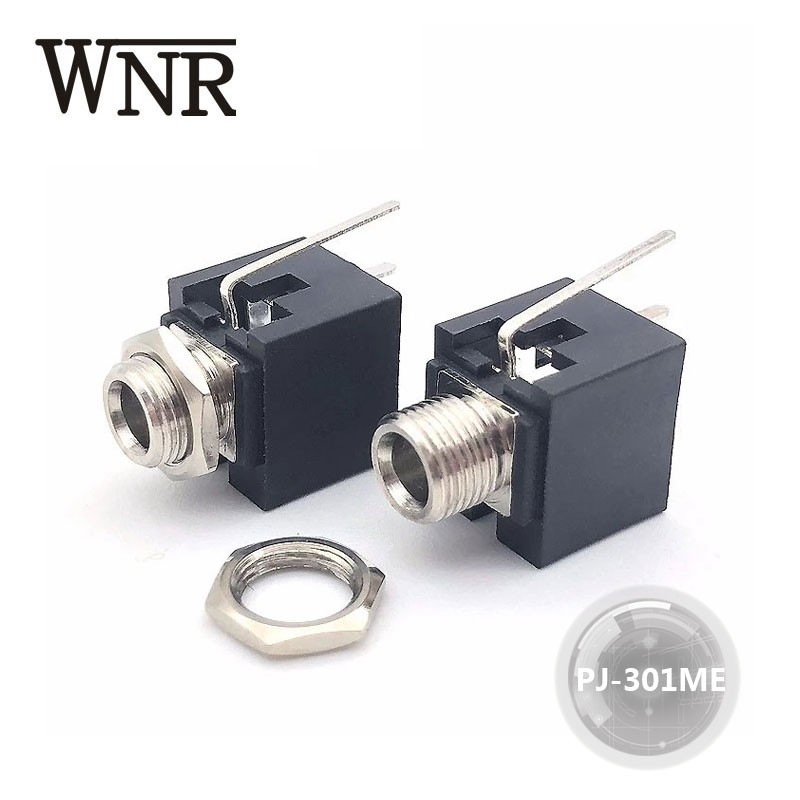

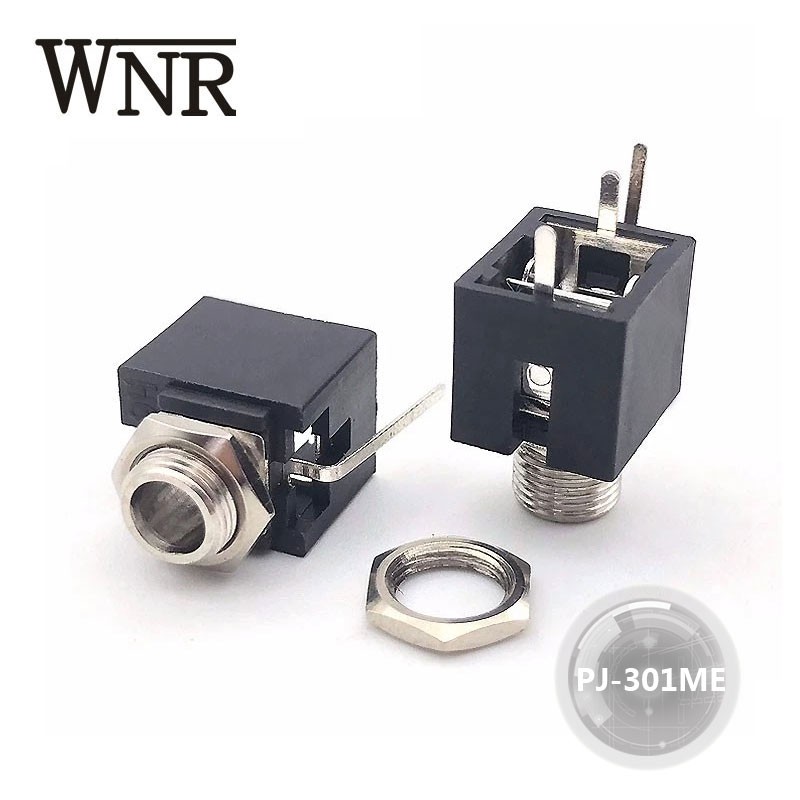

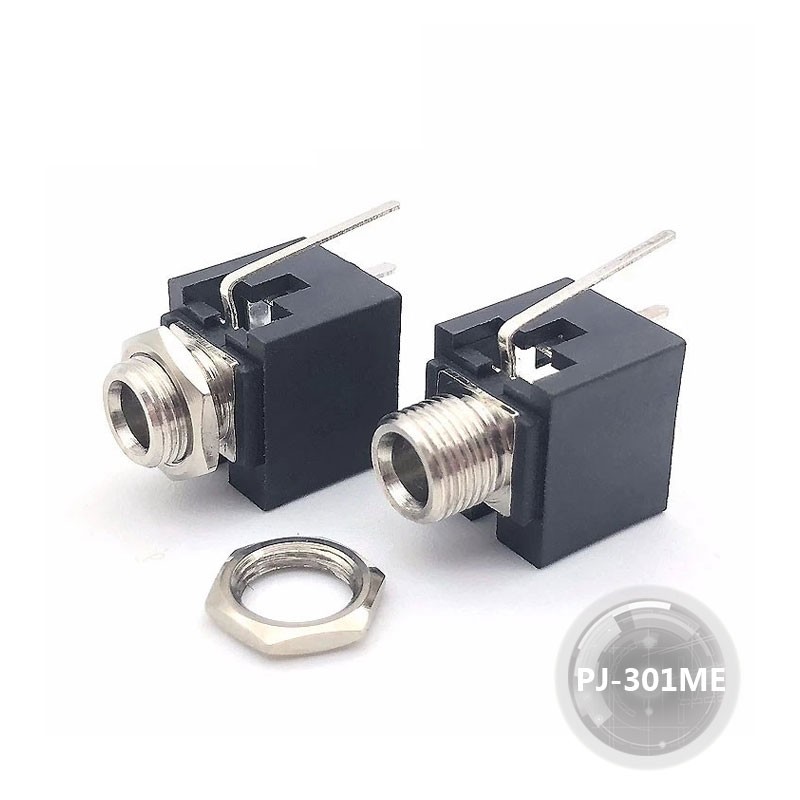

PJ-301ME 1/8" 3.5mm Audio Jack Vertical Female Phone Jack Connector
- $0.09 / >=100 pieces
- 100 pieces
- Yueqing Weinuoer Electronic Technology Co., Ltd.
- Zhejiang, China
- Ms Zhou Grace
PRODUCT DETAIL
| type: | PCB Mount | Contact resistance: | ≤0.03Ω |
| model: | PJ-301ME | payment terms: | L/C, D/P, T/T, Western Union, MoneyGram, PayPal |
| port: | Ningbo/Shanghai/Shenzhen | Model: | PJ-301ME |
| brand: | WNRE | gender: | female |
| Packaging Details: | Packing 1: Neutral Packing: Plastic Bag + Inner Box + Carton Bulk Packing Bulk Packing: 500pcs/bag 2: According to customer requirements | Origin: | Zhejiang, China |
| Rated current: | 0.5A | Supply capacity: | 100000pcs 3-pin audio jack per day |
| Pressure resistance: | AC 500V(50Hz)/min | Rated voltage: | DC 30V |
| application: | circuit board | product name: | 3.5 mm phone jack |
Why choose us
phone jack
Item name | 3.5 mm phone jack | brand | WNRE |
model | PJ-301ME | pin | 3 pins |
housing | PA66/PBT/ABS | Material | copper/iron, plastic |
Insulation resistance | ≥100MΩ | temperature | -30~70℃ |
withstand voltage | AC500V(50Hz)/minute | specified load | DC 30V 0.5A |
Contact resistance | ≤0.03Ω | OEM/Design and Manufacturing | Yes |
driving force | 3~20N | Life | 5000 cycles |
MOQ | 1k items | port | Ningbo/Shanghai/Shenzhen |
