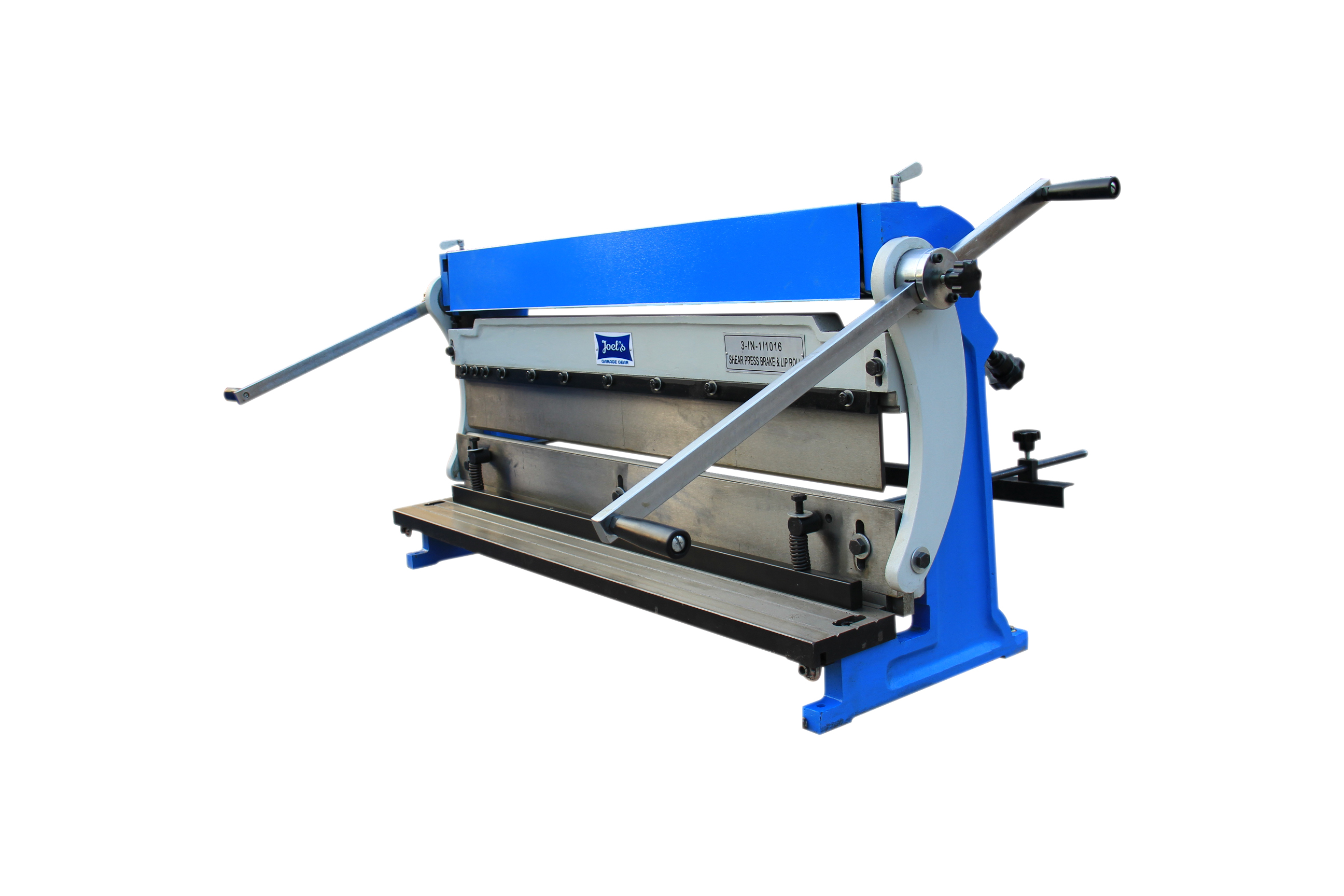

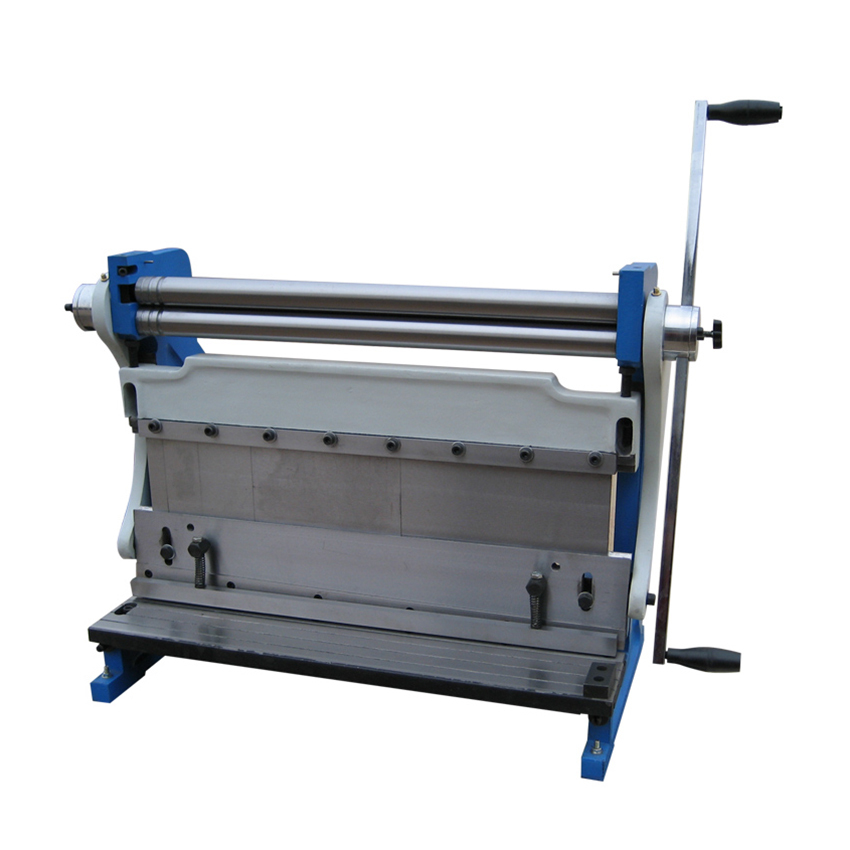

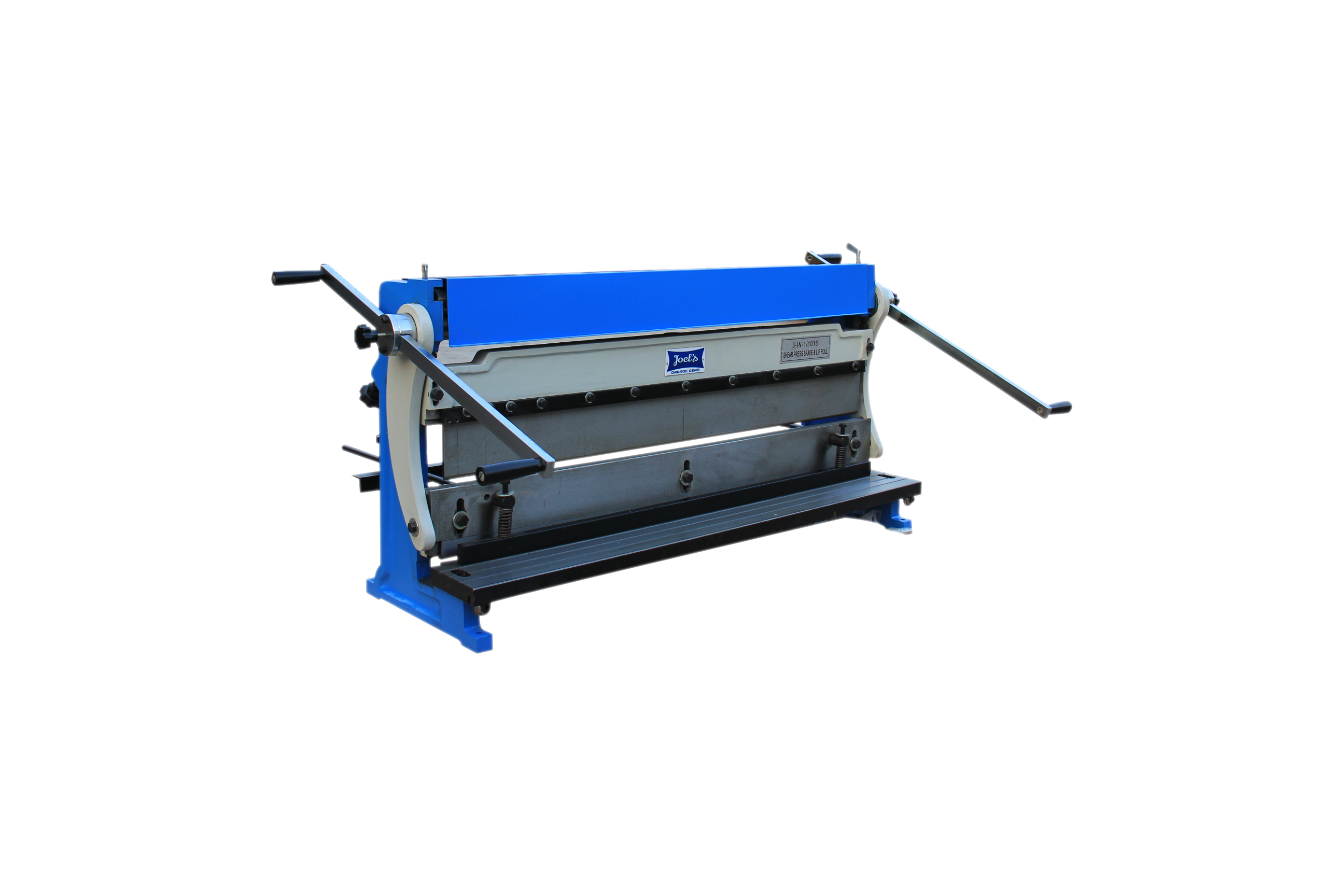

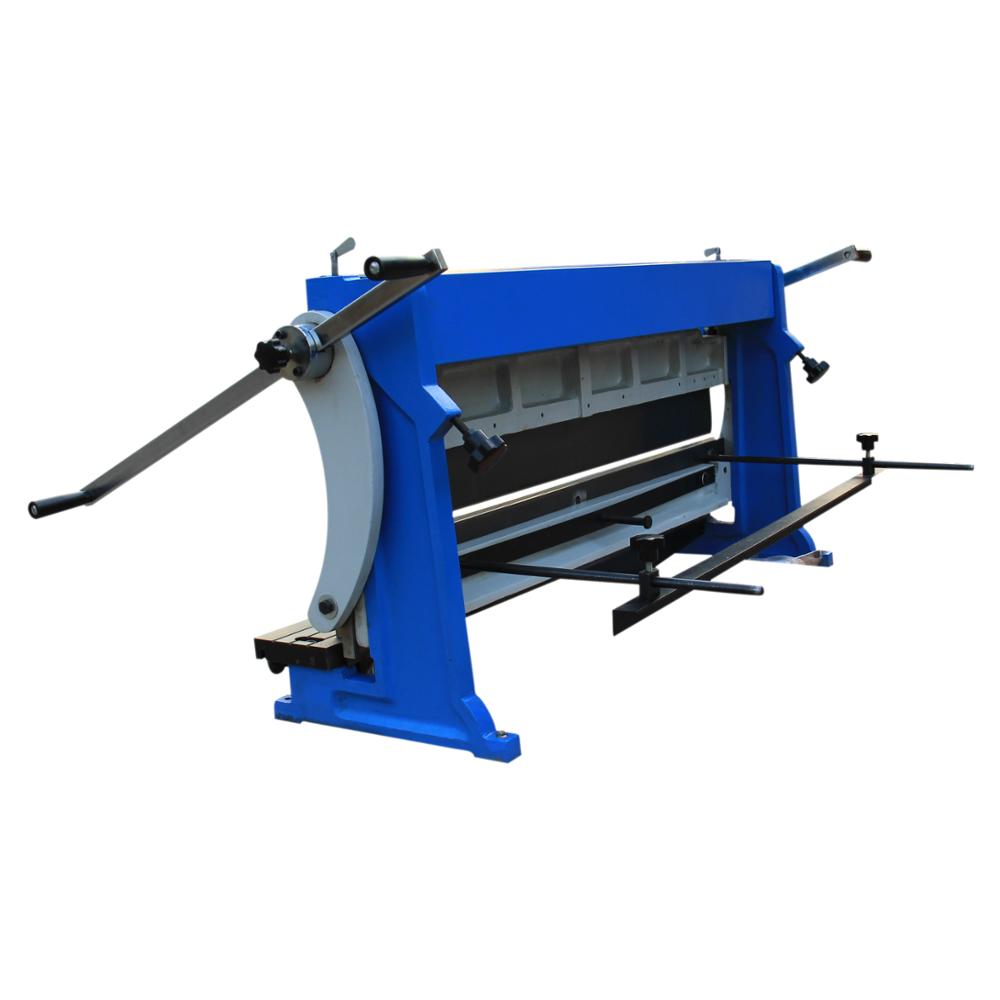

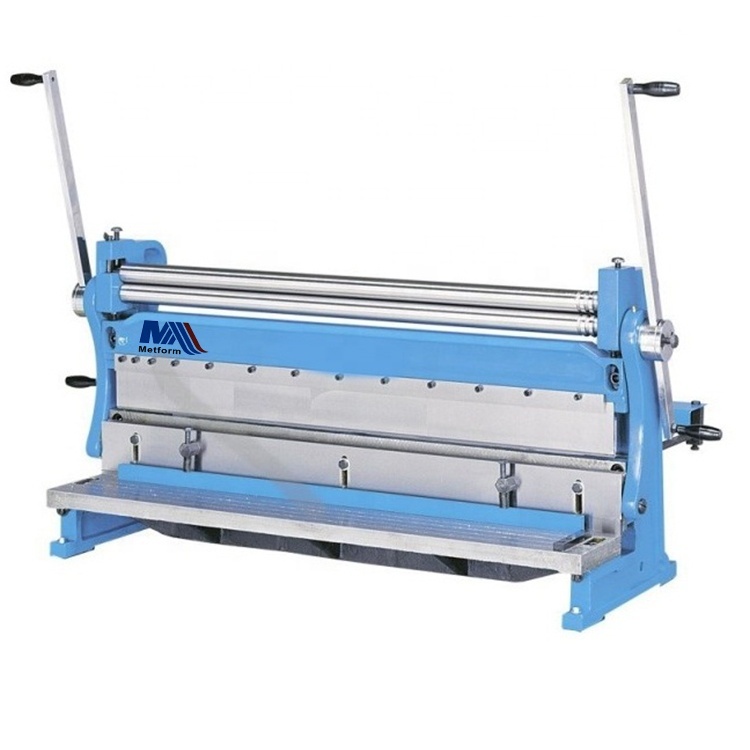

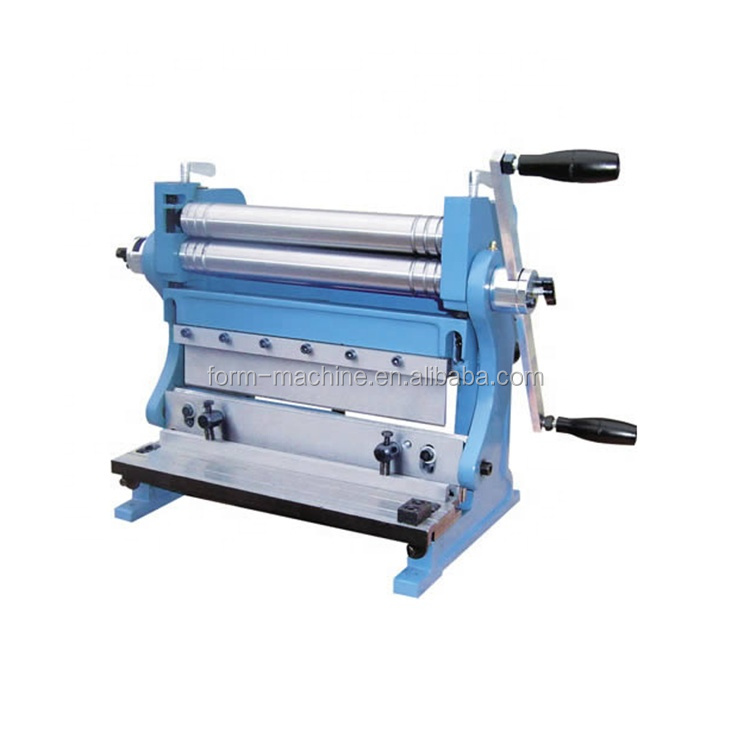

3 in 1 manual shearing and bending machine, cheap price
- $1400.00 / 1 - 1 sets
$1300.00 / 2 - 19 sets
$1000.00 / >=20 sets - 1 set
- Metform (Shanghai) Machinery Co., Ltd.
- Shanghai, China
- Mr Chartter Xu
PRODUCT DETAIL
| payment terms: | letter of credit wire transfer | brand: | Transformers |
| port: | Shanghai | brand: | Transformers |
| Health status: | new | maximum. Cutting Thickness (mm): | 1.5mm |
| Video external inspection: | if | place of origin; place of origin: | China Shanghai |
| Marketing Type: | normal product | After-sales service provided: | Engineers can repair machinery overseas |
| Applicable industries: | Building material stores, mechanical repair shops, food and beverage factories, construction works | Power (kW): | 0kW |
| Dimensions (L*W*H): | 840x460x670mm | Warranty: | 1 year |
| type: | shearing machine | product name: | Slide Roller Bending Machine |
| Blade Length (mm): | 1320 mm | Core Components Warranty: | 1 year |
| Packaging Preview: | Auto level: | manual | |
| Mechanical test report: | if | Supply capacity: | 1000 sets/month sliding roller bending machine |
| Voltage: | 0 | payment terms: | L/C,Western Union,T/T,MoneyGram |
| type: | FM-2.5*1300 | Packaging Details: | Sea shipping packing single rolling machine |
| maximum. Cutting width (mm): | 1300 | Showroom location: | not any |
| Throat depth (mm): | 80 mm | place of origin; place of origin: | Shanghai, Songjiang |
| port: | Shanghai | Weight (kg): | 530kg |
| Core components: | bearing | Main selling point: | competitive price |
Product Description
3IN-1/3053IN-1/305
lSheet metal processing combination machine
Machined to a cut stop of 305mm in length and 1.0mm in thickness
39mm diameter roll bend begins
maximum fold. 90" angle
Adjustable rear stop
Detachable male and female molds
Back gauge standard equipment
with two position handle
Cut mild steel or equipment
Bending machine - bending box and translation work
Segmented fingers allow box and panning to work
Cut mild steel or equipment
Bending machine - bending box and translation work
Segmented fingers allow box and panning to work
Sliding Roller with Forming Groove
Overloaded
Back gauge standard equipment
Back gauge standard equipment
with two position handle
Combined shear gate and rolling in one
Combined shear gate and rolling in one
Compact machines with capacities up to 1 . 5mm
Model | maximum. Rolling thickness (mm) | maximum. Shear thickness (mm) | diameter. Volume (mm) | Bed width(mm) | Maximum bending angle | Net weight/GW(kg) |
3 in 1 1/305 | 1 | 1 | 39 | 305 | 90° | 43/45 |
3 in 1 1/610 | 1 | 1 | 39 | 610 | 112/123 | |
3 in 1 1/760 | 1 | 1 | 39 | 760 | 136/153 | |
3 in 1/1016 | 1 | 1 | 40 | 1016 | 195/212 | |
3 in 1/1067 | 1 | 1 | 42 | 1067 | 276/297 | |
3" 1.5/1067 | 1.5 | 1.5 | 50 | 1067 | 390/440 | |
3 in 1/1320 | 1 | 1 | 60 | 1320 | 349/377 | |
3" 1.5/1320 | 1.5 | 1.5 | 60 | 1320 | 470/530 |
