Metal recycling line Siemens motor scrap metal shredder Kobe Steel
- $5000.00 /set
- 1 set
- Wuxi Dura-Shred Recycling Technologies Co., Ltd.
- Jiangsu, China
- Mr Manfred Dong
| After-sales service provided: | On-site installation, commissioning and training; | Final product size: | chopped chips; |
| payment terms: | L/C, D/P, T/T, Western Union, MoneyGram; | weight: | 6300 kg; |
| Blade diameter: | 754 mm; | type: | shearing machine; |
| Processing material: | metal/aluminum, etc.; | Warranty: | 1 year; |
| State of health: | new; | Small blade: | 40 mm; |
| Cutting room: | split room; | Serve: | good service; |
| Dimensions (L*W*H): | 4092*1416*2163; | control: | Automatic PLC; |
| Supply capacity: | 5 sets per month; | Voltage: | According to the customer's request; |
| Certification: | ISO & CE; | environment: | Environmental friendly; |
| Applicable industries: | mechanical repair shop; | Large blade: | 75 mm; |
| Origin: | Jiangsu, China; | Main selling point: | automatic; |
| color: | custom made; | rated power: | 22kW*2; |
| brand: | Dura shreds; |

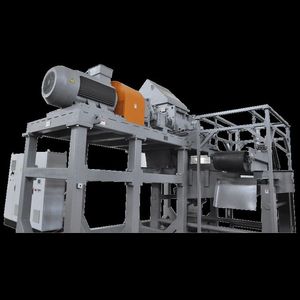

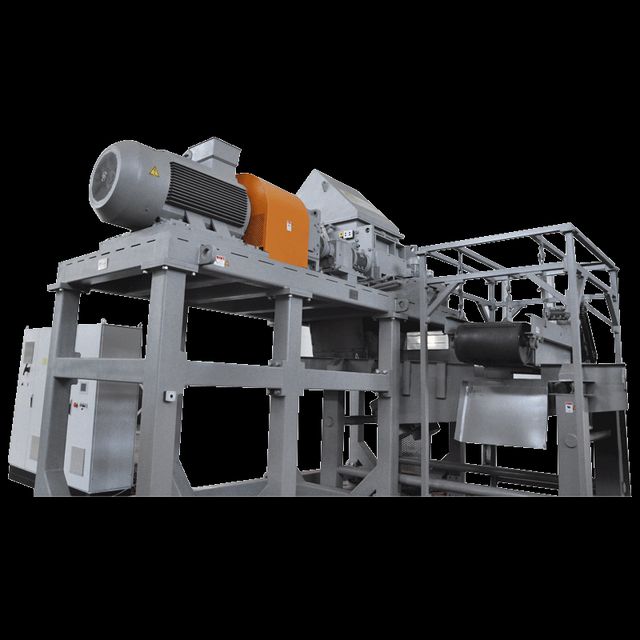

Dura-Shred Metal Shredding System:
Engineered with American technology by our American technology company, with aggressive low-rpm, high-torque shredding technology.Each axle is driven by its own Siemens motor, giving it enough power to drive tires and thick steel balls.Shredder blade thicknesses range from 25mm to 152mm (1”-6”) depending on metal type, yield and desired end product.
The metal shedding machine we designed is energy saving, low noise, automatic at normal temperature, quality assurance, equipped with the best equipment such as Siemens motor and FAG bearing, controlled by Siemens PLC, SKD-11 steel heatingwrap body.
This shredding mechanical system we makeKobe SteelBased in Japan, one of the world's largest Fortune 500 companies, we helped design this shredding system that shreds scrap metal and then melts it again to make new metal.
Equipment Specifications
| metal shredder | TSD2471 | TSD1663 | TSD1651 | TSD1347 | TSD1340 | TSD1332 | TSD832 |
Motor Specifications | 2*Siemens Electric | 2*Siemens Electric | 2*Siemens Electric | 2*Siemens Electric | 2*Siemens Electric | 2*Siemens Electric | 2*Siemens Electric |
| strength | 55kW*2 | 45kW*2 | 37kW*2 | 22kW*2 | 22kW*2 | 15kW*2 | 7.5Kw*2 |
cutting room L*W(mm) | 1804*1410 | 1604*858 | 1304*858 | 1204*686 | 1004*686 | 804*686 | 804*460 |
Equipment size L*W*H(mm) | 5876*2310 *3493 | 5464*2624 *3040 | 4280*2206 *2492 | 4092*1416 *2163 | 3892*1416 *2163 | 3327*1030 *2075 | 2796*1256 *2311 |
| equipment weight | 22400Kg | 13700Kg | 12500Kg | 6300Kg | 5800Kg | 4700Kg | 2000Kg |
Hopper opening L*W*H(mm) | 3711*2438 *1046 | 2835*1628 *770 | 2335*1628 *770 | 1521*1416 *685 | 1321*1416 *695 | 1120*1257 *800 | 1120*1256 *800 |
| Product size (mm) | 100-50mm | 100-50mm | 100-50mm | 100-50mm | 100-50mm | 100-50mm | 100-50mm |

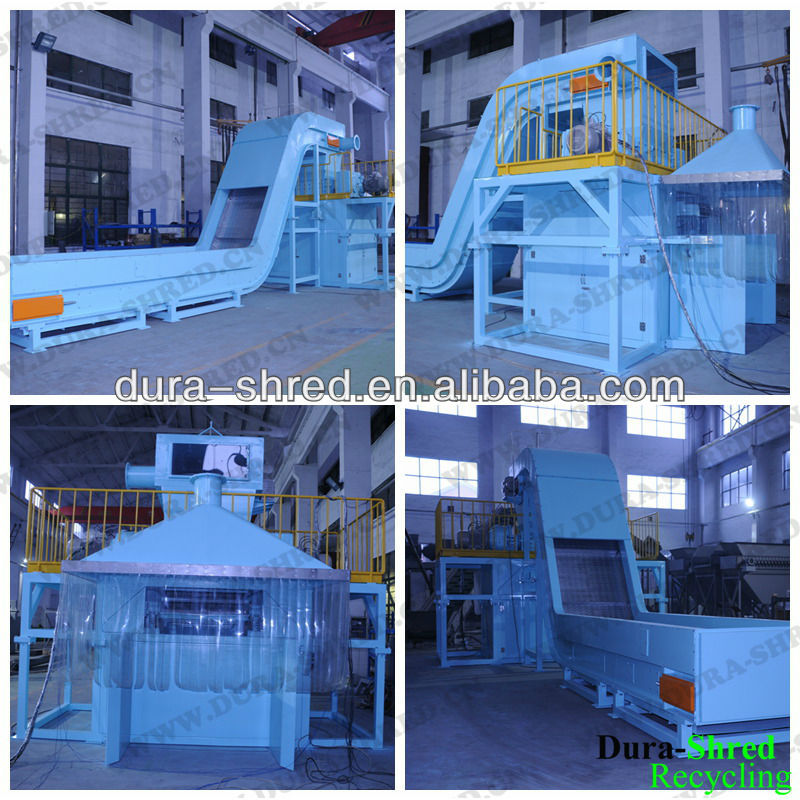

Workshop metal shredding system:

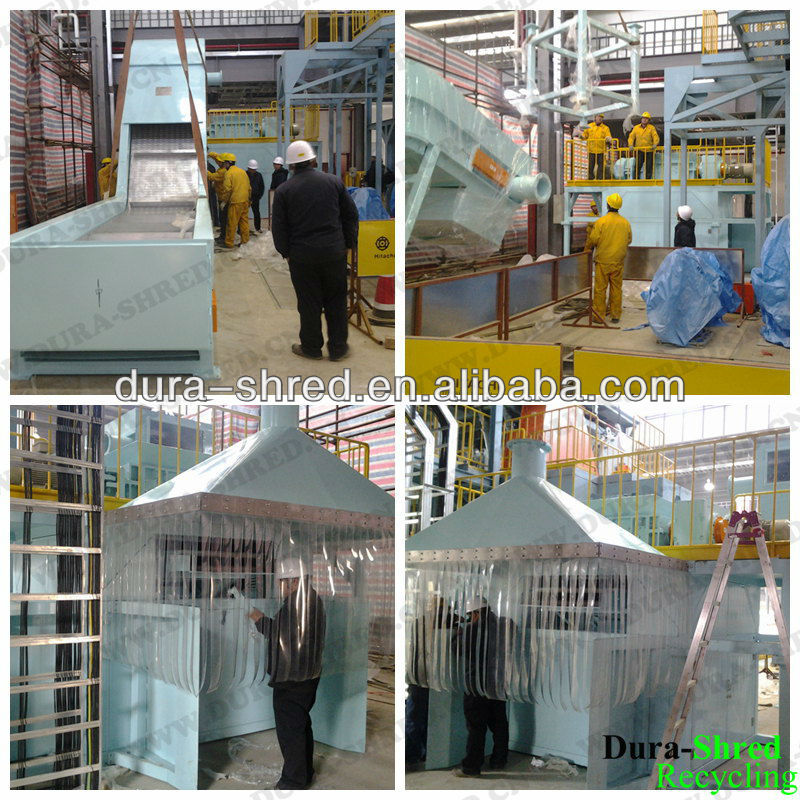

Kobe Steel Works Metal Crushing System:
Advantages of Dura-shred
- Exclusive Control System - Controls and operates the entire plant from a central location and provides instant visibility into what each machine is doing in real time.
- Uniq stop/auto reverse function --- prevent overfeeding and damage to unprocessable items.
- Advanced Bearing Housing --- Isolates the bearing from cutting chamber contamination, preventing bearing failure.
- Premier Full Turnkey Systems --- Factory manufactured, shipped, installed and ready to begin recycling.
- Warranty --- One of the best warranty services in the industry.
If you have any questions, please feel free to ask us!
