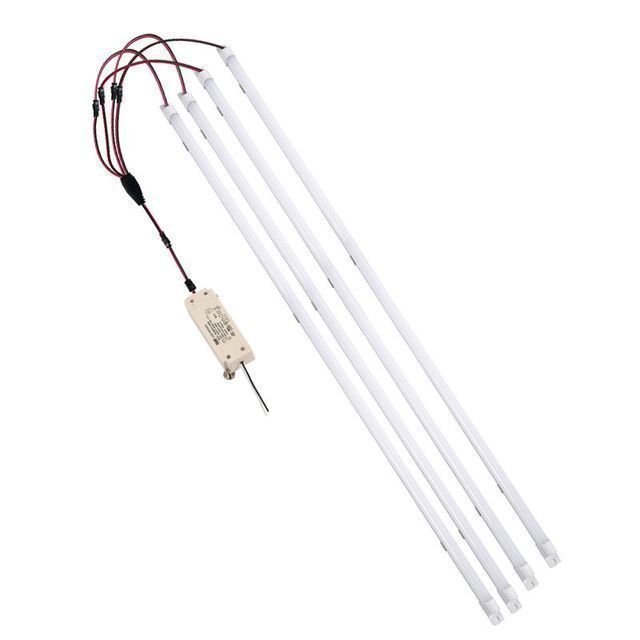

4 Feet 4 Strips 72w High Lumen High Output Magnetic Mount LED Retrofit Kit Replacement Fluorescent LED Light Bar Retrofit Kit
- $24.50 / 1 - 99 sets
$24.00 / 100 - 499 sets
$23.50 / 500 - 999 sets
$23.00 / >=1000 sets - 1 set
- Tiosl Technology (Shenzhen) Co., Ltd.
- Guangdong, China
- Ms Patricia Feng
PRODUCT DETAIL
| application: | Business and Industry | Warranty Period (Years): | 5 years |
| place of origin; place of origin: | Guangdong, China | port: | Shenzhen |
| Intellectual property level: | IP20 | Supply capacity: | 80000 sets per month |
| Working life (hours): | 50,000 | type: | LED Magnetic Retrofit Kit |
| Color rendering index (Ra>): | 80 | model: | Ark/DT/73K40D412(13D) |
| brand: | ark | Voltage: | 120-277V |
| Warranty: | 5 years | Working temperature (℃): | -20 ~40 |
| Lamp luminous flux (lm): | 9350 | Body material: | personal computer |
| Dimming: | 0-10V dimming | payment terms: | L/C,Western Union,T/T |
| light source: | lead | Lighting Solutions Services: | Project installation |
| Certificate: | ETL DLC CE | Packaging Preview: | |
| Key words: | Magnetic LED Light Bar Kit | Certification: | ETL and DLC |
| installation method: | Magnetic quick installation | Input voltage (V): | 120-277V |
| Light Efficiency (lm/w): | 130 | Color temperature: | 3000K 4000K 5000K |
| Packaging Details: | 100pcs LED strip kits per case, 50pcs LED drivers per case | Watts: | 72W (with 4 strip kits) |
| Color Temperature (CCT): | 4100K (neutral white) | Power factor: | >0.9 |
Product Description
High output 130-140lm/w, lower power consumption, environmental protection and simple magnetic installation.
Optional with PC cover and without cover;
With 0-10V dimming and non-dimming optional.

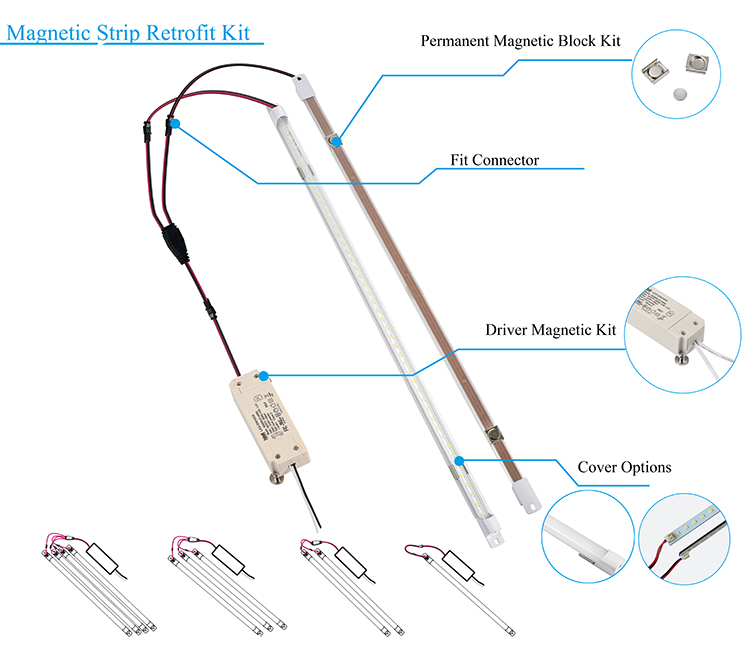

detailed picture

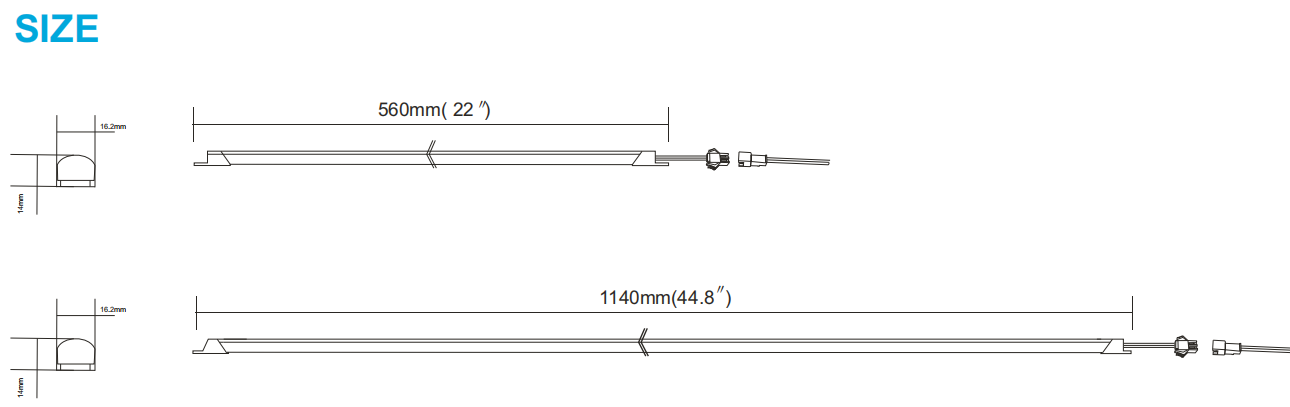

Product parameters
Groove | part number | Watts (per bar) | Watts (multiple bars) | CCT | color rendering index | output | Dimmable |
2x4 | Ark/48KxxD412(13N) | 12w | 48w- 4 strips | 4000K | >80 | 6700 lumens | non-dimming |
2x4 | Ark/48KxxD412(13D) | 12w | 48w-4 strips | 4000K | >80 | 6700 lumens | 0-10V dimmable |
Frosted cover 130lm/w, without cover 140lm/w

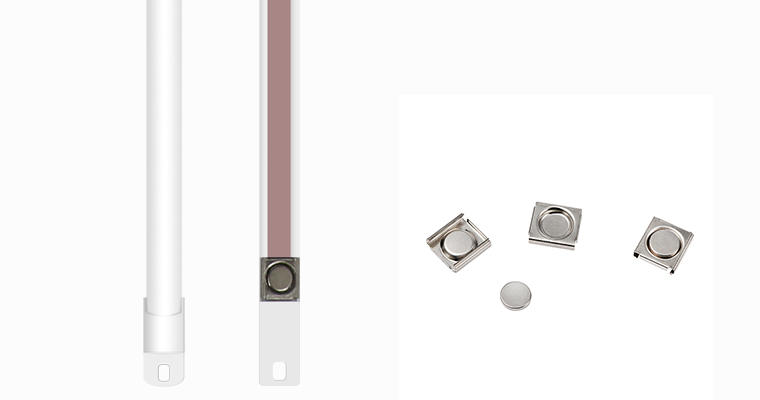

Magnetic quick installation

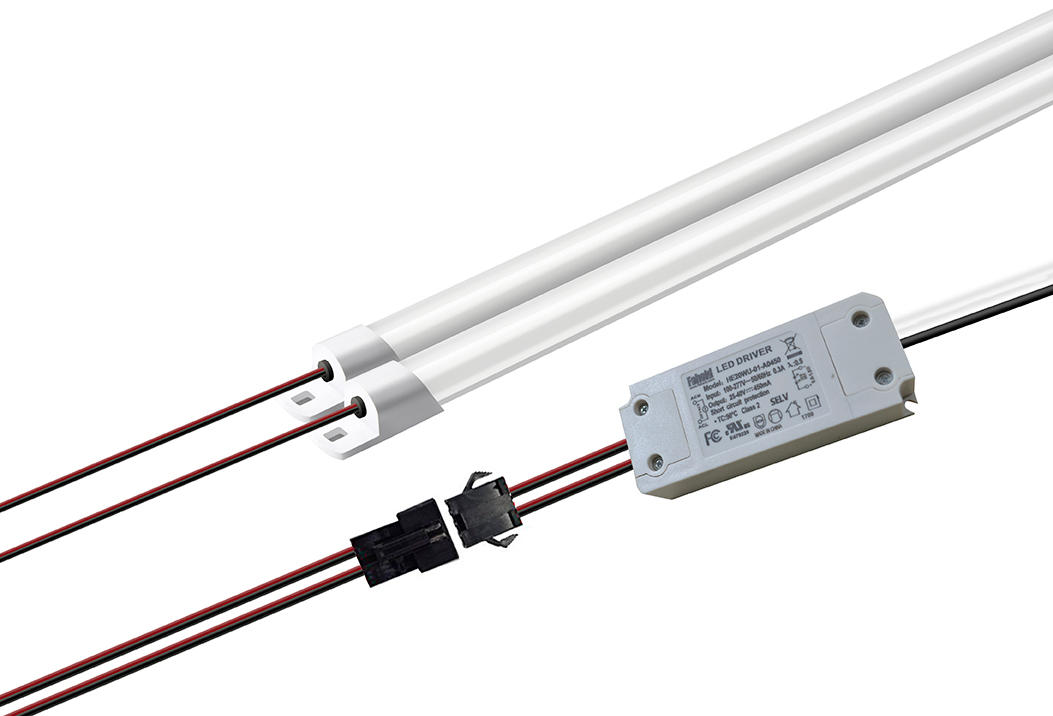

LED drivers also come with magnets
Class 2 LED driver with 0-10V dimming or non-dimming

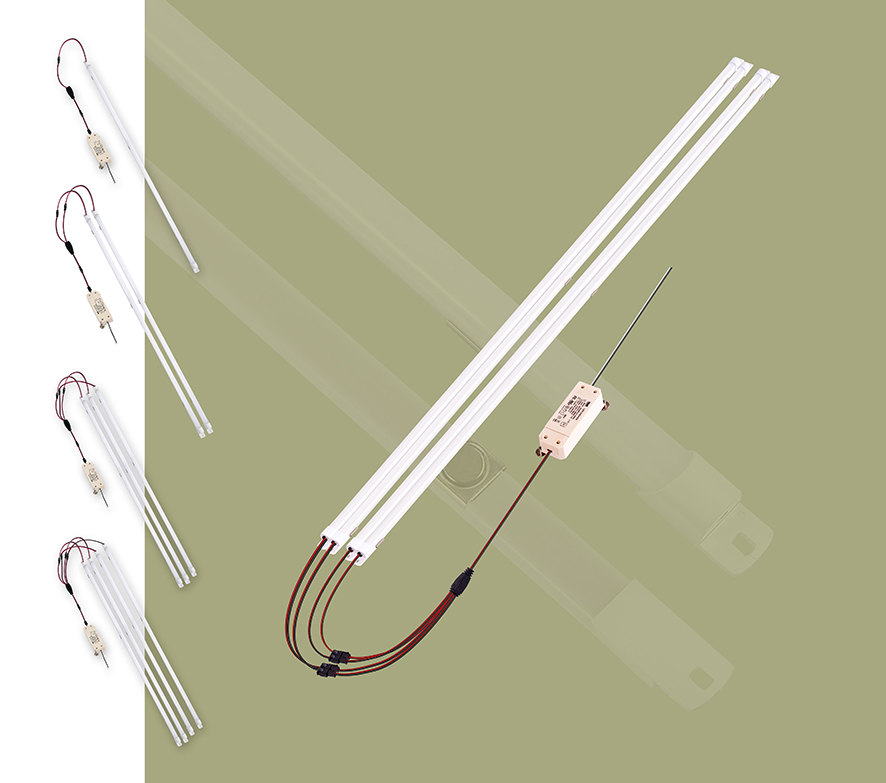

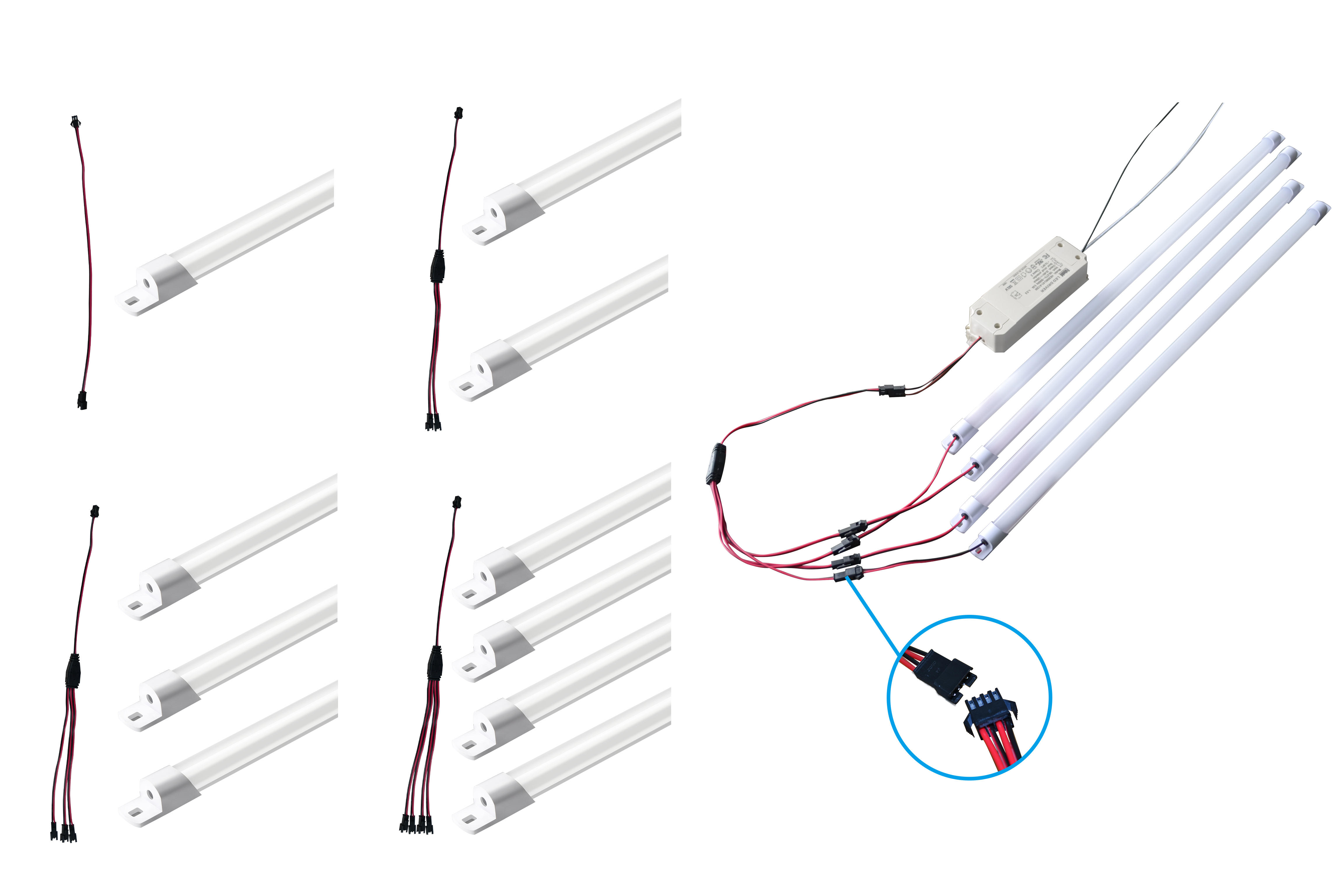

1/2/3/4 strip kit optional
4ft group power from 12w to 72w

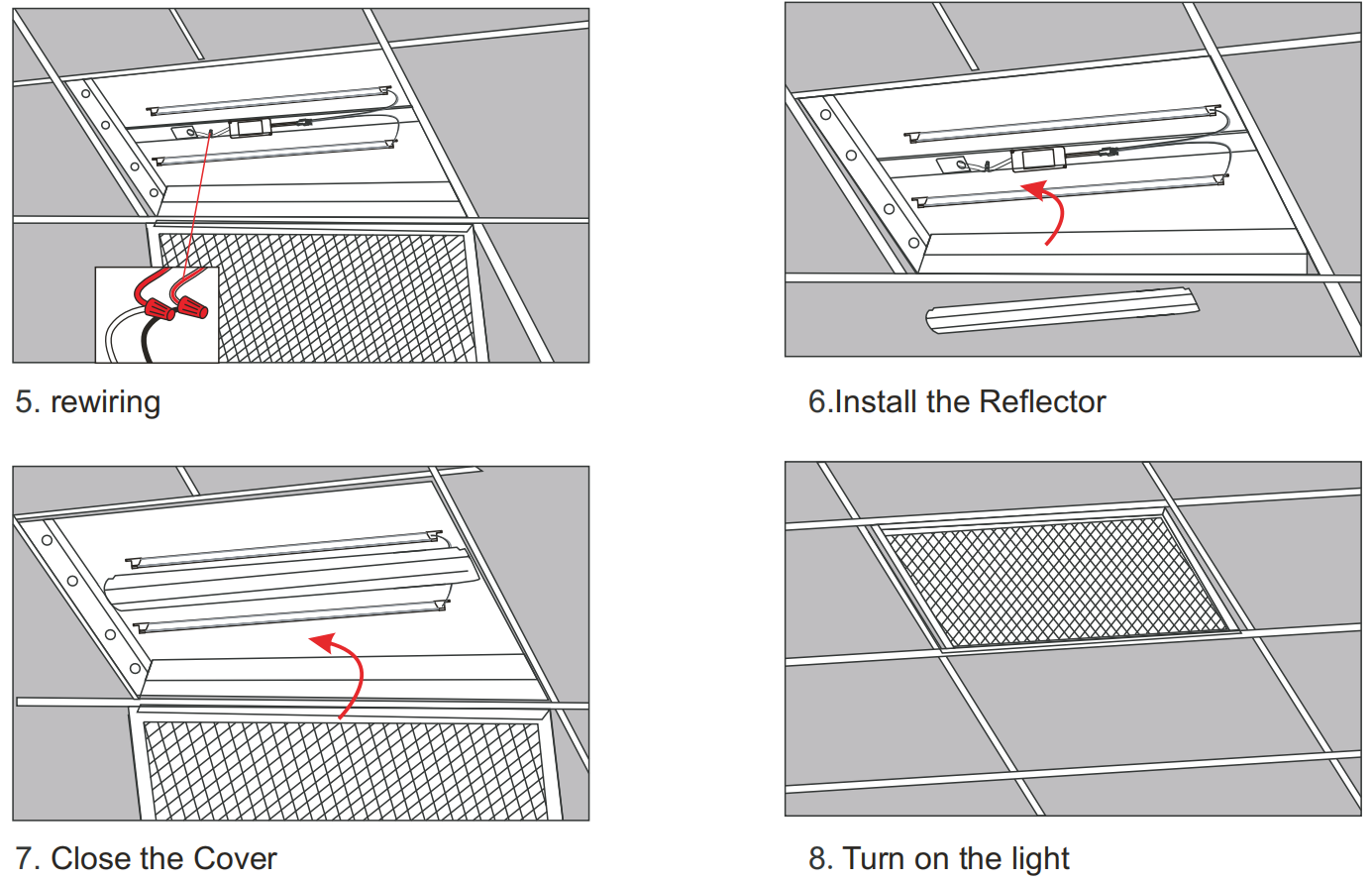

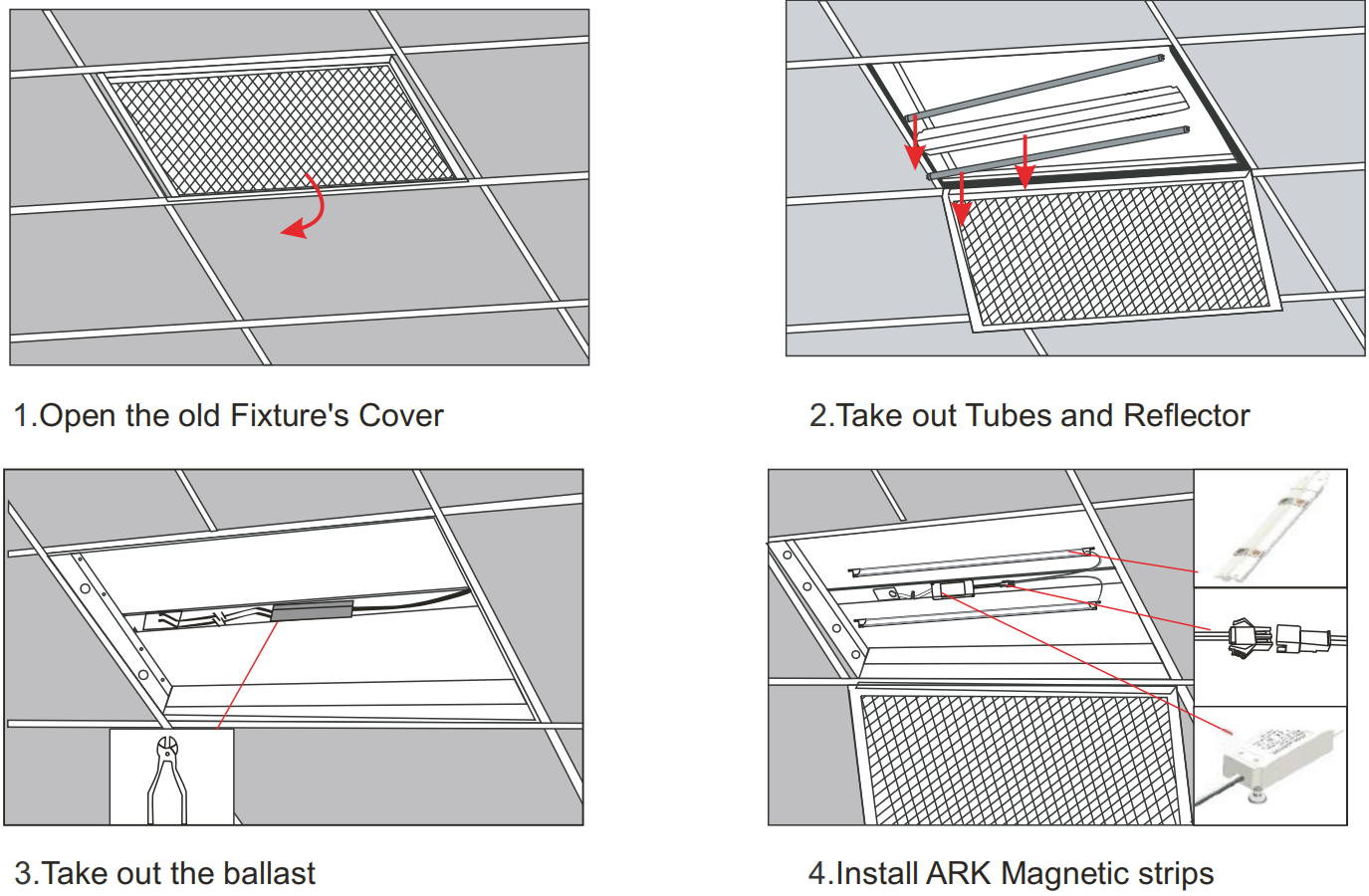

Installation Notes

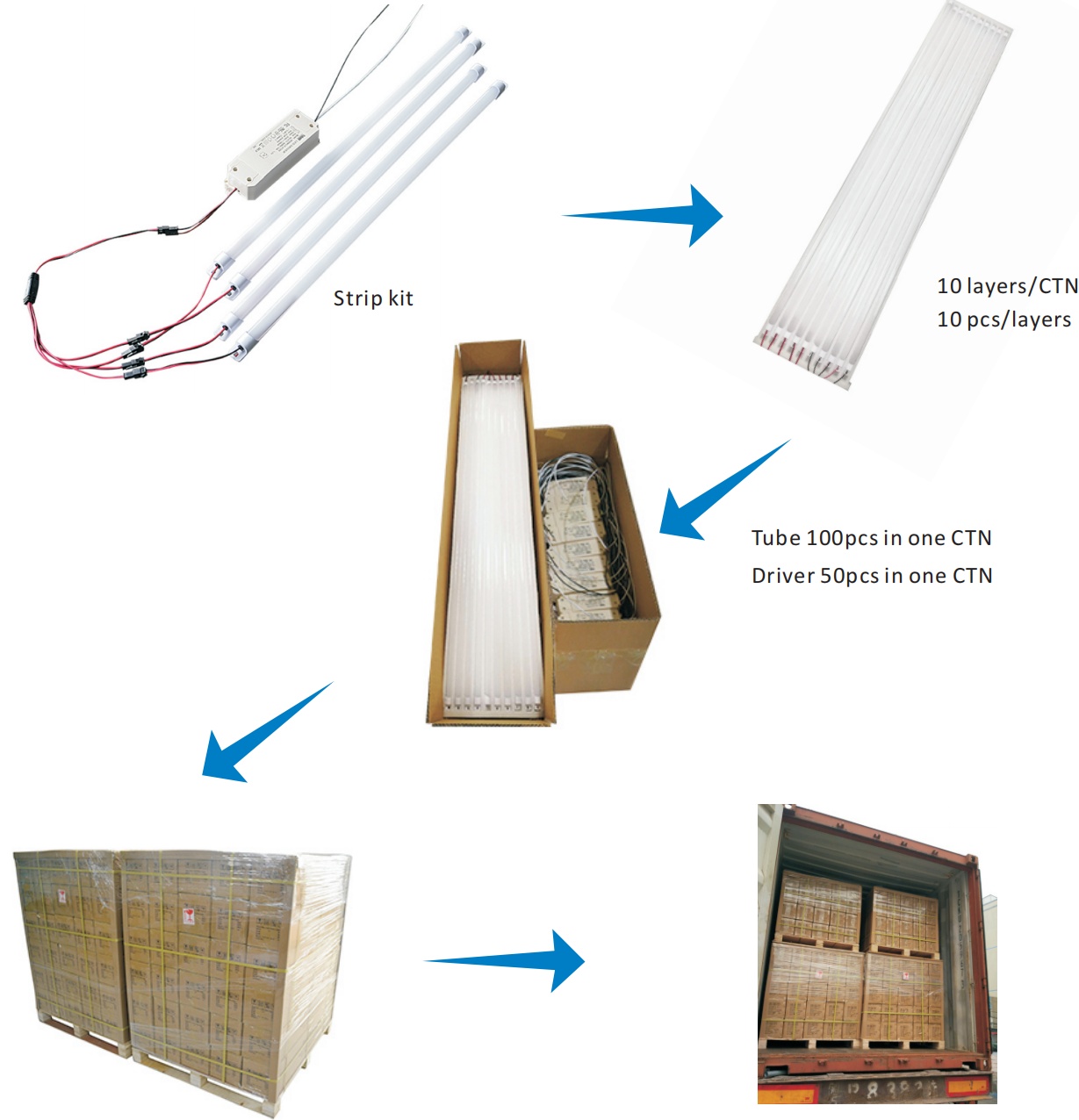

Product packaging
100 LED strip kits per case, 50 LED drivers per case
