DLC Premium ETL cETL 10 year warranty LED Kit Retrofit Light 100w
- $58.64 / 1 - 999 units
$57.03 / 1000 - 2999 units
$55.69 / >=3000 units - 1 unit
- Gi Lighting Tech Shenzhen Ltd.
- Guangdong, China
- Ms Windy Peng
| product name: | LED light retrofit kit 100w | alternatives: | 75-1000W MH/HPS/HID/Mercury bulb |
| Supply capacity: | 40000pcs per month LED light retrofit kit 100w quick sample available. | driver: | meaning is |
| chips: | Nichia | type: | LED light retrofit kit 100w |
| efficiency: | 124.7lm/W-131.8lm/W | L70 Lifespan: | 100000 |
| Certification: | DLC, ETL, cETL, CE, RoHS | humidity: | 0-99% |
| Input voltage: | AC100-277V; 347-480V | Shipping Details: | Shipped within 6 days after payment |
| Optional power: | 30W/45W/60W/75W/100W/120W/150W/200W/280W/320W/350W | power: | 5 years for LED driver, 10 years for LED first |
| payment terms: | wire transfer |

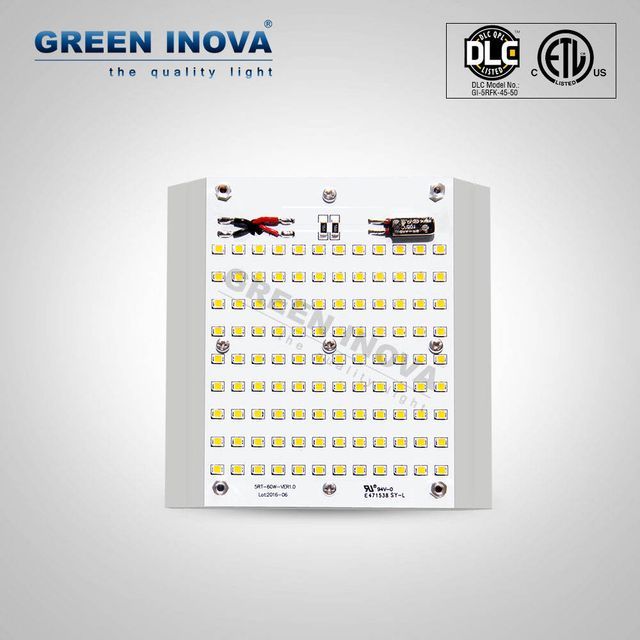

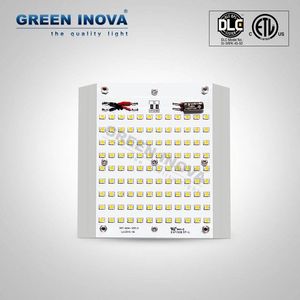

LED retrofit kit
DLC ETL cETL LED Light Retrofit kit 100w Spec Sheet:
| Output, 5000K (lm) (in fixture) | |
| 70000 hours | |
Different Size DLC ETL cETL LED Light Retrofit Kit 100w:

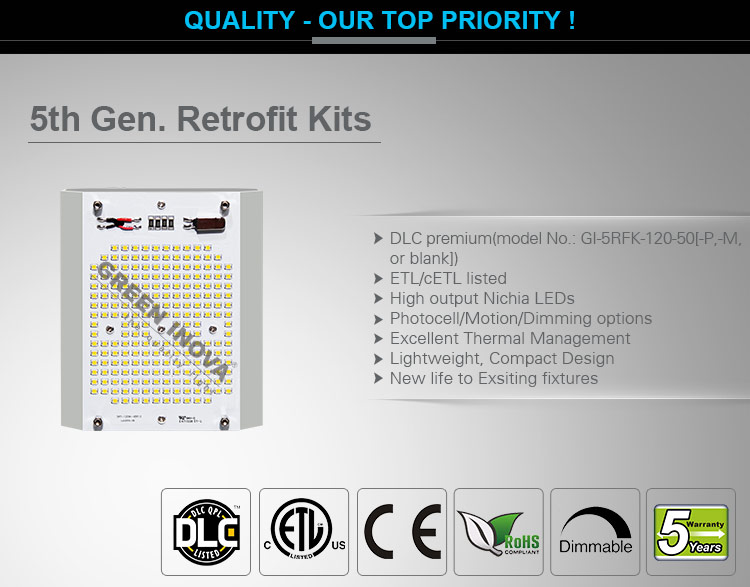

Features of DLC ETL cETL LED Light Retrofit Kit 100w:
1).Utility model and product appearance patents.
2). This is the lowest total cost solution, they can replace existing metal halide or high pressure sodium bulbs, the old housings will be reused. The overall cost is significantly lower than using a new complete LED fixture.
3). Utilizes patented technology for industry-leading thermal management
4). Working temperature range: 35 degrees Celsius to 70 degrees Celsius.
5). The LED retrofit kit does not contain any mercury or lead.
6). Does not produce ultraviolet rays that harm human eyes.
7). Directional light means no light pollution, in line with dark sky
8).Fast and safe installation method.

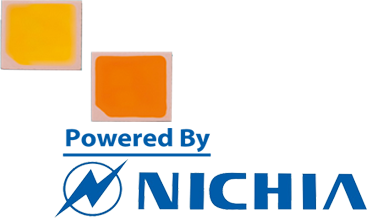

The latest Nichia technology chip
1. L90 has a long lifespan: Adopting Nichia's latest LED technology, the lifespan of L90 is 60% longer than that of Philips 3030 LED.
2. Imported directly from Nichia, Japan
3. Super high light efficiency.
4. Designed with proprietary LM-80 binned LEDs specifically rated for higher thermal performance, providing uniform color consistency.
5. To make the colors more consistent, we always use the exact same container for all lights in a single project. We fine-tune the binning.

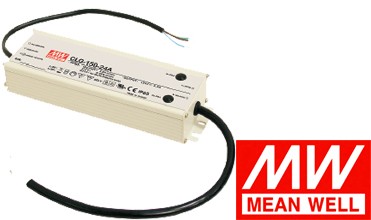

true average drive
One of our subsidiaries is a Mean Well Distributor, giving us access to a quality source of Mean Well Drives.

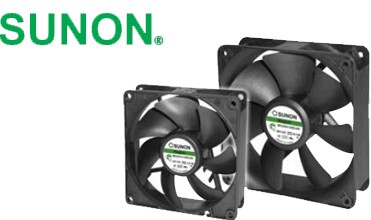

Sunon Fan Technology
1. The unique built-in fan (fan) design makes the structure more uniform.
2.Smaller size, almost zero noise.
3. 70,000+ hours lifespan suitable for 24/7 operation, provides exceptionally cool running LED unit, efficiently transfers heat from the heat sink to the outer surface.

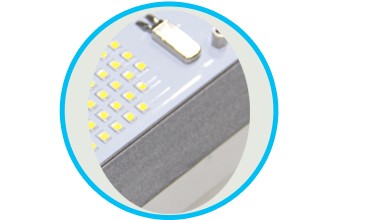

New patented heat sink design
1. Use AL6063 material with high structural strength.
2. Low profile heat sink design, more slim.
3. The outer surface of the heat sink is smooth and more beautiful.
How to install DLC ETL cETL LED Light Retrofit kit 100w into a conventional luminaire?
All models install in as little as 4 minutes. (Note: Ask a licensed electrician for installation.)
1). Remove the plastic cover from the LED head.
2). Remove existing component reflectors and ballasts inside the fixture.
3). Put the driver where the ballast was before.
4). Install the pre-assembled bracket to the fixture.
5). Fix the conversion kit to the pre-installed bracket.
6). Connect the wires.

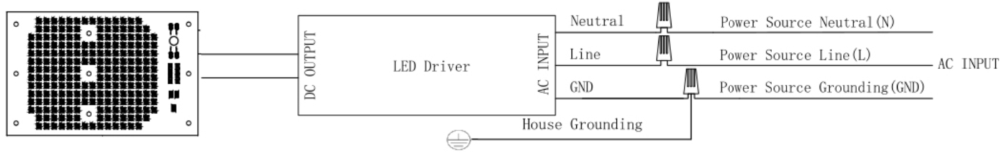

Wiring for DLC ETL cETL LED Light Retrofit Kit 100w.
1). Install the LED driver instead of the ballast.
2). Connect the input source to the LED driver. The correct AC input connection on the drive is marked on the drive. There is ground, ACN (neutral) and ACL (line). VERY IMPORTANT: Make sure the wiring is properly grounded.
3). Connect the output wire of the driver to the input wire of the LED head: Make sure to connect the red wire of the driver output to the red wire of the LED head, and connect the black wire of the driver output to the black wire of the LED head.
4). Reassemble the rest of the fixture and restore power.
5). Never dim a non-dimmable LED driver. Not suitable for emergency exits.

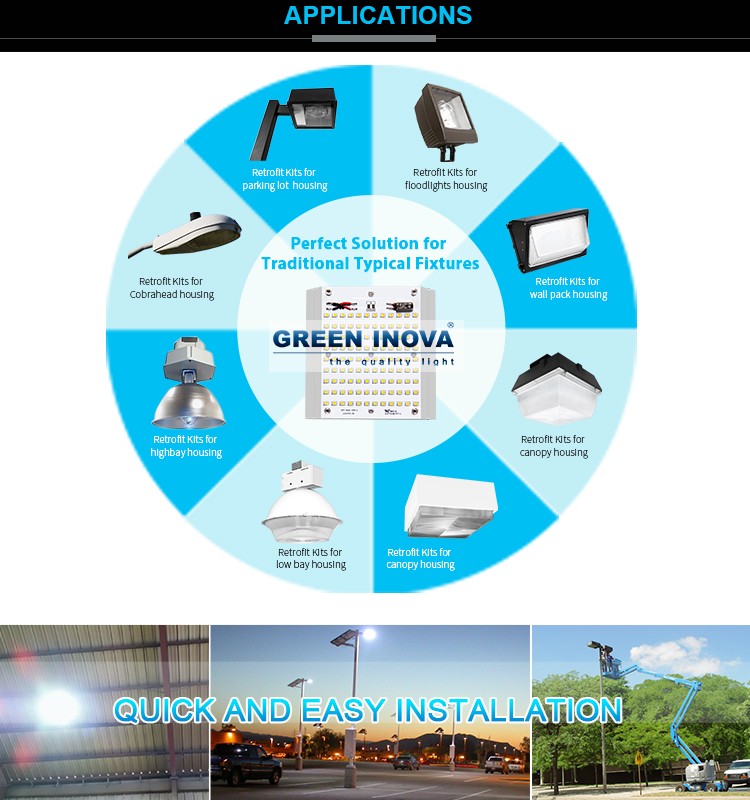

LED retrofit kits are widely used to replace MH/HPS bulbs, mercury bulbs and incandescent bulbs…
Here are some fixtures that could use a retrofit kit, but are not limited to: street light fixtures, high bay fixtures, canopy fixtures, wall mount fixtures, parking lot fixtures, high pole light fixtures...

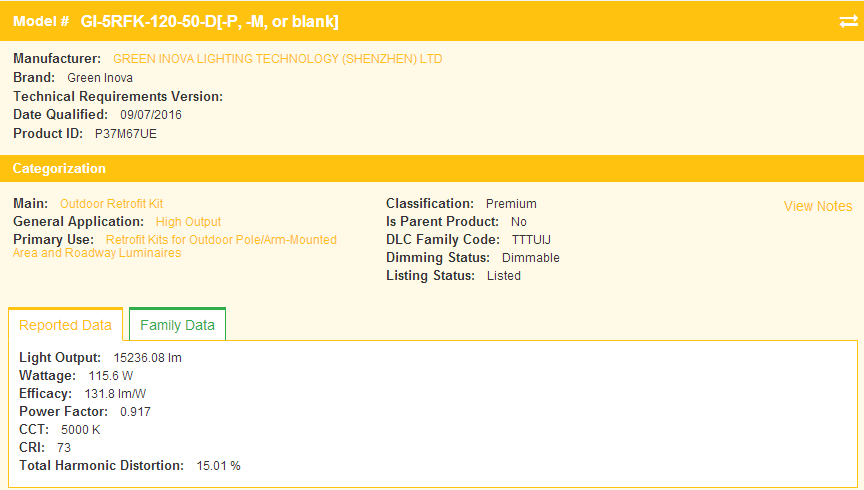

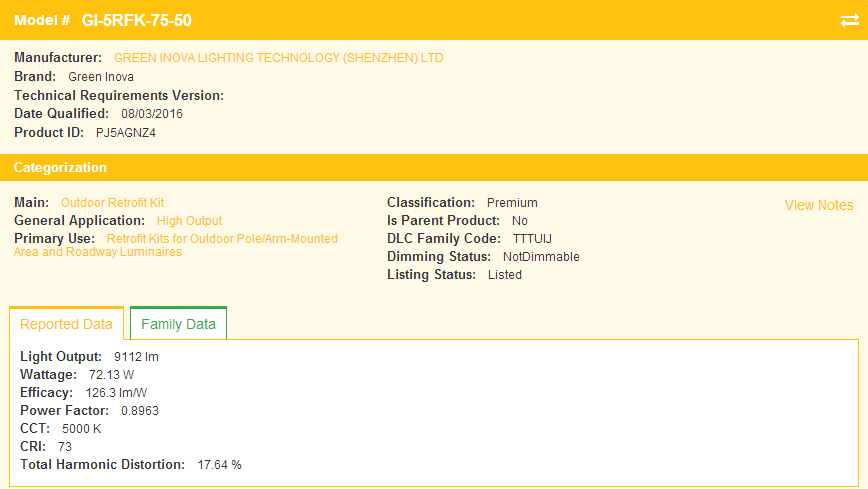

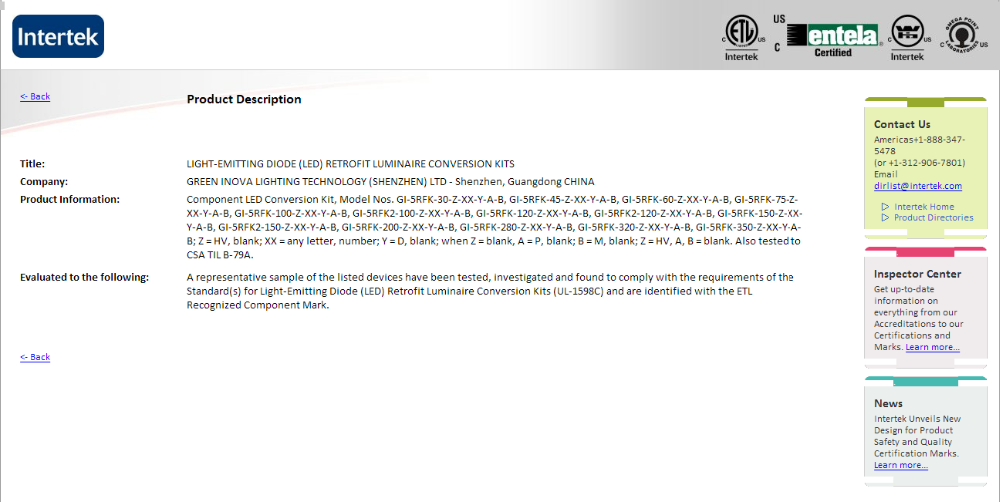

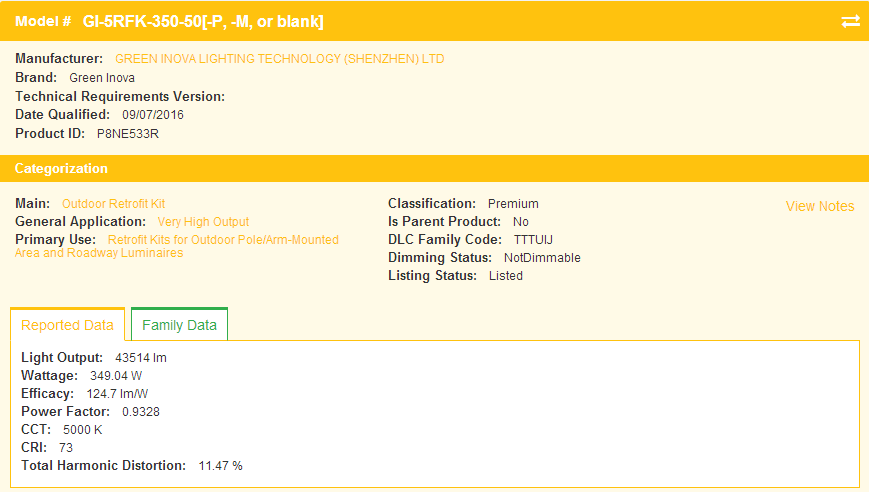

We have about 600 UL cUL items, over 400 DLC items (eg: 4BL45L50X1P) and counting. 98% of our products have passed UL, cULs, ETL, cETL, Energy Star, DLC, CE, ROHS, SAA certificates.
They also have different tests like LM79, LM80, IES files etc. We are committed to providing our customers with high-tech LED lighting with excellent quality and affordable price.

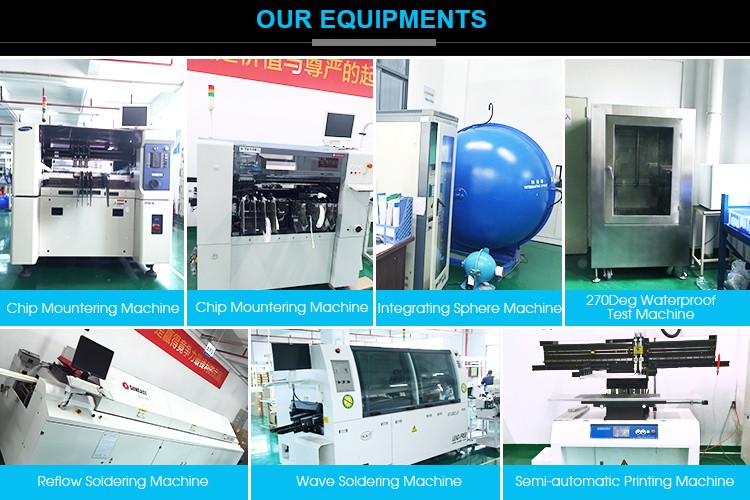

Quality Control Center
1. The strictest selection of raw materials. 2.100% incoming inspection.
IPQC
1. Test all PCBs after energizing and soldering.
2. Integrating sphere test
3. Waterproof test
4. Cooling effect test.
5. 100% 48 hours aging test (72 hours for high voltage products).
QC
1. 100% visual inspection
2. 100% label inspection
3. 100% functional inspection
Green Inova is an innovative, dynamic and dynamic company, established in 2007, has been a leader in LED lighting manufacturing and marketing. Our specialty is in manufacturing LED lighting products including LED retrofit kits, LED wall sconces, LED ceiling lights, LED shoe boxes, LED IP65 high bay lights, LED flood lights, new LED PL G24 lamps and bulbs, LED post top retrofit kits and LED Signage Retrofit Kit, LED Low Priofile LED Canopy, LED Barn Light etc.
We are the first company in China to start manufacturing LED wall lights, LED canopies and LED retrofit kits, and have obtained about 40 utility model patents. Our LED G24 lights are also upgraded to a whole new level, and have obtained utility model patents and product appearance patents. The new heat dissipation technology makes the actual life of the lamp more than 50,000 hours. We have been making the most reliable products in these fields.
1. Customized service can be provided as required. OEM/ODM available.
2. R&D and sales engineers with more than 8 years experience will provide the best lighting solution for the project.
3. Best after-sales service: track customer usage in time, collect information for improvement, and deal with problems quickly within 48 hours.
4. Quick technical support and maintenance.
