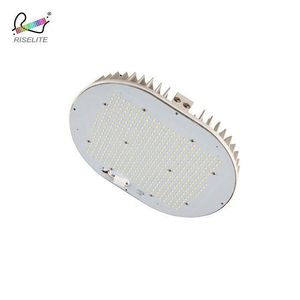

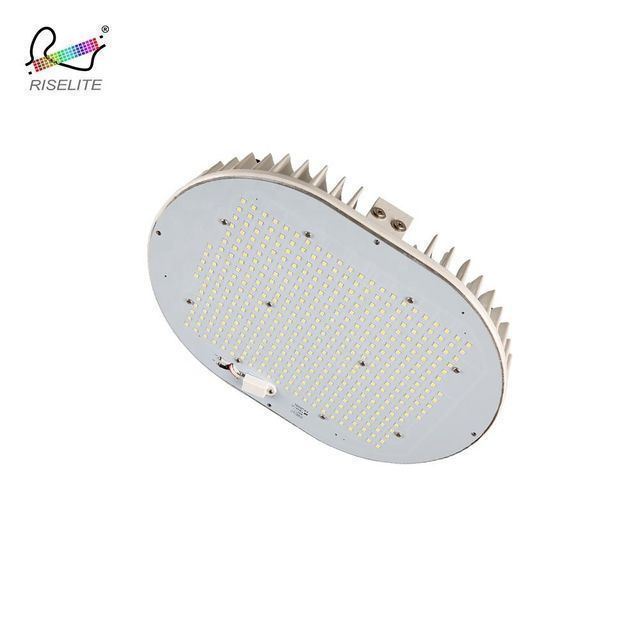

480W shoe box parking lot street light LED retrofit kit to replace 1500w halogen light
- $213.00 / 2 - 99 pieces
$211.00 / 100 - 499 pieces
$209.00 / >=500 pieces - 2 pieces
- SHENZHEN BINGXIA TECHNOLOGY CO., LTD
- Guangdong, China
- Ms Diana Wang
PRODUCT DETAIL
| Material: | Aluminum + tempered glass | Supply capacity: | 5000 samples available per day |
| product name: | led shoe box transformation | Lighting Solutions Services: | DIALux evo layout,Agi32 layout,auto CAD layout |
| place of origin; place of origin: | Guangdong, China | Certification: | UL ETL CE ROHS |
| Color Temperature (CCT): | 3000K-6500K | input power: | 30W/60/80W100/120/150/180/240w/480W |
| Lamp luminous flux (lm): | 16000 | type: | LED Retrofit Kit |
| Input voltage (V): | 100-480 | Color rendering index (Ra>): | 70 |
| Intellectual property level: | IP65 | Light Efficiency (lm/w): | 125 |
| brand: | Reslater | Warranty Period (Years): | 5 |
| Working life (hours): | 60000 | Working temperature (℃): | -30+50 |
| port: | Shenzhen | model: | RL-RTK-480W |
| light source: | lead | Beam Angle: | 120 |
| power supply: | alternating current | payment terms: | L/C,Western Union,T/T,T/T 30% |
480W shoe box parking lot street light LED retrofit kit to replace 1500w halogen light
Product Description
|
IP65 |
alternating current 100-480V |
hertz 50/60 |
PF >0.98 |
color rendering index >75 |
temperature -30~50° |
life 60600 hours |
Equivalent Watts 100-1500W MH |
| describe |
- 1. Patented LED protector
- 2. MEAN WELL Dimming Driver
- 3. Dimming: 1-10DC/PMW/resistor (3IN 1)
- 4. Super bright LED lumen: 110-140lm/w
- 5. DC 48V fan and lamp design, less heat.
- 6. Bigger Sunon fan to keep LEDs cool
- 7. Provide AC100-277V and AC200-480V kits
- 8.Unique LED protector turns power down or down based on internal temperature.
 |
input wattage | 30W 45W 60W 65W | size |
| Lumen (lm) | 2900lm-7200lm |
Size 1# Φ120 High: 62 (mm) |
|
| Efficacy (lm/W) | 110-140lm/w | ||
| dim | Φ120*H62mm | ||
| CCT | 4100K 5000K 5700K | ||
| Equivalent Watts | 80-200W MH | ||
| power factor | 0.99 | ||
| operate. Voltage | AC100-277Vac.AC200-480Vac | ||
| Warranty | 5 years |
 |
input wattage | 80W 100W 120W 150W | size |
| Lumen (lm) | 9000lm-20000lm |
Size 2# L180*W140*H78 (mm)
|
|
| Efficacy (lm/W) | 110-140lm/w | ||
| dim | L180*W140*H78mm | ||
| CCT | 4100K 5000K 5700K | ||
| Equivalent Watts | 300-600W MH | ||
| power factor | 0.99 | ||
| operate. Voltage | AC100-277Vac.AC200-480Vac | ||
| Warranty |
5 years |
 |
input wattage | 185W 200W 240W | size |
| Lumen (lm) | 1300lm-26000lm |
Size 3# L265*W160*H79 (mm)
|
|
| Efficacy (lm/W) | 110-140lm/w | ||
| dim | L180*W140*H79mm | ||
| CCT | 4100K 5000K 5700K | ||
| Equivalent Watts | 500-700W MH | ||
| power factor | 0.99 | ||
| operate. Voltage | AC100-277Vac.AC200-480Vac | ||
| Warranty |
5 years |
 |
input wattage | 300W 320W 370W 450W | size |
| Lumen (lm) | 35000lm-48000lm |
Size 4# L320*W237*H85 (mm) |
|
| Efficacy (lm/W) | 110-140lm/w | ||
| dim | L320*W237*H85mm | ||
| CCT | 4100K 5000K 5700K | ||
| Equivalent Watts | 1000-1500W MH | ||
| power factor | 0.99 | ||
| operate. Voltage | AC100-277Vac.AC200-480Vac | ||
| Warranty | 5 years |
