5"---9 5/8" Retrievable Hydraulic Hydraulic Seal Packer

PRODUCT DETAIL
type:PackerPressure resistance:10000psi
port:Tianjin/Qingdao/ShanghaiShell Dimensions:5"---9 5/8"
Certificate:API 11Dpayment terms:L/C, T/T
Packer seal hole:2.56--4.75 inchesproduct name:5"---9 5/8" Hydraulic Retrievable Hydraulic Seal Hole Packer
Supply capacity:100 sets per monthPackaging Details:Wooden packing or according to customer's requirement
Shipping Details:7--15 days after remittanceTypical ID via seal:1.937-3.000
Case weight:18--47 lbsproperty:Corrosion resistance
Outer diameter:3.938--8.465 inchestemperature:normal



product description

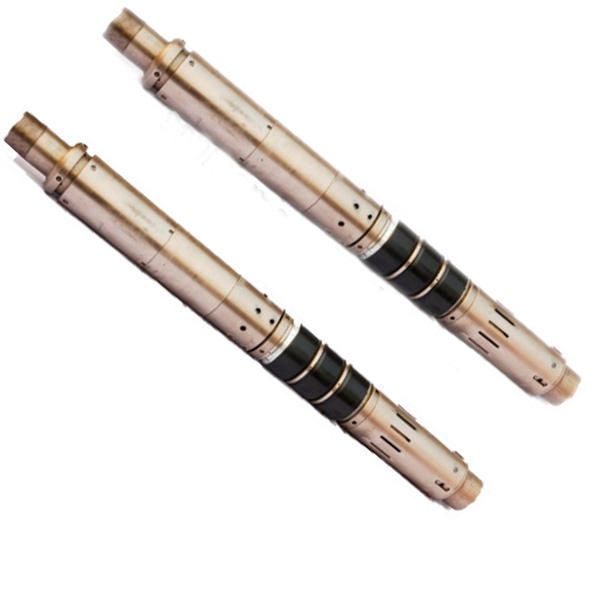

5"---9 5/8" Hydraulic Retrievable Hydraulic Seal Hole Packer





Retrievable hydraulic seal hole packers are retrievable packers. hydraulic method

Set by the pressure in the pipe. It operates and completes recovery using hydraulic setting tools

Independent of the tubing, use recovery tools operating on the workstring.

This packer is ideal for highly deviated wells both onshore and offshore.



application:



The ERD type retrievable hydraulic seal hole packer can be used in oil production wells or water or gas injection wells.



advantage



Features, Advantages and Benefits:



.Run and setup with production tubing.

.Hydraulically setup eliminates spacing and opening and closing requirements

A sliding sleeve aids in fluid displacement.

Effects on the tubing (compression and tension) are transferred to the slips - no shear rings

Limit these stresses.

.Use retrieval T001 to retrieve independently of the pipeline. It can be raised downhole with a bypass plug in the nipple to isolate the formation.

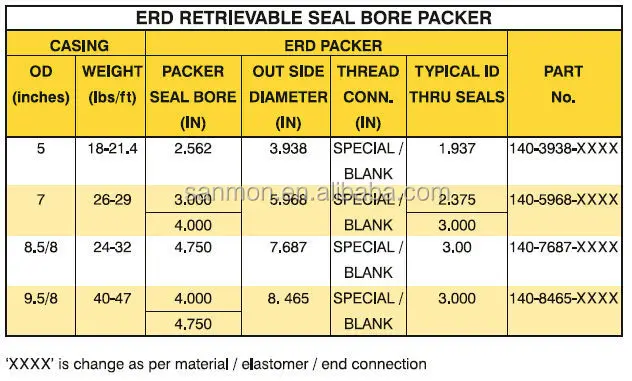

size

Size display:



We can provide the following sizes or special designs according to customer requirements.



Any questions or requests, please feel free to contact us. Your problem is our job.
