Polymer degradable material bridge plug

PRODUCT DETAIL
Operating temperature:60/80/100/120/150℃Degradation time:15-25 days
Supply capacity:1000 sets per monthName:Frac plug
Material:Soluble materials, polymer degradation materials, high-strength ceramicsfeature:efficient
port:chongqingsurroundings:hydraulic
application:Shale gas exploration, horizontal wells, highly deviated wellsPackaging Details:Plywood carton
Function:balerpayment terms:Letter of Credit, T/T, Western Union, MoneyGram
type:Downhole toolsWorking pressure:70Mpa/10,000psi
Outer diameter:95mm - 146mm

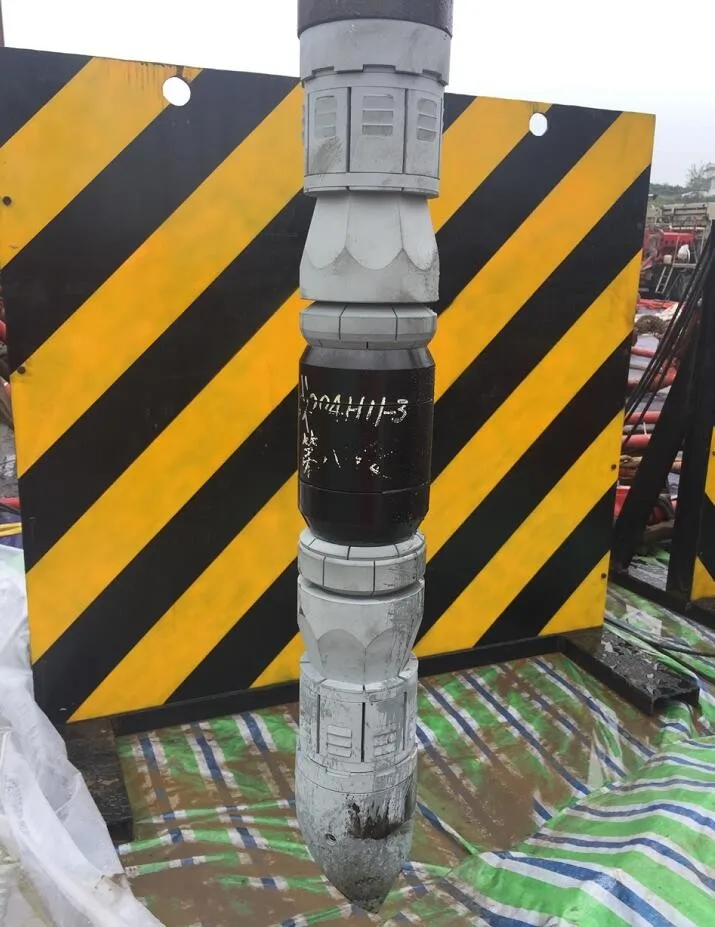

Polymer degradable material bridge plug

Product Description



Water-soluble soluble fracturing plug is a brand-new downhole plugging tool developed on the basis of traditional bridge plugs. The patented soluble material, polymer degradation material and high-strength ceramic technology are organically combined to obtain excellent mechanism, solubility and degradation performance in the multi-stage fracturing operation of oil and gas wells.


The main body of the soluble fracturing plug adopts various soluble metal materials, and the rubber adopts polymer degradation materials; the soluble packer has a pressure strength of 70Mpa. According to different working conditions, the soluble packer can customize formulas with different dissolution times to realize automatic unpacking of reservoir blocks in horizontal wells and highly deviated wells.

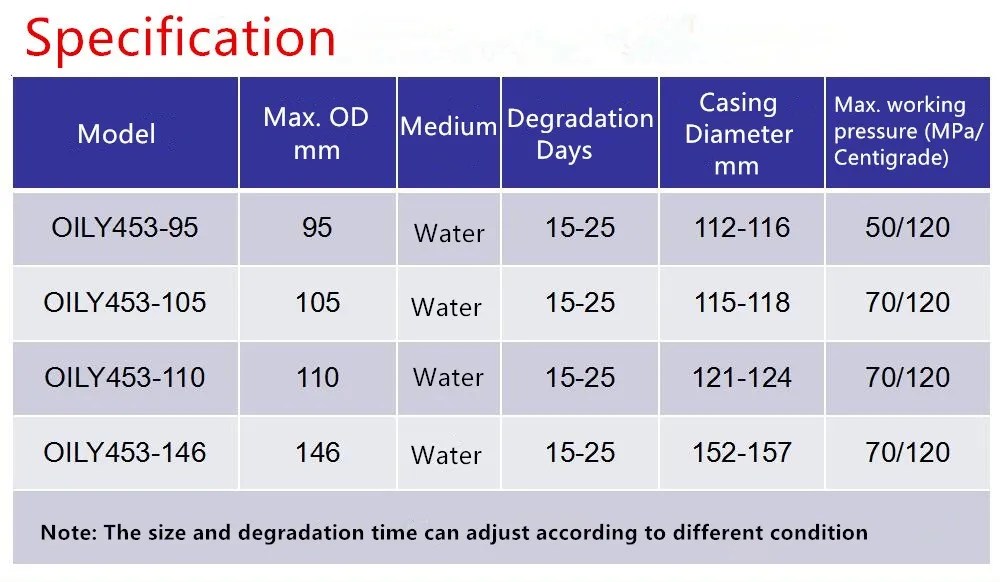

WINGOIL has developed four series of soluble bridge plugs under working temperature (60-80℃, 80-100℃, 100-120℃, 120-150℃), the bridge plug outer diameter is from 95mm to 146mm. All models have been verified by oil and gas well operations, and the success rate is 100%.

feature

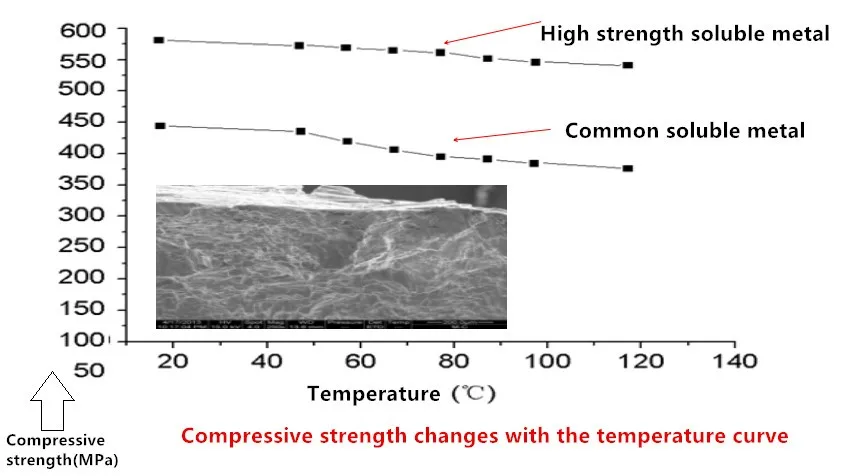

- Made of composite high-strength soluble metal to ensure the strength of the material under high temperature.

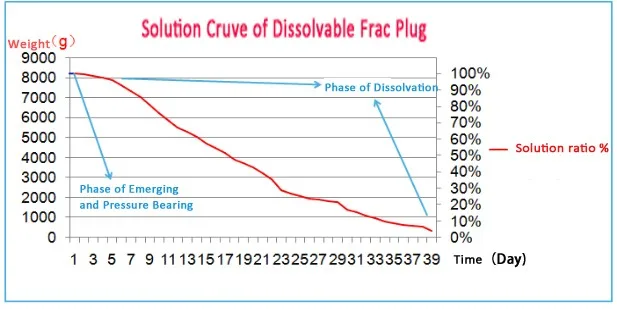

- Customized formula with flexible dissolution time.
- Special high-strength composite slats (maximum strength 1250Mpa), stable for up to 15 days.
- Special cracking technology
- Good compatibility and inheritance, no need to change the existing pipe string structure, no drilling risk, reduce casing damage.
