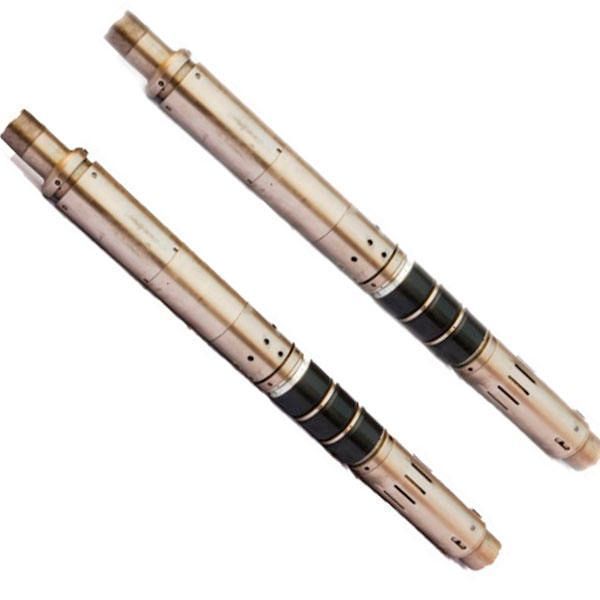

7.5/8" API11D1 Double Port 10000 PSI Retrievable Hydraulic Packer
- $1.00 /set
- 1 set
- Yantai Sanmon Machinery Equipments Co., Ltd.
- Shandong, China
- Ms Candice TIAN
| payment terms: | letter of credit, wire transfer | Supply capacity: | 100 sets per month |
| port: | Tianjin/Qingdao/Shanghai | Packaging Details: | Wooden packing or as customer's request |
| Tool outside diameter: | 6.812 | type: | Casing baler |
| Threaded connection Box Up/Pin down: | 2.7/8 EUE | Delivery Details: | 7--15 days after remittance |
| temperature: | normal | Tool number: | 2.37 |
| Shell size: | 7.5/8 | property: | Corrosion resistance |
| Shell weight: | 20-24 | Certification: | API 11D |
| Recommended hole size: | 7.025-7.125 | Name: | 7.5/8" API11D1 Dual Bore Hydraulic Retrievable Packer 10000PSI |
7.5/8" API11D1 Dual Bore Hydraulic Retrievable Packer 10000PSI
ACT Hydraulic Dual Bore Permanent Production Packers are hydraulic single pass packers
Completion packer, ideal for mass production of high-angle and high-deviation wells.
These packers have the largest possible hole drilling through the combined packer and sealing accessories.
The packer operates on a hydraulically fixed anchor bolt seal formed by left-hand threads on the bolt at the top of the packer and set by applied tubing pressure. DB packers require some type of temporary plugging device, such as shear plugs or cable plugs near the end of the tubing.
1. Ultra-thin design
2. The sturdy structure increases the break-in speed by 50%, no need to worry about impact damage or premature
setup, resulting in significant savings in rig time
3. Two sets of opposing full-circle, full-strength slips ensure the packer remains set correctly
4. Packing elements are scrub resistant and securely packed when the packer is set
5. Unique interlocking, expandable, metal support ring contacts the housing, creating a positive
Barriers to Extrusion of Packing Elements
