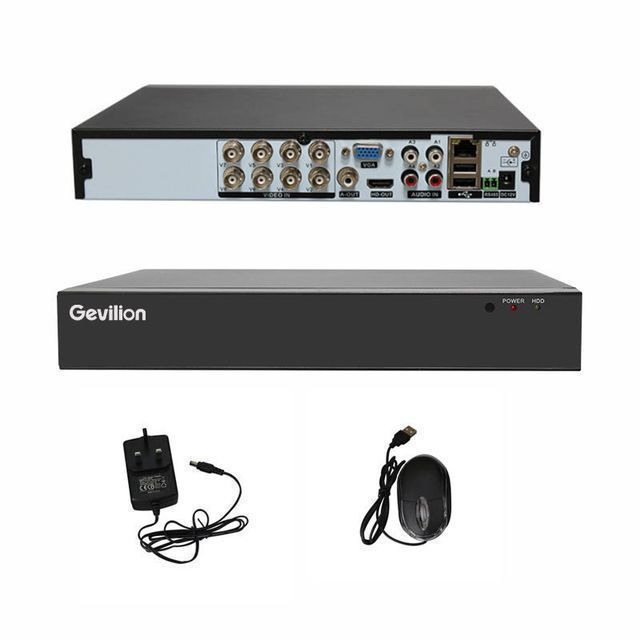

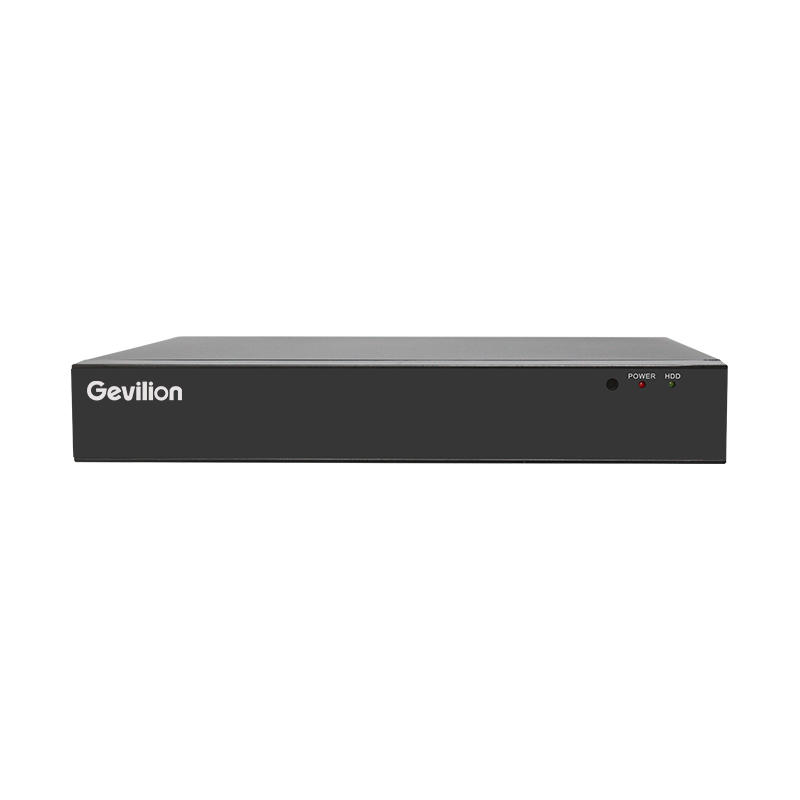

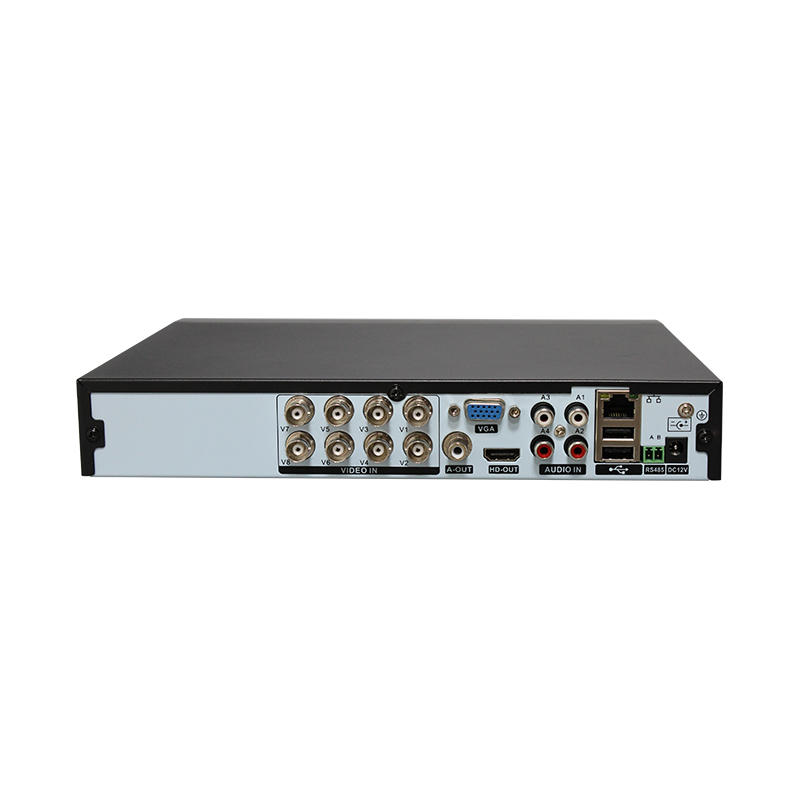

8CH FULL HD 5MP AHD TVI CVI XVR cctv camera dvr
- $29.90 / 1 - 19 pieces
$27.90 / 20 - 499 pieces
$24.90 / >=500 pieces - 1 piece
- Shenzhen Gevilion Technology Limited
- Guangdong, China
- Mr CCTV Security
PRODUCT DETAIL
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal | Video input: | 8 channels |
| product name: | 8 channel DVR | hard disk: | 1 SATA HDD |
| port: | Shenzhen | Video Compression: | H.265+/H.264 |
| Application Name: | NPVIEW | place of origin; place of origin: | Guangdong, China |
| brand: | Givelian | model: | XVR-HGS8108-N1 |
| language: | multi-language | Certificate: | CE FCC RoHS |
| Supply capacity: | 1000 pieces per day | playback: | 8ch playback |
| Packaging Details: | 20pcs/box |
Product Description
8CH FULL HD 5MP AHD TVI CVI XVR CCTV camera dvr
system | ||
operating system | Hi3521D | |
preview | 1/4/8/9 | |
video | 4x 18m BNC+DC Cable,1x (1 to 4CH power cable splitter) | |
Encoding format | H.265 | |
preview capability | 8*5M-N@20fps(6 in 1)/8*4M-N(6 in 1);8*1080P(6 in 1) | |
coding ability | 8*5M-N@15fps(6 in 1)/8*4M-N@18fps(6 in 1);8*1080P@18fps(6 in 1) | |
decoding ability | 2*5M-N@15fps(6 in 1)/4*4M-N@18fps(6 in 1);4*1080P@18fps(6 in 1) | |
Multimode input | Analog: 8*1080P; 8*1080N Digital-to-analog conversion: support (except 8[$add]8 mixed mode) Hybrid: 8*1080P (analog)+8*1080P (network); 4*1080P (analog)+4*1080P (network) Network: 8*1080P+8*960P; 4*3M; 4*5M | |
motion detection | 192 (16*12) detection areas can be set per screen; Configurable multi-level sensitivity (limited local channel) | |
sound | 720P | |
audio compression | G.711A | |
walkie talkie | support | |
Record and playback | Auto/1/50(1/60)-1/100,000 sec | |
recording mode | Manual>Alarm>Motion Detection>Timer | |
play locally | 4CH (analog input method) | |
search mode | Search by time, calendar, event, channel | |
Storage and Backup | ||
video storage | hard drive, network | |
backup method | Network, USB hard disk, USB burner, SATA burner | |
external interface | ||
video input | 8CH BNC | |
Loop output (mostly used in video recorders | Not applicable | |
Audio input and output | 1/1 | |
Alarm input and output | 0/0 | |
Network Interface | RJ45 10M/100M adaptive | |
PTZ control | Support multiple PTZ protocols | |
USB | 2* USB 2.0 ports | |
hard disk | 1*SATA port (max 8TB/each) | |
wireless | 3G, WIFI (extended via USB) | |
General | 1 RJ45 10M/100M adaptive Ethernet interface | |

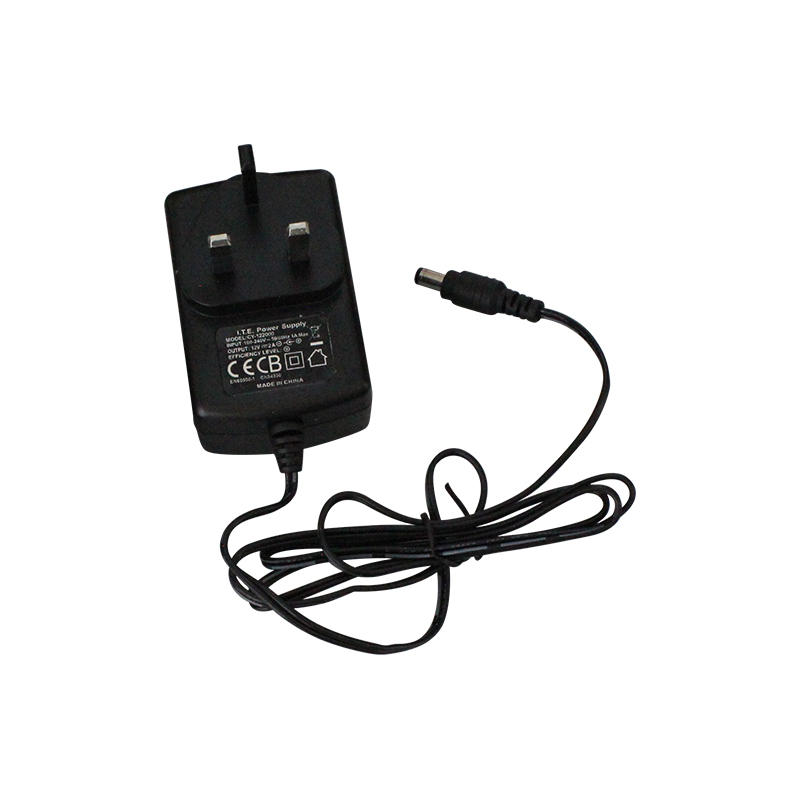

power supply | 12V/2A | |
energy consumption | <15W (without hard disk) | |
working environment | Temperature: 0°C—+55°C, Humidity: 10%—90%, Atmospheric pressure: 86kpa—106kpa | |
