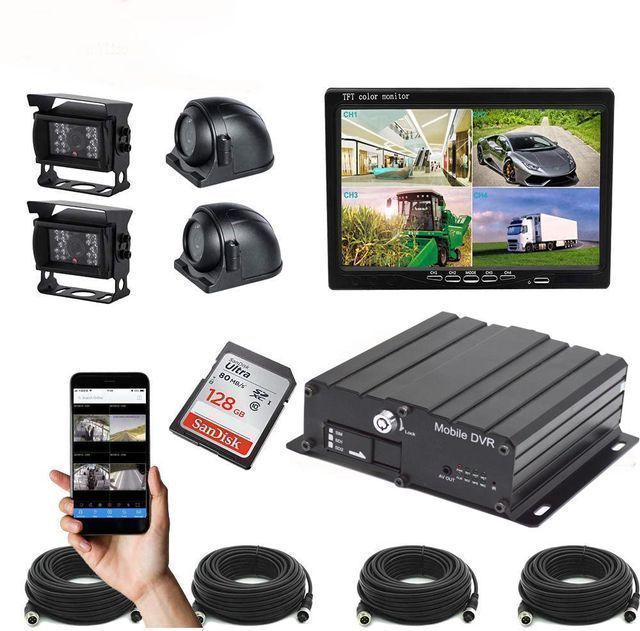

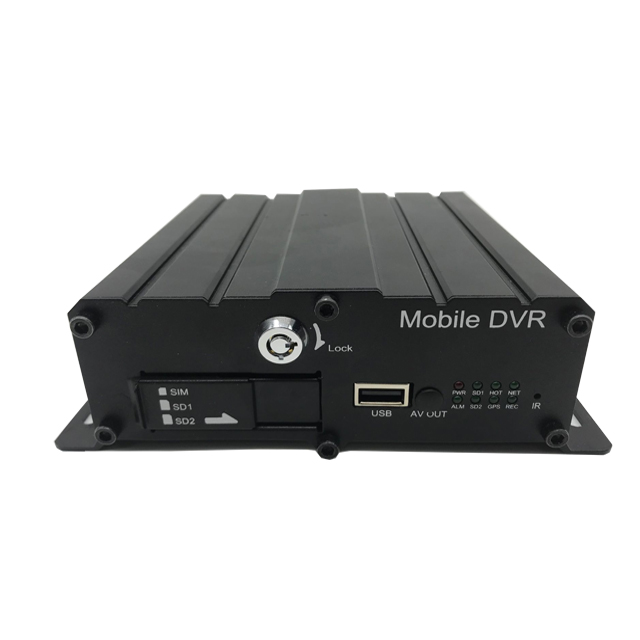

Professional car dvr mobile dvr Al H.265 car CCTV GPS 4G 3G WIFI SD card mdvr with ADAS DMS BSD 4in1 RJ45 IPC

PRODUCT DETAIL
mobile application:CMSV6model:MDVR-H-1304A-G4WF
Optional features:GPS/3G/4G/WIFIplace of origin; place of origin:Guangdong, China
brand:OEM ODMproduct name:mobile hard disk recorder
port:Shenzhenhard disk:Maximum support 512GB
Video compression:H.265/H.264Supply capacity:20000 pieces per month
language:support multi-languaugepower supply:8~36V
Resolution:1920x1080Video compression format:H.265
Packaging Details:Color boxes and cartonspayment terms:Western Union, wire transfer
Video input:4 channels

Professional car dvr mobile dvr Al H.265 car CCTV GPS 4G 3G WIFI SD card mdvr with ADAS+DSM 3in1 RJ45 IPC



Features:

1. H.265 compression, saving storage costs, smooth live broadcast, clear picture quality, multi-stream recording;
2. Support dual SD card (maximum 256GB/each) storage, completely protect data from damage
3. Watchdog abnormal restart function protection, better machine and data protection;
4. Fire-off delay recording function, ACC delay is closed, and can be set to 24 hours;

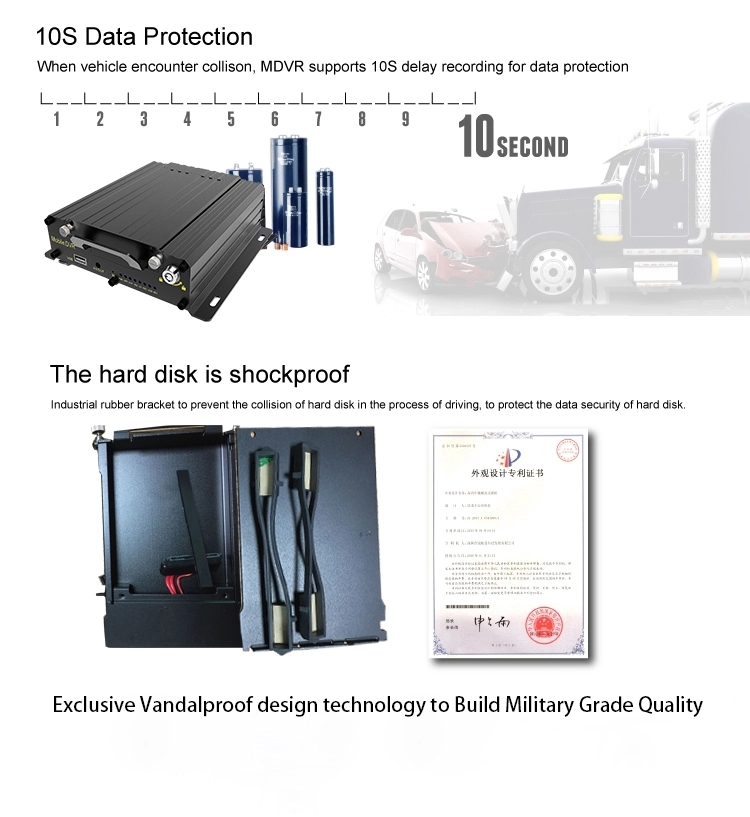

On-board UPS 8~10 seconds delay power failure data protection
5. Support remote management, voice intercom, fuel monitoring, and remote engine cut-off functions;
6. Designed with RS232/RS485 and RJ45 peripheral interfaces,
Allows integration with fuel sensors, temperature and humidity sensors, RFID readers, tire pressure monitors, etc.
7. 8V~36V wide voltage power supply, overload/undervoltage/short circuit protection, low voltage automatic shutdown.
8. All-aluminum profile design, small size, fast heat dissipation, dustproof, shockproof



Product Description:









Specification:



parameter
system language Chinese/English/Russian (customizable)
Operation interface On-screen menu
password security User password and administrator password
GUI Image OSD External AV monitor and VGA monitor can be connected. Use the remote control to set system parameters

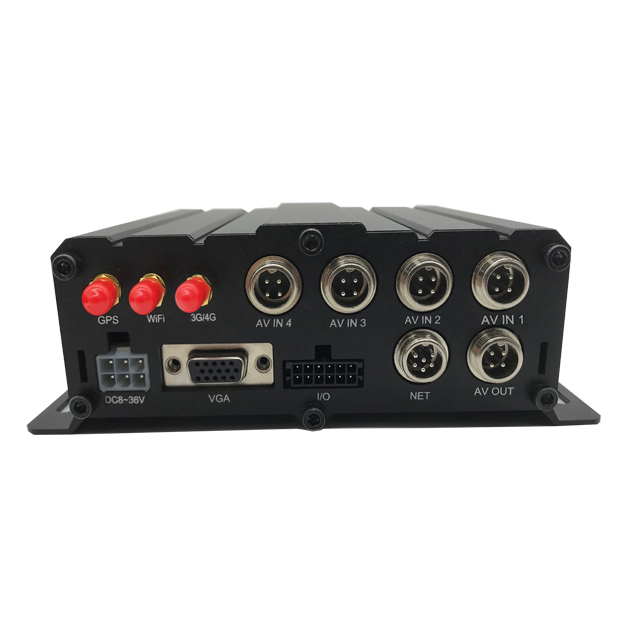

interface
Audio and Video video input 4-way 1080P/720P input, aviation connector 1.0VP-P, 75Ω
video output 1 channel composite AV output, aviation interface 1.0Vp-p, 75Ω, 1 channel VGA output
Audio input/output 4 input, 1 output, aviation connector
Compression format Encoding format: G726_40KBPS,
Sampling rate: 8000 sampling bit width, 16bit
Sampling points: 320;
preview 1/2/4/6/8/9 split-screen preview, support manual/event-triggered full-screen display function
Resolution Support 1080P/960P/720P/D1/HD1/CIF, MAX: 4ch 1080p
video quality Levels 1-8, with Level 1 being the highest and Level 8 being the lowest.
video standard PAL: 100fps/s, CCIR625 lines, 50 fields
NTSC: 120fps/s, CCIR525 lines, 60 fields
1080P: 1536Kbps~8Mbps, multi-level video quality optional
720P: 1000 Kbps ~ 6Mbps, multi-level video quality optional
D1: 800Kbps ~ 3Mbps, multi-level video quality optional
HD1: 600Kbps ~ 2.5Mbps, multi-level video quality optional
CIF: 256Kbps ~ 1.5Mbps, multi-level video quality optional
recording mode Default: Automatically record when power on.
Support ignition recording, alarm trigger recording and manual recording.
record and store file format H.265
File system Special file system or FAT32
SD card Support 2 SD cards, maximum 256G/sheet, loop recording.
upgrade Support U disk upgrade/SD card upgrade
Recording playback video search Search video data by recording time/recording type, etc.
playback Supports up to 4 channels of playback/stop/fast forward/rewind at the same time
Supports x2, x4, x8, x16. Fast forward or rewind playback
alarm Alarm input 4-channel alarm input, with alarm linkage function
Alarm Output 2CH alarm output
Gravity sensor Support built-in G-sensor, alarm linkage trigger
Communication port RS232 1*RS232
RS485 1*RS485
RJ45 interface 1*RJ45
USB 1*USB
Wireless communication 3G Built-in 3G module (WCDMA/EVDO/TD-SCDMA)
4G Built-in 4G module ((TD-LTE/FDD-LTE)
Wifi Built-in wifi module ((2.4G)
Global Positioning System Support GPS/BD dual module,
software CMSV6 client 4G remote real-time monitoring, GPS positioning, remote management, recording, playback, intercom, monitoring, track playback, alarm processing.
mobile application Remote real-time monitoring, GPS positioning, recording, playback, intercom, monitoring, alarm prompts, available anytime, anywhere.

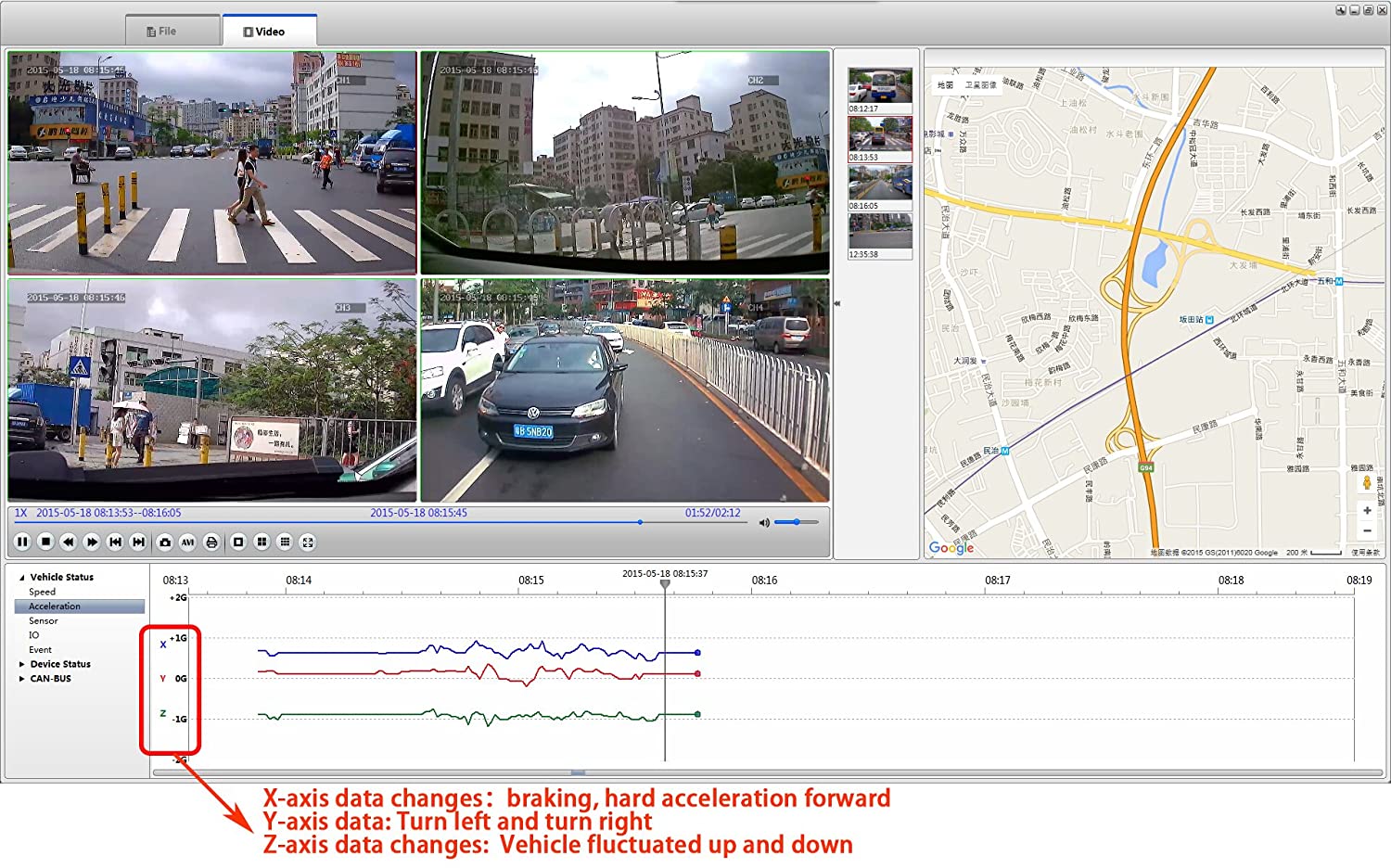

computer play Video playback, track playback and analysis
strength energy management Wide voltage power supply, overload/undervoltage/short circuit protection, low voltage automatic shutdown, support timing switch, delay shutdown function.
Input voltage DC: +8V ~ +36V
The output voltage +12V@1A,+5V@1A
Operating environment temperature -20°C to +70°C
humidity 20% to 80%
unit size 168mm*143mm*56mm
box size 20.5*14.5*20.5cm
carton size 59.5*42.5*42.5cm 16pcs/carton

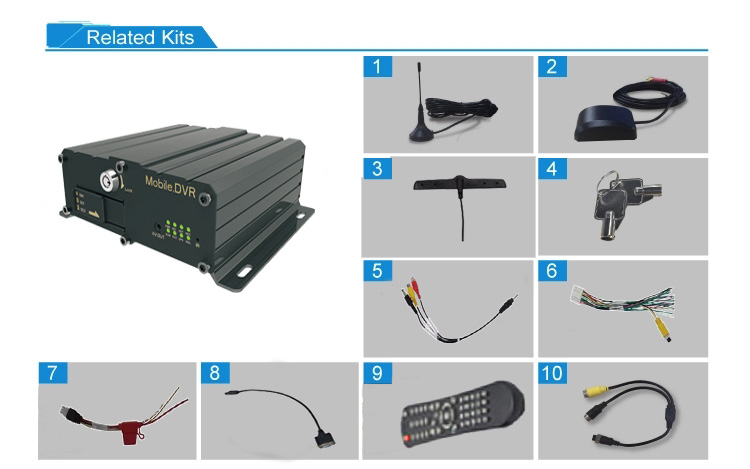

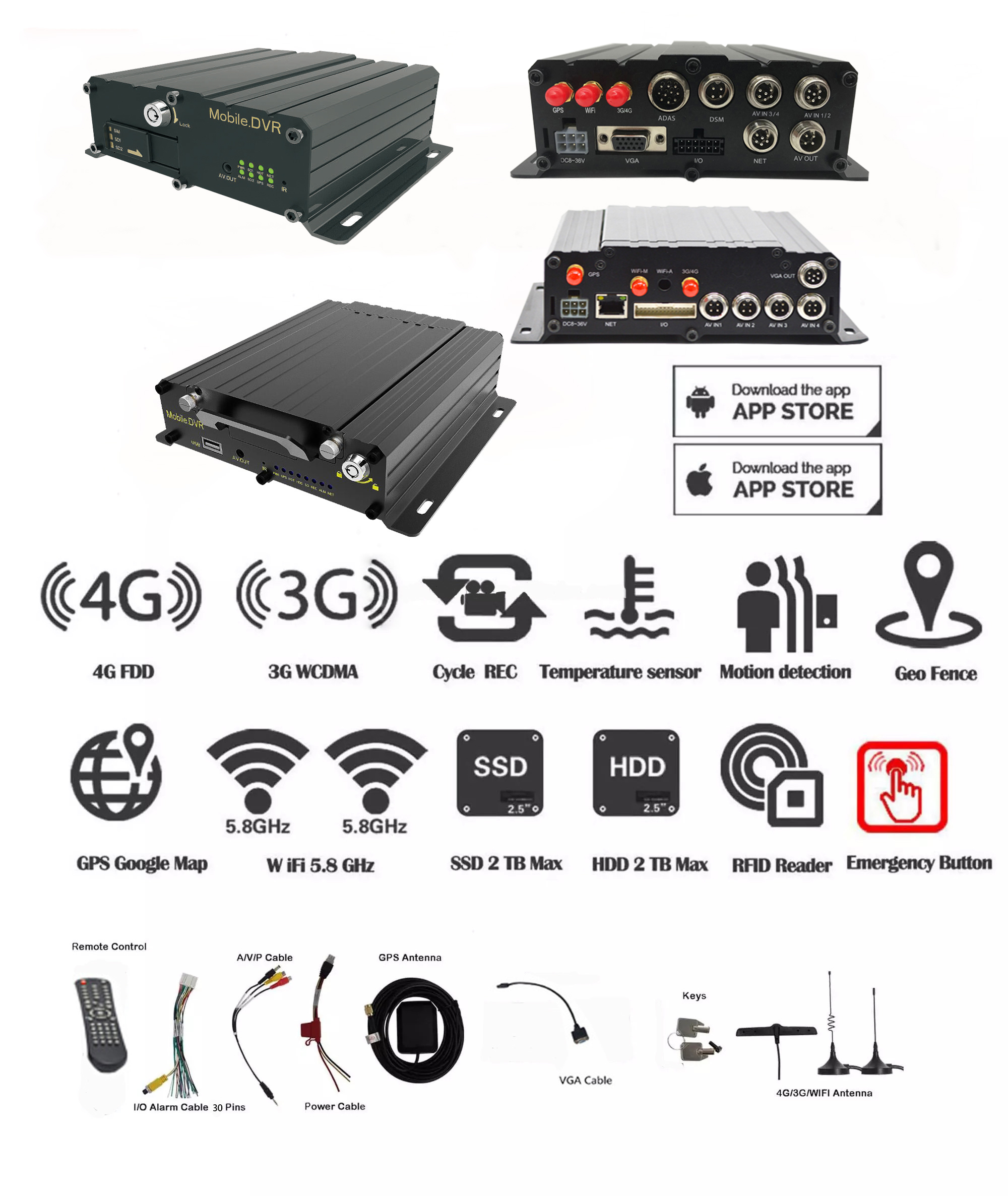

Accessories:

MDVR extension function:

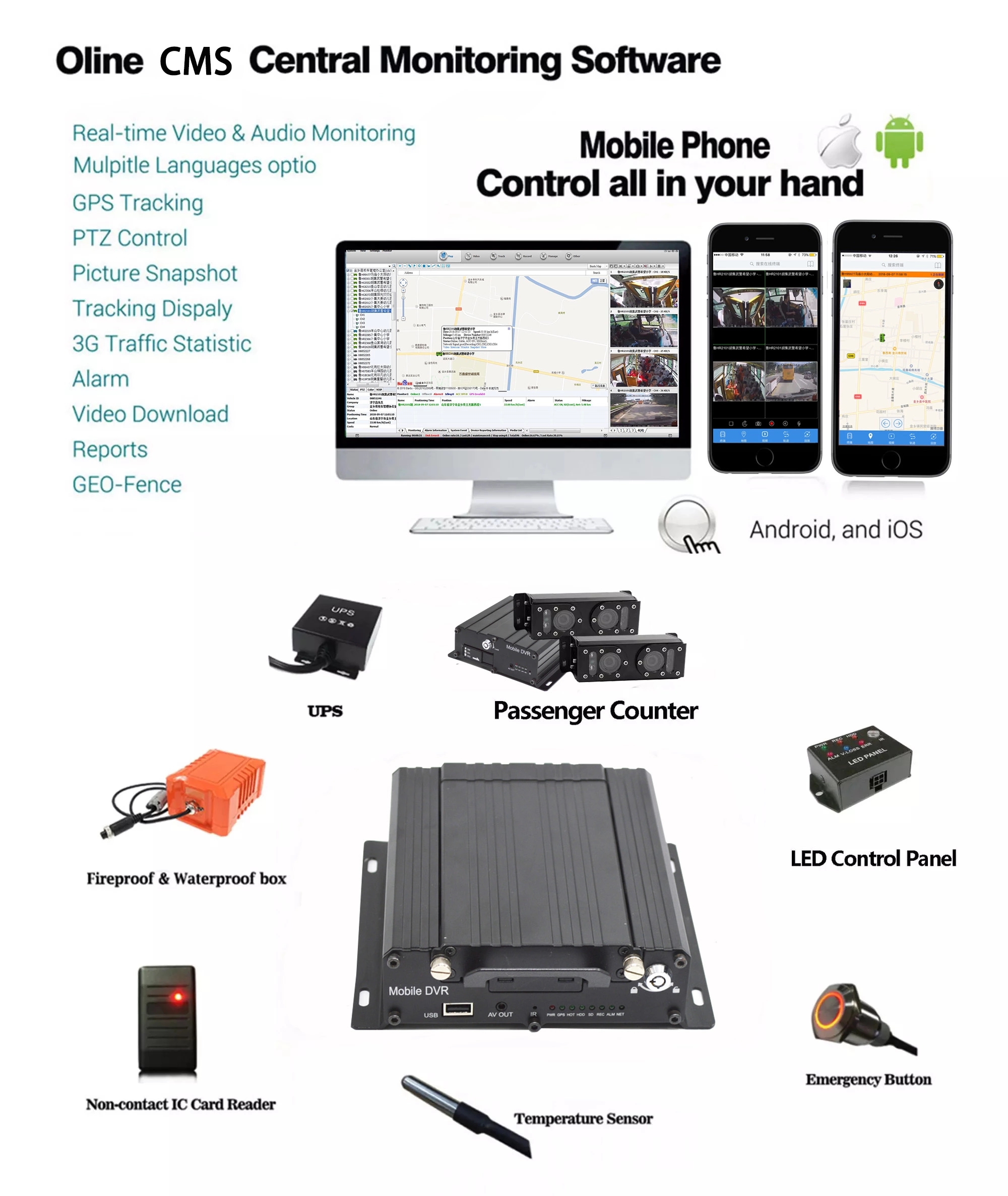

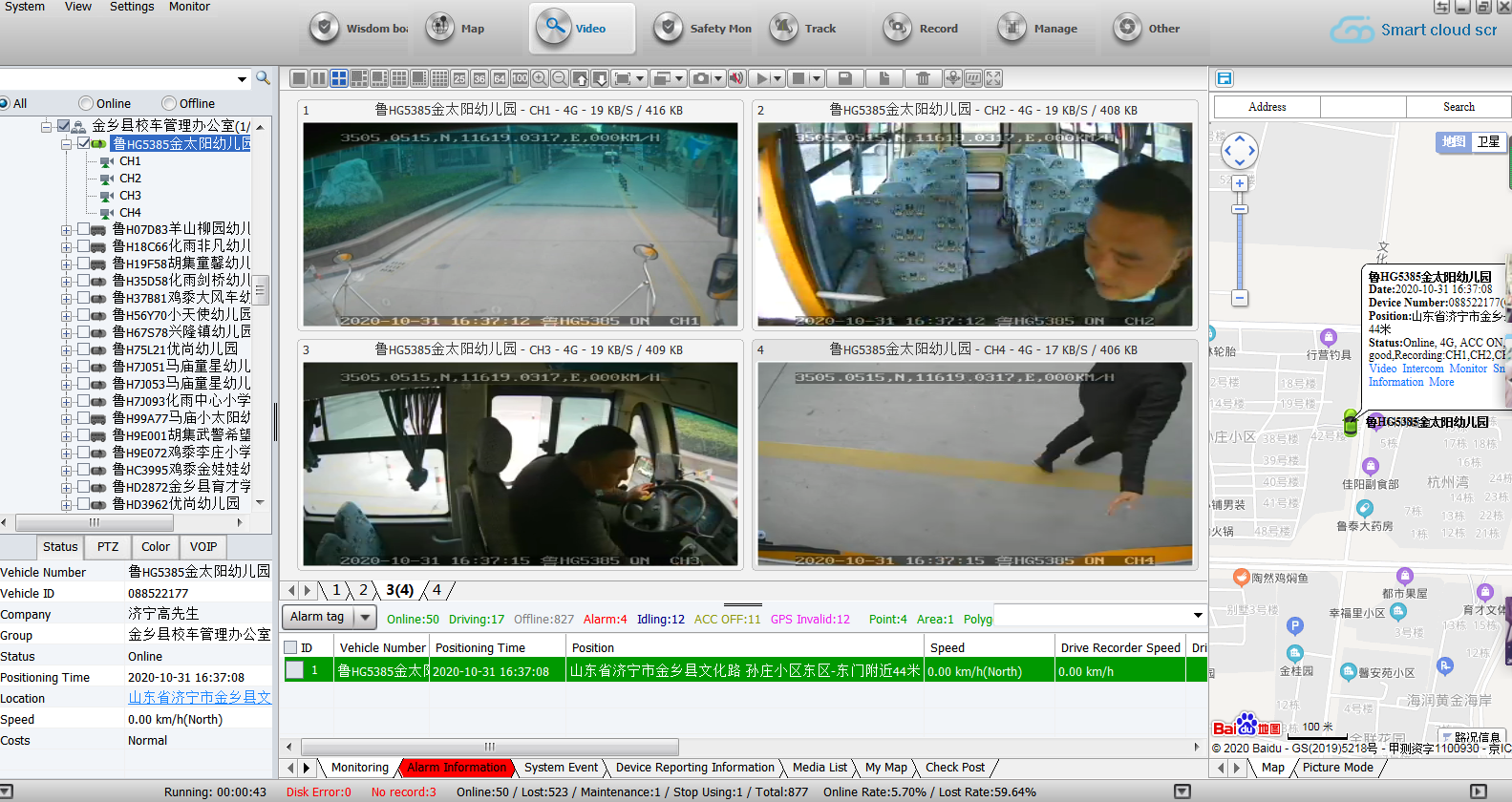

PC software online viewing:

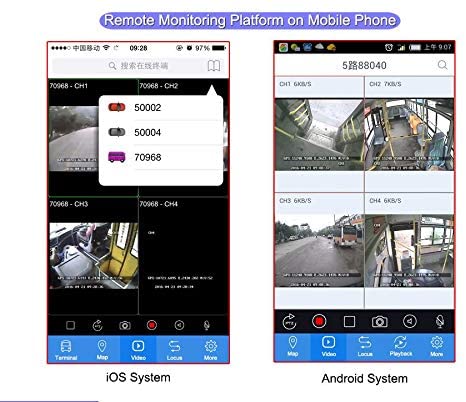

APP remote viewing:



Video playback:



test:

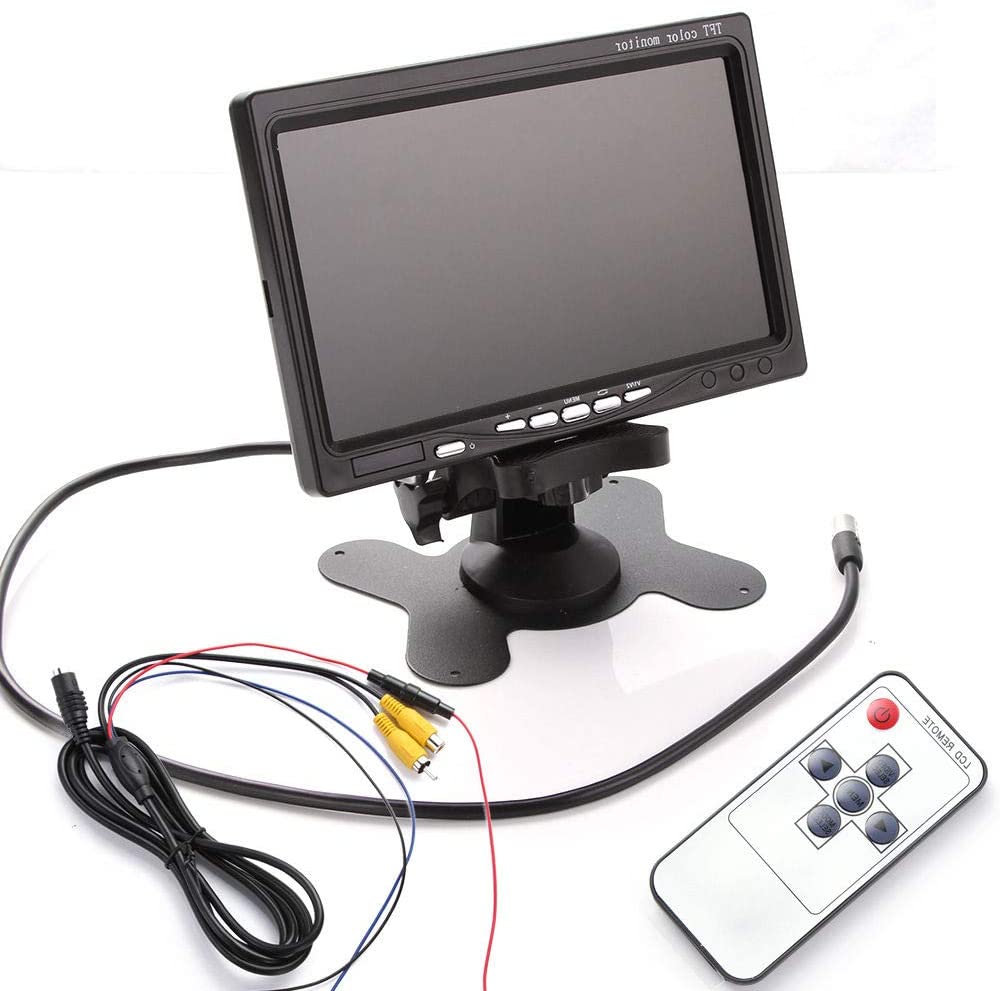

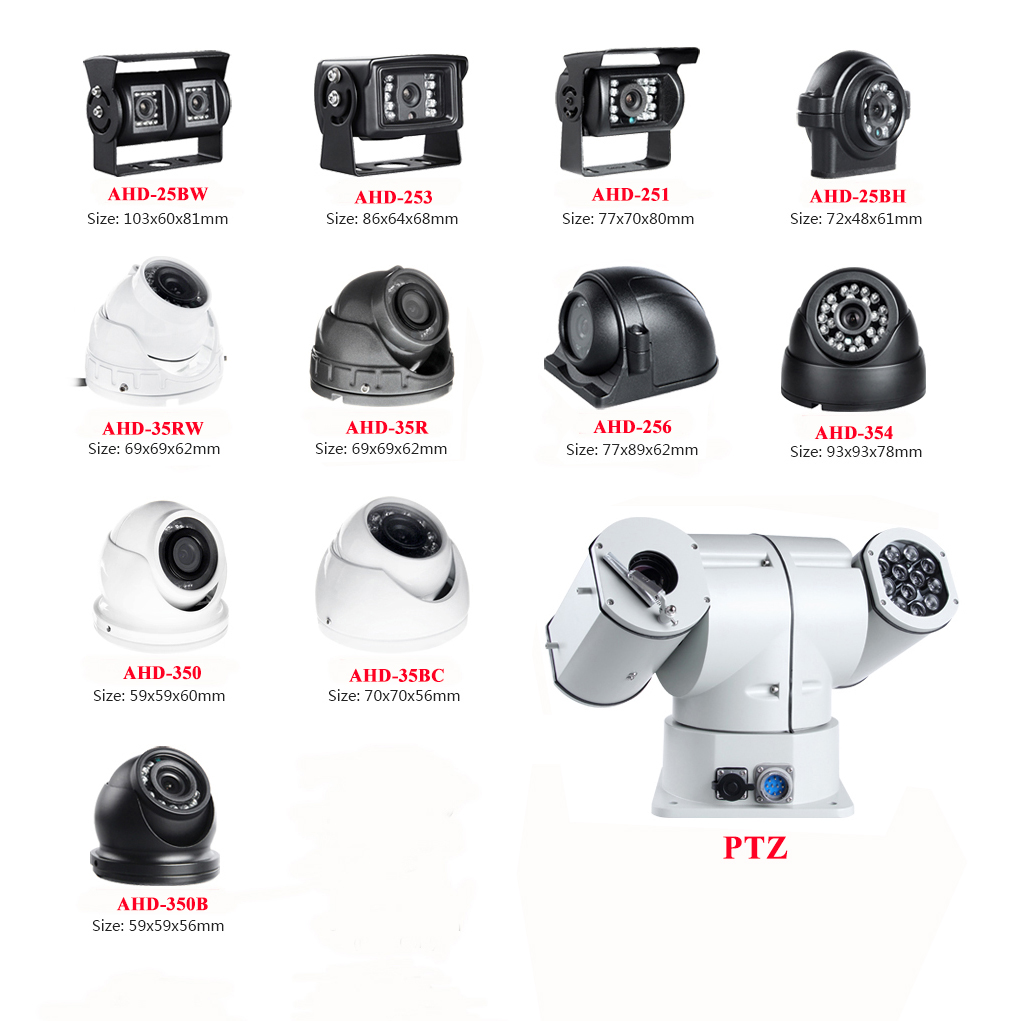

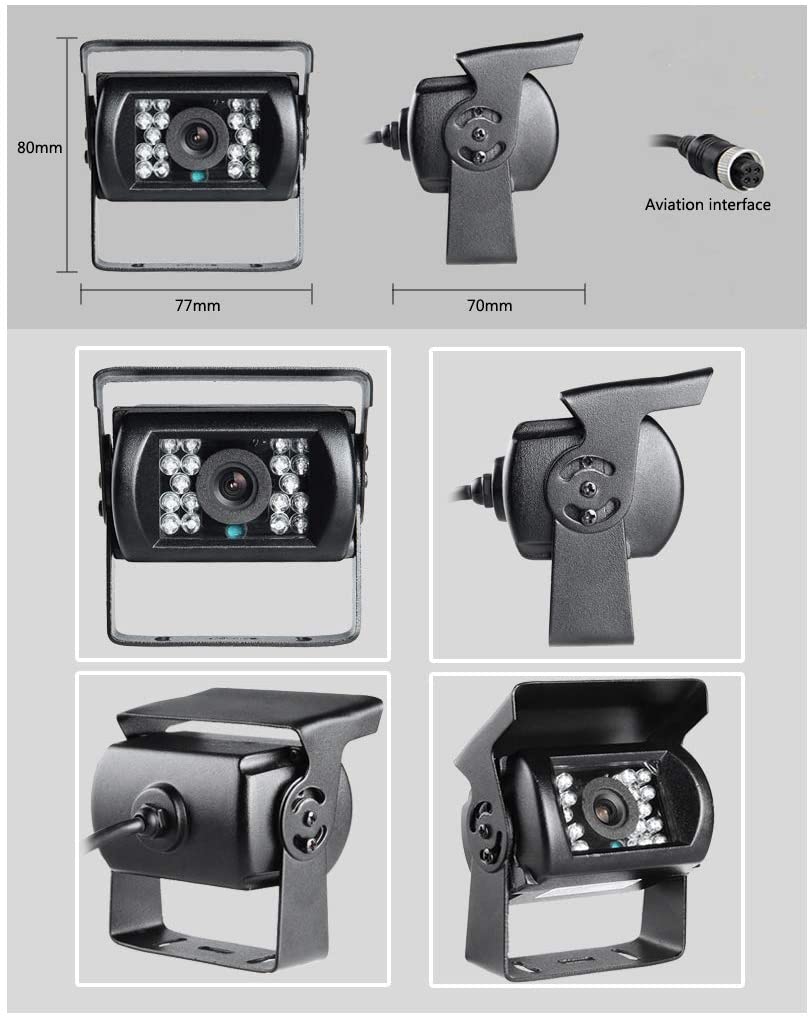

Mobile DVR other cameras:

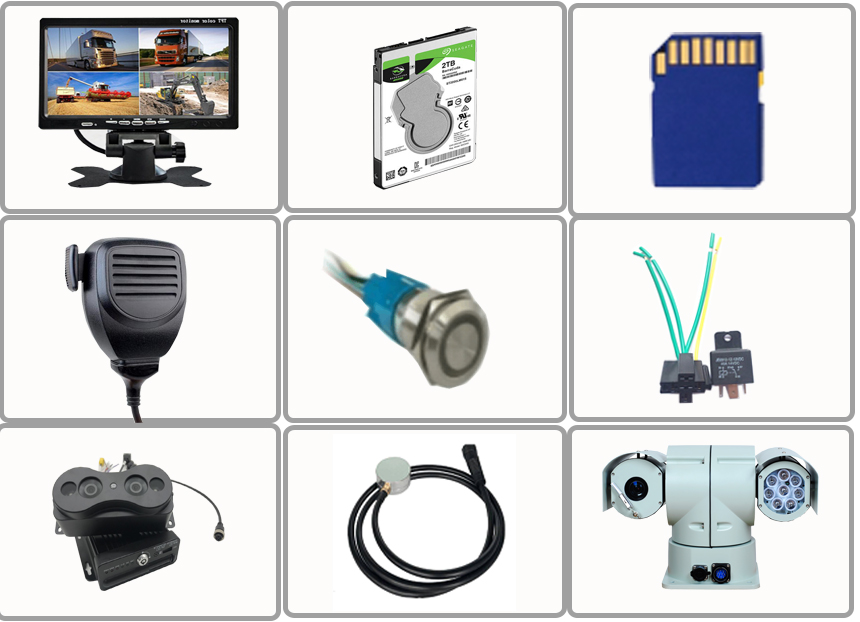

Mobile hard disk video recorder related products:





Package:



application:



exhibition:





deliver goods:

Package

Our usual packing is neutral color box, we also accept OEM packing and master carton order over 1,000pcs.

deliver goods

We cooperate with popular courier companies such as DHL, FedEx, UPS, etc. For small orders we use express, for large orders usually by air or sea, it is your choice.



company:

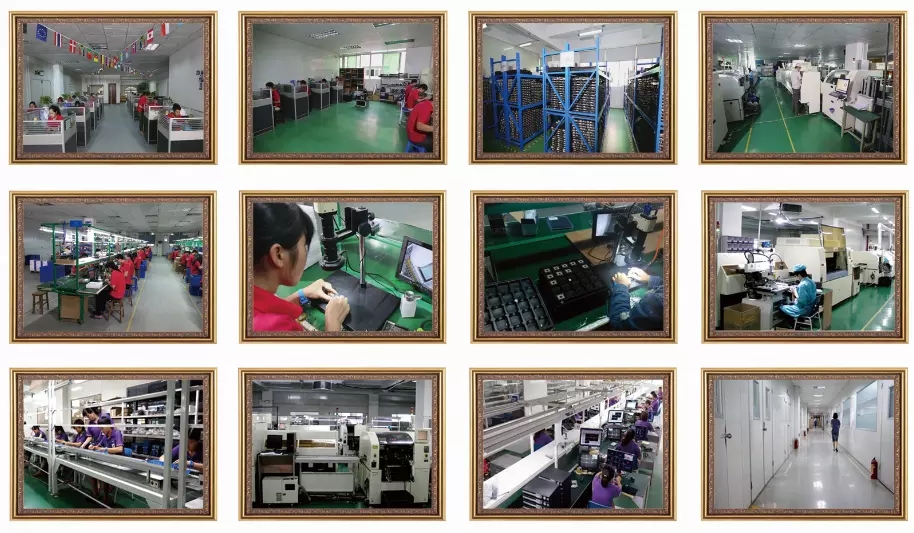

Advanced production equipment

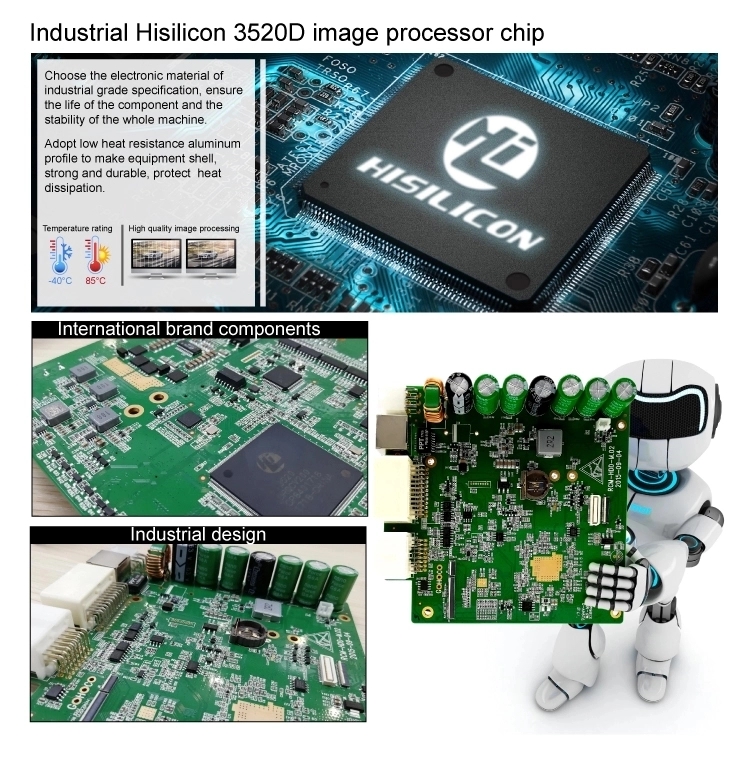

We have 4 SMT production lines, all of which are imported machines. Working 24-7 a day, producing about 4,000 PCBs. All motherboards are produced by ourselves to ensure qualified quality.



Experience assembly line worker

We have several assembly lines to ensure timely assembly of equipment. All workers are trained and efficient, and we inspect all equipment casings to ensure they are free of defects before assembling them.

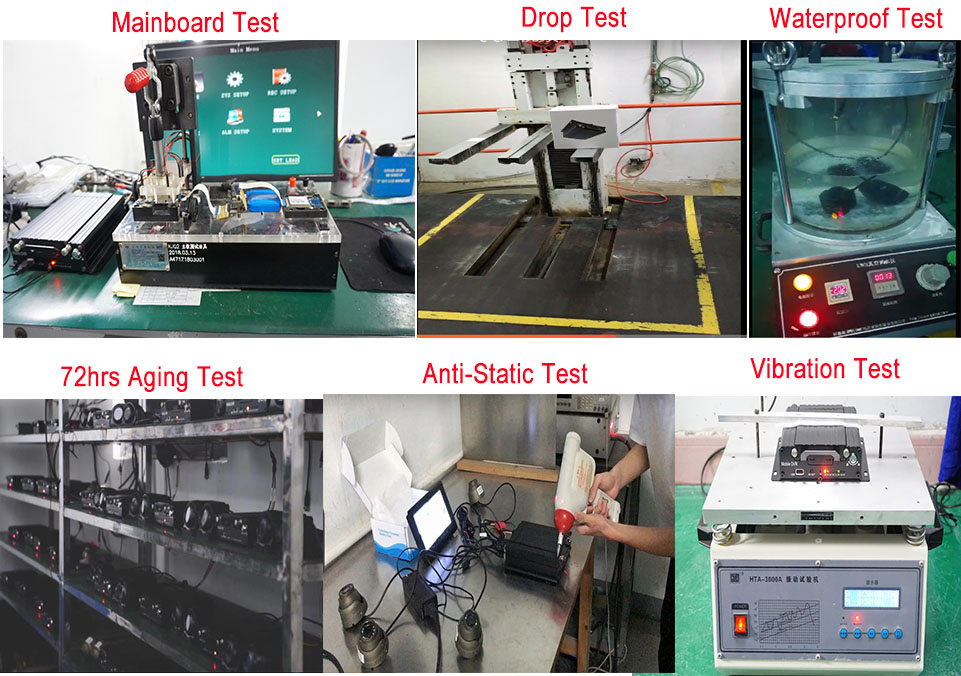

Strict Quality Control

All products will be strictly tested before packing, we have 5 steps to control the quality: 1. Full inspection of materials; 2. Full inspection of motherboard; 3. Full function inspection (with hard disk); 4. Semi-finished product inspection (with hard disk) ; 5. QC inspection before packing. Only we can use HDD for inspection on the market

FAQ:

1. What is the MOQ for our mobile DVR?

We don't have MOQ for standard order, the order with printed logo is usually 20 pcs, and for OEM color box, the MOQ is 1,000 pcs.

2. Can I apply my own tracking system to the mobile DVR?

Yes, we have a strong technical team to make your tracking system compatible with our equipment.

3. How to watch the video?

You can view playback in several ways: on the PC client (in the included CD), on your mobile phone, or by watching the video through the CMS. You can also download videos over the web, which will save you the time to remove the SD card or HDD from your device.

4. When is your delivery time?

Usually we arrange the order after confirming the deposit, it takes 3-5 days for small order and 5-15 days for large order.

5. What if my device is not working?

You can contact our sales staff and they will check the problem. We provide a one-year warranty for the equipment, and if the problem is not caused by human beings, we can repair or replace the new equipment for you.
