FL and OEM 4 Channels 1080P Car Special Vehicle CCTV MDVR 2TB HD Video Recording GPS 4G WiFi Truck Camera System Mobile DVR
- $185.00 / 1 - 49 units
$180.00 / 50 - 99 units
$175.00 / 100 - 999 units
$170.00 / >=1000 units - 1 unit
- Further Technology (Dongguan) Co., Limited
- Guangdong, China
- Mr Benson Shen
PRODUCT DETAIL
| Storage: | 1x2TB HDD/SSD+1x128GB SD | Package preview: | |
| payment terms: | L/C, Western Union, D/A, T/T | Video input: | 4 channels 1080P |
| UPS: | built-in | Video compression format: | H.265 |
| Origin: | Guangdong, China | Packaging Details: | carton |

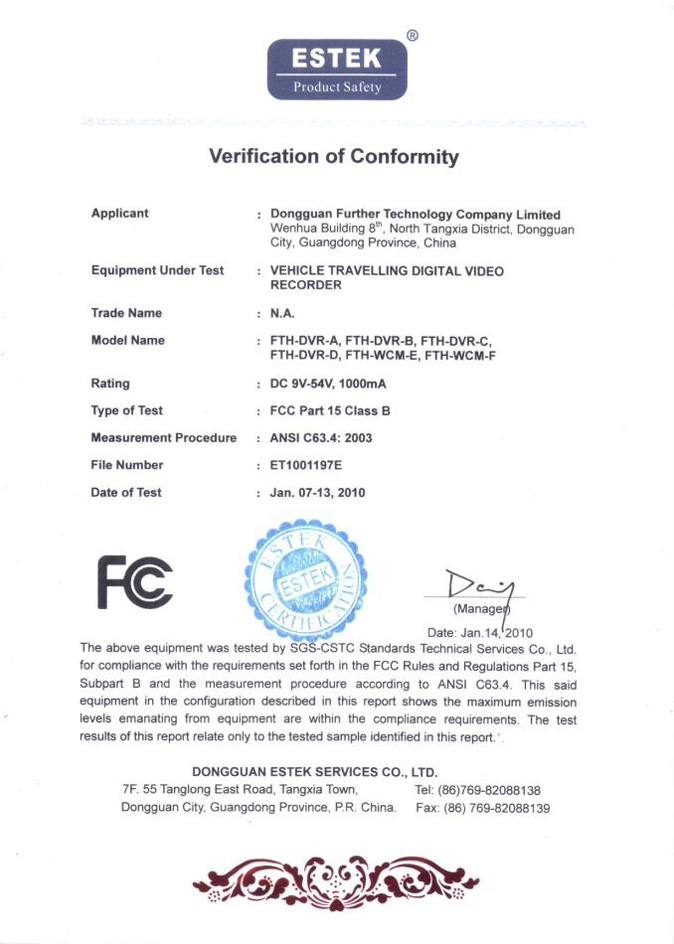

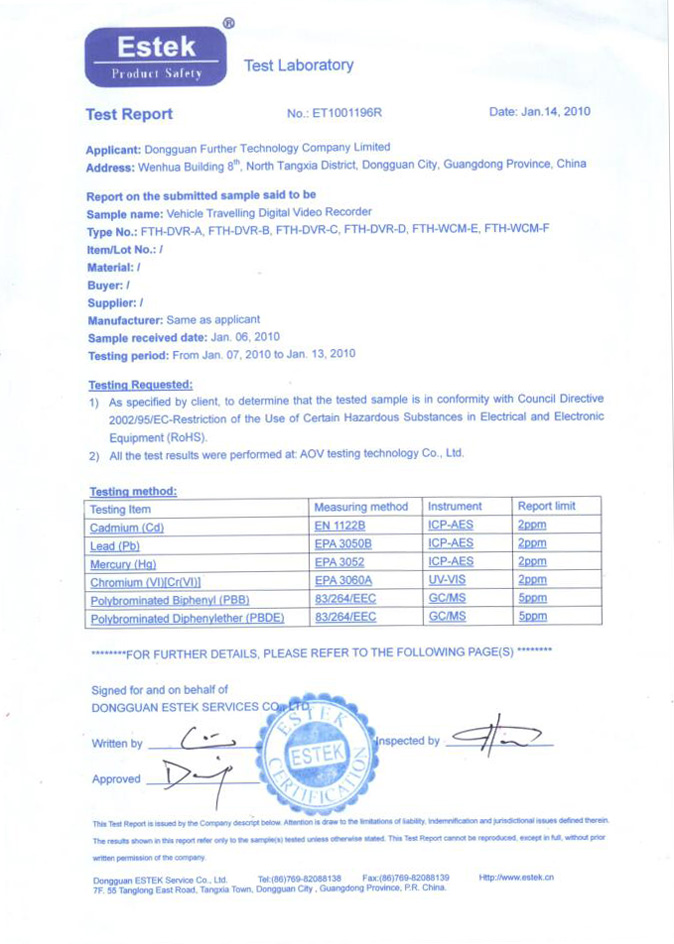

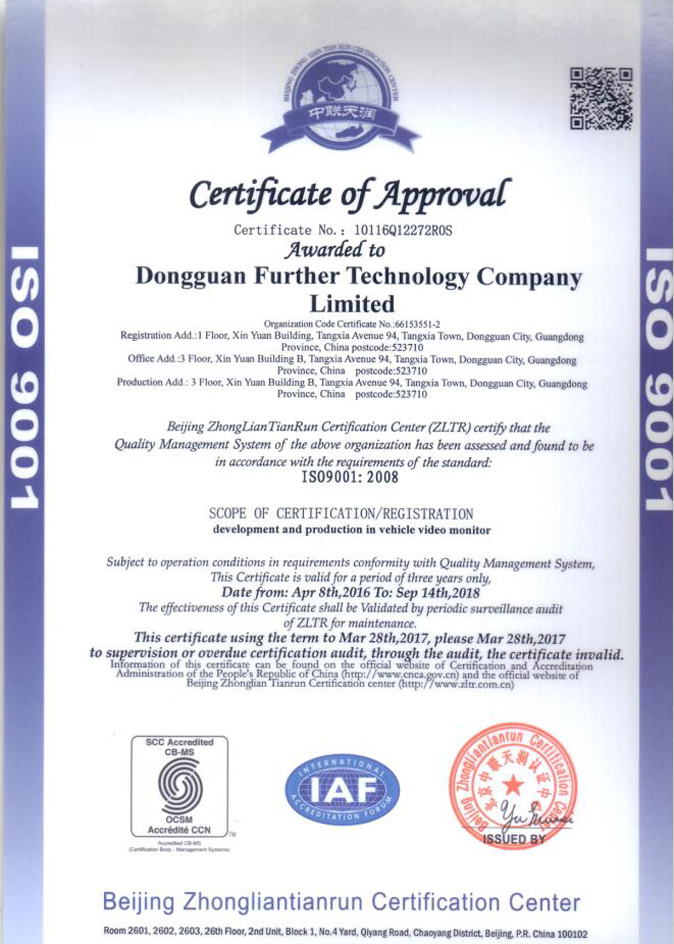

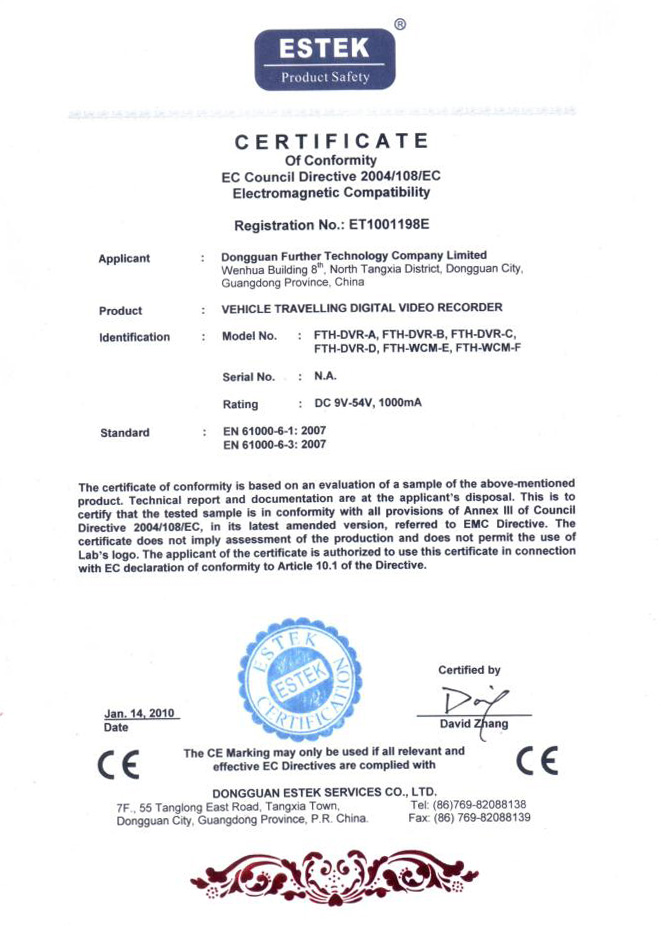

| Certificate: | CE/FCC/Rohs/ISO9001 | port: | Shenzhen |
| brand: | FL and OEM | model: | FTH-WCM-E/2MP04 |
| GPS 3G 4G Wi-Fi: | Elective | Video output: | 2xCVBS+1xVGA output |
| type: | AHD Mobile DVR | solve: | 1080P |
| Supply capacity: | 10000 pieces per month | Warranty: | 1 year |
Product Description
FL and OEM 4 Channels 1080P Car Special Vehicle CCTV MDVR 2TB HD Video Recording GPS 4G WiFi Truck Camera System Mobile DVR

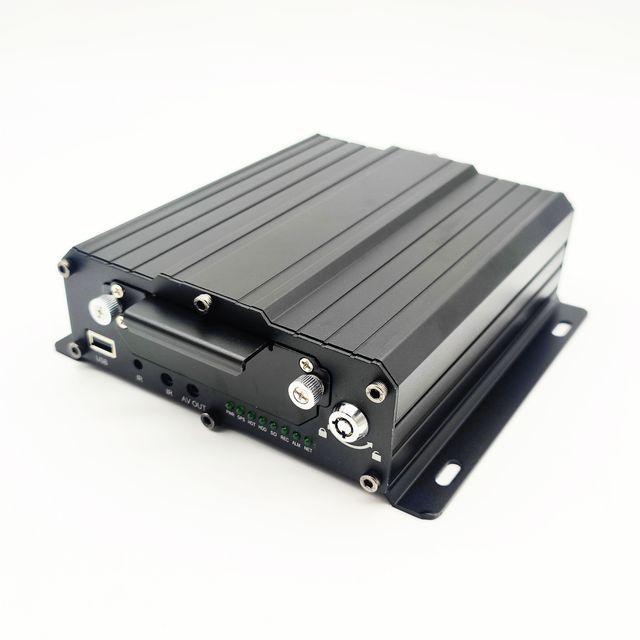

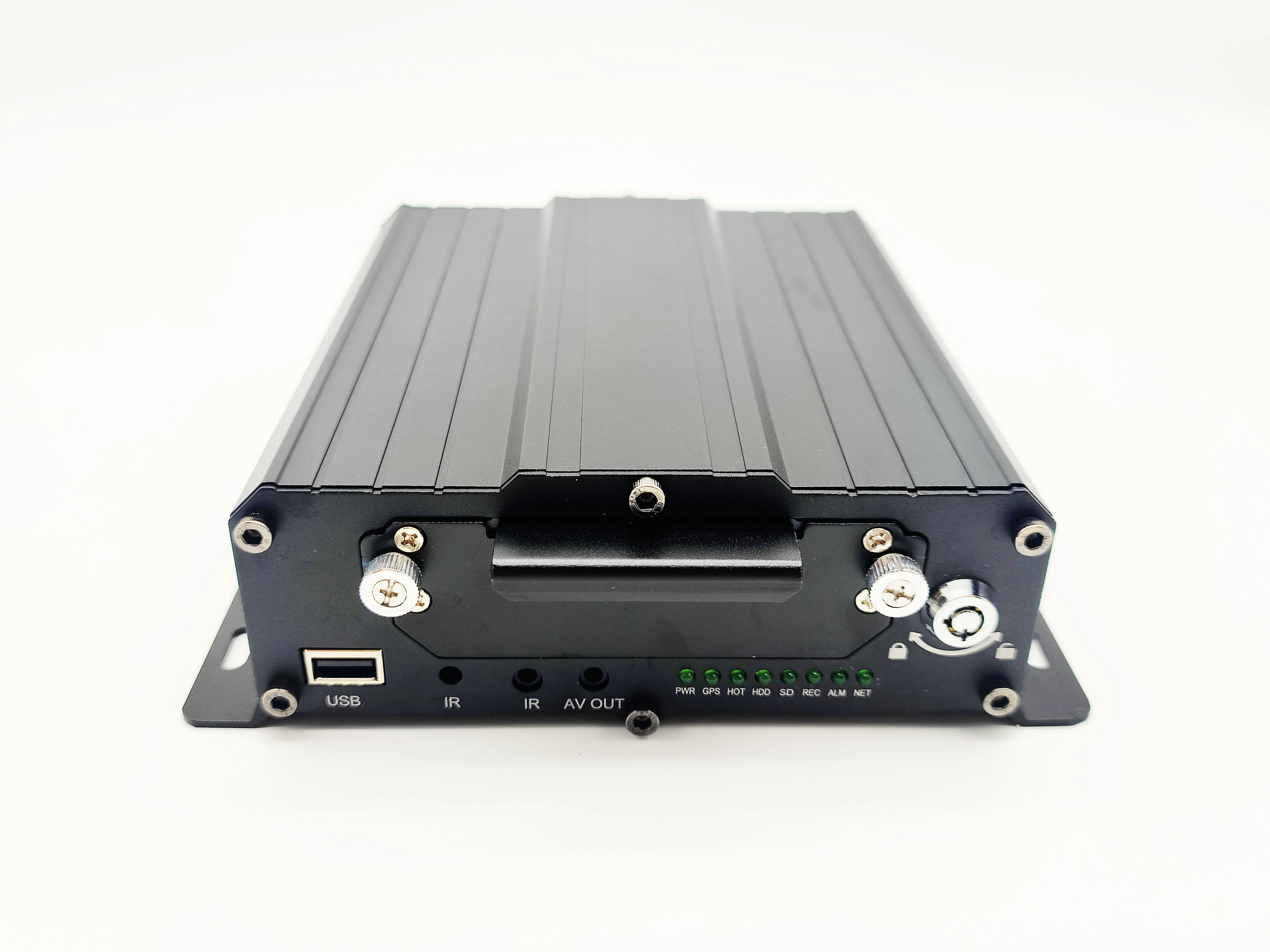

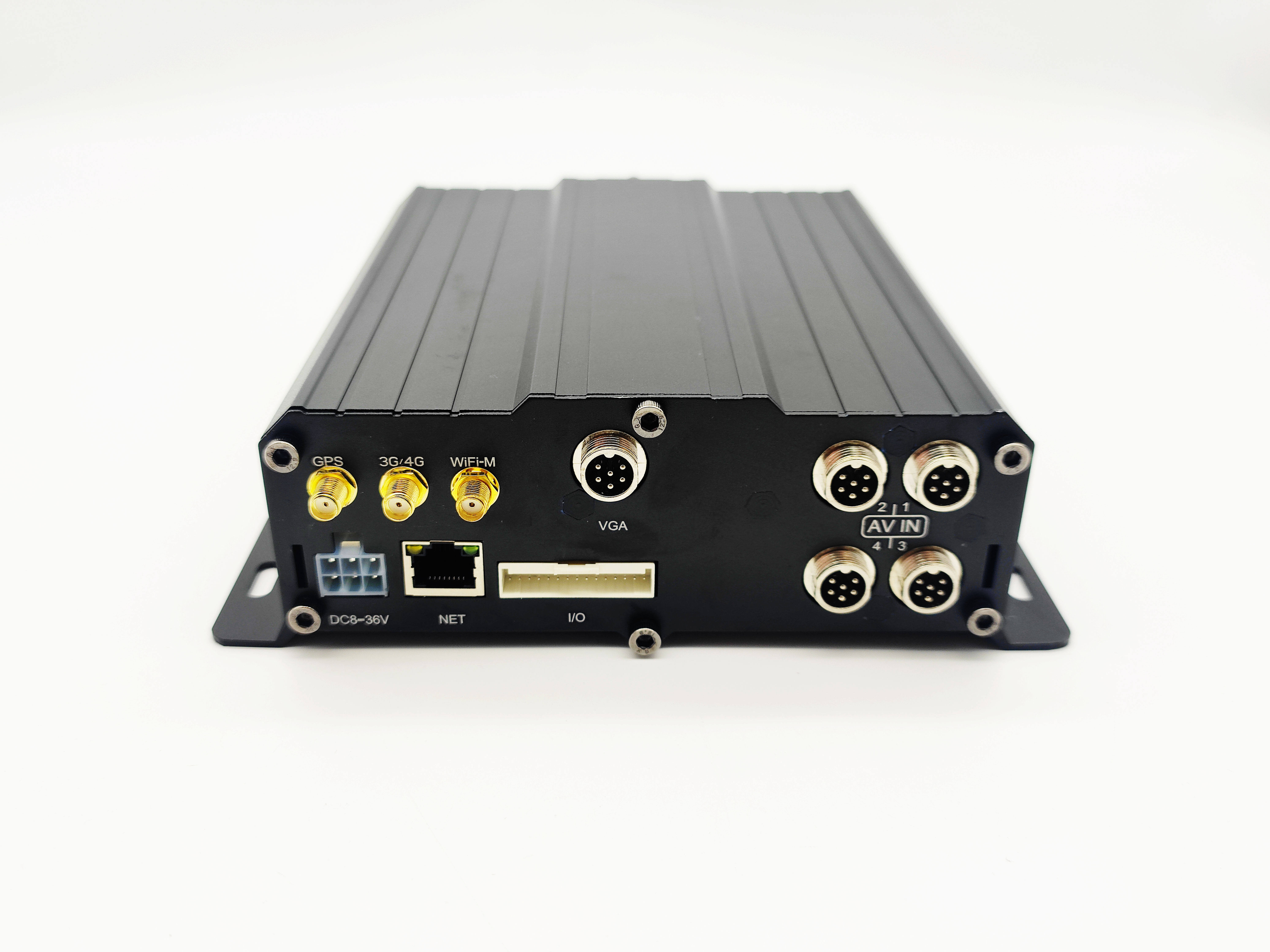

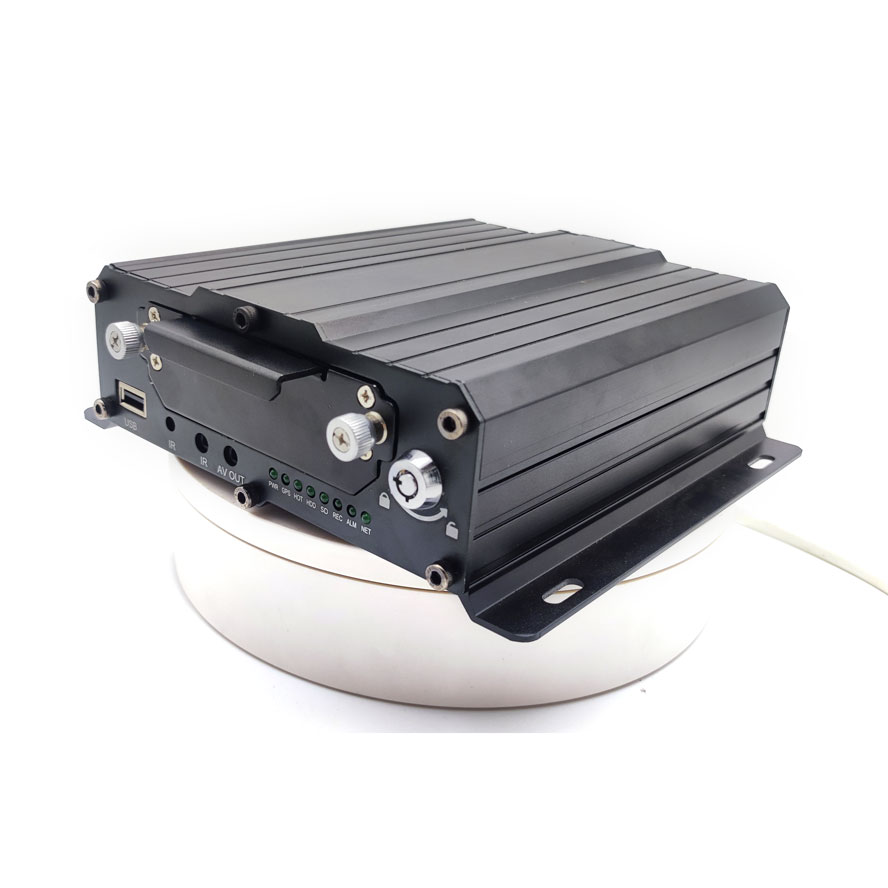

detailed picture

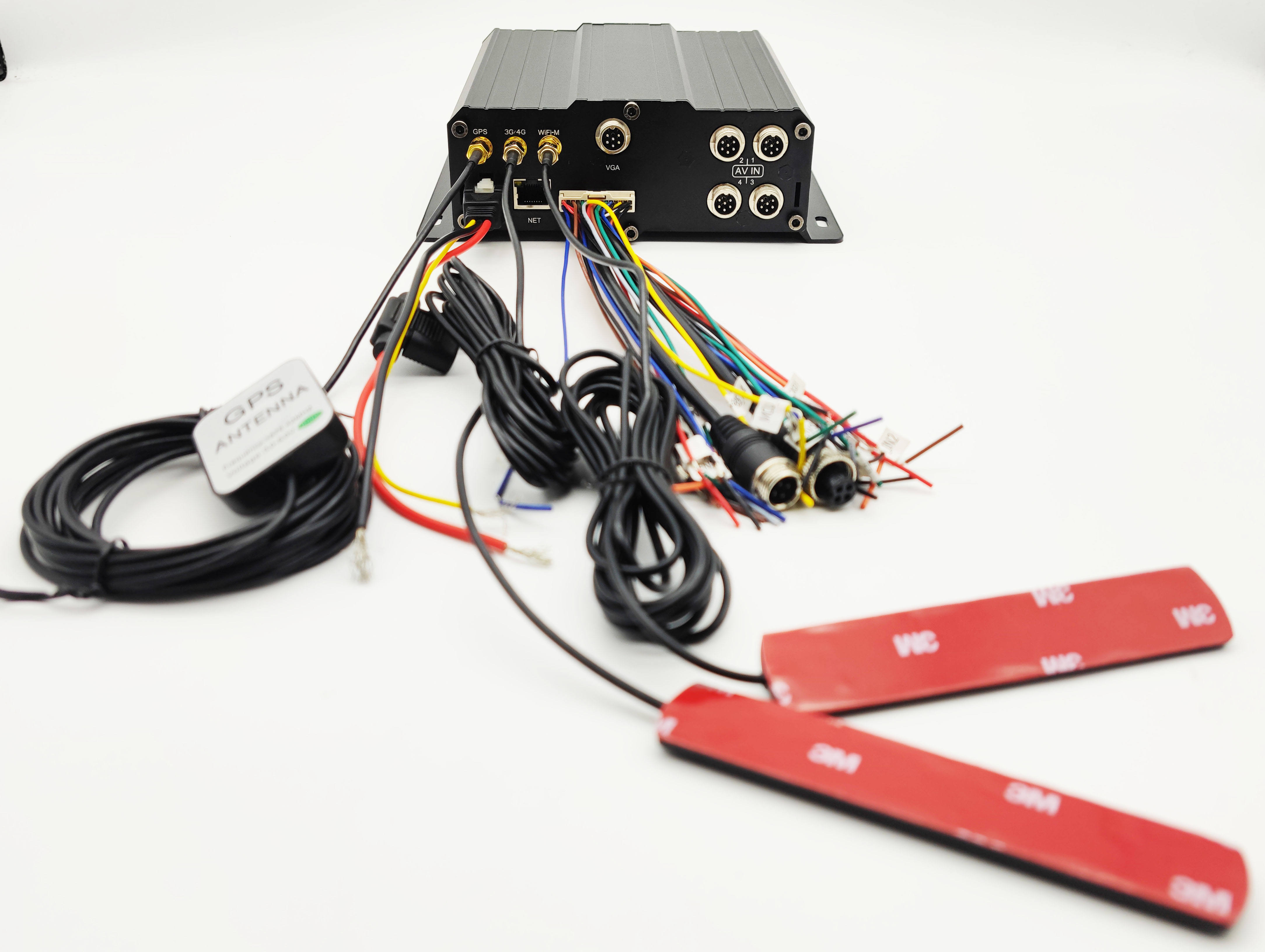

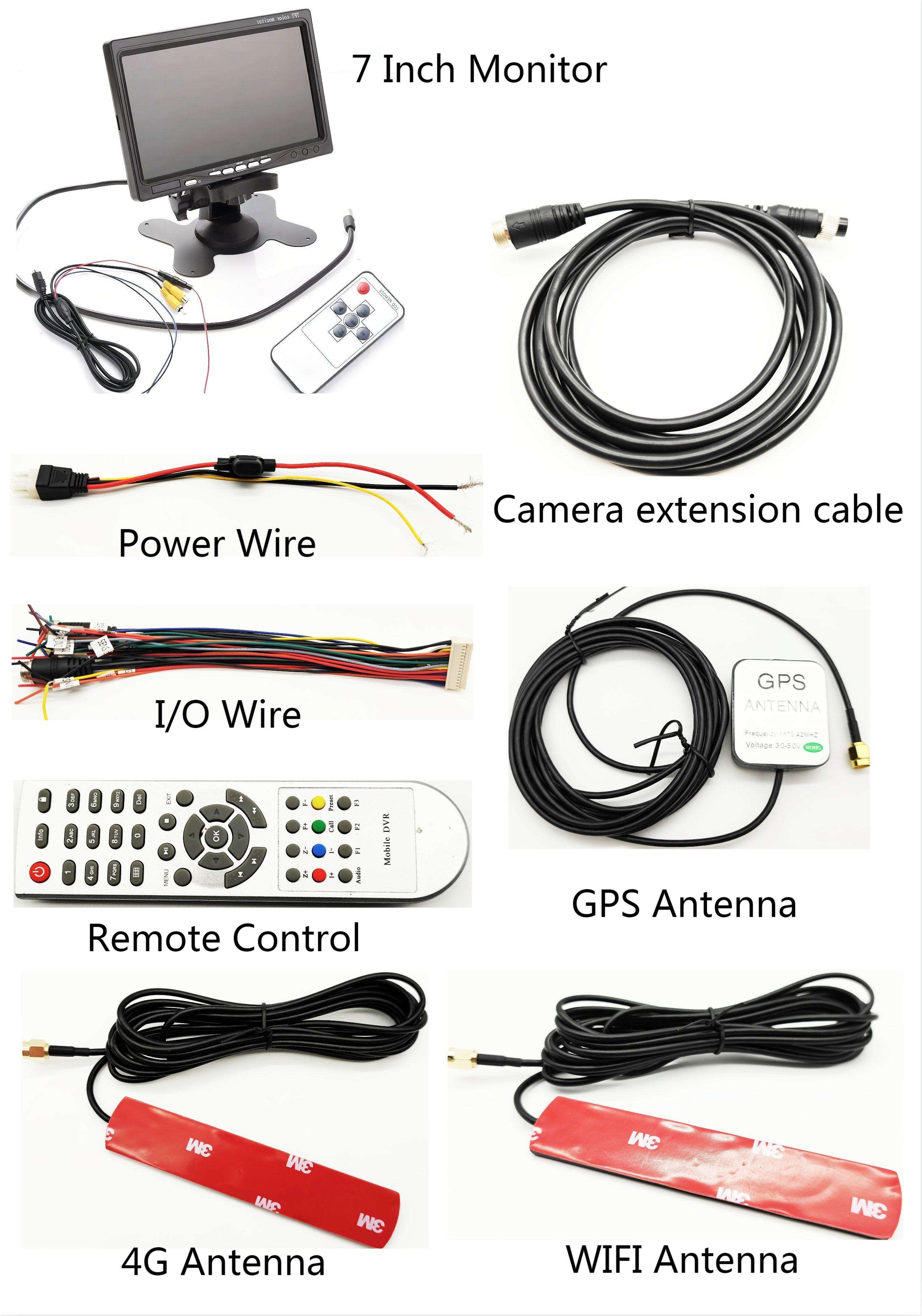

Included accessories:
Product parameters
Specification | ||||
main processor | Hi3521D V100 chipset | high performance chipset | ||
system | language | Chinese, English, Russian (customized) | ||
Operation interface | OSD menu | |||
password security | User Password and Administrator Password | |||
Cui | image screen display | AV display and VGA display can be connected externally, and system parameters can be set by remote control | ||
interface | ||||
audio and video | video input | 4/8 video input, 4pin interface, 1.0Vp-p, 750Ω | ||
video output | 1 channel AV composite audio and video output, 4pin interface, 1.0Vp-p, 750, 1 channel VGA output | |||
audio input/output | 4/8 input, 1 output, 4pin interface | |||
Compression format | Encoding format: G726 40KBPS, sampling rate: 8000 sampling bit width, 16bit sampling points: 320; | |||
preview | 1/2/4/6/8/9 screen split preview, support manual/event trigger full screen display function | |||
solve | Support 1080P/960P/720P/D1/HD1/CIF, maximum: 8 channels 1080p | |||
video quality | 1-8 levels, 1 being the highest level and 8 being the lowest level. | |||
video standard | PAL: 100 frames/s, CCIR625 lines, 50 fields NTSC: 120 frames/s, CCIRS25 lines, 60 fields; 1080P: 1536Kbps~8Mbps, multi-level picture quality optional 720P: 1000 Kbps ~ 6Mbps, multi-level image quality is optional Di: 800Kbps ~ 3Mbps, multi-level image quality is optional HD1: 600Kbps ~ 2.5Mbps, multi-level image quality optional CIF: 256Kbps ~ 1.5Mbps, multi-level image quality optional | |||
video mode | Default: Automatic recording after power on. Support ignition recording, alarm trigger recording, manual recording. | |||
video storage | file format | H.265 | ||
File system | Special file system or FAT32 | |||
hard disk | Support 1x hard disk (maximum 4TB) and 1xSD card (maximum 256GB), loop recording | |||
Upgrade method | Support U disk upgrade, SD card upgrade | |||
video playback | Search videos and video files by recording time, recording mode, etc. Support up to 4 channels of synchronous playback, pause, fast forward, fast rewind, Support 2, 4, 8, 16 times fast forward or rewind | |||
alarm | Alarm input | 8-way alarm input, with alarm linkage function | ||
Alarm Output | 2-way alarm output | |||
G sensor | Support built-in G-SENSOR acceleration sensor, alarm linkage trigger | |||
port | RS232 | 2*RS232 | ||
RS485 | 1*RS485 | |||
RJ45 | 1*RJ45 | |||
USB | 1*USB | |||
module | 3G (optional) | Built-in 3G module (WCDMA/EVDO/TD-SCDMA) | ||
4G (optional) | Built-in 4G module (TD-LTE/FDD-LTE) | |||
wireless network (optional) | Built-in WIFI module (2.4G) | |||
GPS (optional) | Support dual-mode GPS/BD | |||

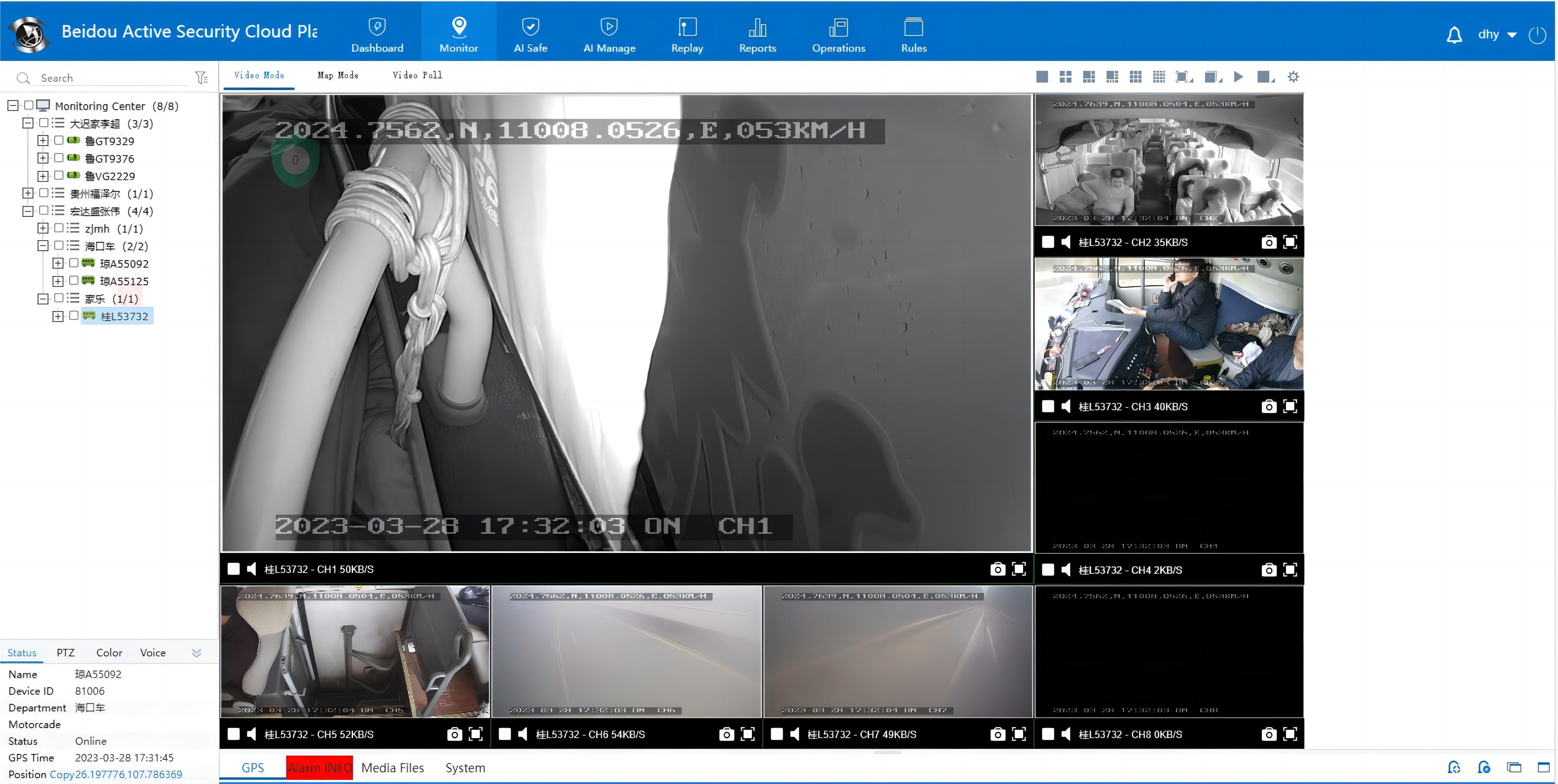

software | CMSV6 client | 4G remote real-time monitoring GPS positioning, remote management, recording, playback, Intercom, monitoring, track playback, alarm processing. | ||
Mobile terminal | Remote real-time monitoring, GPS positioning. Recording playback, intercom, monitoring, and alarm prompts are available at any time anywhere. | |||
computer play | Video playback track playback and analysis | |||
strength | energy management | Wide voltage power supply overload 1 undervoltage short circuit protection, low voltage automatic shutdown, support timing switch, Delay shutdown function. | ||
Input voltage | DC: +8V～+36V | |||
The output voltage | +12V@1A, +5V@1A | |||
working environment | temperature | -20'C to +70"C | ||
humidity | 20% to 80% | |||
size | machine | 200mmx187mmx62mm | ||
Product advantages
Application field: Widely used in buses, coaches, trucks, and logistics fields.
Accurate and real-time monitoring system:
(1) 4G remote real-time monitoring: Insert a 4G mobile phone card and download the client to support multi-device terminal viewing, real-time sharing, remote downloading, and real-time viewing of the video you want to watch.
(2) GPS (Beidou) positioning: Carry out vehicle positioning through GPS, understand the position and driving trajectory of the vehicle, realize real-time dispatch of vehicles, and improve efficiency.
