9512 Desktop Small Drilling and Milling Machine Multifunctional Machine Manual Vertical Milling Machine
- $99.00 /piece
- 1 piece
- Shenzhen Denver Servo Technology Co., Ltd.
- Guangdong, China
- Ms KOKO Deng
PRODUCT DETAIL
| Packaging Preview: | Main selling point: | high productivity | |
| Core Components Warranty: | 1 year | Warranty: | 1 year |
| brand: | Denver | model: | 9512 |
| Spindle Bore (mm): | 10mm | port: | Shenzhen, China |
| Health status: | new | Dimensions (L*W*H): | 620X620X770mm |
| Mechanical test report: | Not available | Layout form: | vertical |
| maximum. Turning length (mm): | 300 mm | Marketing Type: | Hot Products 2022 |
| type: | horizontal | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, printing shops, construction works |
| maximum. Workpiece length (mm): | 250 | Supply capacity: | 1000 pieces per month |
| Control form: | copy | Spindle motor power (kW): | 550 |
| Processing capacity: | relaxing work | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Weight (kg): | 67kg | Spindle speed range (rpm): | 1 - 2500 rpm |
| Number of T slots: | 2 | place of origin; place of origin: | Guangdong, China |
| Spindle taper taper: | MT3 | Packaging Details: | carton |
| Showroom location: | not any | Core components: | other |
| Video external inspection: | Not available |
Product Description

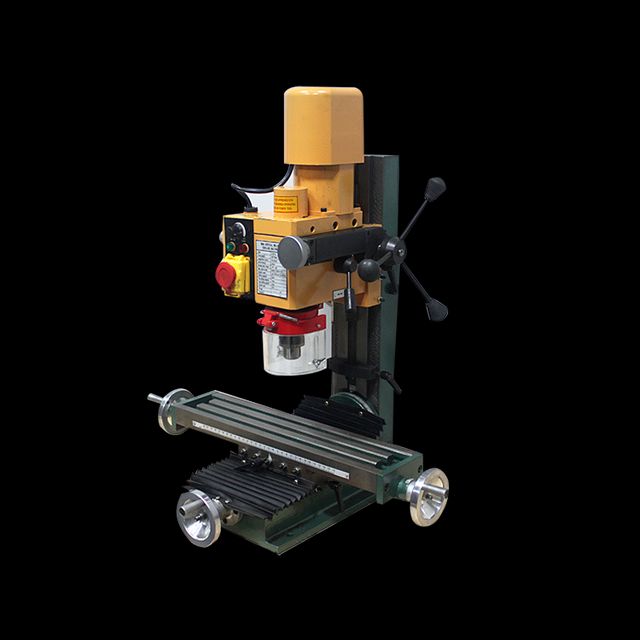

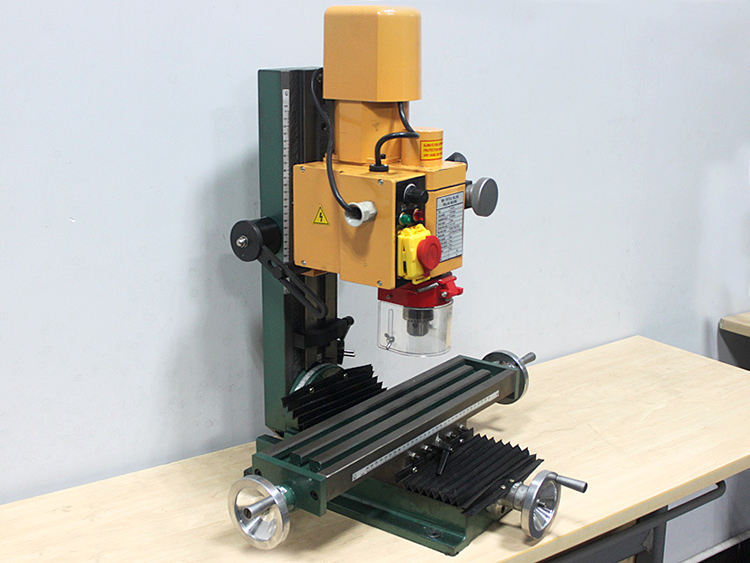

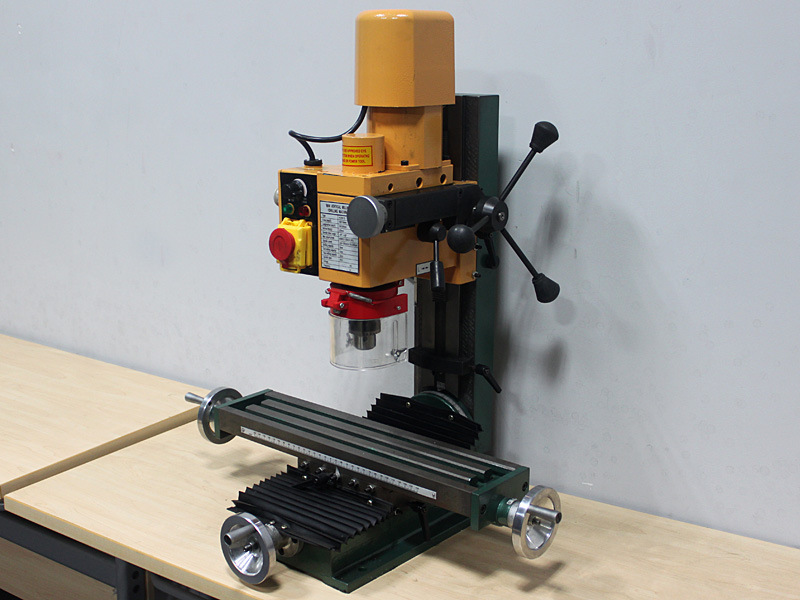

9512 small drilling and milling machine
The main processing materials are: steel, iron, copper, aluminum, PVC plastic and other materials;
9512 Small Drilling and Milling Machine
It can be used for machine tool teaching, DIY machining in maker studios, innovation laboratories in colleges and universities, enterprise prototype processing or as a maintenance tool
Specification
Maximum aperture | 13mm |
Maximum milling diameter | 16mm |
Maximum face milling diameter | 30mm |
Headstock stroke (Z) | 180mm |
Lateral stroke (X) | 300mm |
Longitudinal stroke (Y) | 130mm |
Rotation angle | -45°-+45° |
Output Power | 550W |
Spindle speed range low speed | 0-1100 rpm ±10% |
high speed | 0-2500 rpm ±10% |
Spindle bore Morse taper | MT3 |
T-slot width | 12mm |
net weight gross weight | 67/87kg |
Dimensions | 620×620×770mm |
Package dimensions | 700×700×850mm |

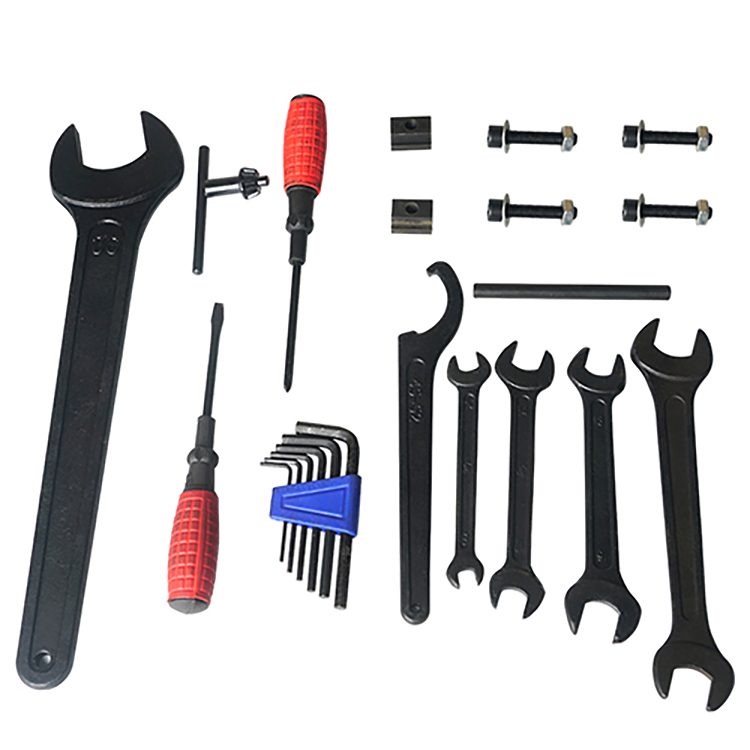

Accessories | Single-ended wrench, oil tank, tool box, collet key, adjustable pliers, milling cutter, drill bit, etc., DIY machining Maker studio, university innovation laboratory, enterprise prototype processing or as a maintenance tool |
Product Features and Benefits
Features of 9512 small drilling and milling machine
The milling machine is a desktop design, lamp shifting, milling and drilling processing, the bed is made of high-quality cast iron material, the machine tool has good rigidity, the machine is firm, stable and durable, the transmission gear is made of metal material, to ensure the service life. , The speed is infinitely adjustable, the low speed is 100-1100 rpm, and the high speed is 100-2500 rpm. The use of many accessories can be used for various tasks.
