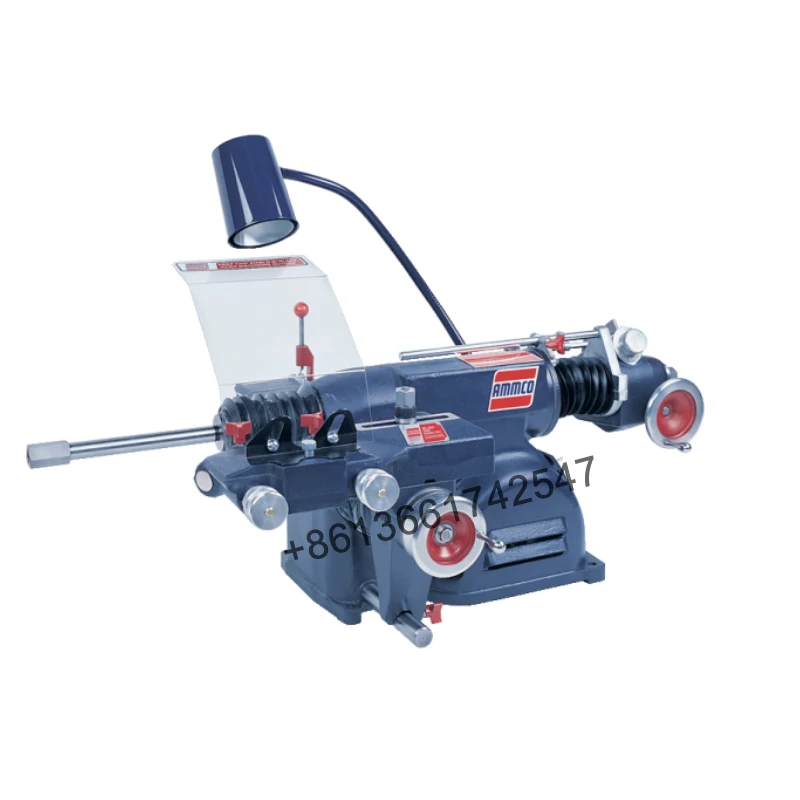

AMMCO Brake Lathe 4000B Combination Disc and Drum Optical drum drive 904000B
- $12000.00 / 1 - 9 pieces
$10000.00 / >=10 pieces - 1 piece
- Sice Automobile Technology (Shanghai) Co.,Ltd
- Shanghai, China
- Ms Julia Siceue
PRODUCT DETAIL
Spindle Speed: | 100, 200 RPM; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Showroom Location: | None; | Brand Name: | AMMCO; |
Applicable Industries: | Hotels; | Volume: | High; |
Marketing Type: | New Product 2020; | Application: | Car & Light Truck; |
Weight (KG): | 25 KG; | Max. Length of Workpiece (mm): | 3000; |
Max. Swing Diameter (mm): | 800; | Standard Max Arbor Capacity: | 100 lbs.; |
Model Number: | 904000B; | Machining Capacity: | Medium Duty; |
Shipping Weight: | 406 lbs.; | Type: | Horizontal; |
Machinery Test Report: | Provided; | Condition: | New; |
Place of Origin: | Shanghai, China; | Warranty: | 1 Year; |
Tool Bits (shipped with): | Negative Rake; | Max. Turned Length (mm): | 2800 mm; |
Spindle Bearings: | Bronze Sleeve; | Spindle Bore(mm): | Other; |
Rotor Feed Rate: | 002"/.010"/REV; | Key Selling Points: | Multifunctional; |
After-sales Service Provided: | Online support; | Part Number: | 904000B; |
Local Service Location: | None; | Port: | shanghai; |
Supply Ability: | 10 Acres per Week; | Video outgoing-inspection: | Provided; |
After Warranty Service: | Online support; | Core Components: | Engine; |
Warranty of core components: | 1 Year; |
Product Description
Product Parameters
Part Number
|
904000B
|
Shipping Weight
|
406 lbs.
|
Volume
|
High
|
Type
|
Rotor & Drum
|
Tool Bits (shipped with)
|
Negative Rake
|
Application
|
Car & Light Truck
|
Standard Max Arbor Capacity
|
100 lbs.
|
Spindle Speed
|
100, 200 RPM
|
Spindle Bearings
|
Bronze Sleeve
|
Rotor Feed Rate
|
.002"/.010"/REV
|
Rotors
|
Yes
|
Motor
|
1 HP
|
Max Rotor Thickness
|
1.875"
|
Max Rotor Face Width
|
3-3/4"
|
Max Rotor Diameter
|
14.5"
|
Max Drum Diameter
|
No
|
Max Drum Depth
|
6.875"
|
Double Taper Arbor
|
Yes
|
Flywheel Service Capable
|
Yes
|
Drums
|
Yes
|
Drum Feed Rate
|
.002" to .020"/REV
|
Heavy Duty Max Arbor Capacity
|
200 lbs
|
Features
1.Two adjustable spindle speeds (if desired) allow for fast turning of small pieces and high-quality turning of larger pieces. 2.Two feed rates allow for quick rough-cut and finer finish-cut settings. 3.Forged alloy steel arbor – Two tapered mounting surfaces add stability and handle up to 200 lb. 4.Feed slide protection keeps travel surfaces free of dirt and chips. 5.Negative rake tool bits standard, provide lower cost of ownership. 6.Solid twin cutter tool simultaneously resurfaces both sides of rotor. 7.Full-drum support hex boring bar guarantees correct tool angle for drums. 8.Infinitely variable drum feed from 0.002" to 0.02" per revolution. 9.Quick drum-to-rotor changeover. 10.User-friendly ergonomics. 11.Supports drums or rotors up to 100 lb. using the standard 1" (25.4 mm) arbor, or up to 200 lb. using the optional 1.875" (47.63 mm) arbor. 12.Micrometer-precise depth-of-cut dials embossed in metal and calibrated in both thousandths of an inch and tenths of a millimeter; easy reset to zero. 13.Extended spindle increases drum capacity to 9.875".
