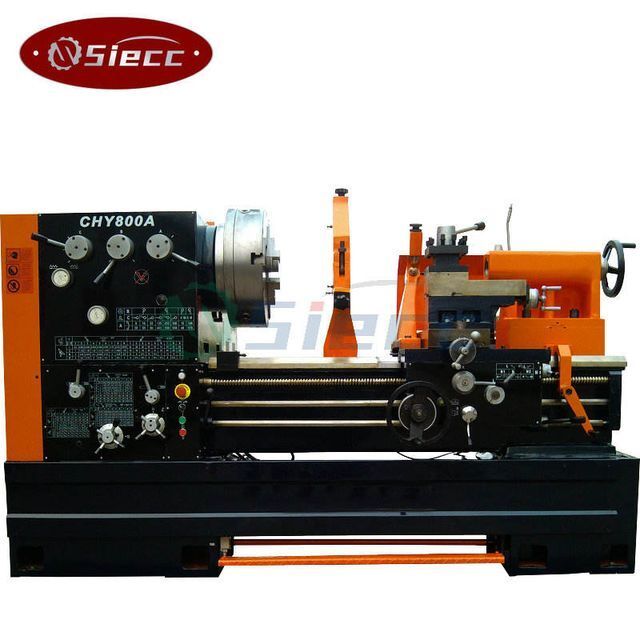

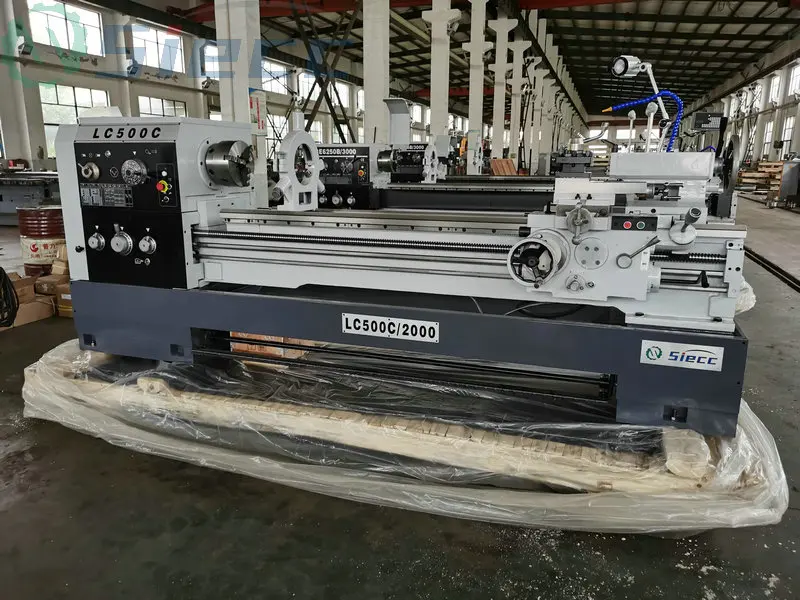

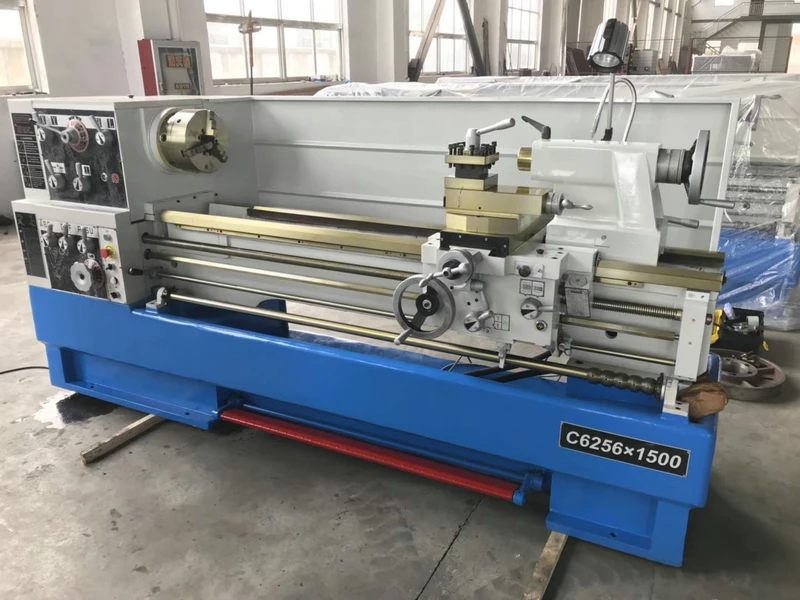

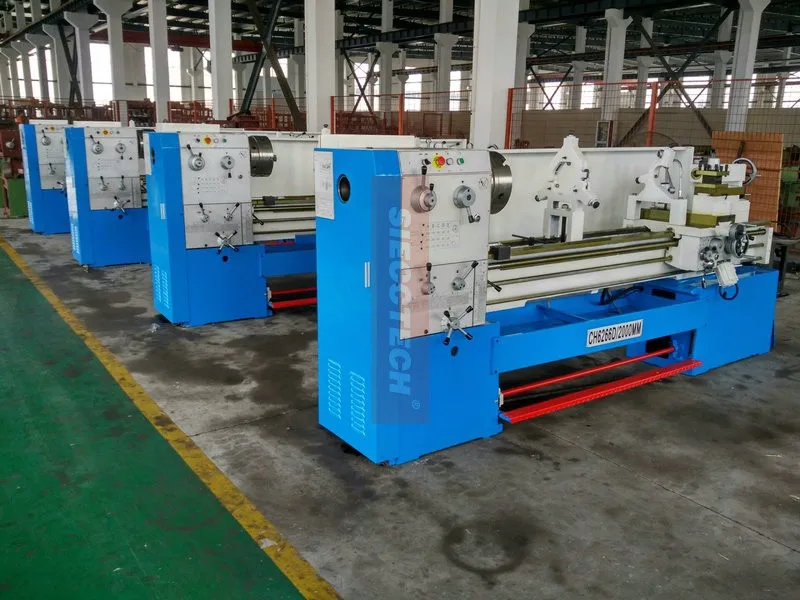

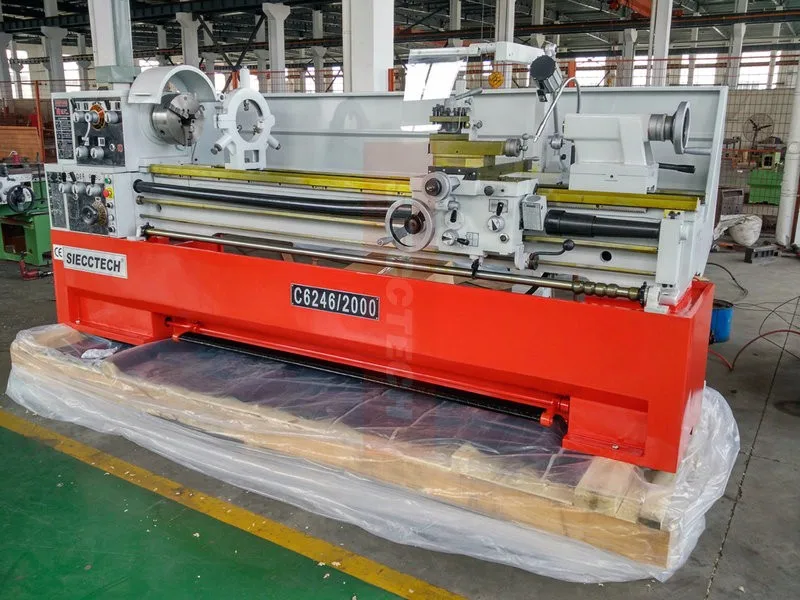

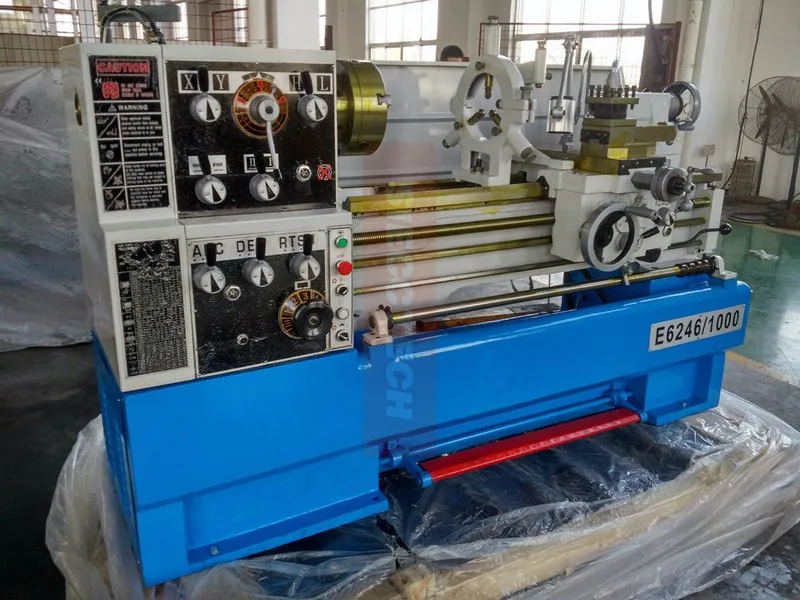

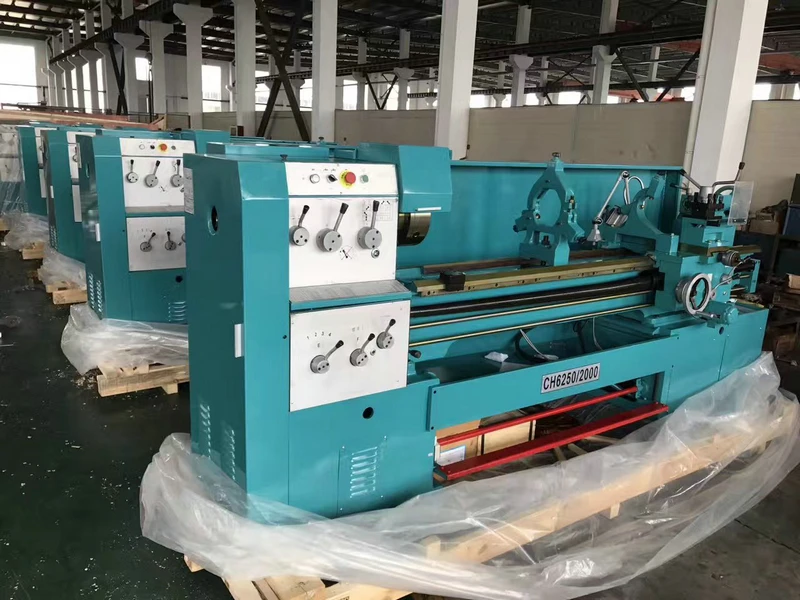

Bench lathe machine with high precision

Price:$2000.00 /piece
Min. Order:1 piece
Supplier:Shining Industrial Enterprise (China) Co., Ltd.
Region:Shanghai, China
Contact:Mr Eric Guo

PRODUCT DETAIL

Place of Origin:	Jiangsu, China;	Warranty of core components:	2 years;
Dimension(LWH):	2950X1150X1750MM;	Port:	SHANGHAI;
Brand Name:	SIECC;	Year:	2022;
Warranty:	5 years;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia;
Spindle Motor Power(kW):	5;	Marketing Type:	Hot Product 2022;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Supply Ability:	300 Sets per Month;
Core Components:	Bearing,Pump,Gear,Motor,Gearbox,PLC,Pressure vessel,Engine;	Key Selling Points:	Automatic;
Video outgoing-inspection:	Provided;	Payment Terms:	L/C,T/T;
Max. Length of Workpiece (mm):	3000 mm;	Machinery Test Report:	Provided;
Max. Turned Length (mm):	2500 mm;	Certification:	CE / UKCA;
Type:	TURNING CENTER;	Machining Capacity:	Medium Duty;
Spindle Bore(mm):	38 m'm;	Voltage:	Customer's Requirement;
Range of Spindle Speed(r.p.m):	30 - 7000 r.p.m;	Condition:	New;
Weight (KG):	2500 KG;

Product Description

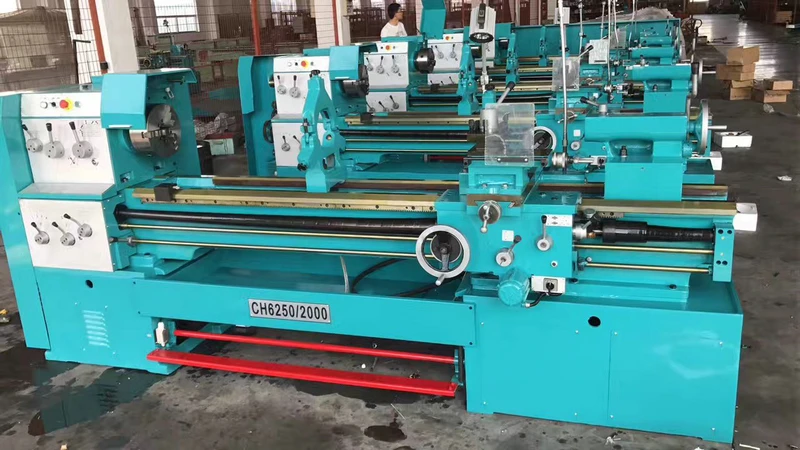

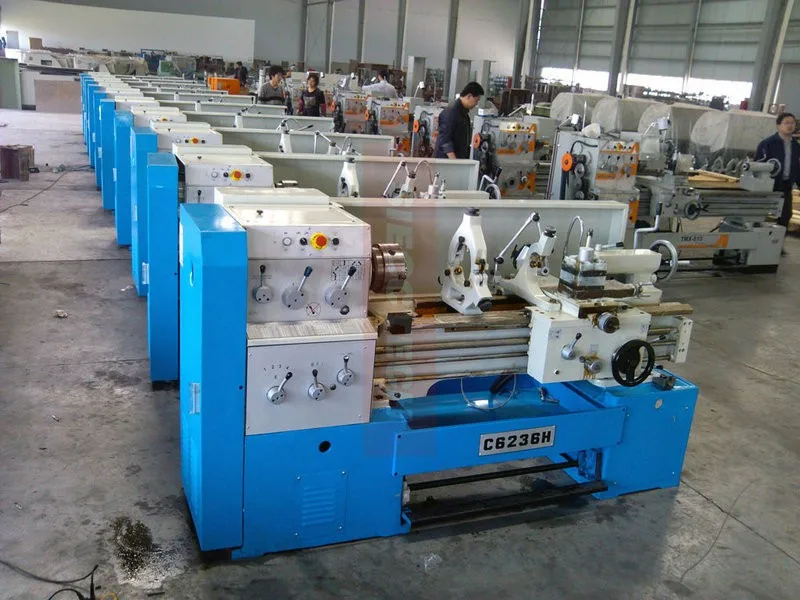

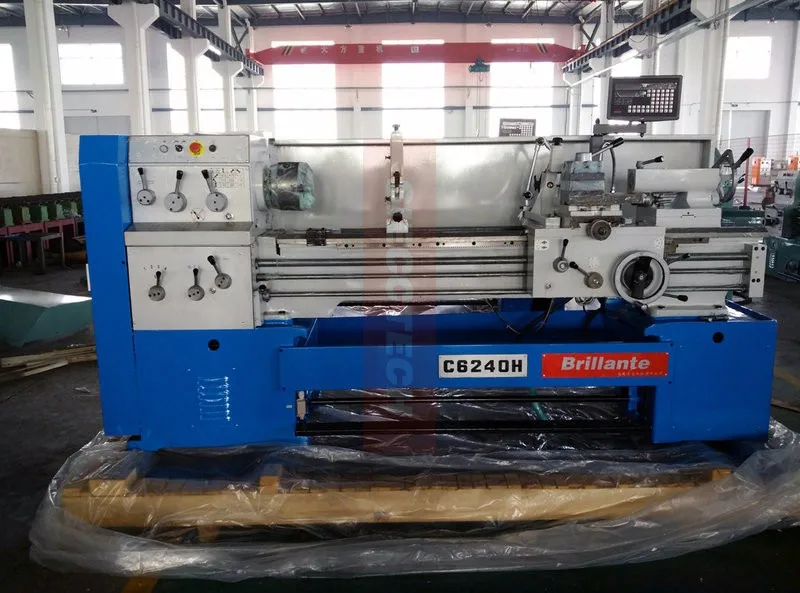

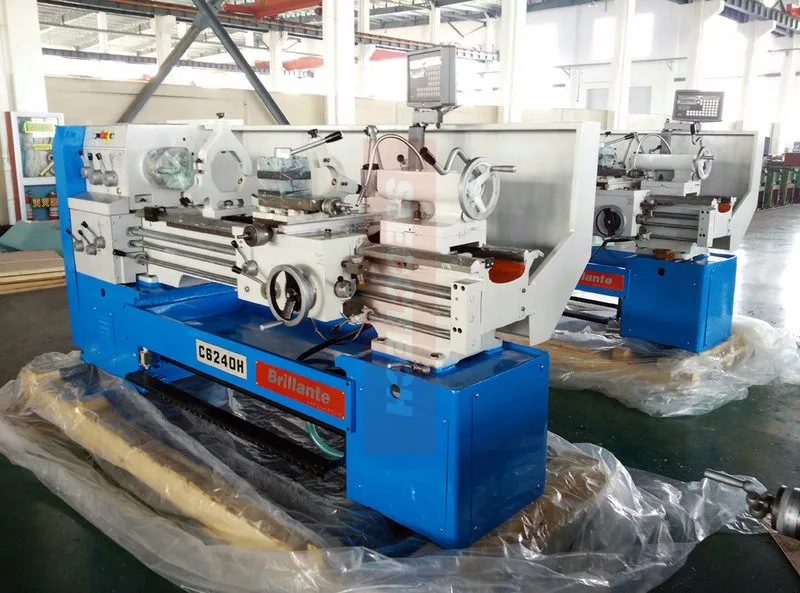

Model		C6236H	C6240H	C6250H	C6260H
Model		CH6236F	CH6240F	CH6250F	CH6260F
CAPACITY	Max.swing over bed	360mm	400mm	500mm	600mm
	Max.swing over cross slide	190mm	230mm	330mm	330mm
	Max.swing over gap	520mm	560mm	660mm	760mm
	Effective length of gap	200mm
	Center Distance	750\1000\1500\2000mm
	Bed Width	360mm
HEADSTOCK	Spindle hole	52mm
	Spindle nose	ISO-C6
	Spindle taper	MT6
	Spindle speed(Number)	(9steps)40-1400rpm
FEEDS	Longitudinal feeds range	0.0832-4.66mm/r
	Cross feeds range	0.048-2.69mm/r
	Metric threads range	19kinds 0.25-14mm
	Inch threads range	49kinds 2-40inch
	Moudle threads range	11kinds 0.5-3.5mπ
CARRIAGE	Max.travel of top slide	95mm
	Max.travel of cross slide	180mm	200mm	250mm	250mm
	Max.size of toolshank	20*20mm²
TAILSTOCK	Dia.of tailstock sleeve	65mm
	Taper of tailstock sleeve	MT4
	Max.travel of tailstock	140mm
MOTOR	Main drive motor	4KW		5.5KW	7.5KW
	Coolant pump motor	125W
PACKING LWH	Center Distance(750mm)	225115175cm
	Center Distance(1000mm)	245115175cm
	Center Distance(1500mm)	295115175cm
	Center Distance(2000mm)	345115175cm
N.W/G.W	Center Distance(750mm)	1350/1750kg	1400/1800kg	1500/1900kg	1600/2000kg
	Center Distance(1000mm)	1450/1850kg	1500/1900kg	1600/2000kg	1700/2100kg
	Center Distance(1500mm)	1600/2000kg	1650/2050kg	1750/2150kg	1900/2300kg
	Center Distance(2000mm)	1750/2150kg	1800/2200kg	1900/2300kg	2050/2450kg

Company Information

Company	Shining Industrial Enterprise(China) Co., Ltd Nantong Brillante Industrial Enterprise Co., Ltd Edward Pearson Machinery (Shanghai) Co., Ltd NANTONG LIANZHONG MACHINE CO., LTD
Brand	SIECC/EDWARDS PEARSON/HECTMAC
Website	www.machineshome.com www.shearmachine.com.cn www.bendrolls.com www.allmachinetool.com
Video	1. Rolling https://youtu.be/Fi3tFKSoLlY 2. Press brake https://youtu.be/pyIChKoh1eA 3. Grooving https://youtu.be/pFZh_n3vrss 4. Ironworker https://youtu.be/0O9OeCmu9QI 5. Plasma cutting https://youtu.be/71BKxv6tVB8
Email	ek(a)chinasiecc.com ar(a)chinasiecc.com hl(a)chinasiecc.com ajj(a)chinasiecc.com he(a)chinasiecc.com jc(a)chinasiecc.com
Facebook	https://www.facebook.com/siecctech

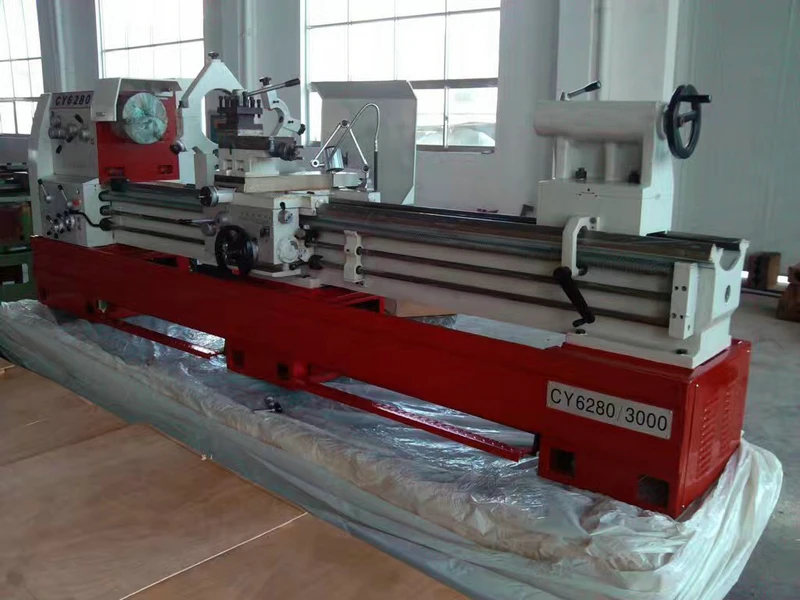

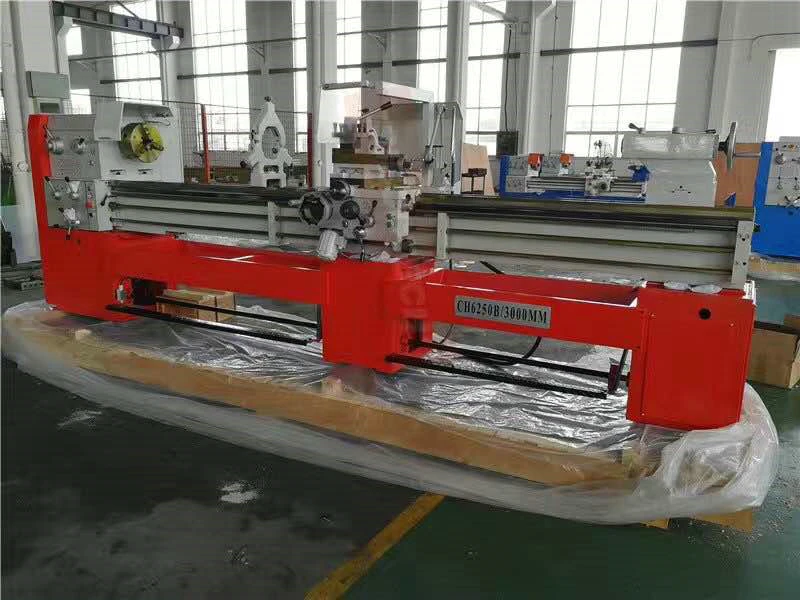

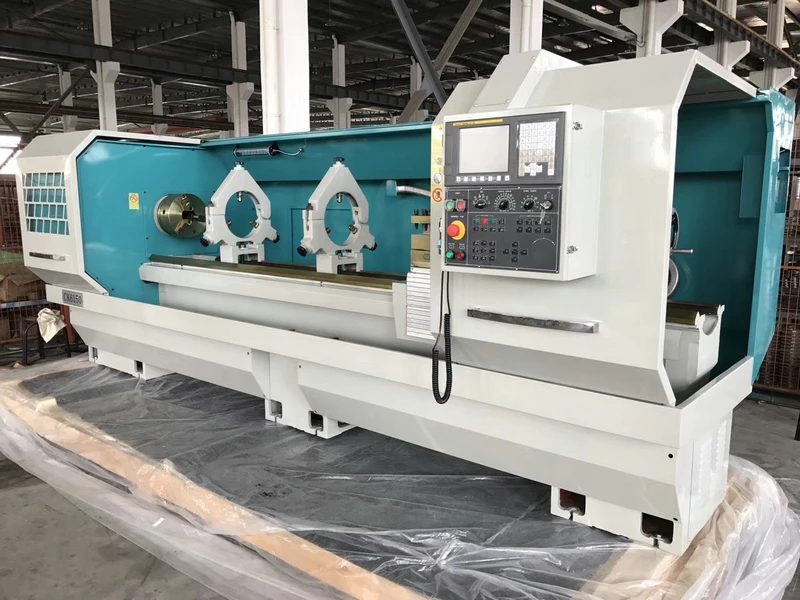

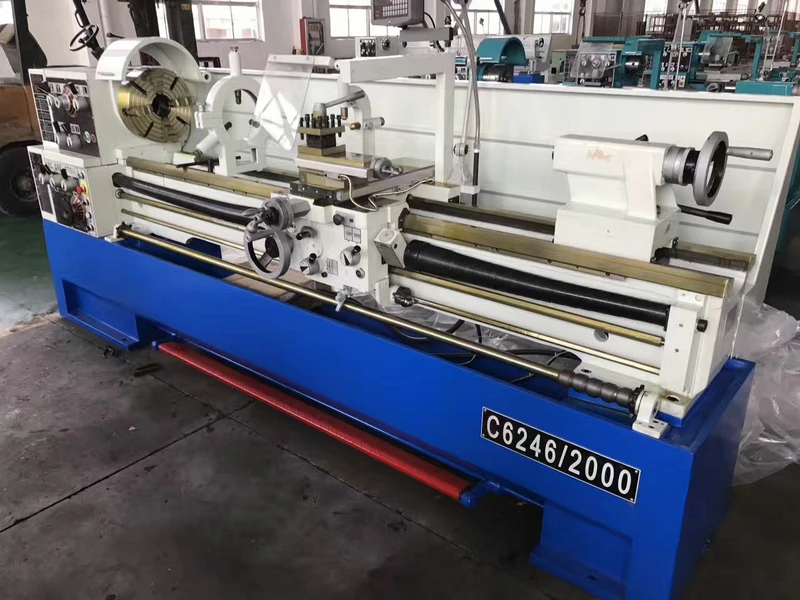

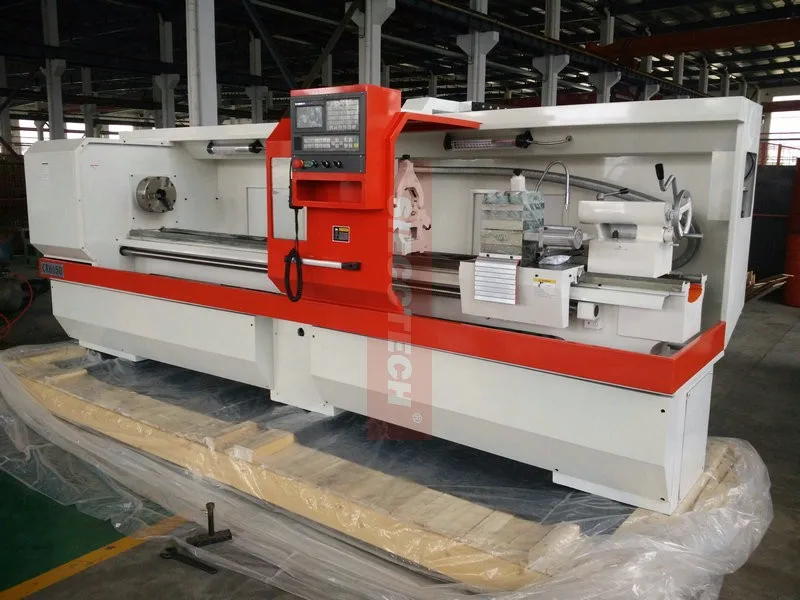

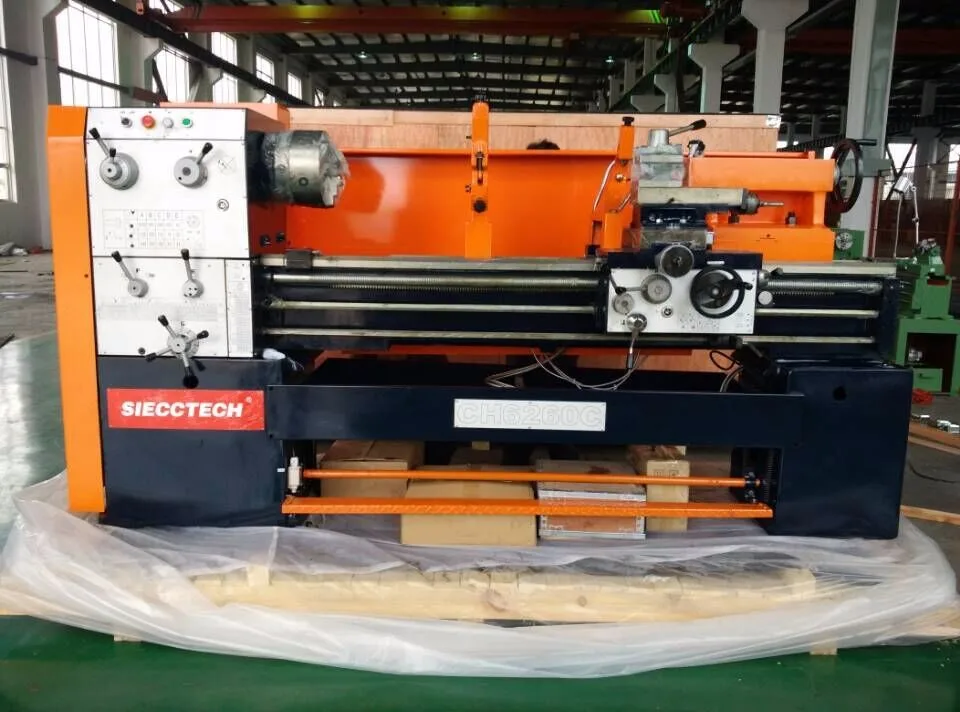

PACKAGE AND SHIPMENT

OVERSEA


How about your machine quality?We are worry about the quality. SIECC is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are SIECC machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount SIECC always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients. Actually SIECC also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
How about your manufactory in CHINA SIECC located in HAIAN CITY,NANTONG,JIANGSU province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 10 years in this area and totally have about 150 staffs.Rich experience in this field with professional technical supporting and oriented service. We welcome your visit to us any time.
Do you accept L/C payment term? Yes,we accept 100% L/C at sign from almost all countries.
