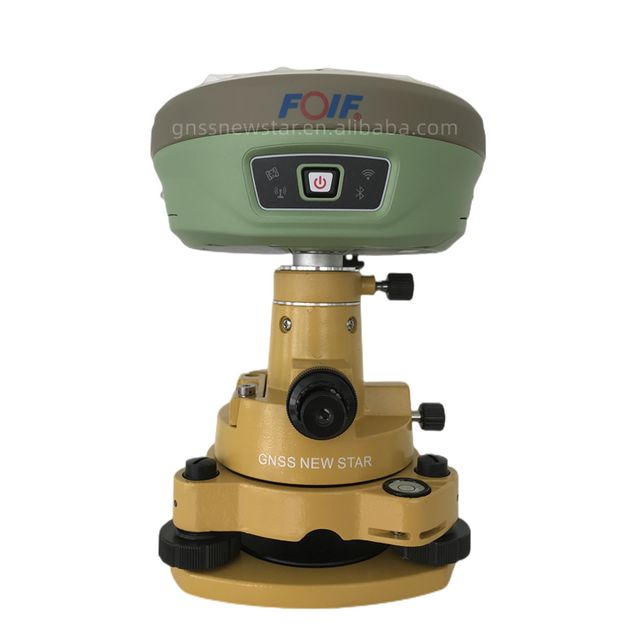

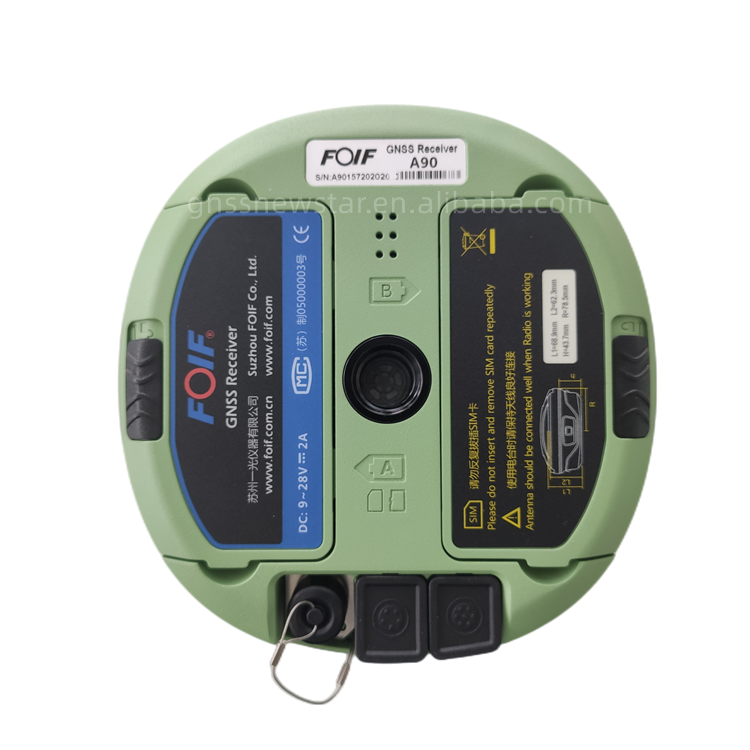

A90 GNSS RTK RECEIVER 800 channels, 60 degree tilt measurement, removable battery

PRODUCT DETAIL
Wifi:802.11 b/g/nAtlas:8 cm
model:A90humidity:100% anti-condensation
Waterproof and dustproof:IP68Custom Support:ODM
operating hours:-35℃ ~ +65℃button:1 power button
Electronic Bubbles:supportbattery capacity:7.2V, 24.5Wh (standard with two batteries)
Packaging Details:Cartonpayment terms:wire transfer
Supply capacity:5000 boxes per yearWarranty:1 year
operating system:LinuxPackaging Preview:
port:Hongkongplace of origin; place of origin:Tianjing, China
Initialization time:8s
Product Description





Signal
Beidou: B1, B2, B3
GPS: L1CA, L1P. L1C, L2P, L2C, L5
Gloss: G1, G2, P1, P2
Galileo: E1BC, E5a. E5b
QZSS: L1CA. L2C. L5, L1C
SBAS: L1CA, L5;
L-band










surroundings
Working temperature: -35℃ ~ +65℃
Storage temperature: -55℃ ~ +80℃
Waterproof and dustproof:IP68
humidity:100% anti-condensation



Recommended Products

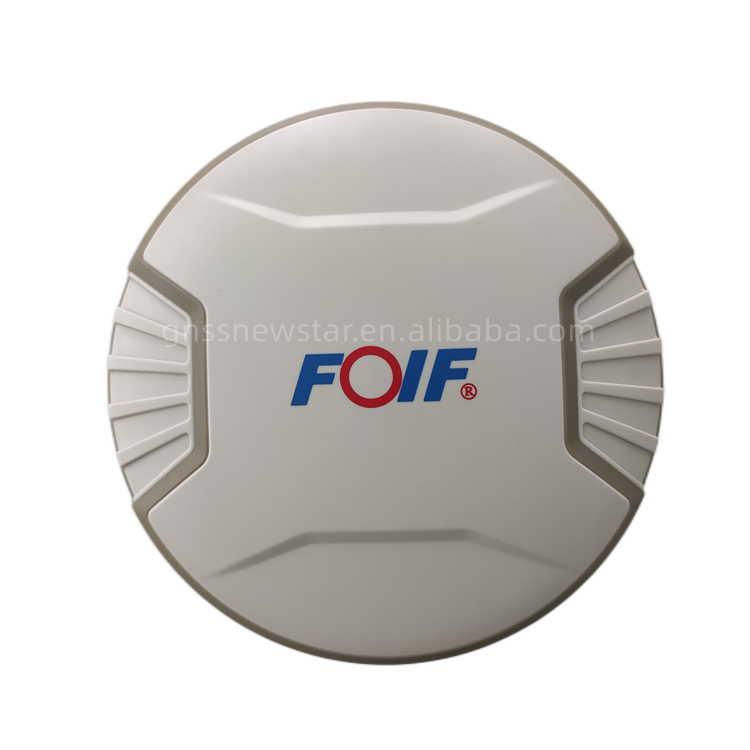

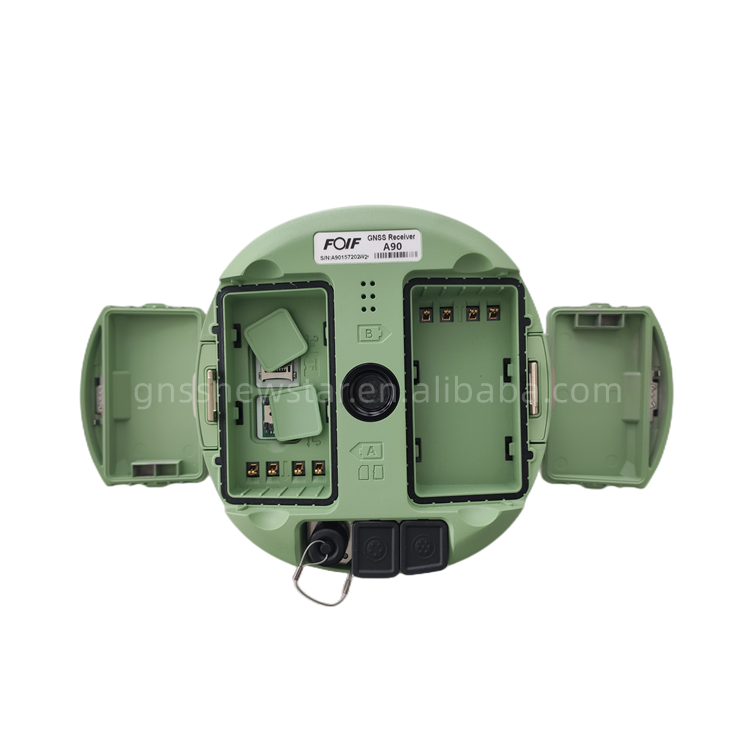

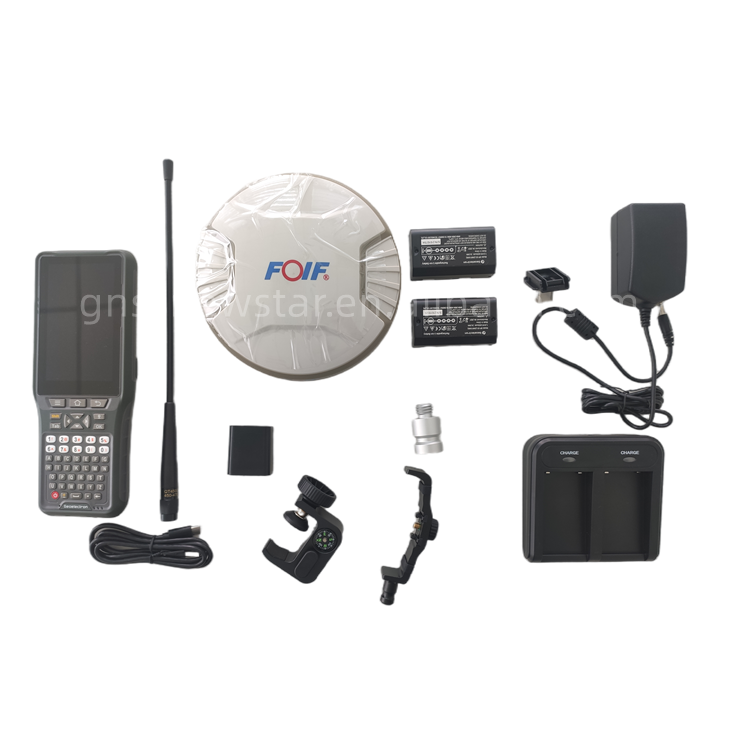

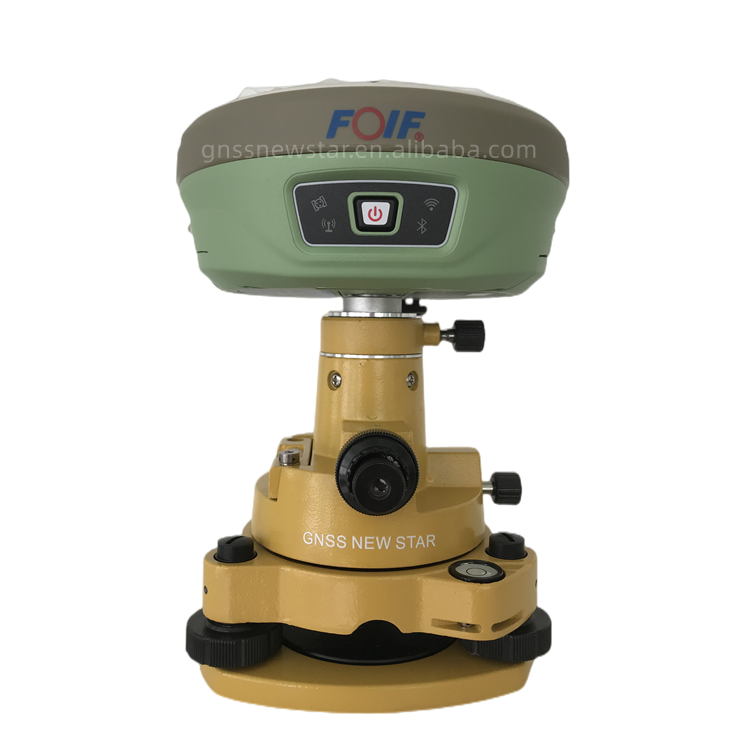

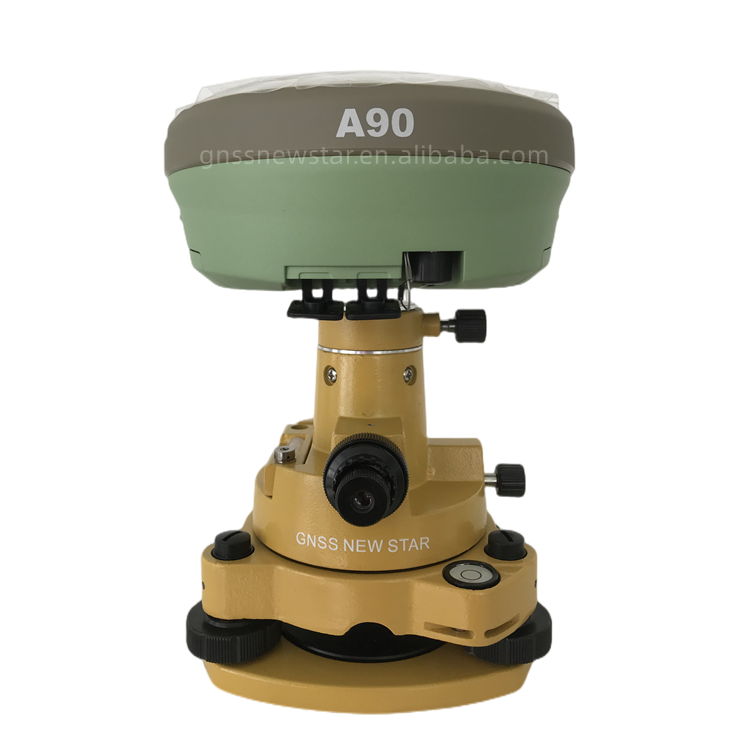

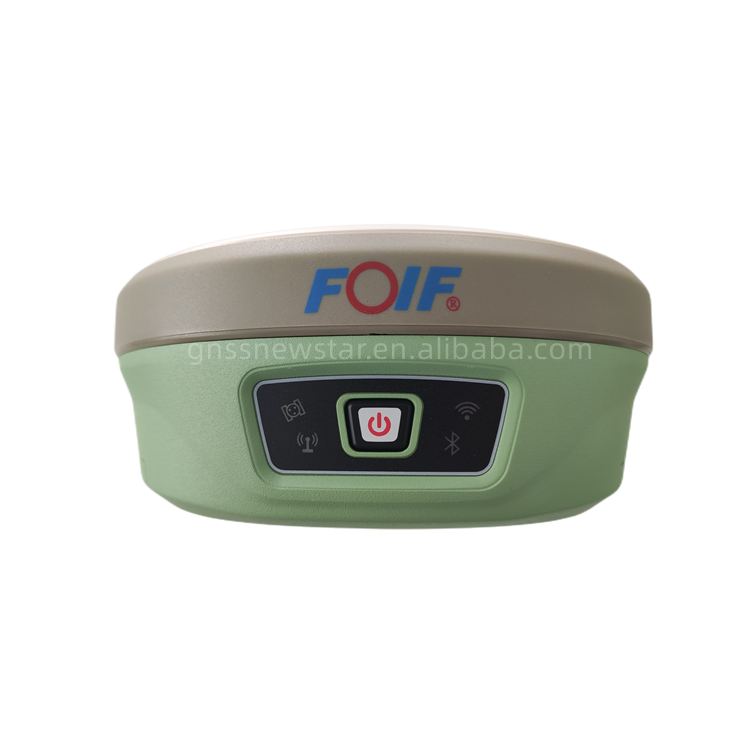

detailed picture
Specification
Global Navigation Satellite System
channel
800
Signal
Beidou: B1, B2, B3
GPS: L1CA, L1P. L1C, L2P, L2C, L5
Gloss: G1, G2, P1, P2
Galileo: E1BC, E5a. E5b
QZSS: L1CA. L2C. L5, L1C
SBAS: L1CA, L5;
L-band
accuracy
stationary
Horizontal: 2.5mm ±1ppm, Vertical: 5mm ±1ppm
RTK
Horizontal: 8mm ±1ppm, Vertical: 15mm ±1ppm
Global Navigation Satellite System
<0.5m
Atlas
8 cm
system
initialization time
8s
Reliable initialization
99.90%
operating system
Linux
Murray
8GB, supports expandable MisroSD
Wifi
802.11 b/g/n
V2.1+EDR/V4.1Dual,Class2
electronic bubble
support
Inclination measurement
IMU tilt measurement 60°, fusion positioning/400Hz refresh rate
data link
vocal
Support TTS audio broadcast
UHF
Tx/Rx built-in radio, 1W/2W adjustable, radio support 410-470Mhz
protocol
Support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target
network
4G-LTE, TE-SCDMA, CDMA (EVDO 2000), WCDMA, GSM (GPRS)
physical
interface
1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232)
button
1 power button
indicator light
4 indicator lights
size
Φ156mm * H 76mm
weight
1.2kg
power supply
battery capacity
7.2V, 24.5Wh (standard with two batteries)
battery life timer
Static measurement: 15 hours, Rover RTK measurement: 12 hours
External power supply
DC 9-18V, with overvoltage protection
surroundings
operating hours
-35℃ ~ +65℃
Storage temperature
-55℃ ~ +80℃
Waterproof and dustproof
IP68
humidity
100% anti-condensation
