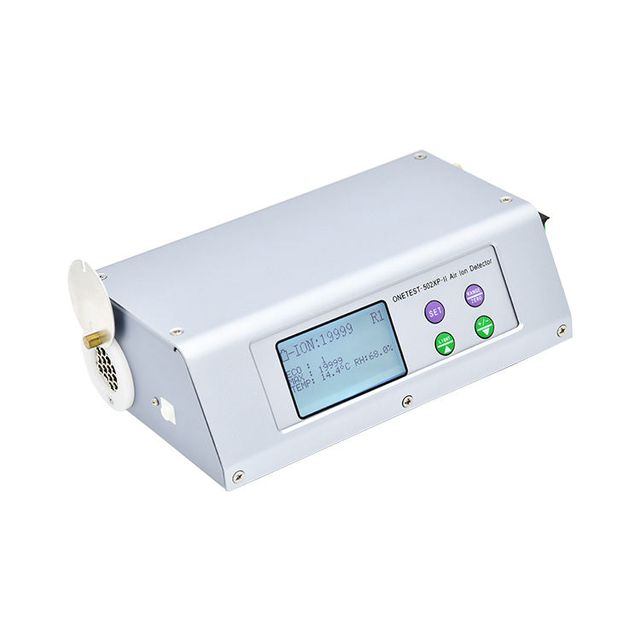

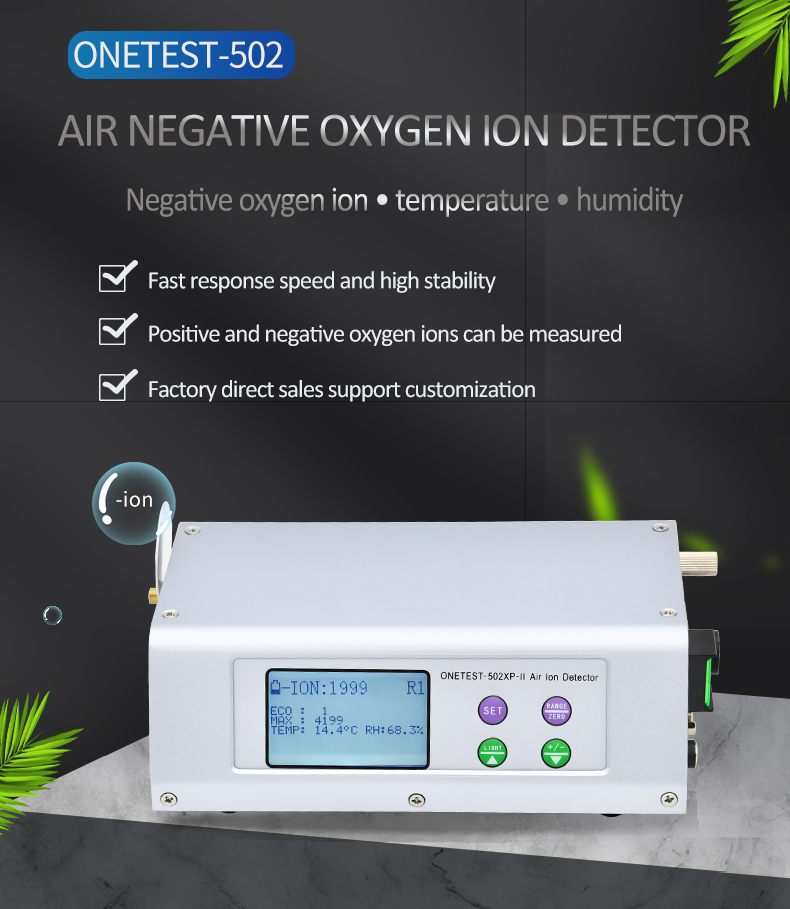

ONETEST-502XP-|| Negative ion tester for temperature and air humidity measurement

PRODUCT DETAIL
port:FukudaPackaging Preview:
programme:128X64 dot matrix LCDResolution:1/cm³
place of origin; place of origin:Shenzhenweight:0.910kg
Data output:Optional RS-232Warranty:1 year
Measuring range:0-2 million/cm³model:ONETEST-502XP-||
size:Length 19*Width 12.6*Thickness 6.8(CM)Measurement principle:Coaxial Cylinder Condenser Type
fluidity:0.6cm²/v.secSupply capacity:9999 pieces per month
brand:ONETESTHumidity measurement range:0~100%RH
Custom Support:OEM, ODM, OBMpayment terms:wire transfer
Temperature measurement range:-20~50℃



Product Description

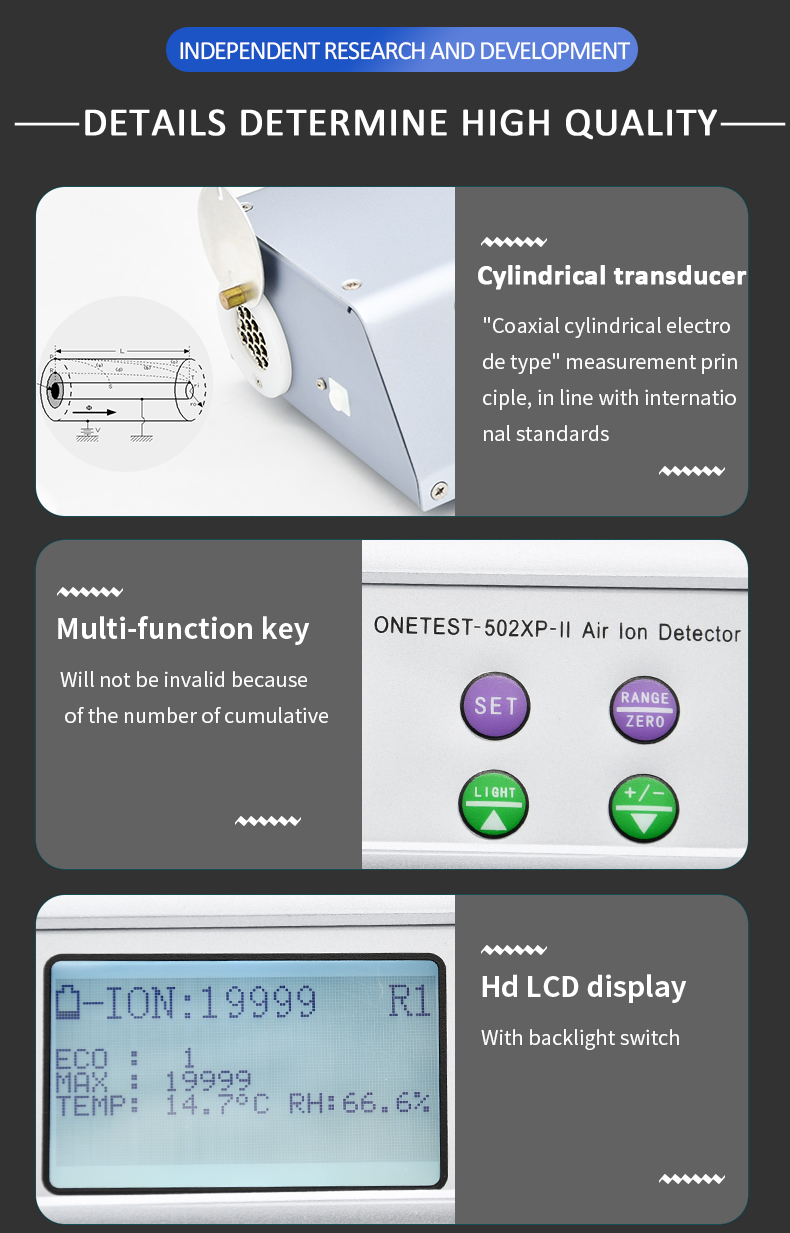

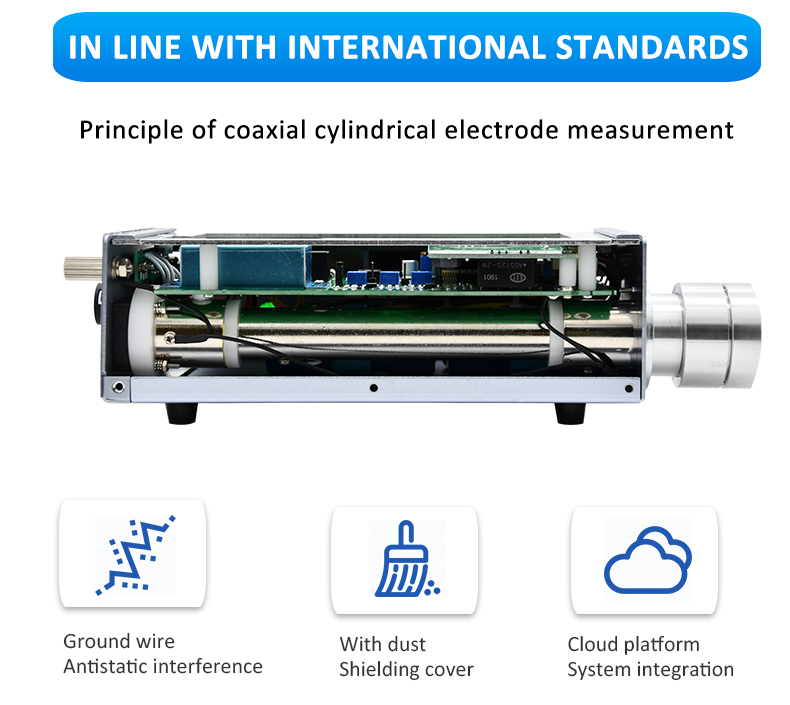

ONETEST-502XP adopts coaxial cylindrical electrode design, which has the advantages of stable sampling airflow, uniform ion distribution measurement, strong anti-interference ability, etc. High concentration of negative ions

feature
1. Air quality and negative oxygen ion detector combined with proprietary technology to detect up to nine parameters

2. In case of technology negative ion detector industry national standard evaluation enterprises, help customers brand value

3. Low user cost, with portable aluminum case, convenient travel, optional tripod

4. The operation is simple and not complicated, the instrument measurement is stable, and the response speed is fast. Support the Institute of Inspection and Measurement

5. Optional data output function, generate QR code to share WeChat data with IoT cloud platform

Technical indicators:

Measurement principle Coaxial Cylinder Condenser Type Measuring range 0-2 million/cm³
Resolution 1/cm³ average value 0-255 seconds adjustable
fluidity 0.6cm²/v.sec max hold Have
Freshness Level 1-6 temperature range -20~50℃, resolution: 0.1℃
Humidity measurement range 0~100%RH, resolution: 1%RH programme 128X64 dot matrix LCD

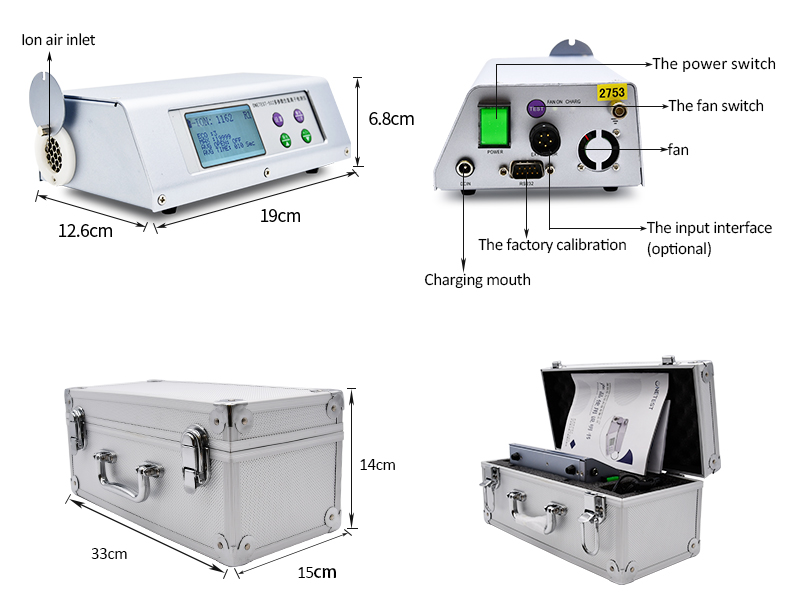

size Length 19*Width 12.6*Thickness 6.8(CM) weight 0.910kg

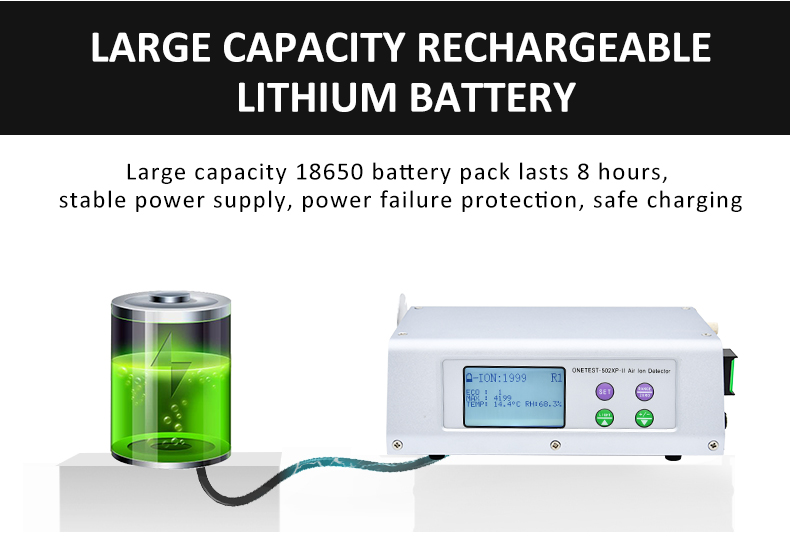

power supply AC220V@DC12V1A and built-in 8000mA rechargeable battery pack (normal use for more than 8 hours when fully charged) data output Optional RS-232
