High Quality Wholesale Optical Equipment Visualizer IR1-1 Waterproof Plastic Laser Beam Free Sample
- $105.00 /piece
- 1 piece
- Photonic Technology Systems LTD
- Republic of Mordovia, China
- Mr Maxim Chernov
PRODUCT DETAIL
| Card size, mm: | 86×54 | Warranty: | 1 year |
| port: | Saint Petersburg Port, Novorossiysk Port, Saransk | model: | IR1-1 |
| brand: | Photonic Technology Systems | payment terms: | Wire transfer, MasterCard |
| feature: | waterproof | Packaging Details: | Each Laser Beam Viewer is packaged in a plastic envelope. |
| Customization support: | OEM production | Active area, mm: | 50×54 |
| Supply capacity: | 50 pieces per month | place of origin; place of origin: | Republic of Mordovia, Russian Federation |
| Damage Threshold, mW/cm2: | >700 |
Product Description

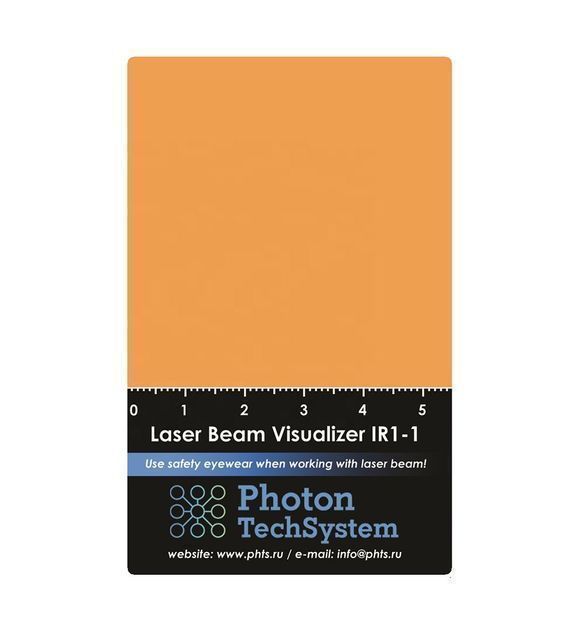

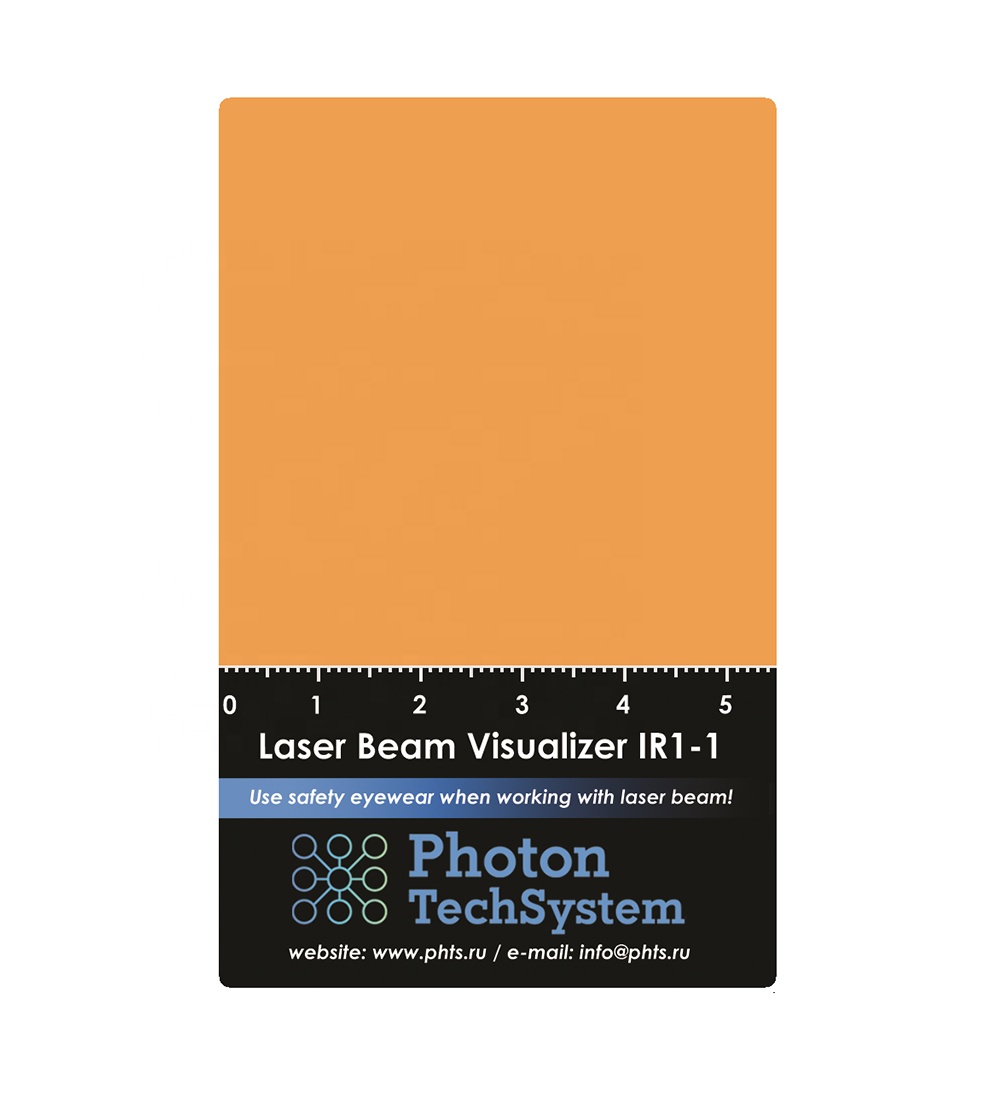

The IR1 series visualizer is a plastic card with a working surface made of luminescent polymer. Due to the polymer base, the viewer has high mechanical properties and high moisture resistance. The infrared sensor card IR1 visualizes laser radiation in the 0.75-1.5 μm spectral range and controls the beam path for safe operation of the laser.
feature
○ Hard plastic thin card is easy to operate and more durable
○ wide spectral range from 0.75 – 1.5 μm allows visualization of radiation from different commercially available lasers (laser diodes, fiber lasers, YAG:Nd, etc.);
○ High moisture resistance and high mechanical properties
○ wide spectral range from 0.75 – 1.5 μm allows visualization of radiation from different commercially available lasers (laser diodes, fiber lasers, YAG:Nd, etc.);
○ High moisture resistance and high mechanical properties
Specification
Warranty | 1 year |
brand | Photonic Technology Systems |
model | IR1-1 |
Card size, mm | 86×54 |
Active area, mm | 50×54 |

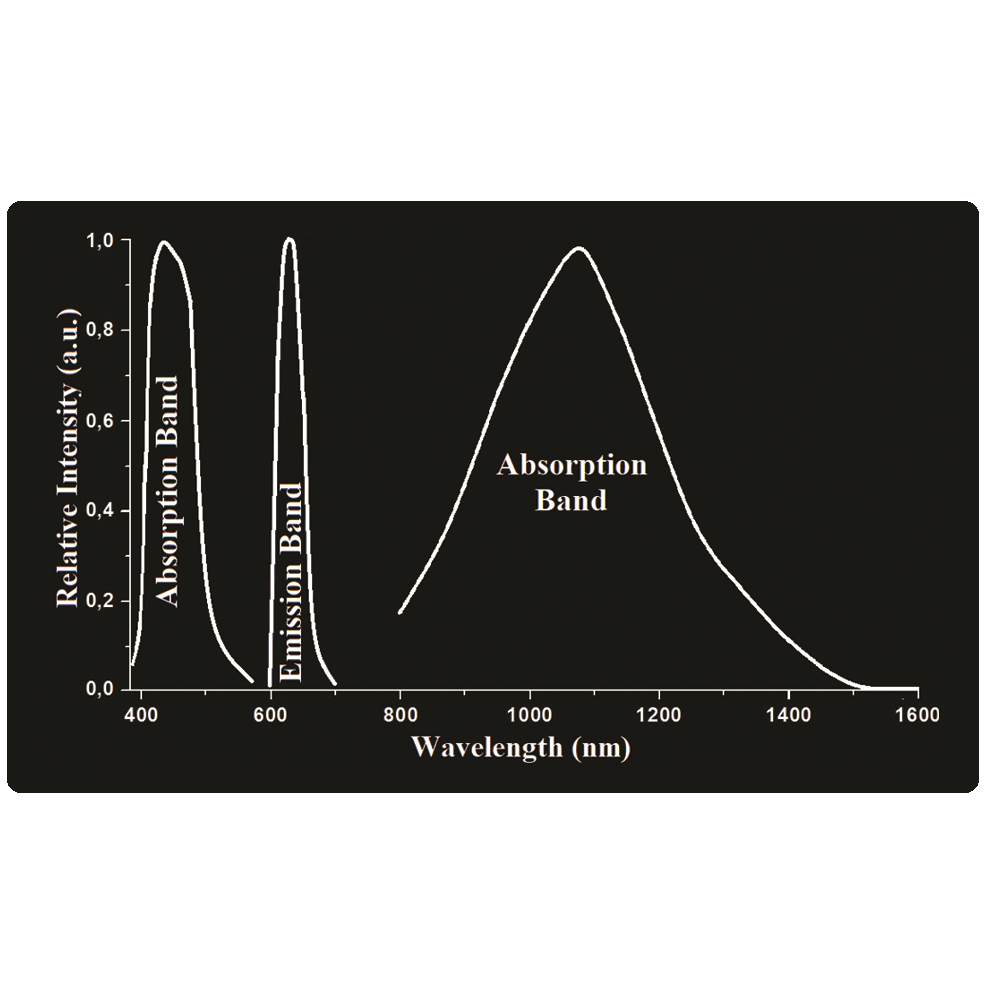

Absorption spectrum range, μm | 0.75-1.5 |
Damage threshold, mW/cm2 | >700 |
Spectral sensitivity, μW/cm2 | <6 (@808nm), <2 (@960nm), <250 (@1470nm) |
emission color | orange red |
feature | waterproof |
Launch requires charging | Yes |
Custom support | OEM, design and manufacture |
place of origin; place of origin | Russia, Republic of Moldova, Saransk |
