AA4C valve grinder 3M9390

PRODUCT DETAIL
maximum. Grinding length:540mmbrand:AA4C
Voltage:380 voltsapplication:grinding valve
Voltage:380VKey words:valve grinder
usage:grinding valveName:Valve grinder
Dimensions (L*W*H):740*540*640mmmaximum. Grinding diameter:90mm
weight:125 kgHealth status:new
Whether CNC:normalport:Shanghai
Origin:China Shanghaistrength:1.1 kW
type:Internal grinding machinemodel:VR90 (3M9390)
Delivery Details:15-20 daysCertification:EU CE certification
accurate:0.01-0.02mmAfter-sales service provided:Provide overseas third-party support
Model:VR90Other names:Cylindrical Surface Grinder Grinding Machine
Packaging Details:plywood casecolor:Red
Supply capacity:100pcs AA4C Valve Grinder 3M9390 per monthpayment terms:L/C, D/P, T/T, Western Union
Product Description

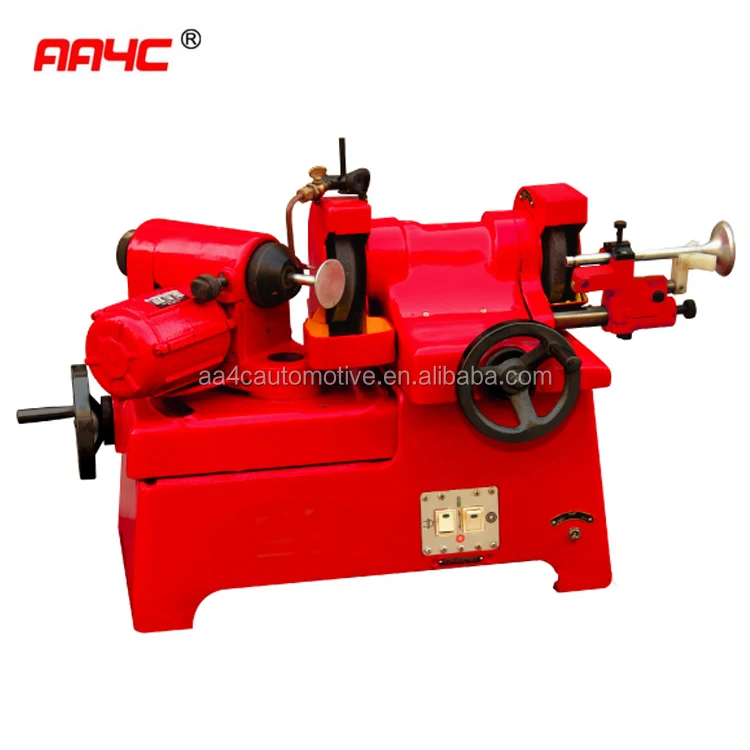

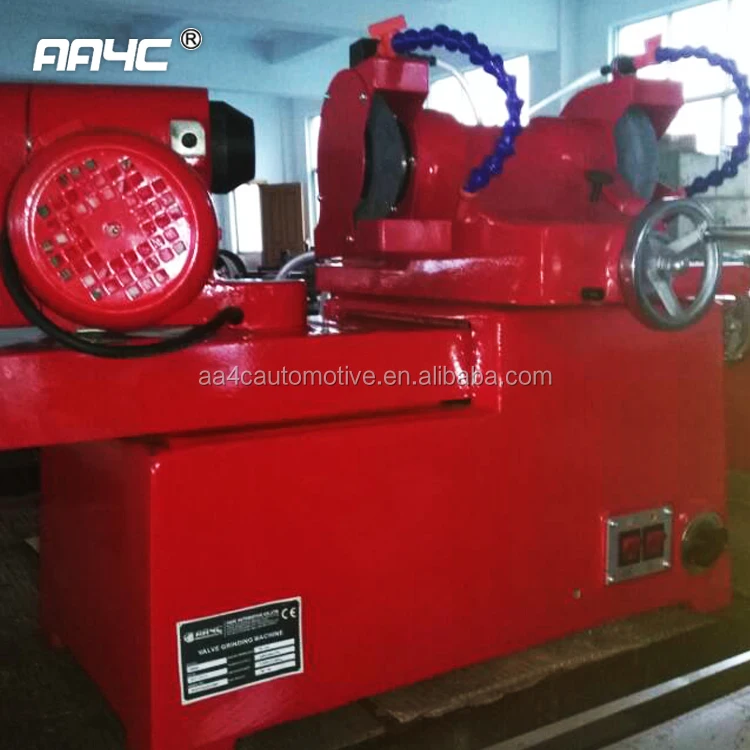

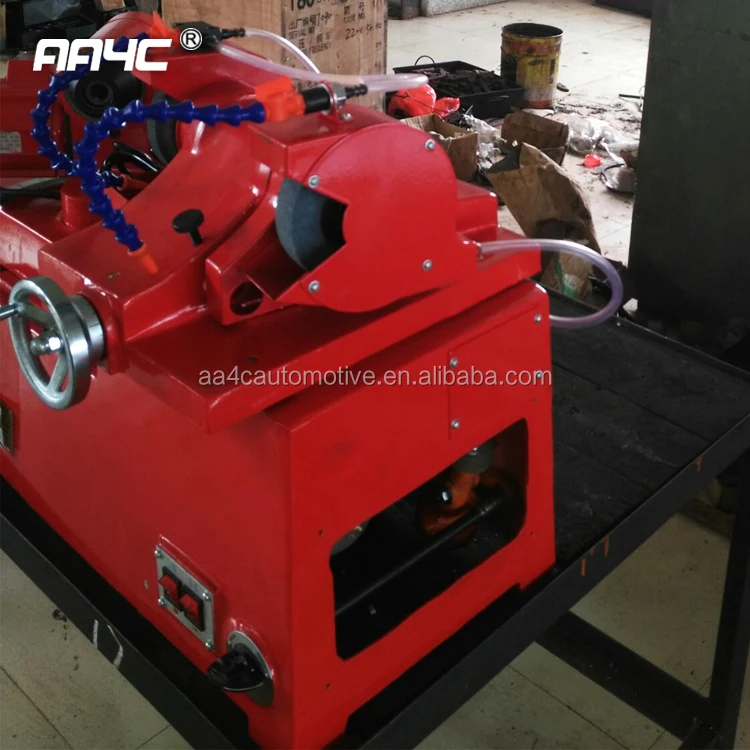

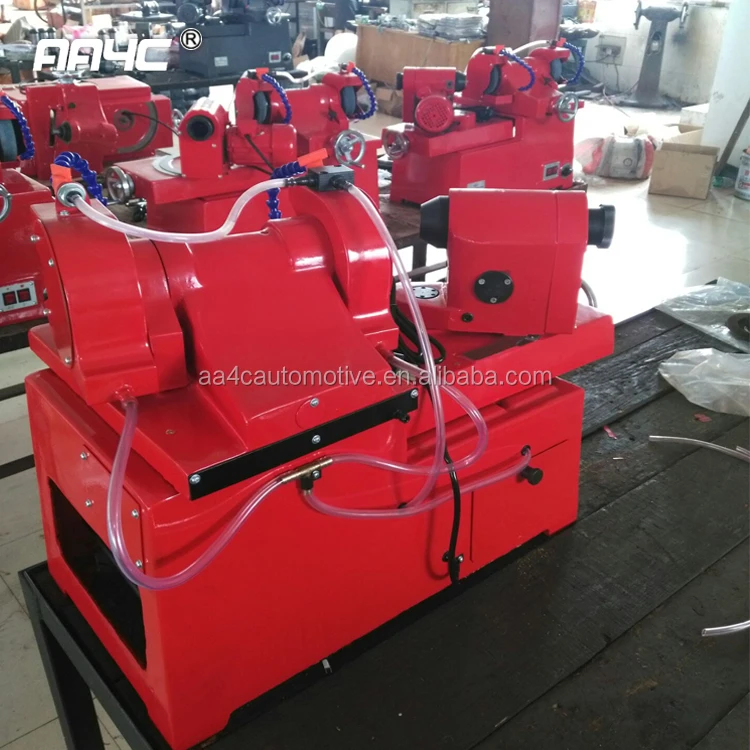

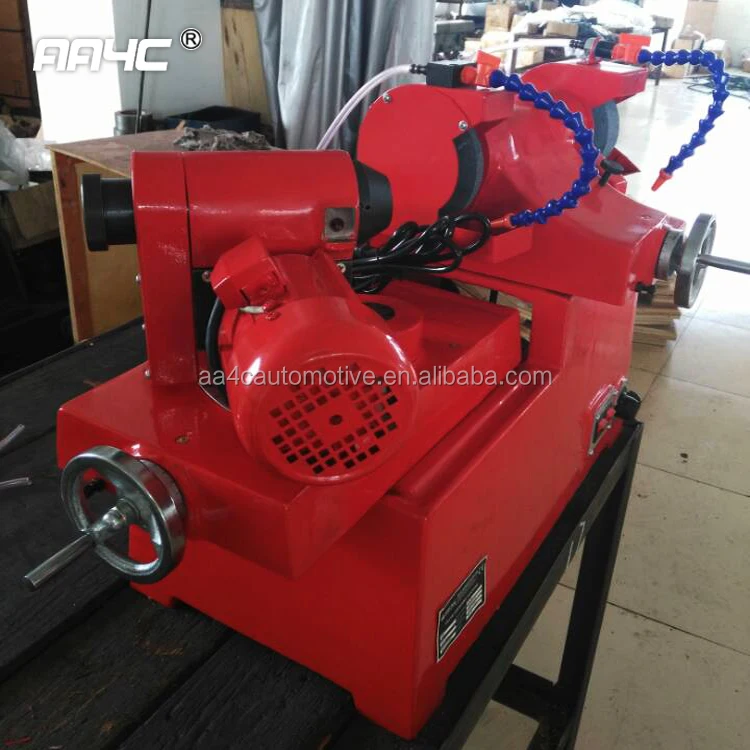

High performance valve grinding machine 3M9390
Valve grinder
grinder
Cylindrical grinder



illustrate:



3M9390 valve grinding machine is specially designed for auto repair shops and agricultural machinery repair centers. It has compact structure, light weight, simple structure and convenient operation. It is an essential equipment for car repair service.



Specification



Model

3M9390

maximum. Grinding diameter

Φ90mm

Grinding Valve Diameter Range

Φ25-Φ90mm

Valve shaft diameter

Φ6-Φ16mm

Grinding angle

30°-60°

Working head longitudinal sliding stroke

110mm

Grinding wheel frame horizontal sliding table travel

90mm

Spindle speed

180-300 rpm

wheel speed

4500 rpm

maximum. Grinding depth

0.025mm

Dimensions (length x width x height)

630×410×500mm

Package size (length x width x height)

740×540×640mm

net weight/net weight

88/125kg
