CNC internal thread grinding center
- $1.00 /set
- 1 set
- Shaanxi Hanjiang Machine Tool Co., Ltd.
- Shaanxi, China
- Ms anna Ho
| Warranty: | 1 Year; | Key Selling Points: | High-accuracy; |
| Machinery Test Report: | Provided; | Supply Ability: | 200 Sets per Year; |
| Package Preview: | ; | Video outgoing-inspection: | Provided; |
| After Warranty Service: | Video technical support,Online support; | Surface Roughness(μm): | 0.4 μm μm; |
| Applicable Industries: | Machinery Repair Shops; | Place of Origin: | Shaanxi, China; |
| Condition: | New; | Power (kW): | 30; |
| Payment Terms: | T/T; | Showroom Location: | None; |
| Brand Name: | HJMTC; | Port: | Shanghai or customised; |
| Dimension(L*W*H): | 2450x1850x2100 mm; | CNC or Not: | CNC; |
| Weight (KG): | 6500; | Voltage: | Customized; |
| Packaging Detail: | Machine and accessories are packed in strong wooden fumigated seaworthy box(es); | Marketing Type: | Hot Product 2019; |

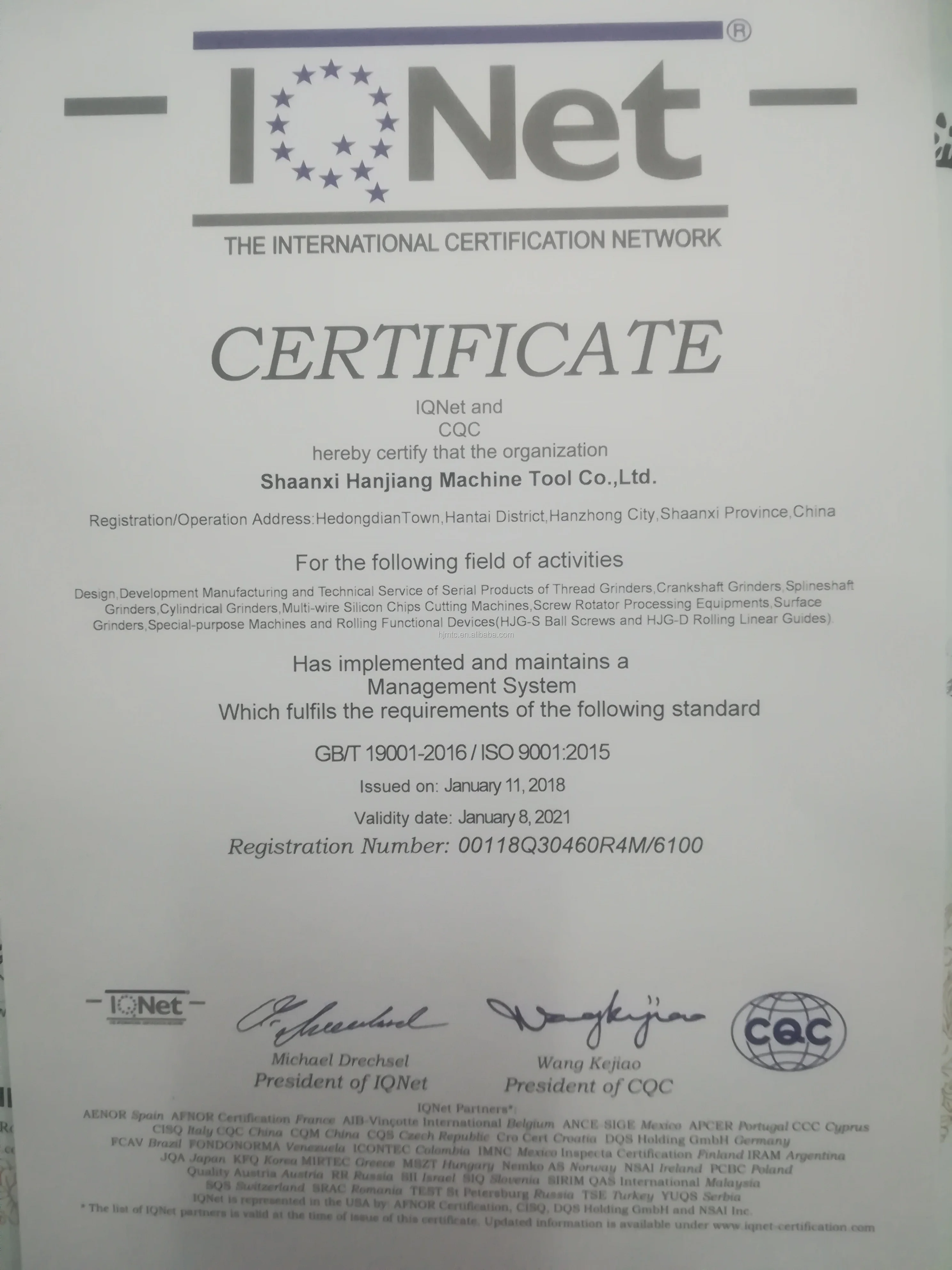

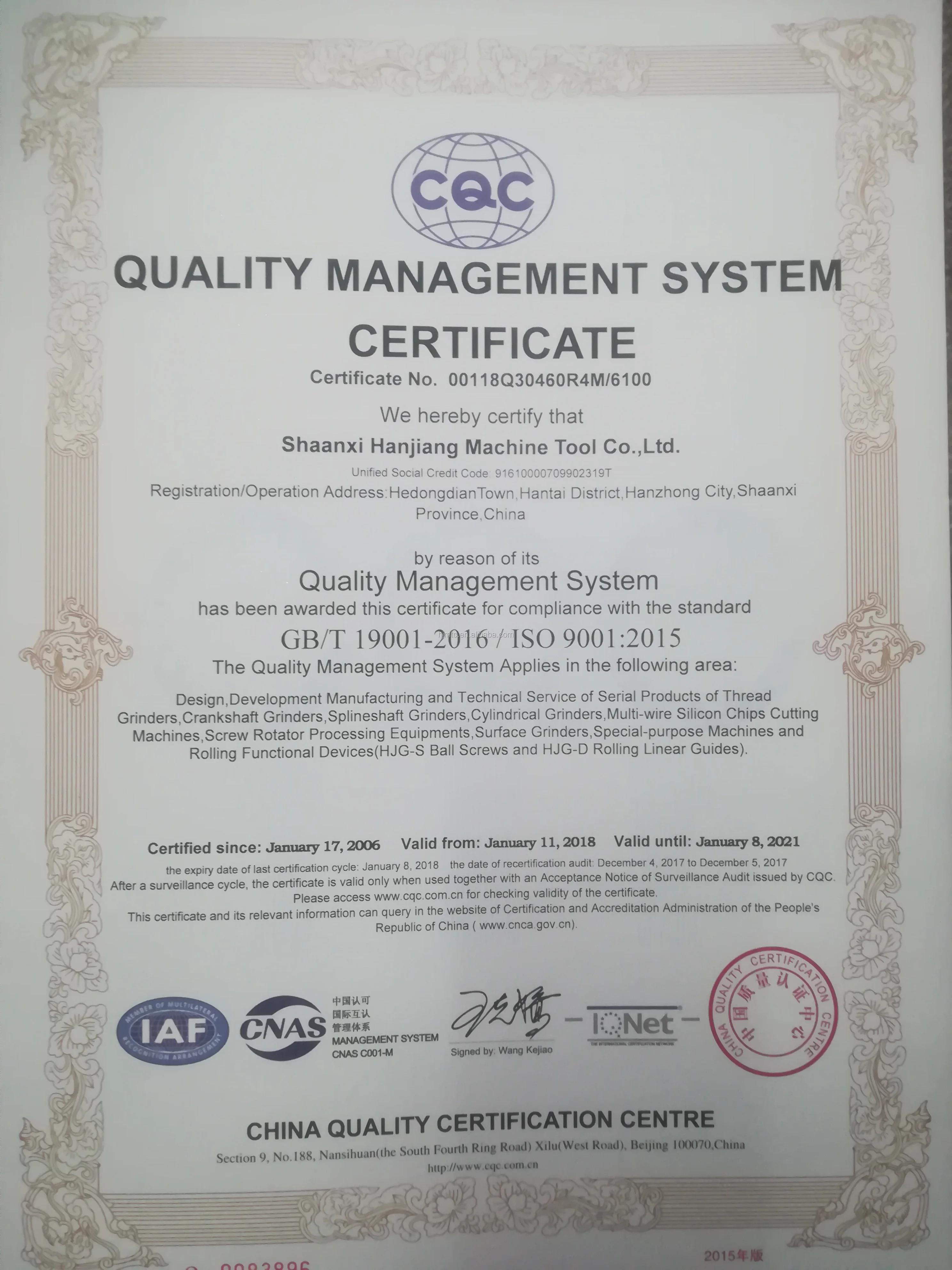

| After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Field installation, commissioning and training,Field maintenance and repair service; | Certification: | ISO9001:2000; |
| Type: | Internal Grinding Machine; | Local Service Location: | None; |
| Core Components: | Bearing,Motor; | Warranty of core components: | 1 Year; |

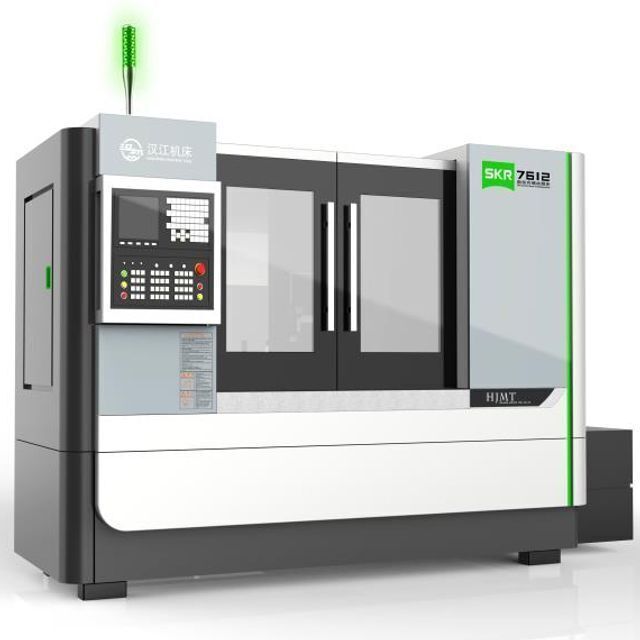

SK7612A CNC internal thread grinding machine The machine is mainly used for grinding nut for ball-screws precisely. It can grind the cylindrical surface, end surface and the circular tray of a nut precisely in one setting up.
With SIEMENS 828D NC system, 3 of 4 axes can perform linkage motion.
Main Features
1)The foundation parts such as bed, work table and grinding wheel frame, all made of high strength and high quality cast iron, have been gone through aging treatments and manual scraping process, able to ensure advanced stability and high precision;
2) Work table traverse (Z axis) is generated by servo motor through the chain of coupling and high precision ball screw pair;
3) X-axis, powered by servo motor through the chain of coupling and high precision ball crew pair, controls both cross feeding for cylindrical grinding and internal thread grinding;
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Main specification | ||||||||
Max. length of workpiece mounted | mm | 125 | ||||||
Max. diameter of workpiece mounted | mm | 165 | ||||||
Max. diameter to be ground | internal thread | mm | 16~60 | |||||
cylindrical surface | mm | 120 | ||||||
Max.length to be ground | cylindrical internal thread | mm | 125 | |||||
cylindrical surface | mm | 125 | ||||||
Pitch | mm | 1~24 | ||||||
Helix angle (max.) | degree | 12 | ||||||
No. of starts to be ground | starts | 1~45 | ||||||
Internal wheel spindle speed | r.p.m. | 24000 or 36000 | ||||||
External wheel spindle speed | r.p.m. | 2000 | ||||||
Max.diameter of internal grinding | mm | 50 | ||||||
Min. diameter for internal grinding | mm | 12 | ||||||
Max.diameter for external grinding | mm | 400 | ||||||
Weight (approx.) | kgs | 6500 | ||||||
Machine dimension | mm | 2450 x 1850 x 2100 | ||||||
Axis A | adjustment of helix angle for internal grinding quill | ||||||
Axis C | rotation of working spindle(workpiece) | ||||||
Axis X | infeed or withdraw of wheelstock | ||||||
Axis Z | working table traverse | ||||||
