API Spec 11E Rotaflex Pumping Belt for Oil Well Production Belt
- $70000.00 /set
- 1 set
- Shandong Banglong Mechanical Technology Co., Ltd.
- Shandong, China
- Mr YANGYANG HU
PRODUCT DETAIL
| model: | D1234567 | Marketing Type: | hot product |
| Mechanical test report: | if | weight: | 16.3 kg |
| Advantage: | long stroke/low frequency | Frequency/minute: | 4.3/4.1/3.7/3.4 |
| Origin: | Shandong China | product name: | Belt pumping unit |
| brand: | Banglong | Health status: | new |
| Voltage: | 220/380 | port: | China's main ports |
| payment terms: | wire transfer | feature: | belt |
| Rated Torque/lbs: | 228000-500000 | temperature: | -40°C-59°C |
| Core component warranty: | 2 years | Supply experience: | 30 years / Uzbekistan, Kazakhstan, Mexico, Ethiopia, Peru |
| stroke: | 236/288/306/366in | Production capacity: | 100 |
| Warranty: | 2 years | Supply capacity: | 100 pieces per month |
| After-sales service provided: | online support | standard: | API 11E |
| Core components: | motor, gear | Video shipment inspection: | if |
| Applicable industries: | Energy and Mining | Polishing rod capacity/pound force: | 26500-60000 |
| Packaging Details: | nude/container | Dimensions (L*W*H): | 2*1*6M |
| Showroom location: | not any |
Product Description

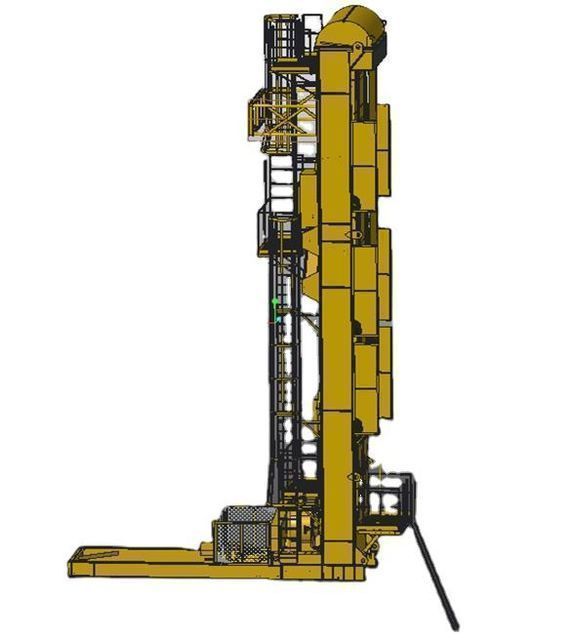

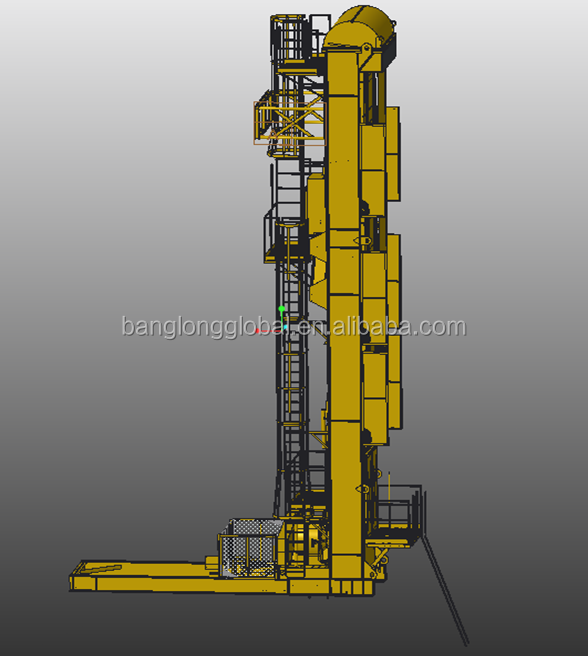

Belt pumping unit
The belt-type mechanically reversing vertical pumping unit is a vertical pumping unit with chain closed-loop transmission and belt traction. This series of vertical pumping units has the following advantagesLong stroke, adjustable stroke, simple operation, convenient transportation, stable operation,etc. Compared with the beam pumping unit with the same rated load, it needs smaller gearbox torque and smaller motor power, and the energy saving effect is obvious. It is especially suitable for developingDeep wells, ultra-deep wells and heavy oil reservoirs. Workover does not require large lifting equipment, and personnel can complete the work without climbing, which is safe, reliable and easy.
Specification
Model | D1 | D2 | D3 | D3X | D4 | D5 | D6 | D7 |
Gearhead Rated Torque (in-lb) | 228000 | 250000 | 320000 | 350000 | 350000 | 350000 | 500000 | 500000 |
Polishing Rod Load (lbf) | 26500 | 30000 | 36000 | 36000 | 50000 | 50000 | 50000 | 60000 |
Travel (inches) | 236 | 288 | 288 | 288 | 306 | 366 | 366 | 366 |
Motor power (kw) | 37 | 45 | 55 | 75 | 75 | 75 | 75 | 110 |
Maximum stroke frequency/min | 4.3 | 3.7 | 4.3 | 4.3 | 4.1 | 3.4 | 3.4 | 3.4 |
Weight (T) | 16.3 | 18.7 | 25 | 25.2 | 28.6 | 29.7 | 30.2 | 31.4 |
