Oil Derric API 11E CK8 second -hand pump pump jack is sold
- 1 piece
- Puyang Zhongshi Group Co., Ltd.
- Henan, China
- Mr Jincheng Zhang

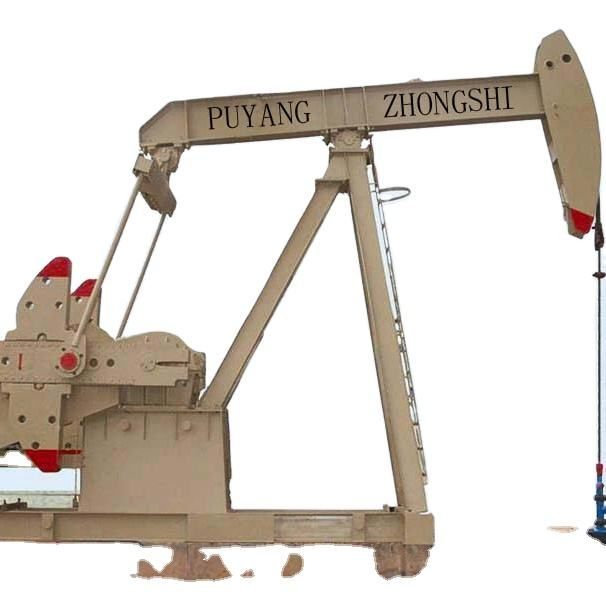

Pump jack
Brief introduction
The traditional CYJ pump jack is one of the most common and most widely used power units in the production of oil field poles. The product complies with the specifications of the pump jack (API SPEC 11E), the pump jack (SY/T5044) with the pedestrian beam, and other related standards, and obtained the authorization of the official API.
Technical expression and characteristics
1. Modular and virtual manufacturing technology in the design can be optimized to optimize the structure of the product, and the components are highly standardized, broadly and serialized.
2. Key structural elements are constrained by finite element analysis to ensure stable performance and high reliability.
3. The reducing device is driven by the double arc symmetrical or biasedly biased wheel wheel drive. These bone wheel hubs are appropriately sealed and distinguished by low noise, stable operation, and reliable and durable services to distinguish.
4. The entire machine has simple operation and maintenance and extended service life.
SpecificationPump jack
Our company produces oil field machines in the oil industry. We have provided oil fields for more than 15 years. Our main products include pump plugging, underground pump, well mouth, floating collar and shoes, shell center instruments, and drilling mud purification equipment systems.

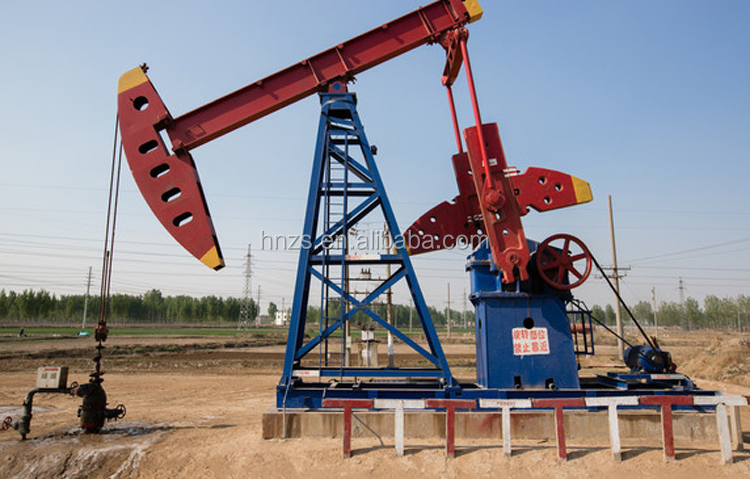

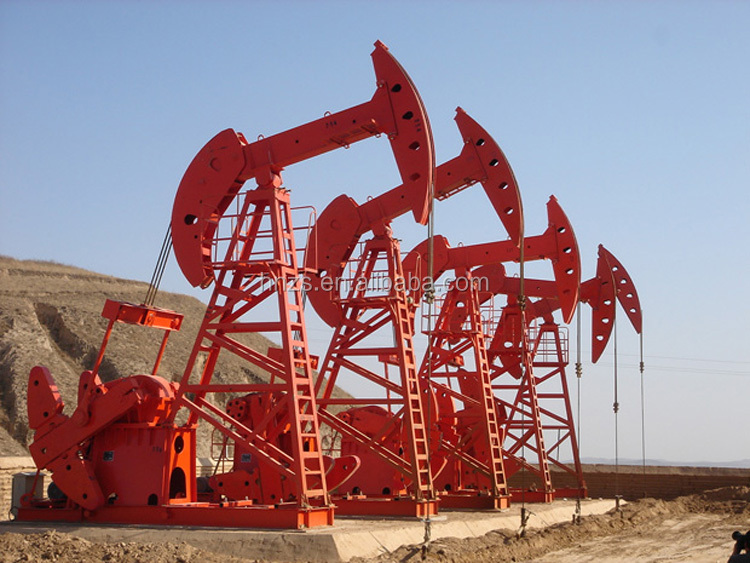

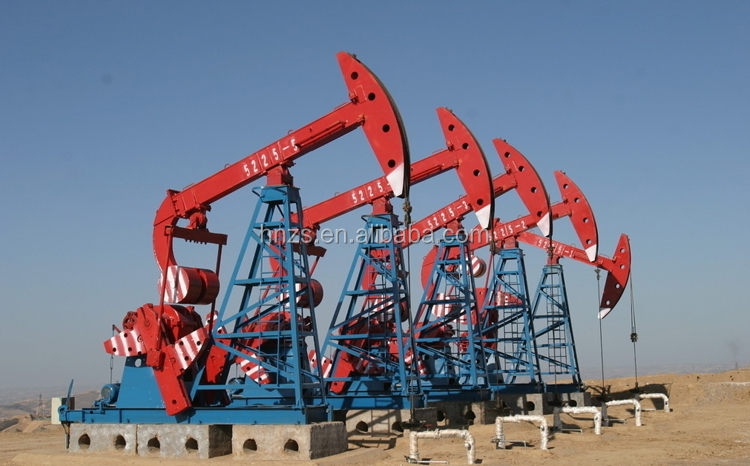

The C -series pedestrian balancing pump interpolation is used to provide common power in the oil extraction industry. It connects to the polishing rod and drives the underground pump up and down.
feature
1. With modular programming and virtual manufacturing design, the production structure is optimized, and the components have higher standardization, generalization and systematic.
2. Formulating analysis makes the key part has stable performance and high reliability.
3. The two round gears and gears of gears and gears of gears and capacity are used to provide smooth running, sealing, lower noise and high load capacity.
4. The operation is easy to repair. It has a long service life.
Main technical parameters
|
Model |
The rated rod carrier KN |
Stroke M |
The frequency of stroke RPM |
The rated torque of the rated speed Gearbox kn.m |
|
Cyj3-1.5-9HB |
30 |
1.5/1.2/0.9 |
6/9/12 |
9 |
|
Cyj4-1.5-9HB |
40 |
1.5/1.2/0.9 |
6/9/12 |
9 |
|
Cyj5-2.5-13HB |
50 |
1.8/1.5/1.2 |
6/9/12 |
13 |
|
Cyj6-2.5-18HB |
50 |
2.5/2.0/1.5 |
6/9/12 |
18 |
|
Cyj6-2.5-26HB |
60 |
2.5/2.0/1.5 |
6/9/12 |
26 |
|
Cyj8-3-37HB |
80 |
3/2.5/2.0 |
6/9/12 |
37 |
|
Cyjy10-3-53HF |
100 |
3/2.5/2.1 |
6/9/12 |
53 |
|
Cyjy10-4.2-53HF |
100 |
4.2/3.5/2.8 |
5/6/8 |
53 |
|
Cyjy12-4.8-73HF |
120 |
4.8/3.6/2.5 |
4/6/8 |
73 |
|
Cyjb12-4.8-53HB |
120 |
4.8/3.9/3.0 |
4/6/8 |
53 |
|
Cyjbg12-4.8-53HB |
120 |
4.8/4.2/3.6/3.0 |
4/6/8 |
53 |
|
Cyjbg14-4.8-53HB |
140 |
4.8/4.5/4.2/3.9/3.6/3.3 |
4/5/6 |
53 |
|
Cyjy14-4.8-73HF/A |
140 |
4.8/3.9/3.1 |
4/6/8 |
73 |
|
Cyjy14-4.8-73HF/B |
140 |
4.8/3.9/3.1 |
4/5/6 |
73 |
|
Cyjy14-4.8-73HF/C |
140 |
4.8/3.9/3.1 |
4/6/8 |
73 |
|
Cyjy16-5.4-89HF |
160 |
5.4/4.5/3.6 |
4/5/6 |
89 |
|
Cyjy16-5.4-89hf/B |
160 |
5.4/4.5/3.6 |
4/5/6 |
89 |
|
Cyj6-2.5-26HY |
60 |
2.5/2.0/1.5 |
5/6/7 |
26 |
|
Cyj8-3-37 |
80 |
3/2.4/1.8 |
4/5/6 |
37 |
|
Cyjy10-3-37 |
100 |
3/2.4/1.8 |
4/5/6 |
37 |
