Factory supply cementing rubber plug displacemen plug and top plug
- $10.00 /piece
- 1 piece
- Puyang Zhongshi Group Co., Ltd.
- Henan, China
- Mr Jincheng Zhang
| Model Number: | 4-1/2"~20"; | usage: | oilwell cementing; |
| model1: | bottom plug; | Application: | displacement plug; |
| Height: | 350; | model: | top plug, bottom plug; |
| Port: | China port; | weight: | 12; |
| Payment Terms: | L/C,T/T,Western Union; | Packaging Detail: | wooden boxThe top cementing plug has a solid core; the bottom cementing plug has an air core, and is separatedby a layer of rubber diaphragm.factroy supply ,displacement plug,top plug, cementing plug,rubber plugs; |
| Brand Name: | zs; | Supply Ability: | 4500 Pieces per Month; |
| Model: | cementing plug; | Place of Origin: | Henan, China; |
| material: | NBR(nitrile rubber buna ), PU(polyurethane ); | name: | wiper plug; |
| type: | non-rotating; |

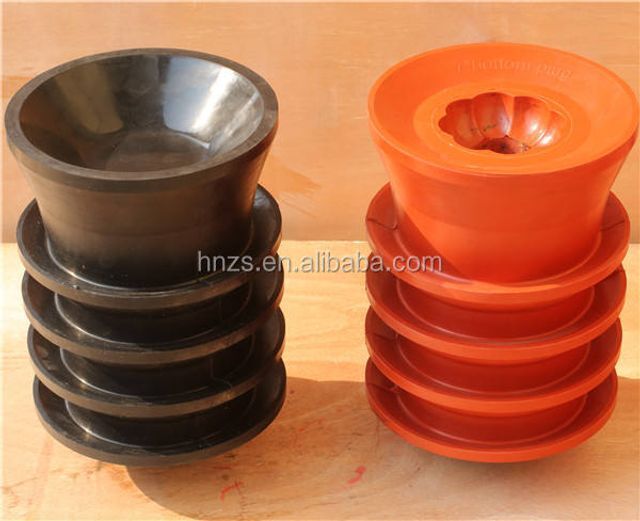

Cementing plug for oil well/ API standard non-rotating top wiper plug
Description :
Top cementing plug and bottom cementing plug are respectively set at the top and the bottom of double plug cement head before using. When top cementing plug moves down and gets to the top of float collar or impact ring, top cementing plug and bottom cementing plug impact against each other, then the pressure of wellhead release. Float collar and float shoe ward off the backflow of slurry. Cementing is finished.factroy supply ,displacement plug,top plug, cementing plug,rubber plugs
Characteristics:
1.Special non-rotational device design allowing the plug to drill out quickly;
2.The material of plug body is acrylonitrile-butadiene rubber. The material of plug core is aluminum alloy. So they can be drilled through by PDC drill bitand roller bit.
3.precisely mold design
4.The top cementing plug has a solid core; the bottom cementing plug has an air core, and is separatedby a layer of rubber diaphragm.factroy supply ,displacement plug,top plug, cementing plug,rubber plugs
parameters :
|
Technical Parameter |
|||
|
Size (in.) |
O.D. (mm) |
Length (mm) |
Bottom Cementing Plug Rubber |
|
4 1/2"" |
114 |
210 |
1~2 |
|
5"" |
127 |
210 |
1~2 |
|
5 1/2"" |
140 |
220 |
1~2 |
|
6 5/8" |
168 |
230 |
1~2 |
|
7" |
178 |
230 |
1~2 |
|
9 5/8" |
240 |
260 |
1~2 |
|
10 3/4" |
270 |
300 |
1~2 |
|
13 3/8" |
340 |
350 |
1~2 |
|
18 5/8" |
473 |
400 |
2~3 |
|
20" |
508 |
400 |
2~3 |
The Cementing Plugs are available in a wide variety of sizes to suit your requirements. Special sizes are available upon request.
