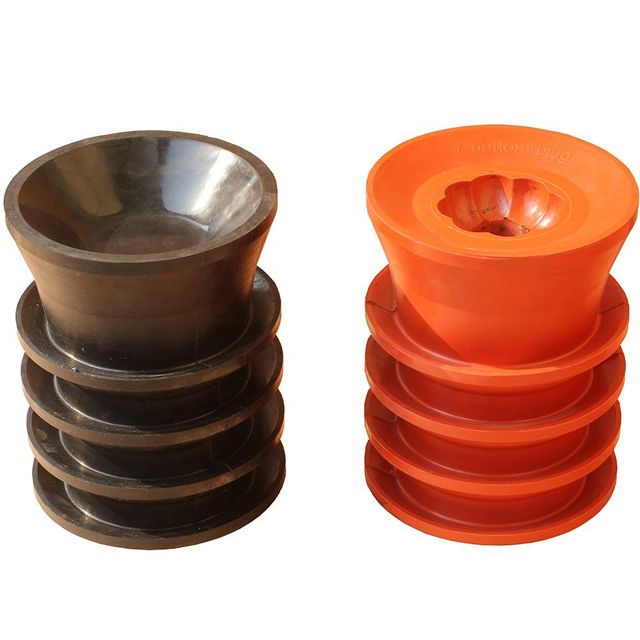

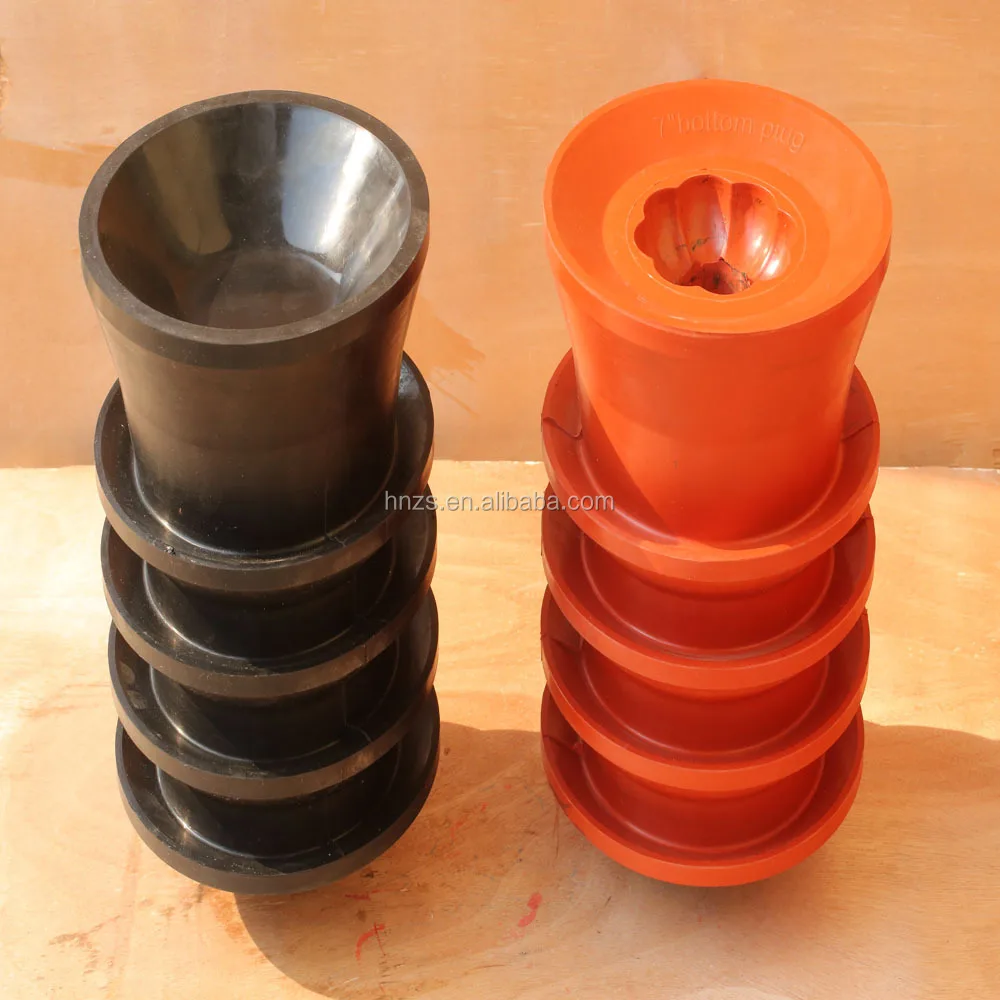

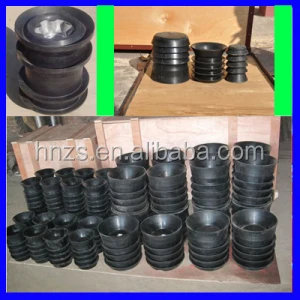

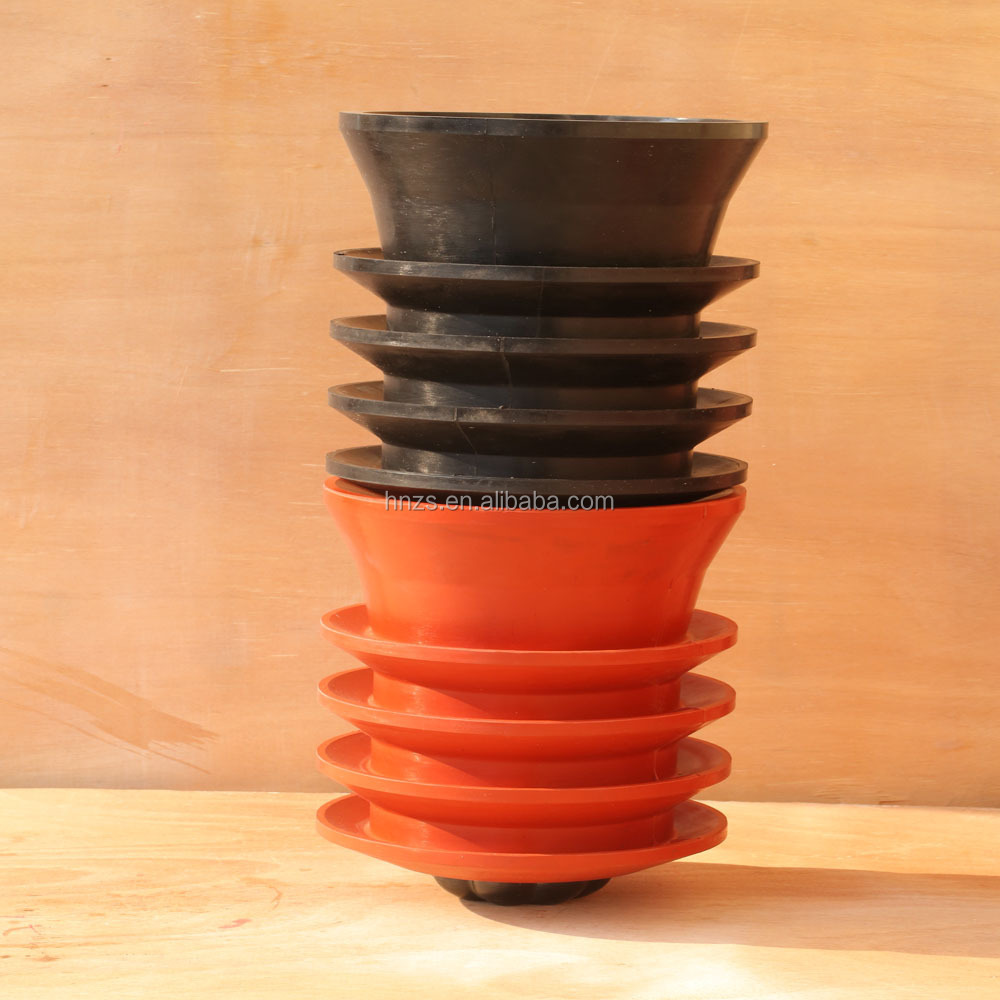

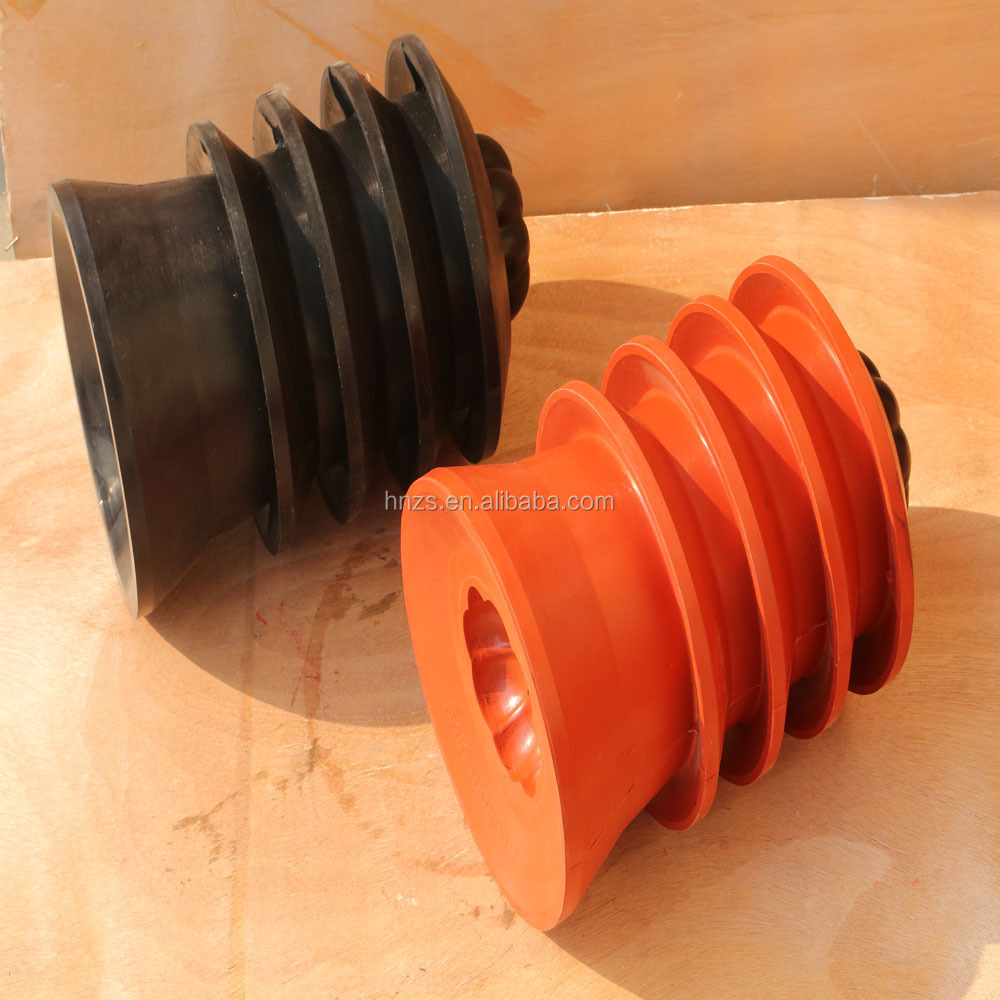

Oilfield Non-Rotating Replacement Bulk End Cement Plug

PRODUCT DETAIL
Material:NBR(Nitrile Butadiene Rubber), PU(Polyurethane)model:4-1/2"~20"
brand:zsSupply capacity:4500 pieces per month
type:non-rotatingplace of origin; place of origin:China
application:Displacement plugName:wiper plug
Model:top plug, bottom plugpayment terms:L/C,Western Union,T/T
Packaging Details:wooden boxusage:Oil Well Cementing
Model:Cementing plugweight:12
port:Chinese portModel 1:bottom plug
high:350

Oilfield Non-Rotating Replacement Wholesale Bottom Cementing Plugs



describe:



Set the top and bottom cementing plugs on the top and bottom of the double-plug cement head, respectively, before use. When the top cementing plug moves down to the top of the floating hoop or impingement ring, the top and bottom cementing plugs collide with each other, thereby releasing the wellhead pressure. Floating collar and floating shoes prevent mud backflow. Glue is complete.

feature:

1. The special non-rotating device design enables the plug to be drilled out quickly;

2. The material of the plug body is nitrile rubber. The core material is aluminum alloy. So it can be drilled with PDC bits and roller cone bits.

3. Precise mold design

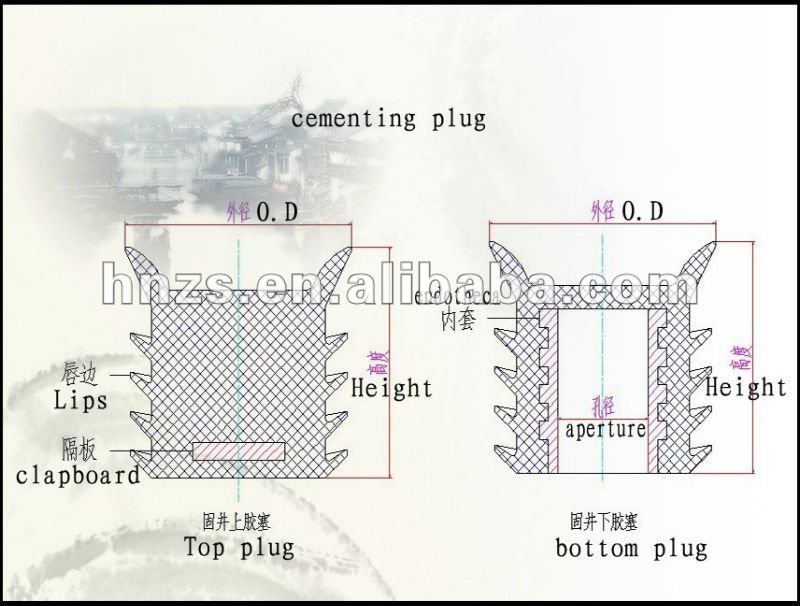

4. The top cementing plug has a solid core; the bottom cementing plug has an air core, which is separated by a layer of rubber diaphragm.

parameter:



technical parameter

Dimensions (inches)

Outer diameter (mm)

Length (mm)

Bottom cementing plug rubber
Membrane rupture pressure (MPa)

4 1/2""

114

210

1~2

5""

127

210

1~2

5 1/2""

140

220

1~2

6 5/8"

168

230

1~2

7"

178

230

1~2

9 5/8"

240

260

1~2

10 3/4"

270

300

1~2

13 3/8"

340

350

1~2

18 5/8"

473

400

2~3

20"

508

400

2~3







Cementing plugs are available in a variety of sizes to suit your requirements. Special sizes available on request.
