low profile pumping unit
- $50000.00 /unit
- 1 unit
- Puyang Zhongshi Group Co., Ltd.
- Henan, China
- Mr Allan Lee
PRODUCT DETAIL
| Production capacity: | 100% | Core components: | Engines, Bearings, Pumps |
| Applicable industries: | Energy and Mining | Core Components Warranty: | 1 year |
| Mechanical test report: | if | Health status: | new |
| Local service location: | not any | brand: | Zhongshi |
| Video external inspection: | if | balance: | compound |
| After-sales service provided: | Engineers can repair machinery overseas | Warranty: | 1 year |
| Dimensions (L*W*H): | 2.5M*2.5MX7M | model: | HL-Pumping Unit |
| Packaging Details: | nude | place of origin; place of origin: | Henan, China |
| Supply capacity: | 50000 sets per month | port: | Tianjin |
| feature: | API 11E Specification | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Showroom location: | not any | Marketing Type: | Hot Products of 2019 |
Product Description
The low-profile pumping unit is a new type of non-beam energy-saving pumping unit, which is a ground power equipment used for sucker rod oil extraction.
The product complies with API Spec.11E "Pumping Unit Specification" and other relevant API standards, and has obtained the authorization to use the API official monogram.
The product complies with API Spec.11E "Pumping Unit Specification" and other relevant API standards, and has obtained the authorization to use the API official monogram.
Technical performance
1. The rollers and belts are used to form a flexible transmission, which can increase the impact load and prolong the service life of the gear reducer.
2. The unusual design of the crank arm makes it fully balanced.
3. The gear reducer is an involute herringbone gear, which works smoothly and reliably.
4. Small size, light weight, the whole machine can be completely folded, easy to install and transport.
1. The rollers and belts are used to form a flexible transmission, which can increase the impact load and prolong the service life of the gear reducer.
2. The unusual design of the crank arm makes it fully balanced.
3. The gear reducer is an involute herringbone gear, which works smoothly and reliably.
4. Small size, light weight, the whole machine can be completely folded, easy to install and transport.
The main technical parameters
|
Do not
|
type
|
Polishing stick capacity
(lb) |
journey
(exist) |
Rated torque
(inch pounds) |
|
1
|
F-320D-256-120
|
25,600
|
120,102,85
|
320,000
|
|
2
|
F-320D-256-100
|
25,600
|
100,85,70
|
320,000
|
|
3
|
F-320D-246-86
|
24,600
|
86,71,56
|
320,000
|
|
4
|
F-228D-256-100
|
25,600
|
86,71,56
|
320,000
|
|
5
|
F-228D-213-86
|
21,300
|
86,71,56
|
228,000
|
|
6
|
F-228D-246-86
|
24,600
|
86,71,56
|
228,000
|
|
7
|
F-228D-246-74
|
24,600
|
74,64,53
|
228,000
|
|
8
|
F-160D-173-86
|
17,300
|
86,74,62
|
160,000
|
|
9
|
F-160D-200-74
|
20,000
|
74,64,53
|
160,000
|
|
10
|
F-160D-173-74
|
17,300
|
74,64,53
|
160,000
|
|
11
|
F-114D-173-64
|
17,300
|
64,54,44
|
114,000
|
|
12
|
F-114D-143-54
|
14,300
|
54,44,34
|
114,000
|
|
13
|
F-114D-109-54
|
10,900
|
54,43,32
|
114,000
|

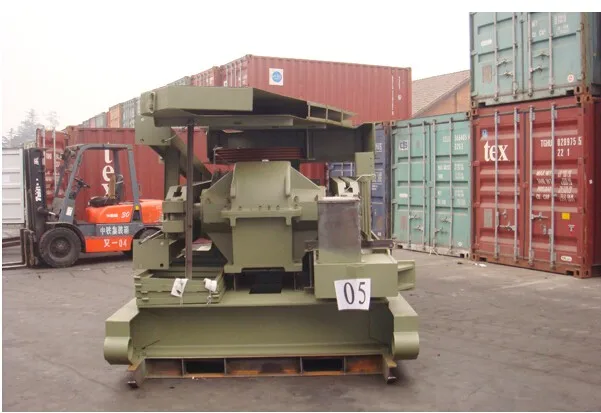

Packaging and Shipping
