ASME Pig Transmitter and Receiver

PRODUCT DETAIL

Certification:	ce,GS,ISO	size:	DN100-1600
Type of machine:	corner cleaner	Health status:	new
feature:	Critical Clean/No Residue	pressure:	Up to 35Mpa
Packaging Details:	Sea packing; Metal bracket; As customer's request	Applicable media:	oil oil, natural gas
Industry use:	Pipe cleaning	After-sales service provided:	Provide overseas service center
Certificate:	ASME "U" stamp	QOC type:	Plug-in, clip-on, with lock
Design Basis:	ASME VIII. part 1	payment terms:	L/C,D/A,D/P,T/T,Western Union
Cleaning process:	Pickling / Pickling	Advantage:	Open in 1 minute
place of origin; place of origin:	Liaoning, China	Material code:	ASME, ASTM, API
Material:	Stainless Steel, Carbon Steel, Carbon Steel/Stainless Steel	brand:	YY
Cleaning Type:	degreaser	color:	custom made
port:	Dalian, Shanghai, Tianjin, Ningbo Port	Supply capacity:	1000 pieces per month
use:	degreased

Product Description

product structure

• Quick opening and closing

• Barometer connection tube

• Pressure relief valve connection pipe

• Fluid outlet tube

• Barrel body

• Pressure relief valve connection pipe

• Reducer

• Extension tubes

• rear support

• Sewage pipes

• Front support

technical parameter

• Design pressure: technically up to 35Mpa.

• Test pressure: The water pressure test pressure is 1.3-1.5 times the design pressure, and the airtight test pressure is

Same as design pressure.

• Allowable corrosion: 2mm-3mm or according to customer requirements

• Earthquake intensity: 8 degrees

• Applicable medium: crude oil, refined oil (gasoline, diesel), gas, water.

• Sizes range from 3 inches to 56 inches.

• Levels from 150 to 2500.

• Materials - Carbon Steel, Stainless Steel, Monel

• Offers pig annunciator option.

• Quick open closure with safety interlock.

• Third party classification society approval.

• Design codes include ASME VIII DIV. I & ASME B31.3, B31.4, B31.8.

• Full material traceability according to EN 10204 3.1.B or 3.2 certificate.

• Applicable medium: crude oil, refined oil (gasoline, diesel), natural gas, gas, water.

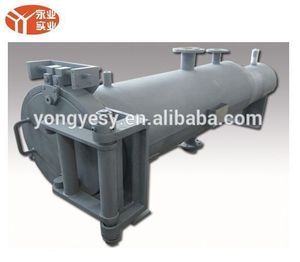

Product Image:

Pig Transmitter and Receiver
design specification	ASME VIII-1, B31.3, B31.8
Size range	DN100-DN1600
pressure range	Up to 35Mpa
material code	ASME, ASTM, API
QOC type	Plug-in, clip-on, with lock
