ASME U Stamp Pig Transmitter Pig Receiver
- $1000.00 /piece
- 1 piece
- Shenyang Yongye Industry Co., Ltd.
- Liaoning, China
- Ms Jean Wang
| feature: | Critical Clean/No Residue | brand: | YY |
| Industrial applications: | other | Advantage: | open in 1 minute |
| bucket: | ASME B31.3, B31.4, B31.8 | Supply capacity: | 10 pieces per month |
| payment terms: | L/C, T/T | Applicable medium: | Petroleum gas |
| use: | degreasing | Packaging Details: | Suitable for export transportation |
| cleaning type: | Degreasers | Certification: | CE, GS, ISO |
| Cleaning process: | pickling / pickling | Opening force: | Within 200N |
| Type of machine: | Corner cleaning machine | Health status: | new, new |
| Material: | Other, carbon steel/stainless steel | Quick opening and closing: | ASME VIII-1 |
| color: | custom made | After-sales service provided: | Overseas service center available |
| size: | DN100-1600, 35Mpa | port: | Dalian |
| place of origin; place of origin: | Liaoning, China |
ASME U Stamp Pig Transmitter Pig Receiver
product structure
• quick opening and closing
• Barometer connection tube
• Safety valve connecting pipe
• Fluid outlet tube
• Barrel body
• Safety valve connecting pipe
• Reducer
• extension tube
• rear support
• Sewage pipe
• front support
technical parameter
• Design pressure: technically up to 35Mpa.
• Test pressure: the hydraulic test pressure is 1.3-1.5 times the design pressure, and the airtight test pressure is
Same as design pressure.
• Permissible corrosion: 2mm-3mm or according to customer requirements
• Earthquake intensity: 8 degrees
• Applicable medium: crude oil, refined oil (gasoline, diesel), gas, water.
• Sizes range from 3” to 56”.
• 150 – 2500 scale rating.
• Materials – carbon steel, stainless steel, monel
• Pig annunciator option available.
• Quick opener with safety interlock.
• Approved by third-party classification societies.
• Design codes include ASME VIII DIV. Me and ASME B31.3, B31.4, B31.8.
• Full material traceability according to EN 10204 3.1.B or 3.2 certificate.
• Applicable medium: crude oil, refined oil (gasoline, diesel), natural gas, coal gas, water.
h

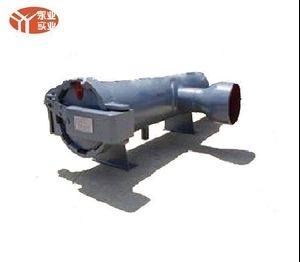

Product Image:
_
Quick Open and Close (QOC) | ||||
type | Size range | maximum. pressure | opening hours | Gasket |
Insert QOC | DN100-300 | 35Mpa | 1 minute | O-ring |
Clamp QOC | DN100-1000 | 35Mpa | 1 minute | O-ring |
Internal QOC with lock | DN200-400 | 35Mpa | 1 minute | lip seal |
External QOC with lock | DN400-1600 | 35Mpa | 50 seconds | lip seal |
Pig Transmitter and Receiver | |
design specification | ASME VIII-1, B31.3, B31.8 |
Size range | DN100-DN1600 |
pressure range | Up to 35Mpa |
material code | ASME, ASTM, API |
QOC type | Plug-in type, clamping type, with lock type |
