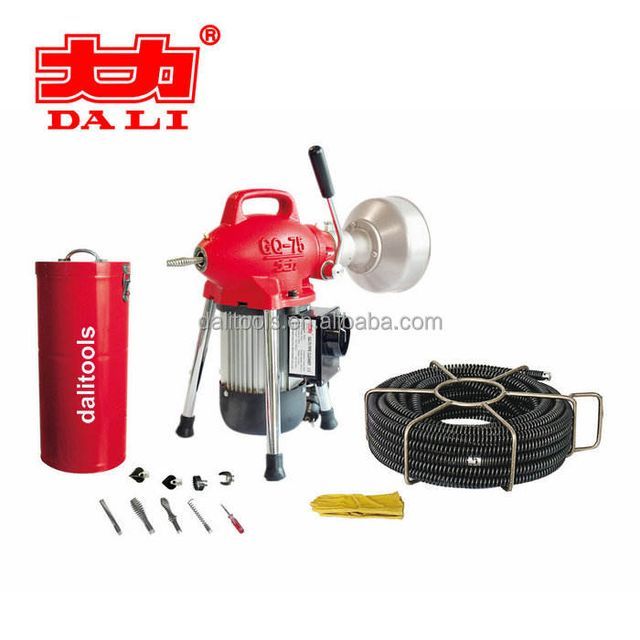

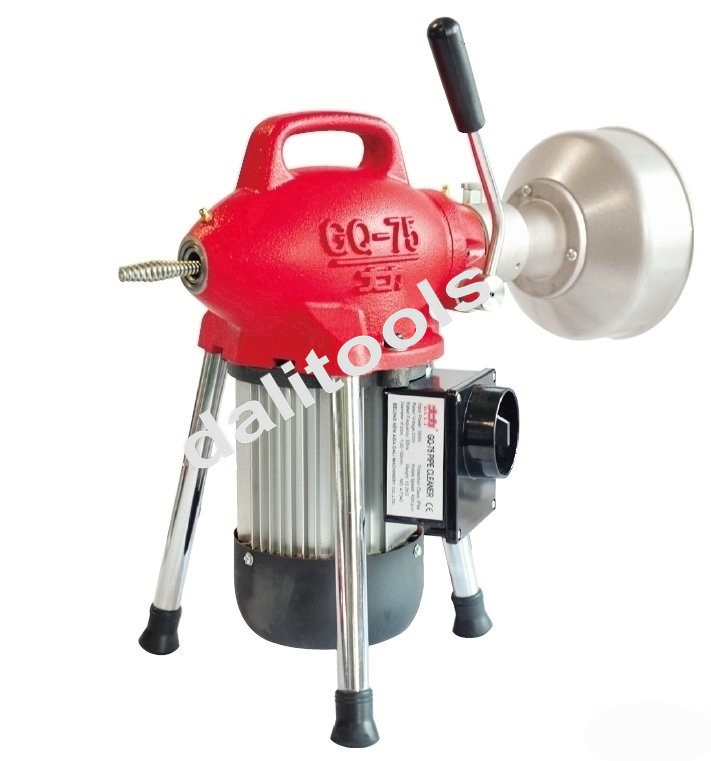

DALI GQ-75 Electric Hydraulic Eel Sewage Pipe Cleaning Machine

PRODUCT DETAIL
cleaning type:electric vacuum cleanerpayment terms:L/C, T/T
brand:DaliDelivery Details:20-45 days
Supply capacity:1000 boxes per monthMaterial:metal/coil
Packaging Details:Carton 1 piece/box Net weight: 29 grams Gross weight: 32 kg Dimensions: 46*41*47cmAfter-sales service provided:Does not provide overseas services
use:drain pipeOrigin:Beijing China
Certification:CEverify:CE
Dimensions (L*W*H):46*41*47CMfeature:Critical Clean/No residue, non-toxic
strength:390 wattsUse industry:Family Hotel Municipal
port:TianjinHealth status:new
model:GQ-75fuel:electrical
Cleaning process:cableType of machine:corner cleaner
Product Description

Applications

The GQ-75 Gutter Cleaner is considered by professional plumbers to be the perfect all-around machine for sinks, showers and floor drains. This compact and versatile machine is capable of using both 5/16" and 5/8" cables. It cleans gutters from 3/4" to 4" and has a travel distance of up to 100 feet, so it can tackle any job.

GQ-75 Specifications
for pipe diameter
Φ20-100mm
maximum. working length
30M
input power
390 watts
speed
400 rpm
degree of protection
IP44
Rated voltage
240/230/220/110V optional
frequency
50Hz/60Hz optional
certified
CE
machine weight
12.3 kg
feature

1) Compact, versatile, professional machine, easy to transport, ideal for mobile use.

2) Capable of running three different size cables: 8mm, 15mm and 16mm.

3) The machine is driven by a 390W motor with a grounded electrical system.

4) A toggle switch provides forward/off/reverse control of the motor.

5) Stable three-point version (rubber feet). Deep buried main focus (engine) to ensure safe standing during operation

Use Φ16mm section cable

The GQ-75 is designed to use a 5/8 inch diameter segmented cable with a quick change coupling system for disconnecting the tool. The cable is manually fed in and out of the drain and rotated at 400 RPM. The rotation of the cable is controlled by the clutch handle. When the clutch lever is released, the cable stops immediately.

Connect cables and tools

Push the bit along the 670 slider groove of the shaft to engage. This makes connections more reliable, simple and fast.

Disconnect cables and tools

Insert the key and use both hands to push the shaft against the T-slot of the terminal to remove the shaft. It saves time and manpower.

Using Φ8mm flexible shaft combination

GQ-75 is also designed to be used with Φ8mm flexible shaft combination. The rotation of the adapter is controlled by the clutch handle. The cable length is 4.6M, and it can be used alone in pipes with a diameter of 20mm-50mm, especially suitable for small-diameter pipes or complex pipes such as steam traps.

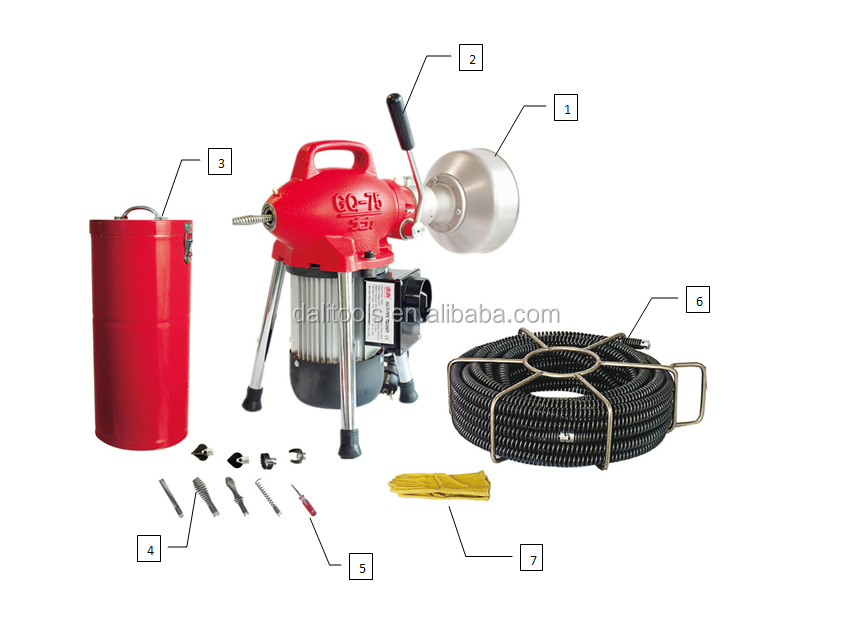

Accessories Features

1. 15ft long, 8mm diameter cleaning cable for 1"-2" pipe.

2. The host adopts a 390w motor and weighs 12.3kg.
3. Accessory Bucket; container for bits, cutters and 15 feet of cleaning cable.
4. 8 pieces of drill bits with a diameter of 16mm; cutting tools, retrieve drill bits and others (see the usage in the table below)
5. Key for changing accessories.

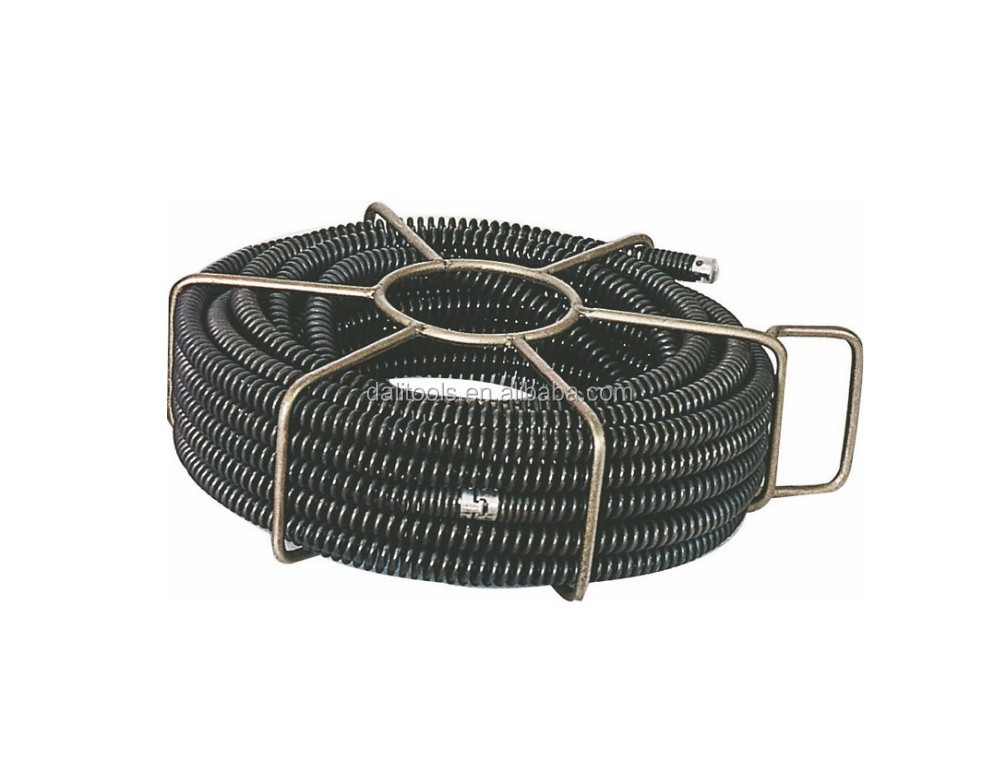

6. 18.4M long, 16mm diameter cleaning cable. Fits 1-1/2in-4in pipe.
7. Protective gloves

Package Contents




GQ-75
Host 1
RH1-1
Including: one Φ15mm*2.3M flexible shaft, 7 Φ16mm*2.3M flexible shafts, one Φ430 flexible shaft bracket
ZHa-1
8 pieces of Φ16 drill bits and keys
F-2-a
Φ8mm*5M flexible shaft combination
F-5-a
protective gloves
F-6-a
Accessories bucket
our company
Beijing New Asia Dali Machinery Co., Ltd. is a professional manufacturer of pipe cleaning machines in China.

The DALI series of unclogs are suitable for clearing all kinds of pipeline blockages. This series adopts the combination of flexible shaft, high-speed rotating system and manual propulsion or automatic feeding system to drive the drill bit and effectively remove various sundries, grease, tree roots, waste and chemical deposits, etc. adhered to the pipe wall.

DALI pipeline dredge machine series include manual, power, automatic and pneumatic, which is the first choice for indoor and outdoor pipeline maintenance and cleaning. It sells well at home and abroad with excellent quality and reasonable price.
