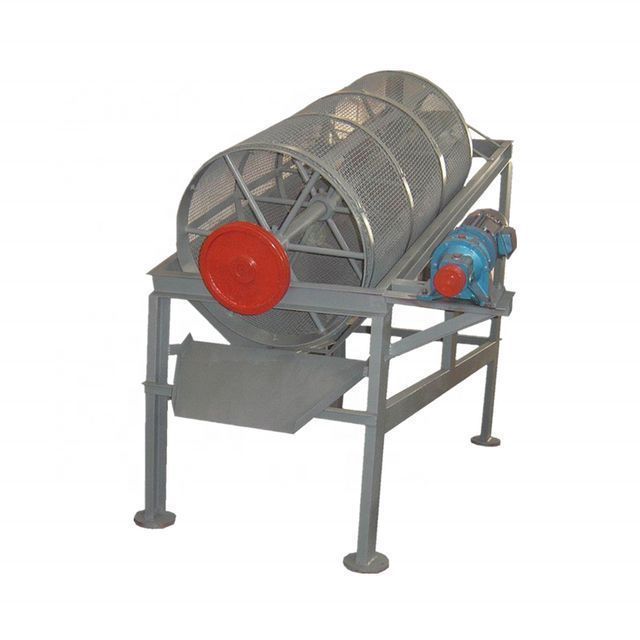

Aggregate Trommel Trommel Screening Machine for Waste Recycling
- $1000.00 /set
- 1 set
- Henan Mind Machinery Equipment Co., Ltd.
- Henan, China
- Ms Kayla Zhang
| Origin: | Henan, China | Drum Diameter: | 1 meter |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | type: | round |
| port: | Qingdao, Shanghai, Tianjin, Guangzhou, etc. | weight: | 1000 kg |
| Voltage: | 380 Volts 50 Hz | Dimensions (L*W*H): | 1.8*1.02*1.5m |
| product name: | Shaker | Packaging Details: | 20 feet container, one container can hold 3-4 machines |
| Applicable industries: | farm, agricultural industry | Certification: | ISO 9001 |
| Health status: | new | Cleaning system: | Centrifugal Vibrating Sieving Machine |
| Warranty: | 1 year | Inlet size: | <30 cm |
| speed: | 20-25 turns | engine: | Chinese famous brand |
| Drum Length: | 1.5 m | Key words: | Splitter |
| Supply capacity: | 100 sets per month | capacity: | 5-10 tons/hour |
| Function: | Sieve \ Separation \ Sorting \ Screening | application: | ore |
| After-sales service provided: | Online support, video technical support | brand: | mind |
Aggregate Trommel Trommel Screening Machine for Waste Recycling
Technical Parameters:
| Model | Capacity (tons/hour) | Power (kW) | Speed (rev/min) | Roller Diameter (mm) | Drum Length(mm) | Inlet size (mm) |
| GT1015 | 5--15 | 4 | 20 | 1000 | 1500 | <=300 |
| GT1020 | 5--15 | 5.5 | 1000 | 2000 | ||
| GT1225 | 10--25 | 7.5 | 1200 | 2500 | ||
| GT1530 | 30--50 | 11 | 1500 | 3000 | ||
| GT1545 | 50--80 | 15 | 1500 | 4500 | <=400 | |
| GT1848 | 80--120 | twenty two | 1800 | 4800 | ||
| GT2055 | 120--250 | 30 | 2000 | 5500 |
product description:
1. GT series drum screen is a screening and cleaning equipment developed for power plants, heating companies, mines, chemicals, building materials, metallurgy, coking and other industries.
2. It overcomes the blockage problem of various vibrating screens when screening wet materials, and improves the output and reliability of the screening system.
3. Trommel screens are widely used in sand screening and placer gold beneficiation operations. It is usually divided into two types: fixed trommel screen and mobile trommel screen. According to the different sieving materials, it is also divided into dry sieving and wet sieving. Aggregate drum screen drum screen machine for waste recycling
working principle:
1. The roller unit is installed obliquely on the rack. The motor is coupled with the drum unit through a reducer through a coupling to drive the drum unit to rotate around its axis.
2. When the material enters the drum group, due to the inclination and rotation of the drum group, the material on the screen surface is turned and rolled, so that the qualified material (under-screen product) is discharged at the bottom of the rear end of the drum through the discharge port, and the unqualified material ( The products on the screen are discharged through the discharge port at the end of the drum. Aggregate drum screen drum screen machine for garbage recycling
3. Due to the turning and rolling of the material in the drum, the material stuck in the sieve hole can be pushed out to prevent the sieve hole from being blocked.
feature:
1. Adopting the principle of rolling conveying, the friction coefficient is small, the friction force is light, and the mesh is not easy to block.
2. The idler roller adopts an integral through-shaft structure, which runs smoothly, does not vibrate, and has low noise.
3. The internal drum screen accessories adopt split design, simple structure, quick and convenient replacement and maintenance.
4. The cylinder body adopts an effective fully enclosed structure, and the dust does not leak, providing a reliable guarantee for civilized production.
5. The special wear-resistant steel screen is adopted, which has high screening efficiency, long service life and low maintenance cost.
6. There are two types of fixed and mobile models. Aggregate drum screen drum screen machine for waste recycling
7. The whole machine is safe and reliable in operation, adopts cycloid deceleration transmission, high transmission efficiency, small power distribution, low energy consumption, and obvious energy saving effect.

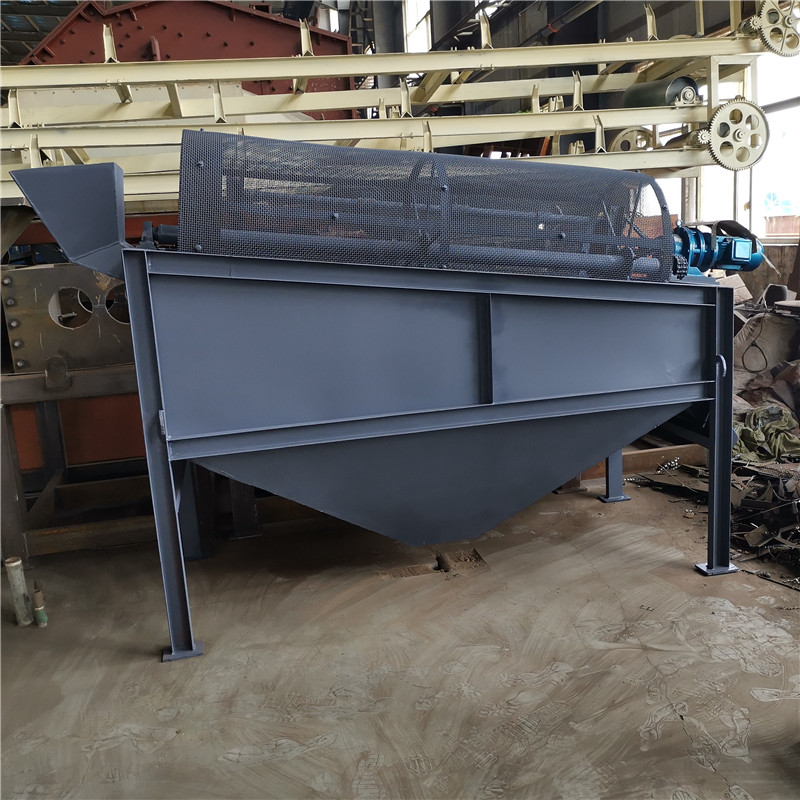

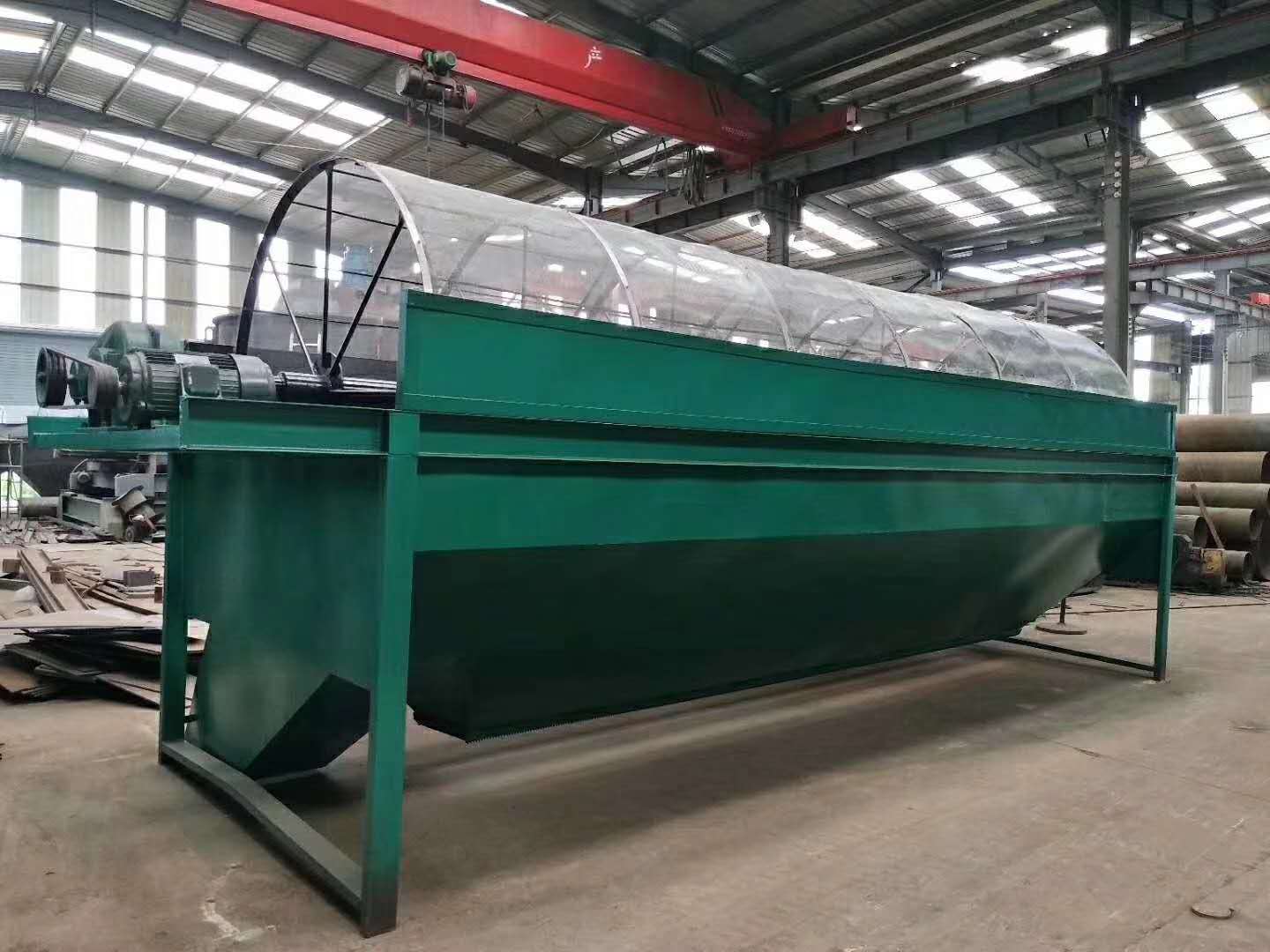

detailed picture:
1. Increased motor: high-quality pure copper motor-long service life and full power
2. Roller screen transmission setting: belt conveyor belt horizontal reducer, reducer gear is precision cast steel - high wear resistance.

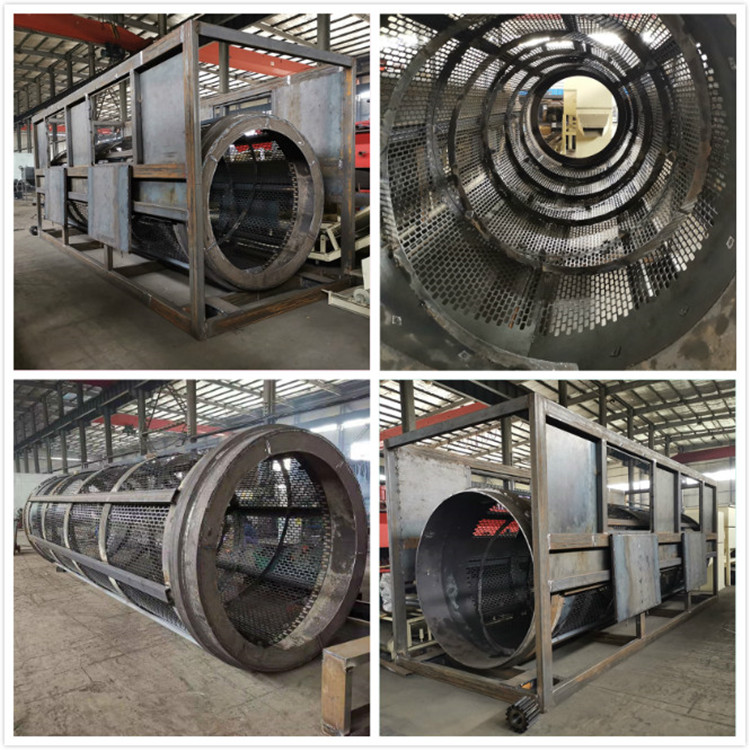

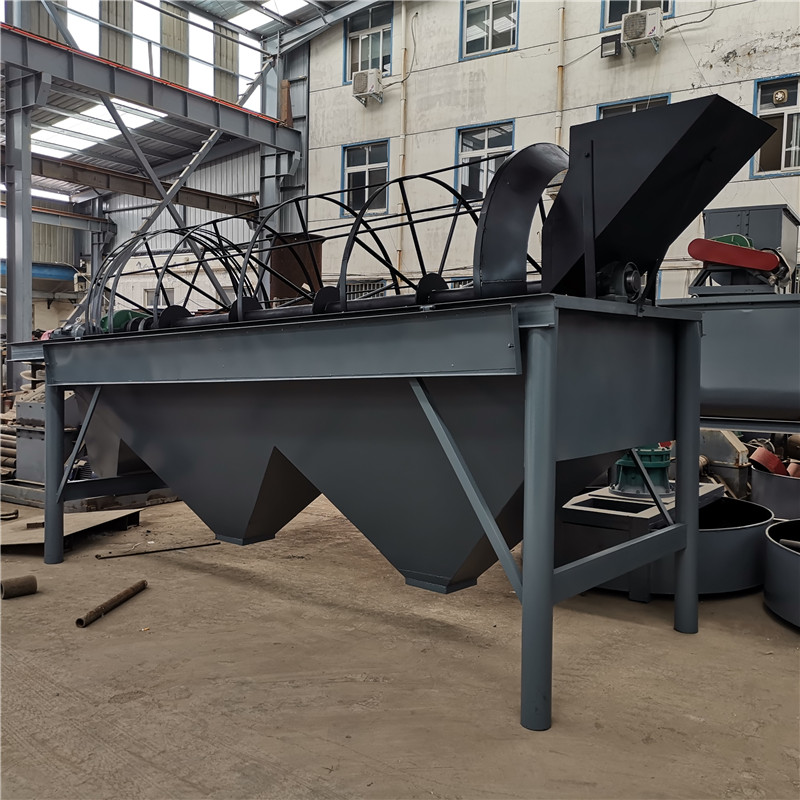

Semi-finished products:
