Kaolin stone linear vibrating screen screening machine

PRODUCT DETAIL
Material:Carbon Steel/Stainless Steel 304/316Lbrand:Xinfeng
Mechanical test report:ifpayment terms:L/C, Western Union, D/P, D/A, T/T
Grid size:2-500 meshApplicable industries:Building material stores, manufacturing plants, construction, energy and mining
type:linearKey words:Linear vibrating screen
Dimensions (L*W*H):2150*766*1145Health status:new
Core component warranty:1 yearcapacity:100 kg - 10 t/h
Package preview:Marketing Type:New Products 2022
Video shipment inspection:ifSupply capacity:5000 sets per year
application:orePackaging Details:Inner packing: high-quality stretch film packing Outer packing: standard fumigated export wooden box
product name:Linear vibrating screen screening machine for kaolin and rockCleaning system:bouncing ball
Voltage:220V/110V/380Vfeature:High screening efficiency
port:Qingdao or otherCore components:motor
place of origin; place of origin:Henan, Chinaweight:460 kg
Warranty:1 yearmotor:Vertical vibration motor
layer:1-5 floorsFunction:Sieve \ Separation \ Sorting \ Screening
Showroom location:not any
Product Description

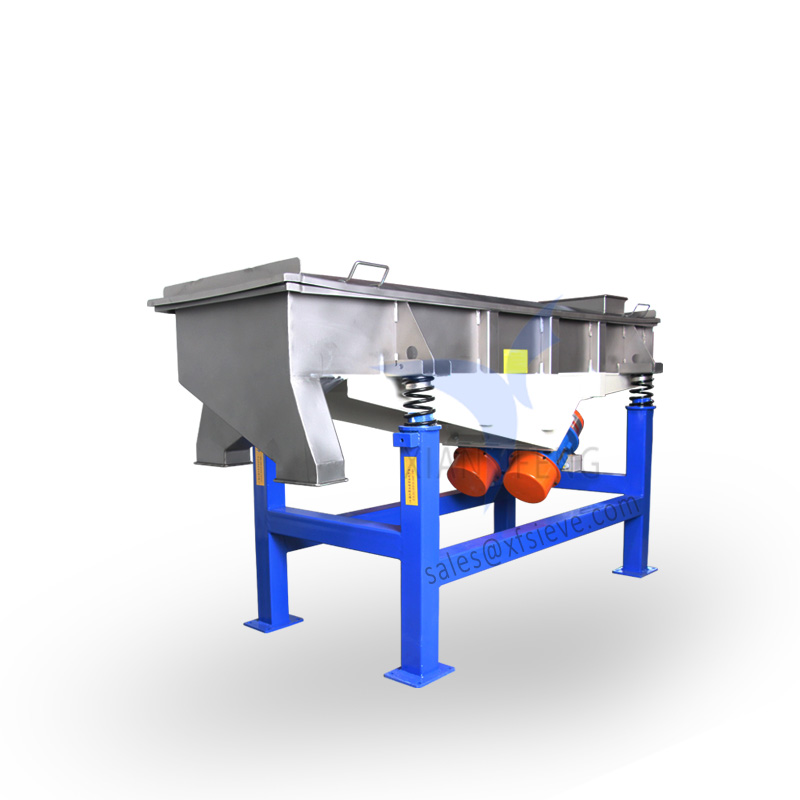

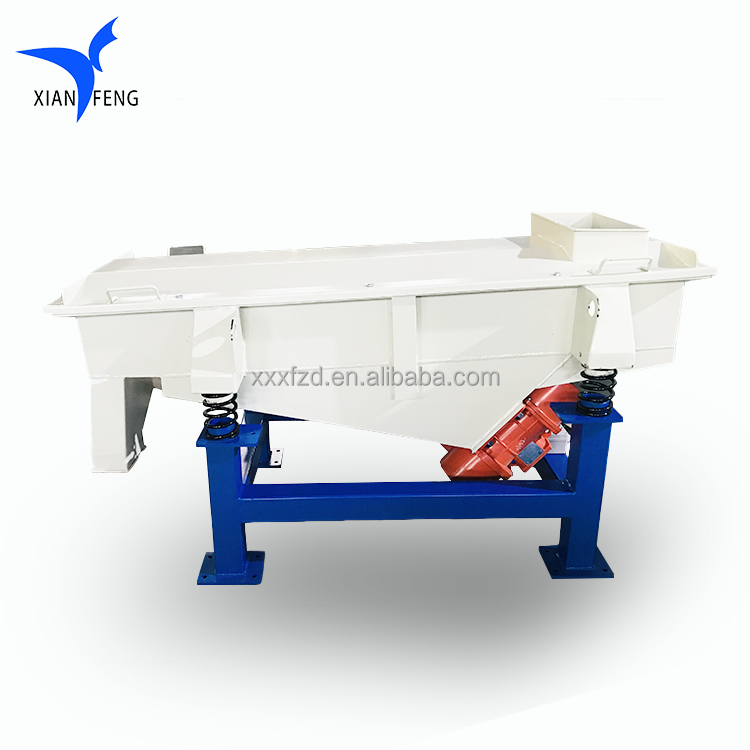

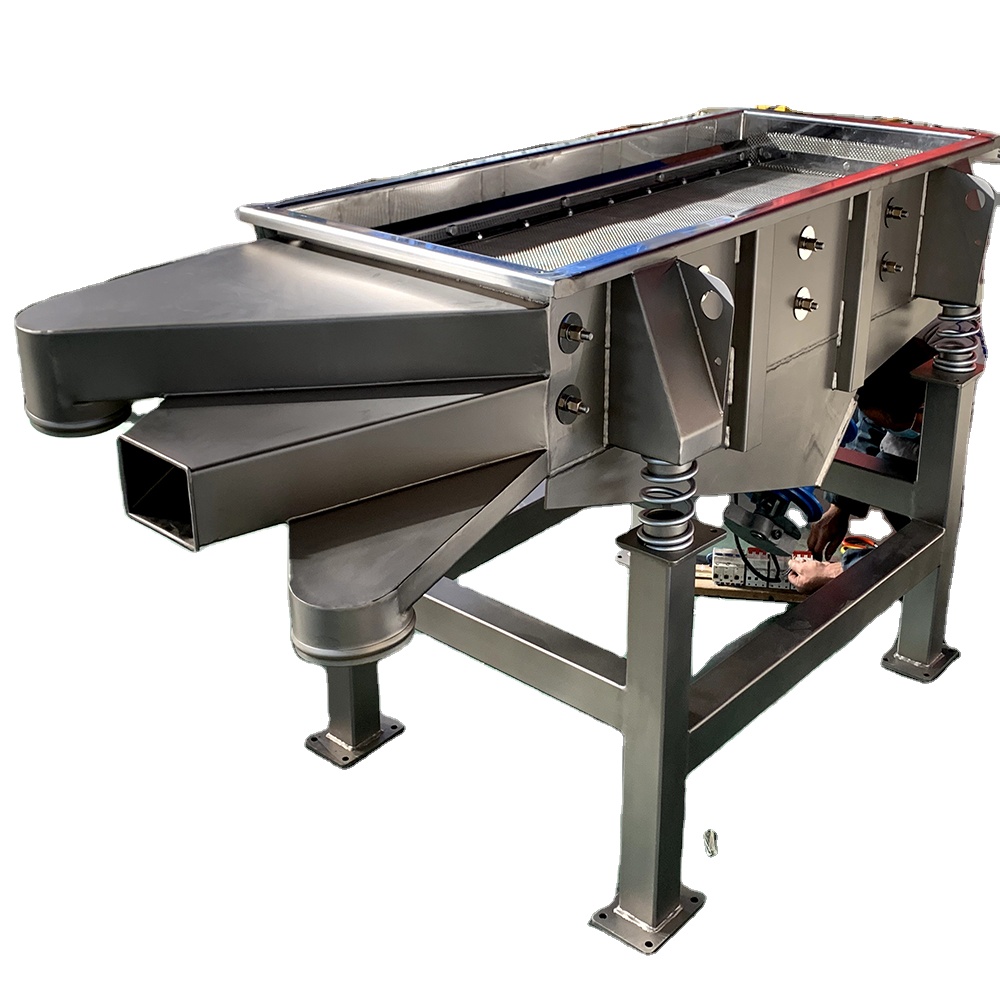

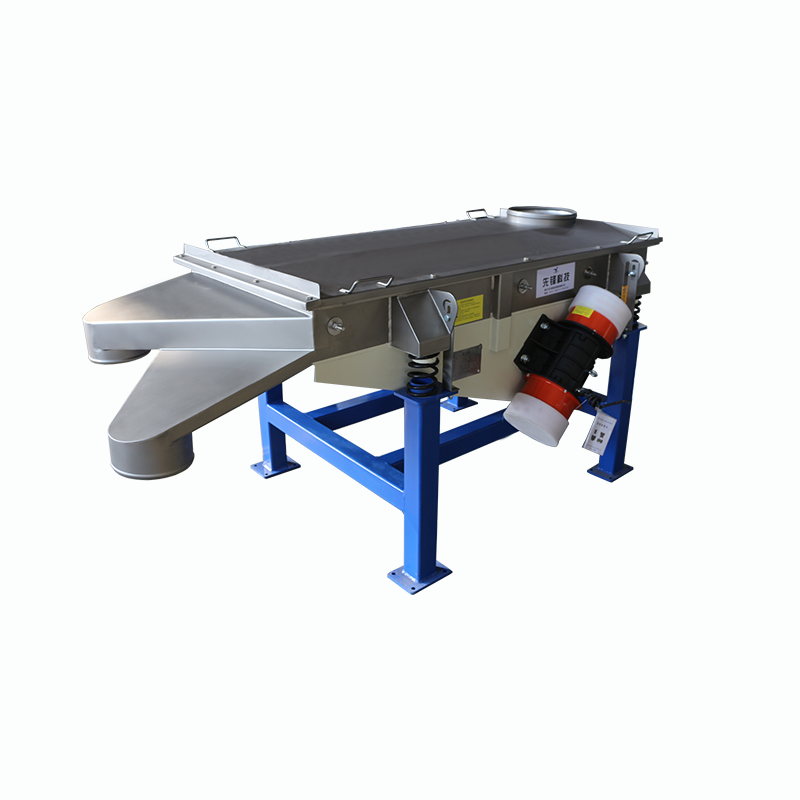

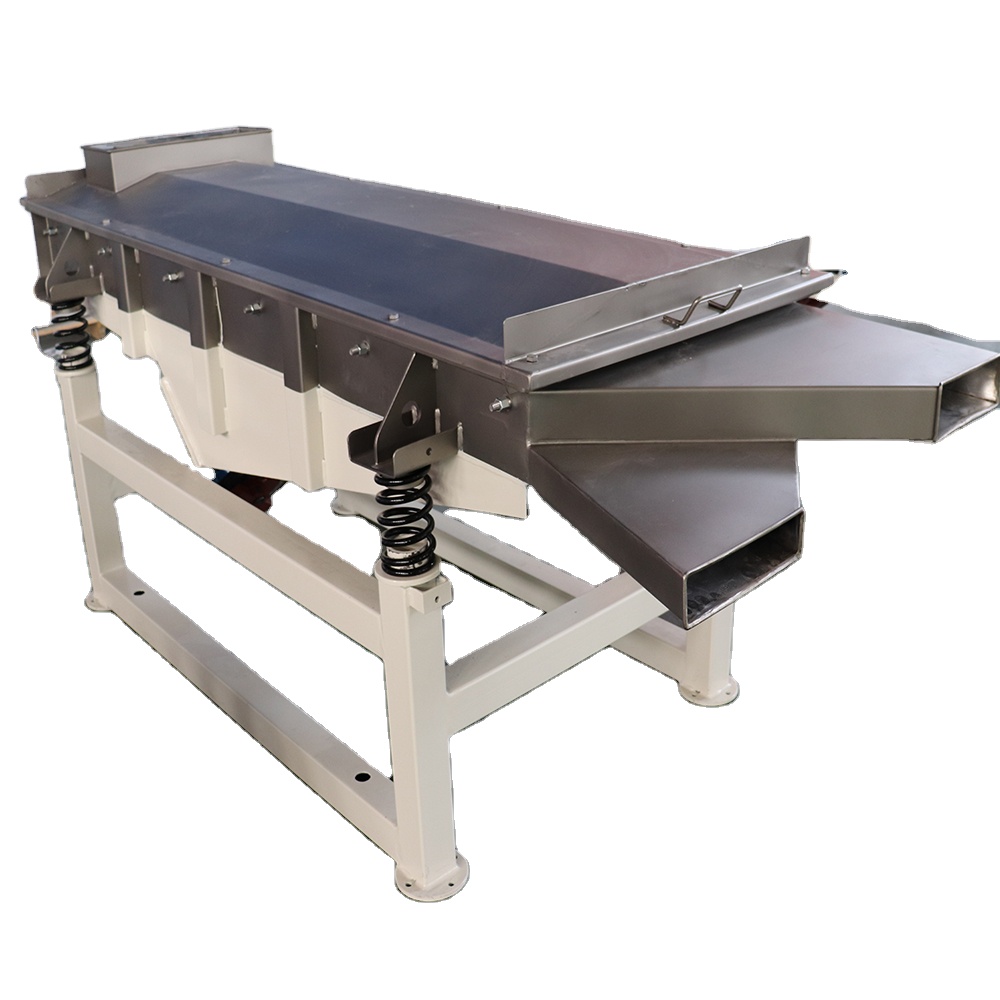

Linear vibrating screen

Linear vibrating screens are widely used in metallurgy, building materials, chemicals, cement, ceramics, grain, food and other industries. It is used to classify different classes of materials. It can also be applied to the assembly line to realize automatic operation.

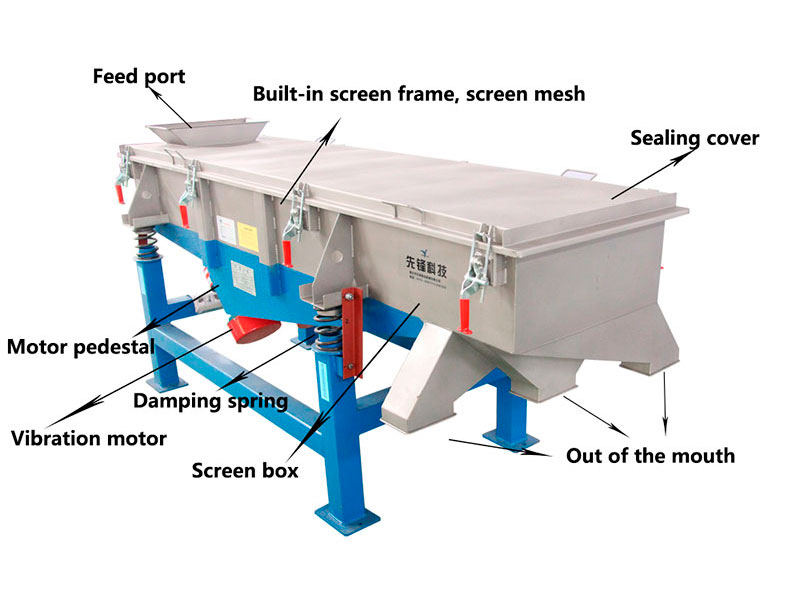

The linear vibrating screen uses double vibrating motors as the power source, and uses the specific working mode of the two motors to make the material move forward in a straight line on the screen.

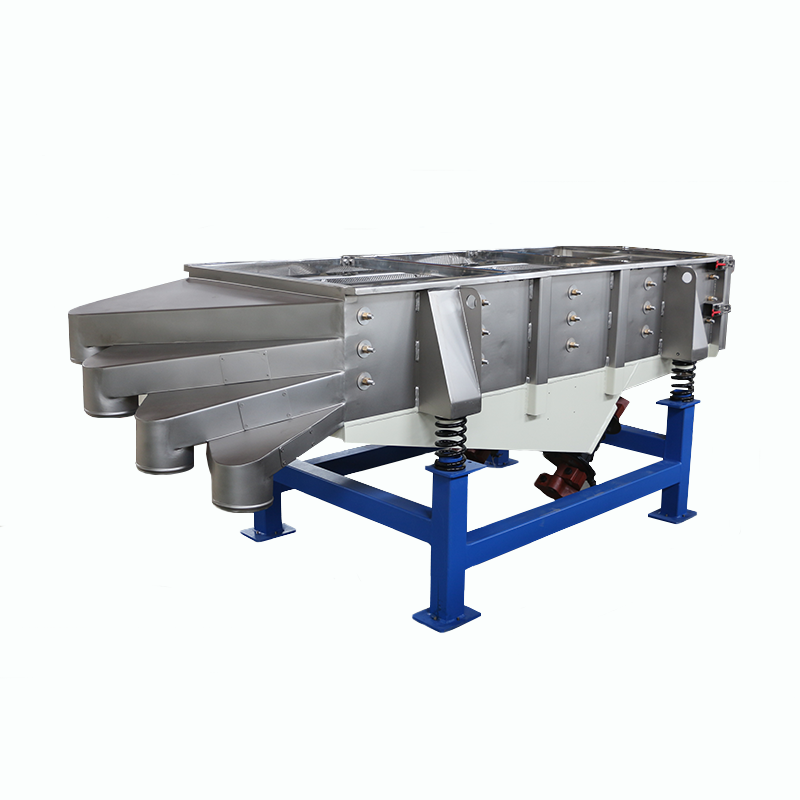

Single-layer or multi-layer can be configured to achieve different purposes such as classification, impurity removal, dust removal, detection, washing, and dehydration.
XFZ0515-1XFZ0820-1 XFZ0820-3 XFZ1020-1
length* width* height length* width* height length* width* height length* width* height
2150*766*1145 2650*1066*1200 2650*1066*1360 2650*1288*1200
Model
Dimensions
(mm)
Material particle size
Screen inclination
(°)
amplitude
(mm)
layers
Power(kw)
XFZ0520
500×2000










0.074-10










0°-10°










3-8










1-7
2×(0.37-0.75)
XFZ0525
500×2500
2×(0.37-0.75)
XFZ0530
500×3000
2×(0.55-1.1)
XFZ0535
500×3500
2×(0.55-1.1)
XFZ1020
1000×2000
2×(0.55-1.1)
XFZ1025
1000×2500
2×(1.1-1.5)
XFZ1030
1000×3000
2×(1.1-1.5)
XFZ1035
1000×3500
2×(1.5-2.2)
XFZ1040
1000×4000
2×(1.5-2.2)
XFZ1225
1200×2500
2×(1.5-2.2)
XFZ1230
1200×3000
2×(1.5-3)
XFZ1235
1200×3500
2×(1.5-3)
XFZ1530
1500×3000
2×(2.2-3)
XFZ1535
1500×3500
2×(2.2-3)
XFZ1540
1500×4000
2×(2.2-4)
The above technical data are only part of our standard products, if you need other models or even customized machines, please feel free to contact us.
Different screen types according to your requirements
PU screen polyurethane

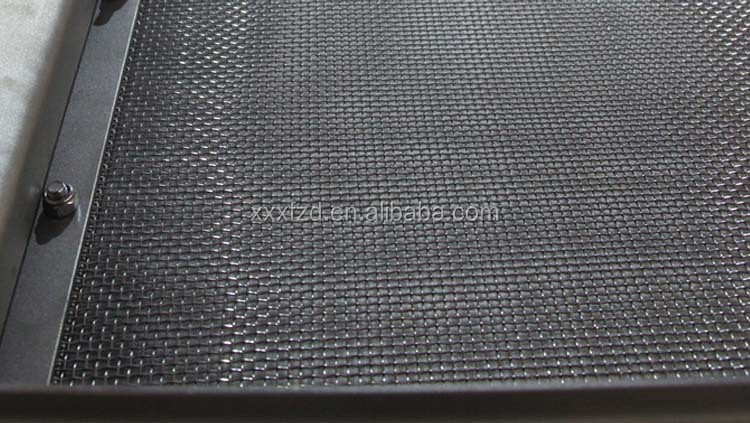

Wire mesh 304/316 stainless steel

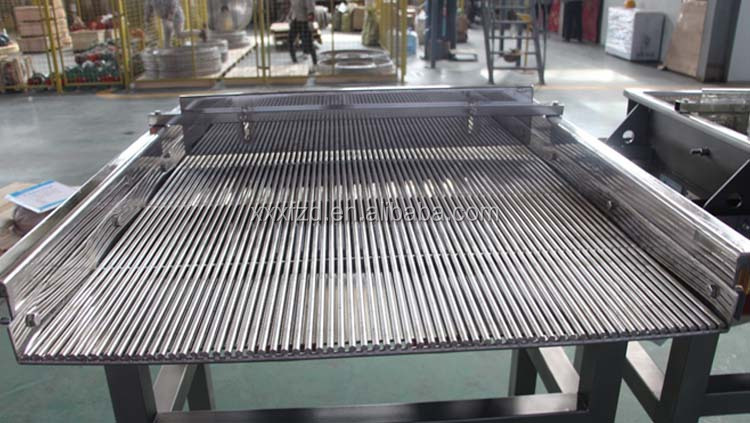

Rod screen 304/316 stainless steel

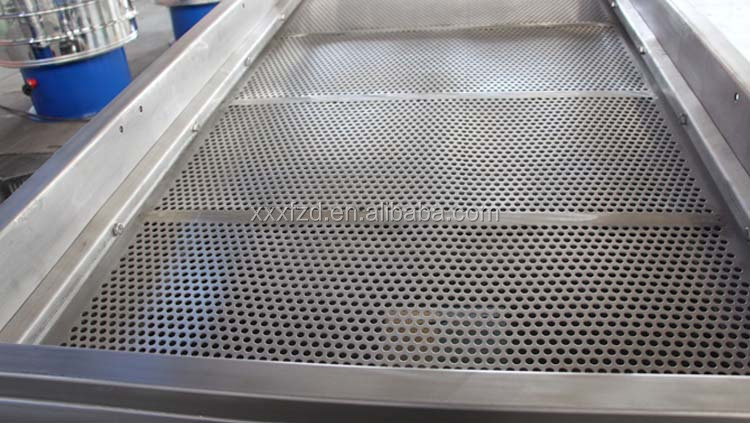

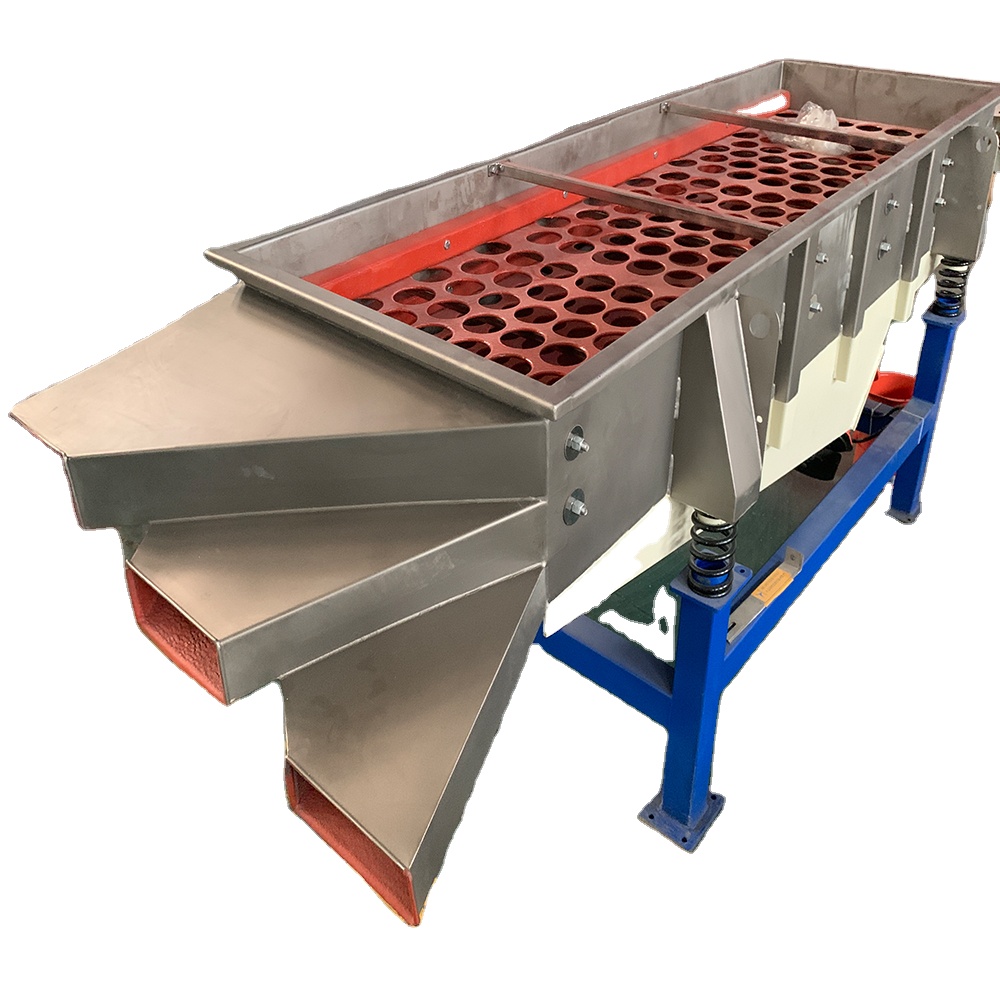

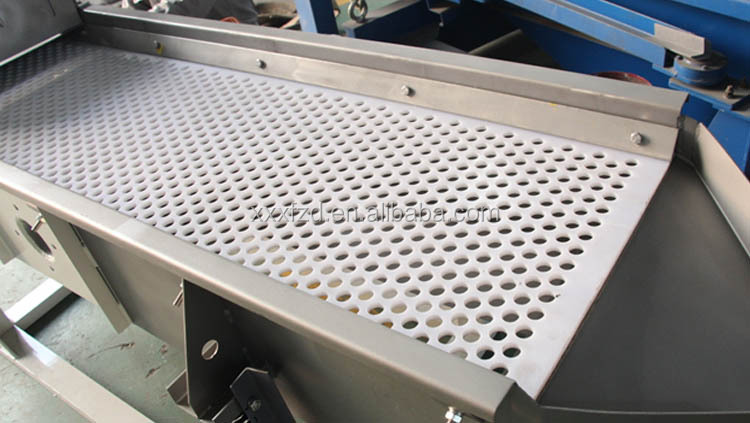

Perforated plate 304/316 stainless steel

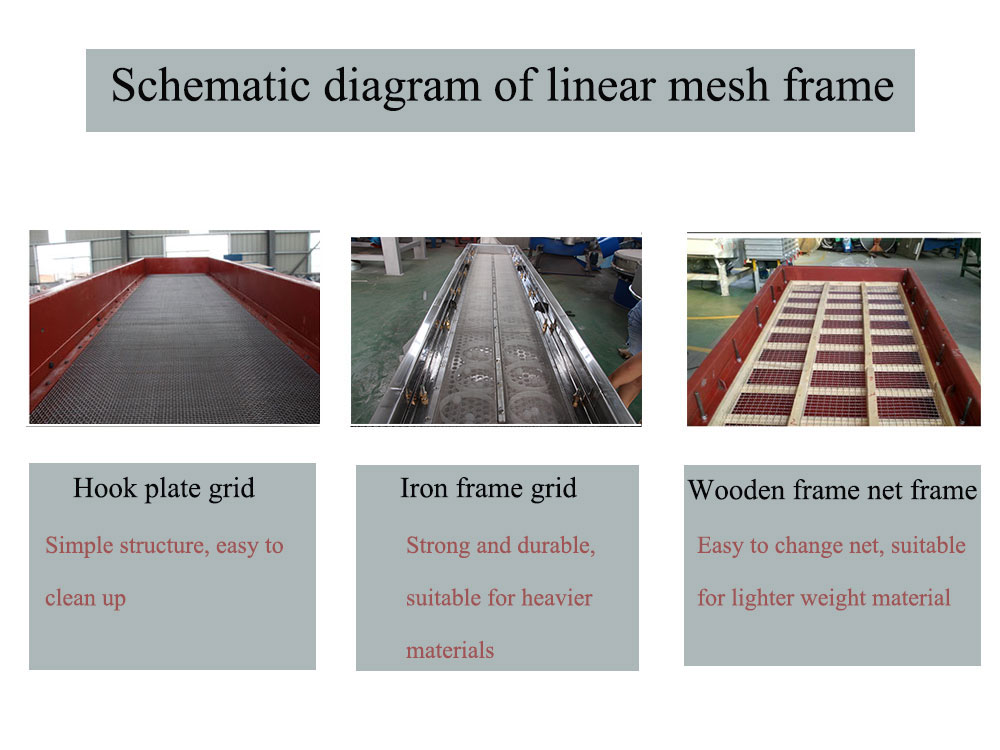

Screen frame type

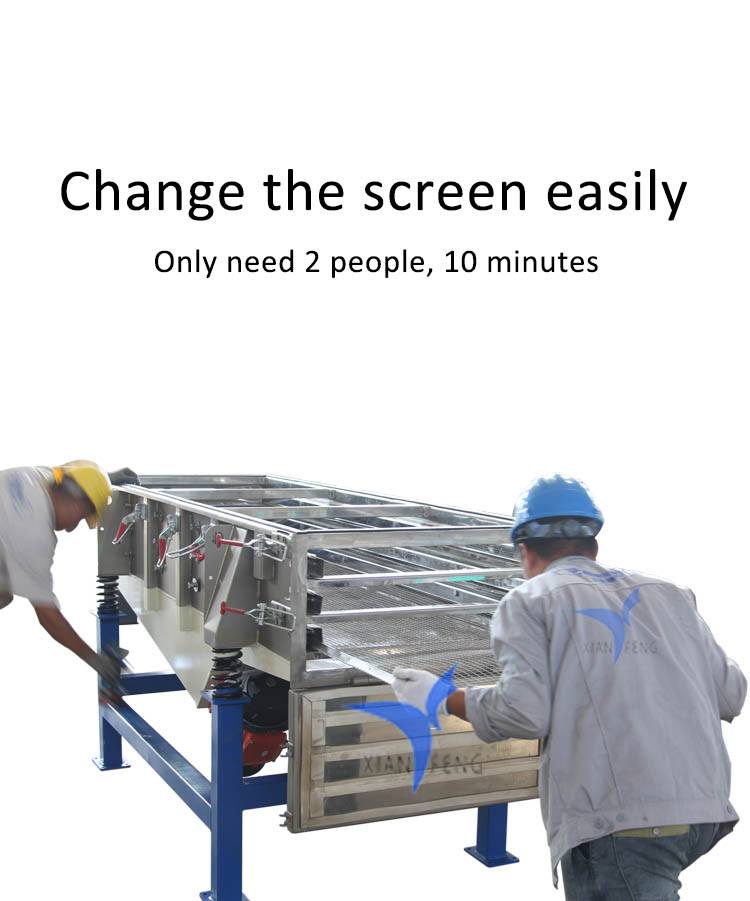

Easy to change screen
application
food industry:Sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, milk powder, grains and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean powder, concentrated broth, potato granules, beets, ice cream, fruit juices , canned vegetables and pickles, soybean oil.

Construction industry:Sand, glass beads, plaster, abrasive grit/shot, borax.

chemical industry:Fertilizers, rubber, polystyrene beads, paints, detergents, latex, catalysts, casein.

Recycle:Animal blood, paper waste, brewer's yeast, sewage, manure, brewery waste, laundry waste, potato peelings and waste, tallow.
