Shaker

PRODUCT DETAIL
place of origin; place of origin:Hebei chinaapplication:Chemicals
payment terms:L/C, T/TVoltage:380v, according to customer needs
low noise:high efficiencybrand:He Xiang
Mechanical test report:ifCore component warranty:1 year
Core components:motorApplicable industries:Food and Beverage Factory
Warranty:1 yearVideo shipment inspection:if
Supply capacity:100 sets per monthDimensions (L*W*H):1270X1270X1050 mm, 1270X1270X1050 mm
In the network:strengthtype:round
After-sales service provided:Online support, on-site maintenance and repair servicesHealth status:new
weight:290KG, 290KGLocal service location:Egypt
Packaging Details:Plywood box or according to customer requirements, 1 set/box, 1150X1150X850mm, gross weight: 240KG.Showroom location:Thailand
Certification:chief executiveport:Tianjin Xingang
Marketing Type:normal product
Product Description

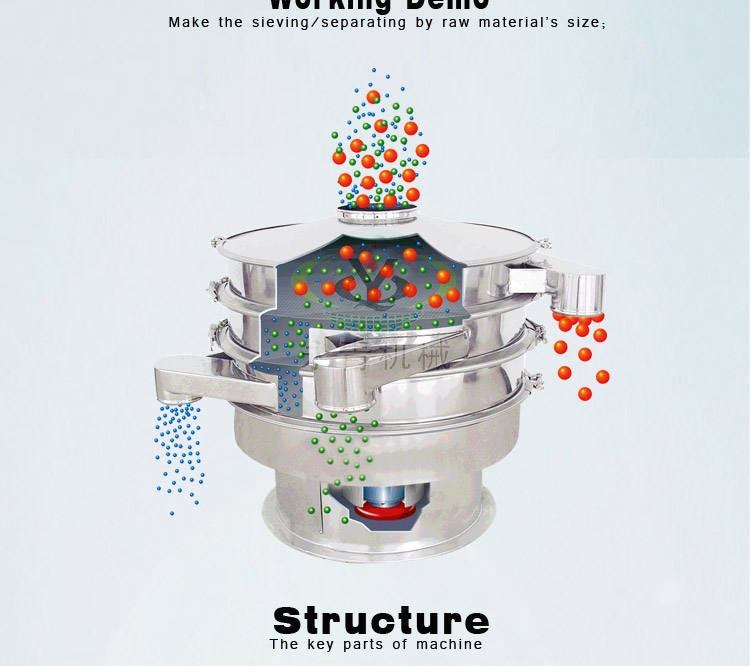

The high-efficiency circular vibrating screen price is a high-precision fine powder screening machine. The basic principle of the large-capacity circular vibrating screen is that the eccentric hammer installed at the upper and lower ends of the motor converts the rotational motion of the motor into a three-dimensional motion of horizontal, vertical and inclined, and then transmits this motion to the screen surface to achieve classification, filtration, and removal of impurities. the goal of.

Specifications

hLarge capacity circular vibrating screen price Up to 5 layers, mesh up to 500 mesh. We will select the appropriate model based on your specific material and application.



Model

strength

(kilowatt)

Screen diameter

(mm)

Floor

grid size

(network)

frequency

(revolutions per minute)

HX012A 0.15 340 1-3 0-500 1500
HX012B 0.37 540
HX012C 0.55 730
HX012D 0.75 950
HX012E 1.5 1150
HX012F 2.0 1450
HX012G 2.2 1730
HX012H 2.5 1930
