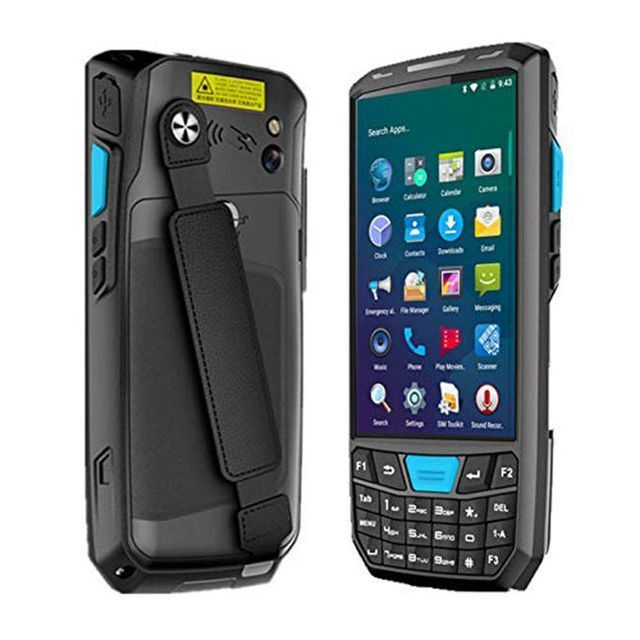

Android 9.0 4G Smartphone Handheld PDA 1D 2D qr Barcode Scanner inventory mobile Data Terminal
- $185.00 / 1 - 49 pieces
$175.00 / 50 - 499 pieces
$150.00 / 500 - 4999 pieces
$135.00 / >=5000 pieces - 1 piece
- Shenzhen Chainmax Technology Co., Ltd.
- Guangdong, China
- Mr Chainmax C
Selling Units: | Single item; | Software development kit (SDK): | Yes; |
Certificate: | CE,RoHS,FCC, IP66; | Single gross weight: | 0.900 KG; |
Storge Memory: | 2GB RAM+16GM ROM; | Memory Capacity: | 2GB; |
Free SDK: | Yes; | Warranty: | 1 year; |
Product name: | mobile data terminal android; | Model Number: | T80 A version; |
Optional Accessories: | Dock cradle/ Leather case; | Packaging Detail: | 1 pcs in 1 box ,20pcs in 1 carton (Android9.0 4G Smartphone Handheld PDA 2D qr Barcode Scanner mobile Data Terminal); |
Style: | Handheld Computer; | Brand Name: | CMX; |
Operating System: | Android; | Single package size: | 22X15X7 cm; |
Battery: | 4200mah Li-ion Battery; | Package Preview: | ; |
Weight: | 400g; | Standard Functions: | 4G,wifi,gps,blue tooth, 8MP camera; |
Products Status: | Stock; | Screen Size: | 4.5 Inch; |
Place of Origin: | Guangdong, China; | Optional function: | Honeywell 1D/2D scanner/ NFC reader; |
Operating system: | Android 9.0; | Processor Type: | 2.0 GHz quad-core; |
Android 9.0 4G Smartphone Handheld PDA 1D 2D qr Barcode Scanner inventory mobile Data Terminal (A version)
PS: Dear all, price show on page is for T80 A version,if need B version or C version, plz inquiry us then we can quote price and draft order link for you accordingly, thanks!
A version without profession barcode scanner
B version with honeywell N4313 1D barcode scanner
C version with honeywell N3603/N6603 2D qr code scanner
Advantages of mobile data terminal android T80
1.Based on android 9.0 platform, user-friendly interface, and a long lifecycle that matches that of the
traditional T80.
2.Reduces user fatigue by offering all of the functionality needed in an easy -to-carry from factor.
3. Allows mobile workers to seamlessly interact with data in virtually any lighting condition.
4. Durable construction and sealing deliver reliable operation and maximize worker uptime.
5.Delivers full wireless coverage for applications inside and outside of the four walls,allowing real-time access to critical data.
6.Delivers fast business transactions, allowing workers to complete multiple tasks quickly.
7.Provide functions test demo and the SDK code very easy to developed your Application .
mobile data terminal android application fields:
1.warehouse inventory management
2.Transportation, logistics tracking
3.Hospital ward inspection and management
4.Electric power inspection
5.Chain retail goods management
6.Government and Private Sector
7.mobile communications
Specification for mobile data terminal android T80
PHYSICAL CHARACTERISTICS |
||
Dimension and Weight |
166 x 77.5x 22mm |
|
Display and Touch Panel |
4.5'' WVGA (480*854), 650000 colors Rugged dual touch capacitive touch panel |
|
Power |
Main battery: Li-ion, rechargeable, 4200mAh |
|
Expansion Slot |
2* PSAM (Optional): ISO7816 protocol , 1 SIM, 1 MicroSD (TF) slot |
|
Interfaces |
Type -C USB |
|
Keypad |
21 pcs soft silicon key |
|
AC Adapter |
Input: 100V-240V, 50-60Hz, 0.29A ,Output: 5V, 2A |
|
PERFORMANCE CHARACTERSTICS |
||
CPU |
Cortex A-53 2.0 GHz quad-core |
|
Storage |
RAM+ROM: 2GB+16GB |
|
Operating System |
Android 9.0 |
|
USER ENVIRONMENT |
||
Operating Temp. |
-20°C to 55°C |
|
Storage Temp. |
-25°C to 70°C |
|
Humidity |
5%RH - 95%RH non condensing |
|
Drop Specifications |
Multiple 1.5m drops to concrete across the operating temperature range |
|
Sealing |
IP66 |
|
Developing Environment |
||
SDK |
Software Development Kit |
|
Language and Tool |
Java,Eclipse / Android Studio |
|
DATA COMMUNICATION |
||
WWAN |
4G:TDD -LTE (B38 ,B39,B40,B41) FDD-LTE (B1,B3) |
|
3G:WCDMA 850/900/1700/1900/2100MHz |
||
2G: GSM/dege/GPRS 850/900/1800/1900MHz |
||
WLAN |
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
|
blue tooth |
Support BT2.0 +EDR/3.0 +HS/4.1+HS,Transmission distance is 5-10m |
|
GNSS |
GPS/AGPS, internal antenna |
|
BARCODE READER(OPTIONAL) |
||
1D Linear Scanner |
Honeywell N4313 Symbol 955 Minde966 |
UPC/RAN,Code128 ,Code 39 ,code 93.Code11 ,Interleaved 2 of 5 ,Discrete 2 of 5 ,Chinese 2 of 5 ,Codabar ,MSI,RSS |
2D imager scanner |
Honeywell N3603 Honeywell N6603 Newland 3096 |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX). etc. |
COLOR CAMERA |
||
Resolution |
8MP autofocus camera with flash |
|
NFC (optional) |
||
Frequency |
13.56MHz |
|
Protocol |
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
|
ACCESSORIES |
||
Standard |
AC Adapter,,USB cable,Cradle (Optional) |
CMX-S60 5.5inch screen Android 9.0 with 4g, wifi, gps, blue tooth, 8MP camera, 58mm thermal/label sticker printer, Quad-core 2.0G CPU, 2G RAM+ 16G ROM storge,honeywell 1D/2D barcode scanner/NFC reader optional.
CMX-T1 5inch screen Android7.0 with 4g, wifi, gps, nfc reader, blue tooth, camera, printer. MSR/IC card reader. (EMV/PCI certificate approved)
CMX-S50 5.5inch screen Android 9.0 with 4g, wifi, gps, blue tooth, 8MP camera, Quad-core 2.0G CPU, 2G RAM+ 16G ROM storge, honeywell 1D/2D barcode scanner/NFC reader is optional.
CMX-S70 5.7inch screen Android 9.0 with 4g, wifi, gps, blue tooth, 13MP camera, Octa-core 2.0G CPU, 3G RAM+ 32G ROM storge.honeywell 1D/2D barcode scanner/NFC reader/UHF reader is optional
1.Are you manufacturer?
Yes,we are manufacturer profession in thermal printer,pos machina,barcode scanner etc;
2.Would you provide SDK for me?
Yes,we offer free SDK if order sample.
3.What is the minimum order mobile data terminal android?
one sample order is acceptable,if require OEM.We can confirm further.
4.What the after sale service mobile data terminal android?
a.Our all products will provide 1 year warranty.
b.if there is no Man-made problem,we will replace or repair for your freely.1% extra device and spare parts will be provided when bulk order mobile data terminal android
