ERhino 4.7 inches 4G LTE with quad-core 2G + 16G RFID reader NFC Solid PC Handheld barcode scanner PDA industrial Android
- $50.00 /piece
- 1 piece
- Yisite Education Technology (Shenzhen) Co., Ltd.
- Guangdong, China
- Ms Mandy Chan
| brand: | rhino | 3G/4G LTE: | TDD-LTE Bands 38, 39, 40, 41 FDD-LTE Bands 1, 2, 3, 4, 7, 17, 20; Code Division Multiple Access |
| product status: | in stock | port: | EXW Shenzhen/Hong Kong |
| place of origin; place of origin: | China | Memory Capacity: | 2G memory 16MB memory |
| weight: | 450g (including battery) | style: | laptop |
| model: | RH947 | Dock: | support |
| screen size: | 4.7 inches | Active 2.45GHz: | Read range over 200 m |
| Supply capacity: | 20,000 rugged phones per month | payment terms: | Wire Transfer, Western Union, MoneyGram |
| RAM/ROM: | 4G/64G | RFID reader: | LF/HF/UHF optional |

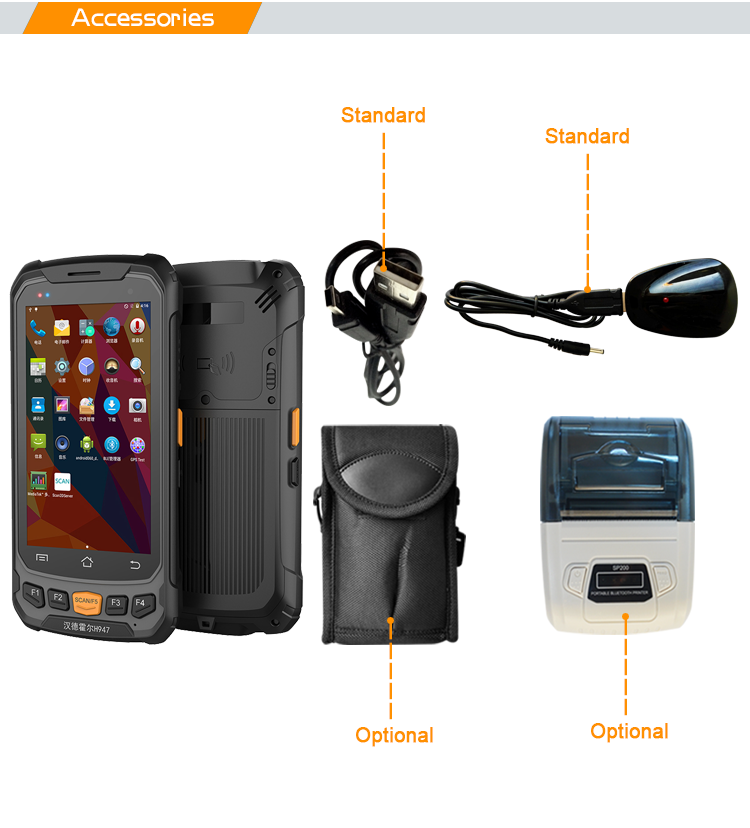

| Packaging Details: | 1* Rugged Handheld Computer 1* Data Cable 1* User Manual 1* Charging | Processor type: | A53 1.3GHz Quad Core |
| operating system: | Android OS 7.0 | camera: | Autofocus 8.0M with LED Flash |
| PSAM Security: | Protocol ISO 7816 | Waterproof standard: | IP65 |
| Barcode Reader: | 1D/2D optional | 433MHz: | Read range over 200 m |

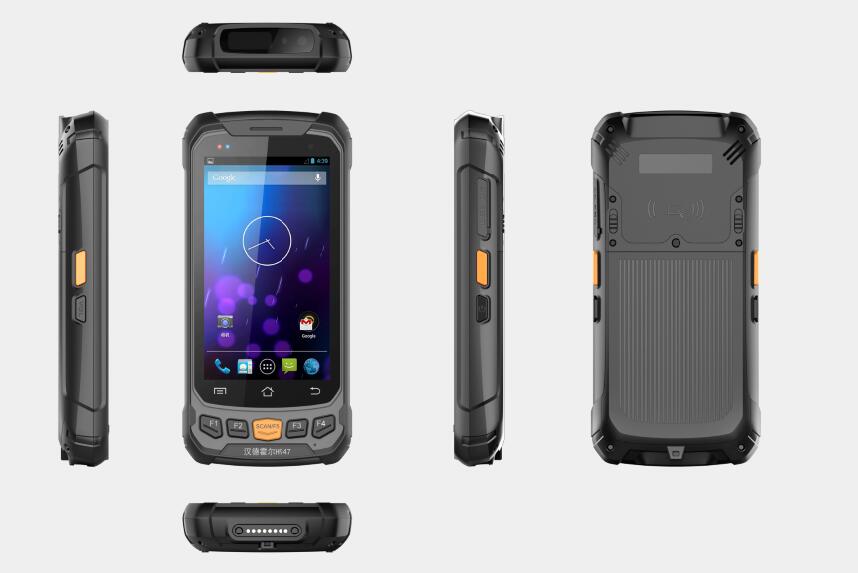

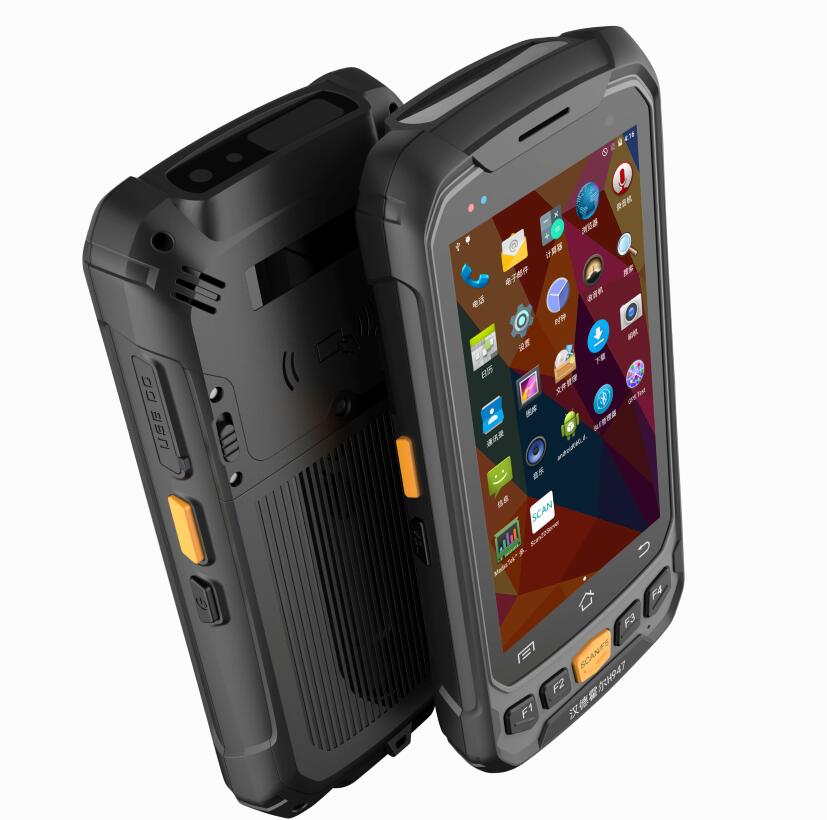

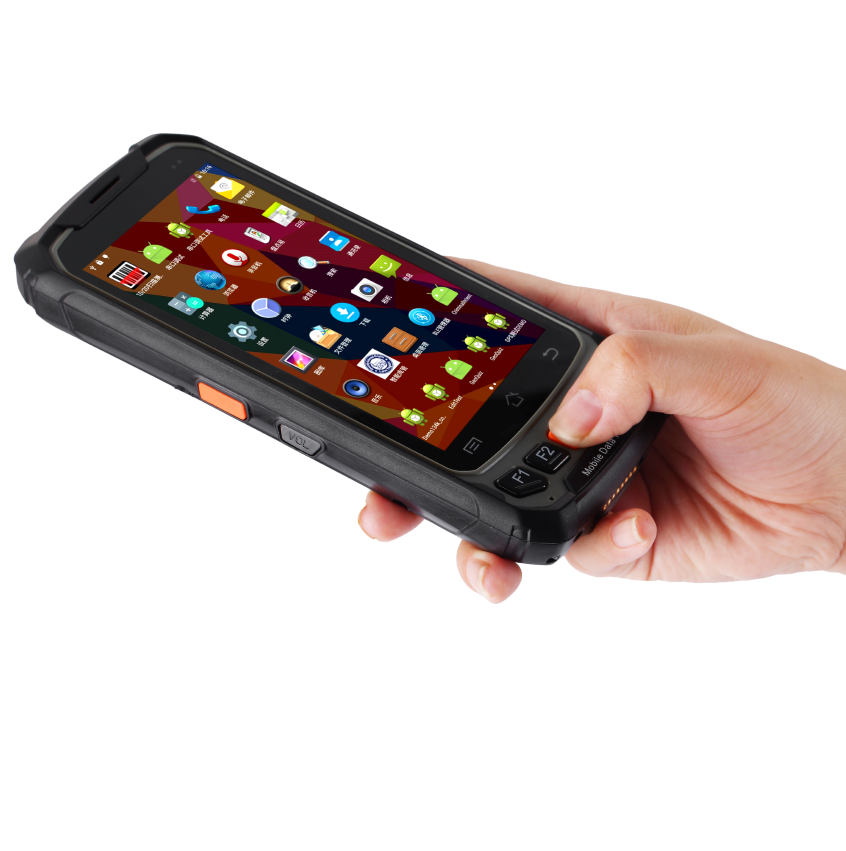

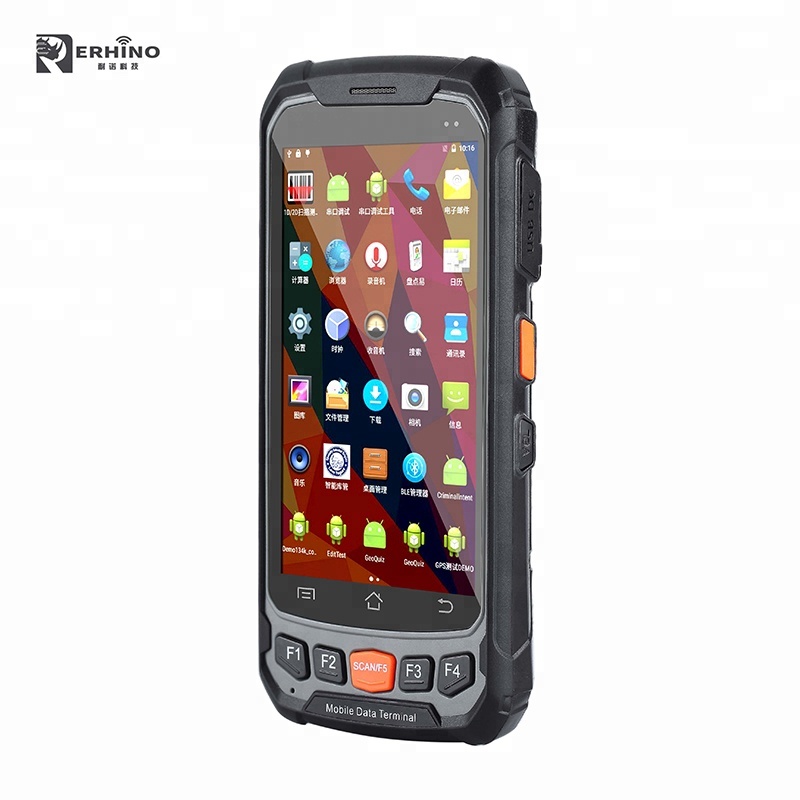

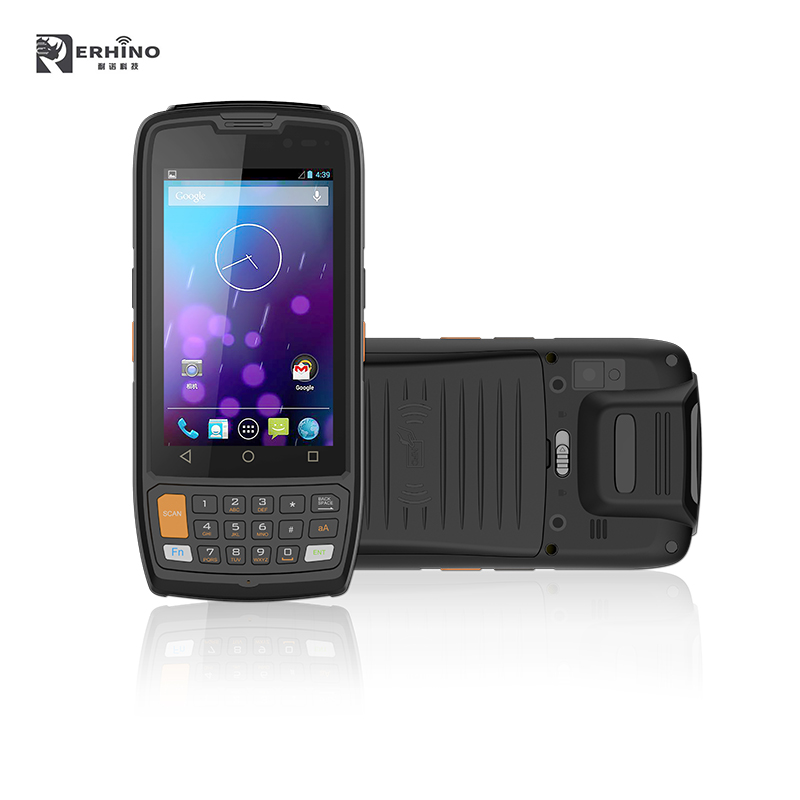

ERhino 4.7 Inch 4G LTE Quad Core PDA Barcode Scanner Android Rugged Handheld Computer
Professional manufacturer of Rugged Pda, 15 years Alibaba Gold Member, 19 years experience in electronics and electronics industry
physical properties | ||
aspect | 162mm(H)x78mm(W)x22mm(D)±2mm | |
weight | Net weight: <450g (including battery and wrist strap) | |
exhibit | 4.7 inches 720x1280 | |
Backlight | LED backlight | |
keyboard | 3 TP keys, 5 function keys, 4 side keys | |
expand | 2 PSAM, 1 SIM, 1 TF | |
Battery | Rechargeable Li-Ion Polymer, 3.7V, 4750mAh | |
performance characteristics | ||
CPU | Quad A53 1.3GHz Quad Core | |
operating system | Android 7.0 | |
storage | 2GB RAM, 16GB ROM, MicroSD (max 32GB expansion) | |
User environment | ||
Operating temperature | -20℃ to 50℃ | |
Storage temperature | -20℃ to 70℃ | |
humidity | 5%RH to 95%RH (non-condensing) | |
drop specification | 5 ft/1.5 m drop to concrete in operating temperature range | |
seal | IP65, according to IEC | |
electrostatic discharge | ±15kv air discharge, ±8kv direct discharge | |
data communication | ||
Wan | TDD-LTE bands 38, 39, 40, 41 FDD-LTE bands 1, 2, 3, 4, 7, 17, 20; WCDMA (850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); | |
Wireless LAN | 2.4GHz/5.8GHz dual-band, IEEE 802.11 a/b/g/n | |
Wireless LAN | Bluetooth v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 | |
Global Positioning System | GPS (Embedded A-GPS), 5m accuracy | |
Data Collector | ||
Barcode reader (optional) | ||
1D barcode | Symbology | All major 1D barcodes |
QR code | 2D CMOS Imager | New Land Scanning Engine |
| Symbology | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. and many more |
color camera | ||
Resolution | 8.0 megapixels | |
lens | Autofocus with LED flash | |
RFID reader (optional) | ||
RFID low frequency | frequency | 125KHz/134.2KHz(FDX-B/HDX) |
| protocol | ISO 11784&11785 |
| read/write range | 2 cm to 10 cm |
RFID high frequency | frequency | 13.56MHz |
| protocol | ISO 14443A&15693 |
| read/write range | 2 cm to 8 cm |
RFID UHF | frequency | 865~868MHz or 920~925MHz |
| protocol | EPC C1 GEN2/ISO 18000-6C |
| Antenna gain | Circular Antenna (2dBi) |
| read/write range | 2 m to 4 m (tag and environment related) |
Active 2.45GHz | Read range over 200 m | |
433MHz | Read range over 200 m | |
