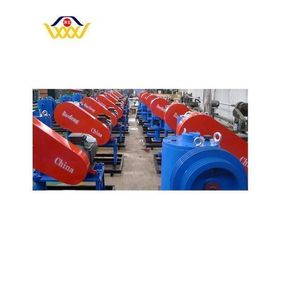

Artificial Lift 30HP Single Motor Ground Drive Unit for PC Rod Pump

PRODUCT DETAIL
Packaging Details:Plywood boxesstrength:30HP
port:Qingdao, Ningbo, Shanghai, Guangzhou, Tianjinpayment terms:T/T, Western Union
type:drive unitproduct name:drive unit
model:30 hpSupply capacity:300 pieces per month
Product Description


PC pump horizontal driving device technical parameters

Model
Rated voltage (V)
Rated torque (Nm)
Rated speed (r/min)
Rated power (KW)
Ratio η(%)
Speed ​​range (r/min)
LBQZ11
380
525
200
11
90.5
15-200
LBQZ15
380
716
200
15
90.5
15-200
LBQZ18.5
380
883
200
18.5
91.5
15-200
LBQZ22
380
1051
200
twenty two
91.5
15-200
LBQZ30
380
1433
200
30
92.5
15-200
LBQZ37
380
1767
200
37
93
15-200

fFeatures:

Large reduction ratio, step reduction, get rid of the traditional helical gear, simple structure, convenient maintenance and reliable use.

Custom sizes and configurations also available

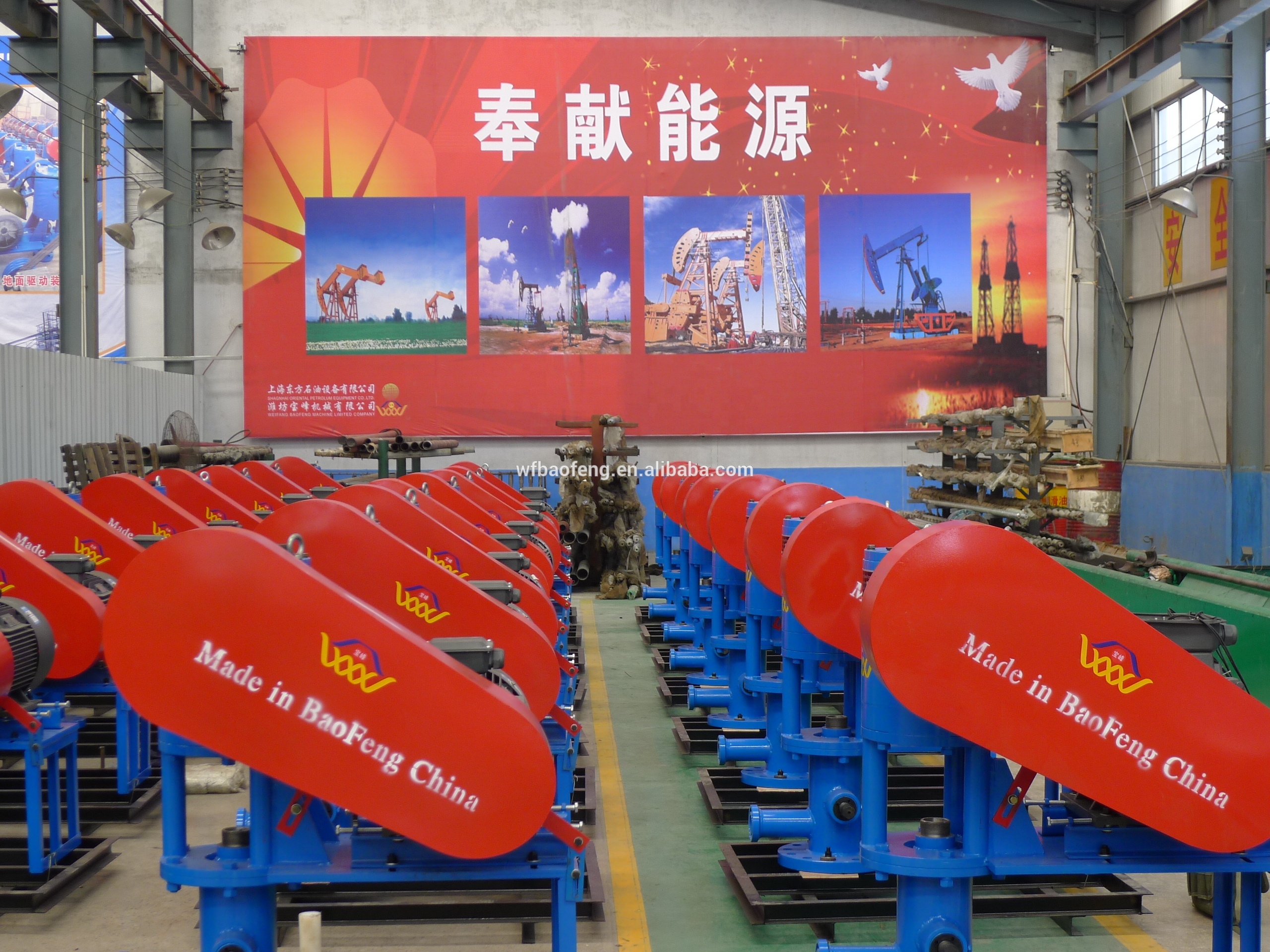

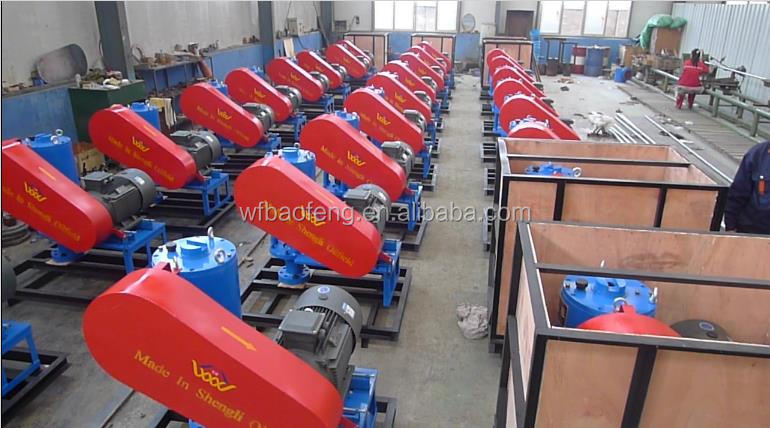

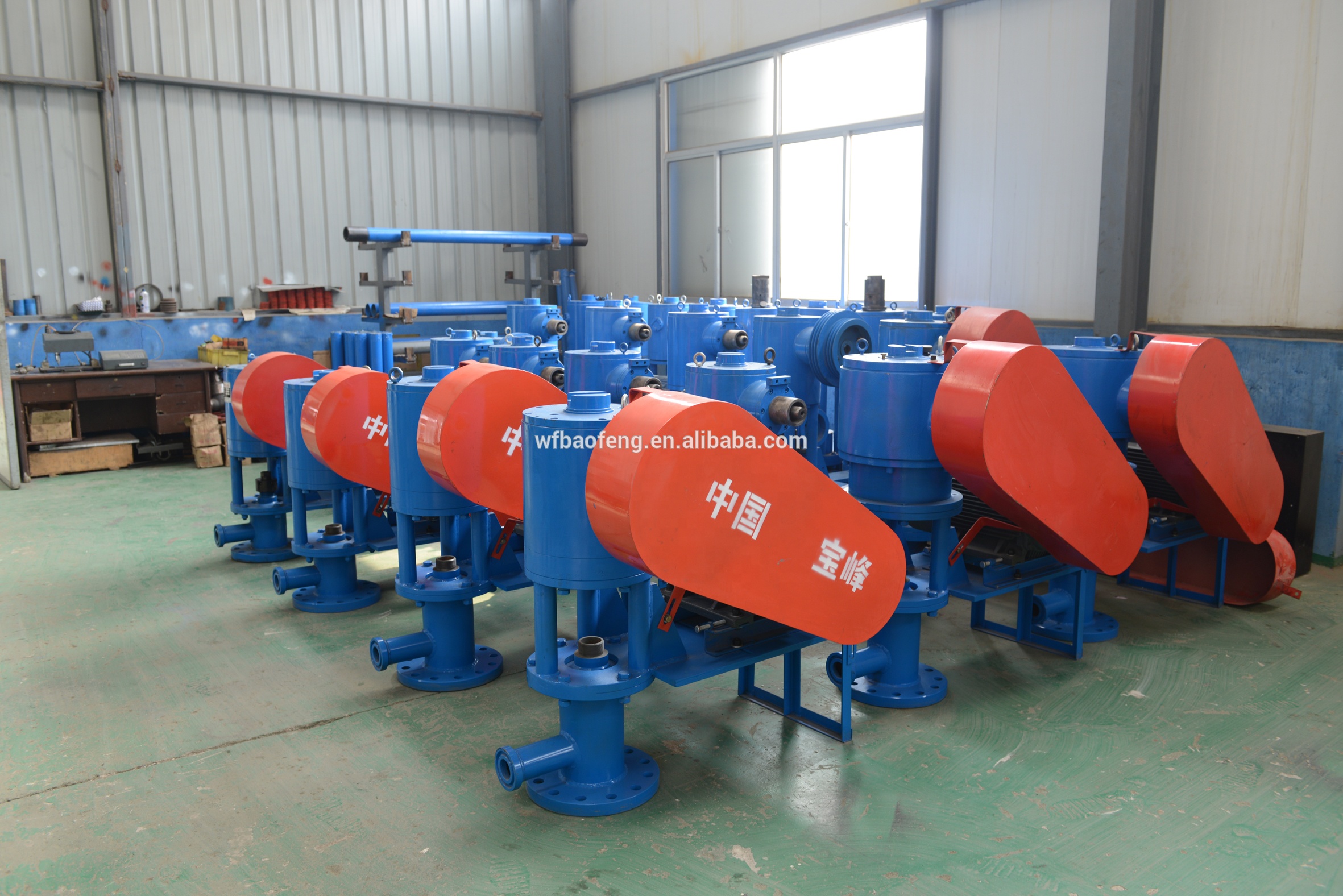

detailed image

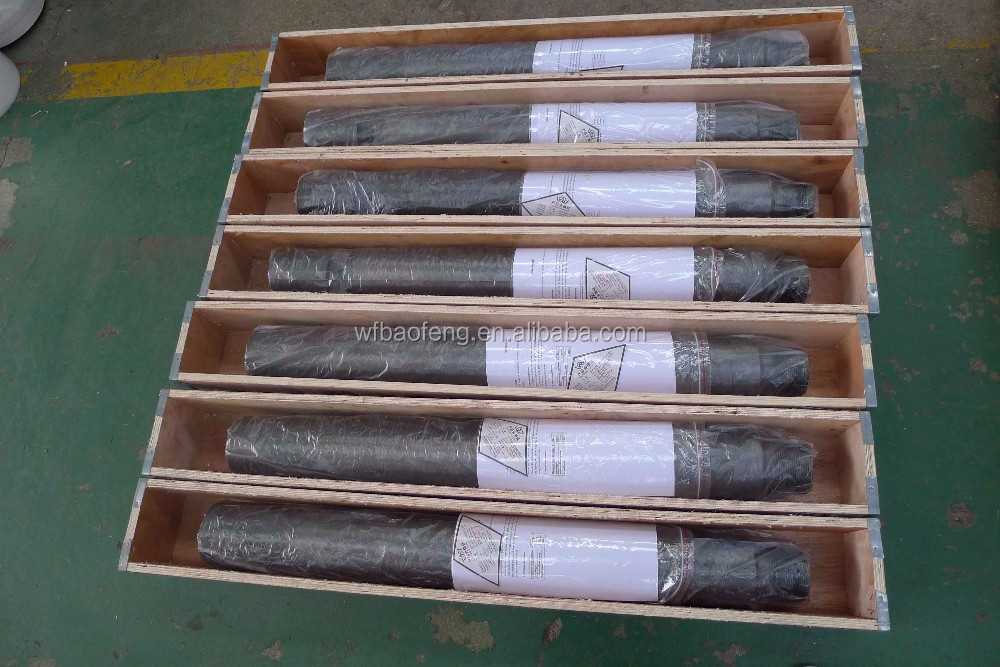

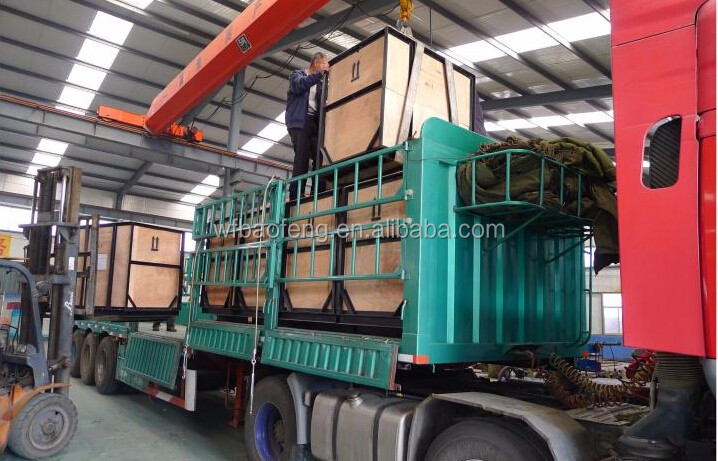

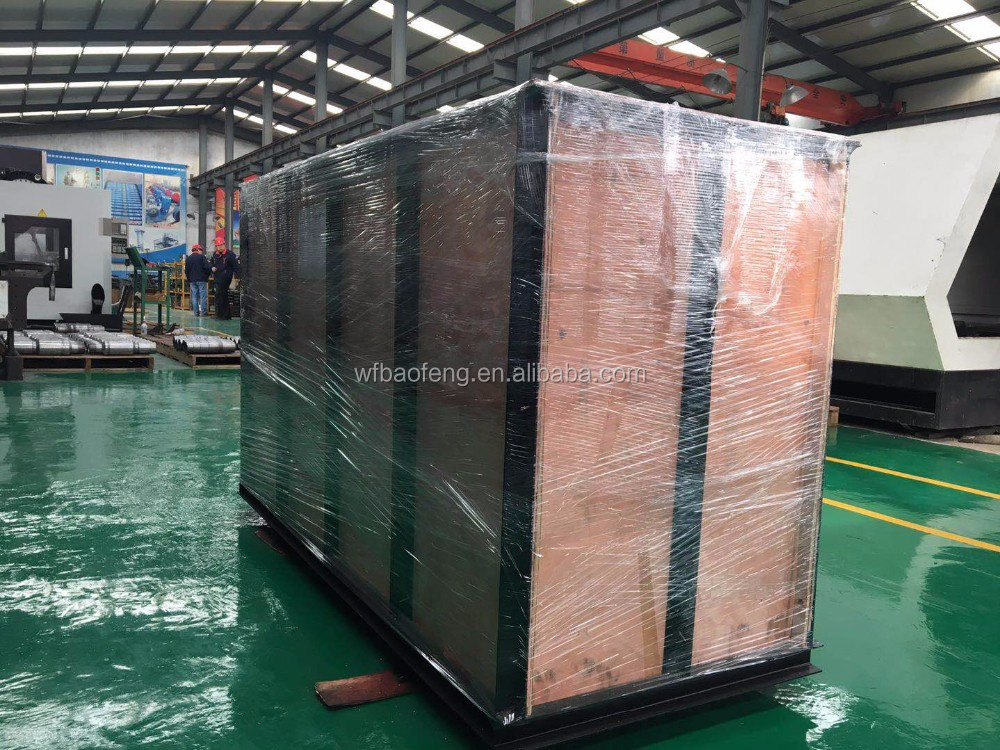

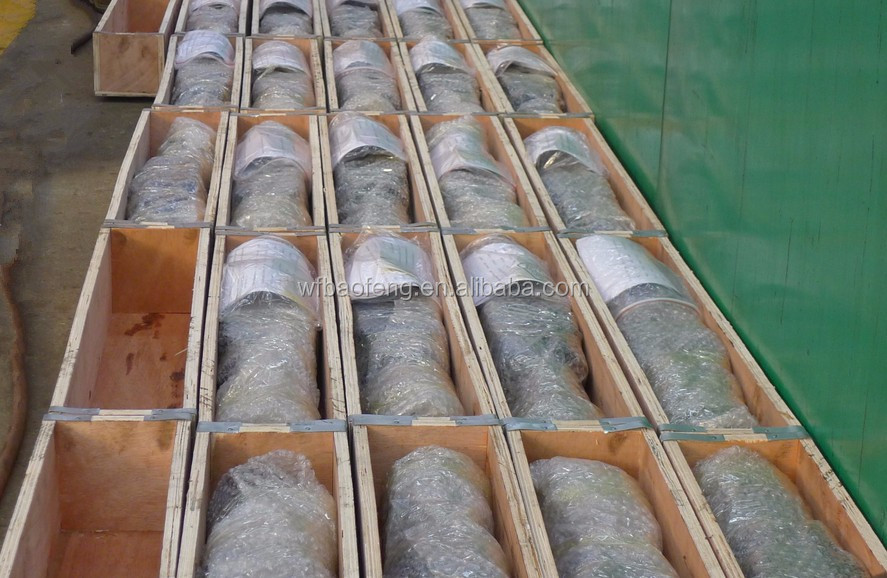

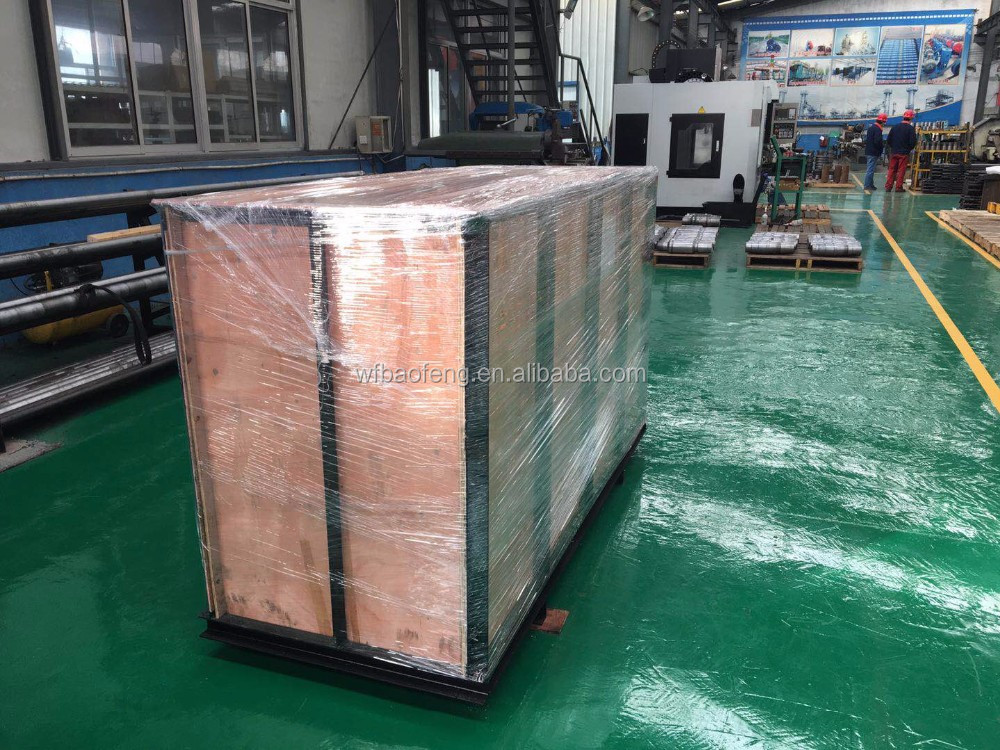

Package

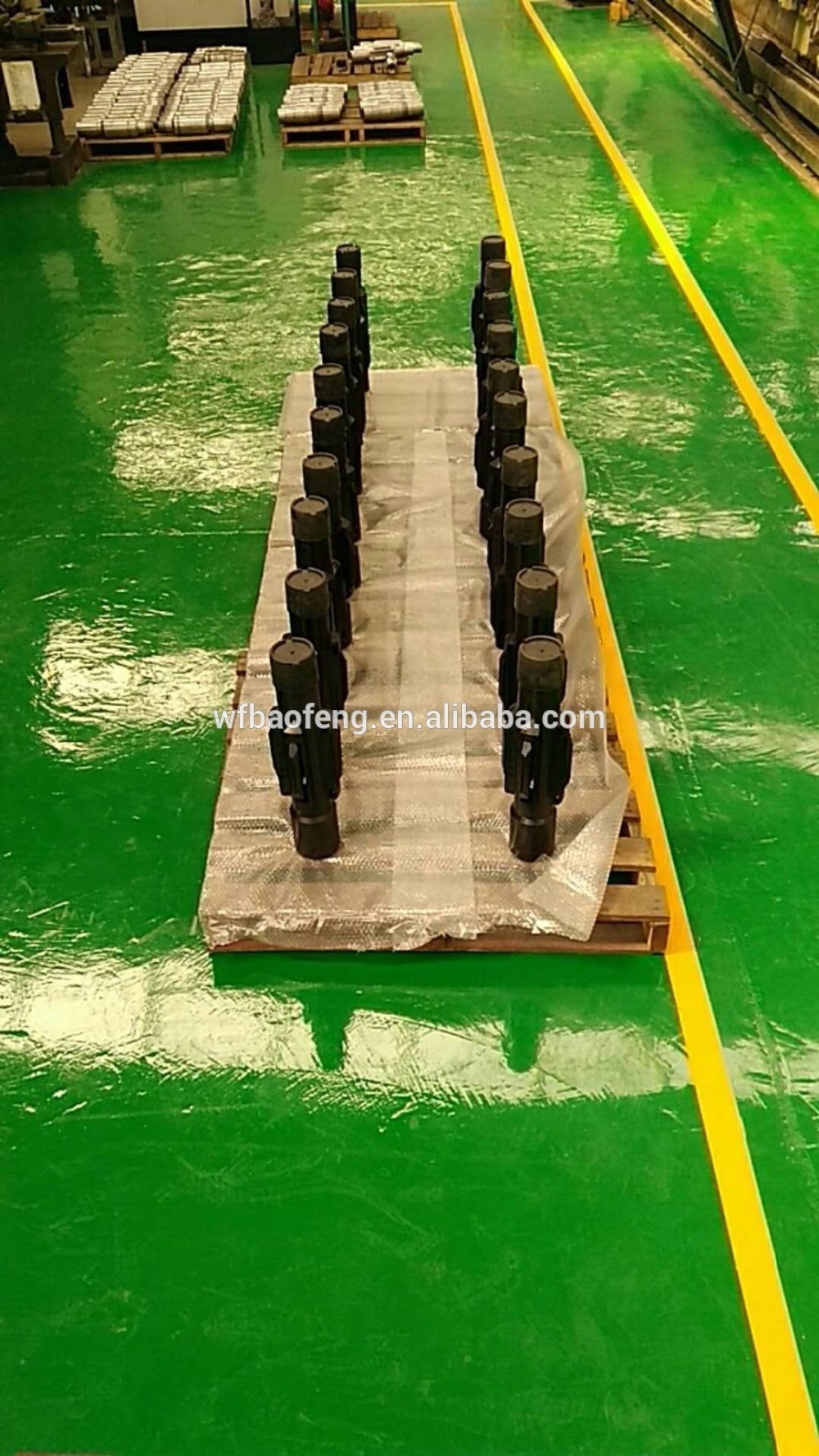

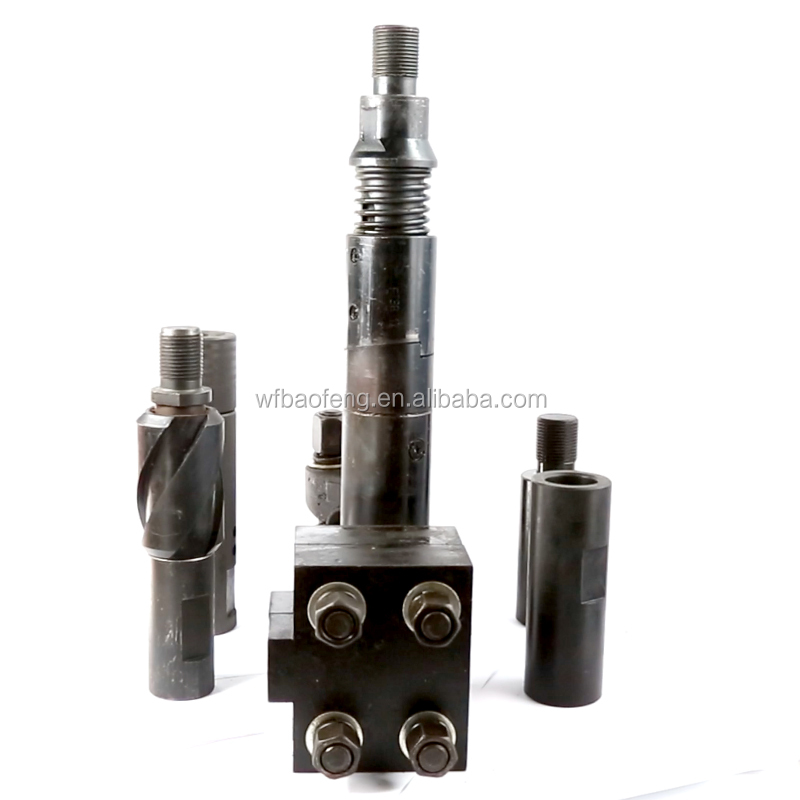

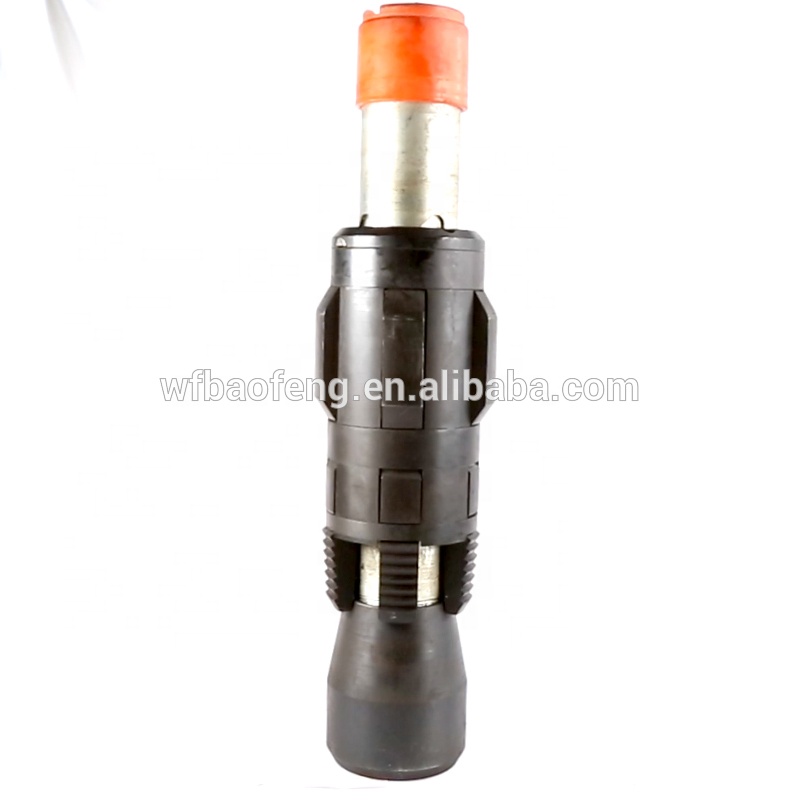

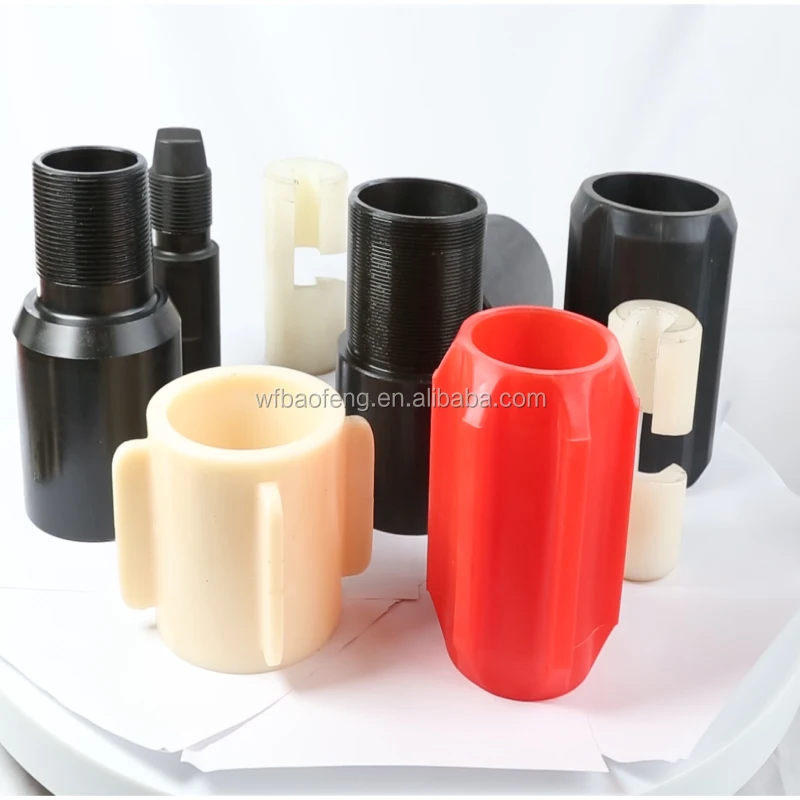

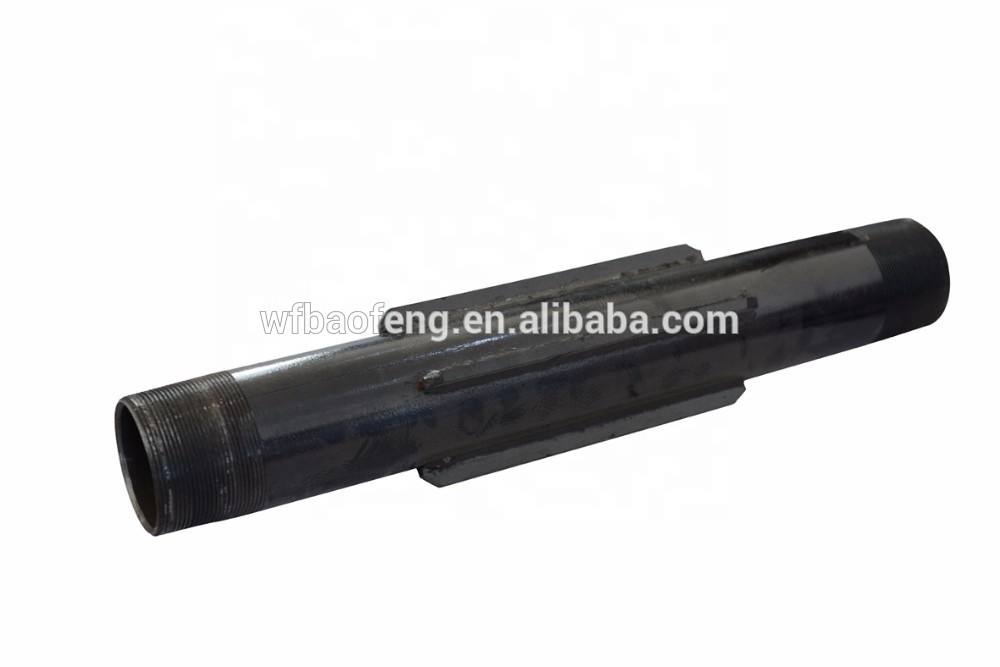

Related Products
our company

Weifang Baofeng Machinery Co., Ltd. was established in September 2006 with a registered capital of 120 million. It is a newly developing private enterprise integrating petroleum machinery, agricultural machinery, mining machinery and other machinery, producing and selling machinery. It is a provincial safety production unit, a municipal standardization advanced enterprise, and a municipal contract-abiding and credit-worthy enterprise.

Our company covers an area of ​​15,000 square meters, and the office and production area covers an area of ​​5,000 square meters. The company consists of one office and seven offices: Technology Research and Development Department, Quality Inspection Department, Production Department, Purchasing Department, Marketing Department, Technical Service Department, and Finance Department. There are 2 workshops and 30 service personnel, including 3 management personnel, 2 engineering and technical personnel, and 5 marketing personnel. The company has more than 80 sets of screw pump production equipment, 4 sets of screw pump and ground transmission testing equipment. In 2008, the company passed the ISO9001-2008 quality system certification, ISO14001: 2004 environmental management system certification and OHSAS18001: 2007 occupational health and safety management system certification.

Since its establishment, our company has been mainly engaged in the development, production and sales of screw pump oil recovery systems. The company has complete processing equipment, scientific management system, strong technical force, and advanced technology. It has formed and produced more than 50 varieties of screw pumps: from GLB20 to GLB3000, from conventional screw pumps to high-temperature screw pumps, and from single-head screw pumps to multi-head screw pumps. Screw pumps, from conventional screw pumps to constant thickness screw pumps, from surface driven screw pumps to downhole driven screw pumps, from oil production screw pumps to coalbed methane special screw pumps. It has been promoted and applied in Shengli Oilfield, Daqing Oilfield, Huabei Oilfield, Jilin Oilfield, Dagang Oilfield, Henan Oilfield, Xinjiang Oilfield, Inner Mongolia Oilfield, Kazakhstan Oilfield, Oman Oilfield, etc., and has been well received by users at home and abroad.
