Artificial Lift Coiled Tubing Gas Anchor for PC Pump 5 1/2"* 2 7/8"EUE
- $598.00 /piece
- 1 piece
- Weifang Baofeng Machinery Co., Ltd.
- Shandong, China
- Ms Jenny Nie
PRODUCT DETAIL
| Warranty: | 1 Year; | Local Service Location: | None; |
| Model Number: | 5 1/2"* 2 7/8"EUE; | Thread type: | 2 7/8"EUE; |
| After Warranty Service: | Online support; | Condition: | New; |
| Package Preview: | ; | Supply Ability: | 300 Pieces per Month; |
| Applicable Industries: | Energy & Mining,Other; | Core Components: | Gas Anchor; |
| Packaging Detail: | plywood box; | Marketing Type: | Ordinary Product; |
| Warranty of core components: | 1 Year; | Port: | Qingdao,Ningbo,Shanghai,Guangzhou,Tianjin; |
| Product name: | Gas separator; | Payment Terms: | Western Union,T/T; |
| Machinery Test Report: | Provided; | Showroom Location: | None; |
| Video outgoing-inspection: | Provided; | Type: | Gas separator; |
Product Parameters
Casing OD | Application | Tool Length | Tool OD | Tool ID | Inlet Port Sizes In | Inlet Flow Area | Outlet Port Sizes | Outlet Flow Area | Connections EU Box/Box |
4" | Light oil | 28.125 | 3.25 | 2.625 | 8*0.594 | 2.24 | 6*0.625 | 1.86 | 2 3/8" |
4 1/2" | Light oil | 29.76 | 3.625 | 2.875 | 8*0.750 | 3.53 | 6*0.813 | 3.12 | 2 7/8" |
5" | Light oil | 38.00 | 4.00 | 3.25 | 8*0.813 | 4.16 | 6*0.875 | 3.61 | 2 7/8" |
5 1/2" | Light oil | 37.80 | 4.50 | 3.25 | 8*0.813 | 4.16 | 6*0.875 | 3.61 | 3 1/2" |
5 1/2" | Light oil | 45.00 | 4.50 | 3.25 | 8*0.813 | 4.16 | 6*0.875 | 3.61 | 3 1/2" |
7" | Light oil | 39.475 | 5.50 | 4.25 | 8*1.125 | 8.00 | 6*1.250 | 7.37 | 4 1/2" |
7" | Light oil | 56.10 | 5.50 | 4.25 | 8*1.125 | 8.00 | 6*1.250 | 7.37 | 4 1/2" |
9 5/8" | Light oil | 49.65 | 7.00 | 6.25 | 8*1.500 | 14.60 | 6*1.625 | 12.44 | 4 1/2" |
9 5/8" | Light oil | 69.40 | 7.00 | 6.25 | 8*1.500 | 14.60 | 6*1.625 | 12.44 | 4 1/2" |
Product Description
Baofeng PC Pump Gas Separator is a continuous flow downhole gas separator for use with progressing cavity pumps. The PC Pump Gas Separator uses centrifugal forces to separate the gas from produced liquids, before they enter the pump. Using the tool allows gas-free production fluids to be carried into the pump station while the separated gases are forced to migrate up the annulus. Eliminating the associated gases before entering the pump has the following advantages: Pump efficiency and pump rate will be increased. Elimination of CO2 and H2S gasses which can cause premature degradation of the stator elastomer.

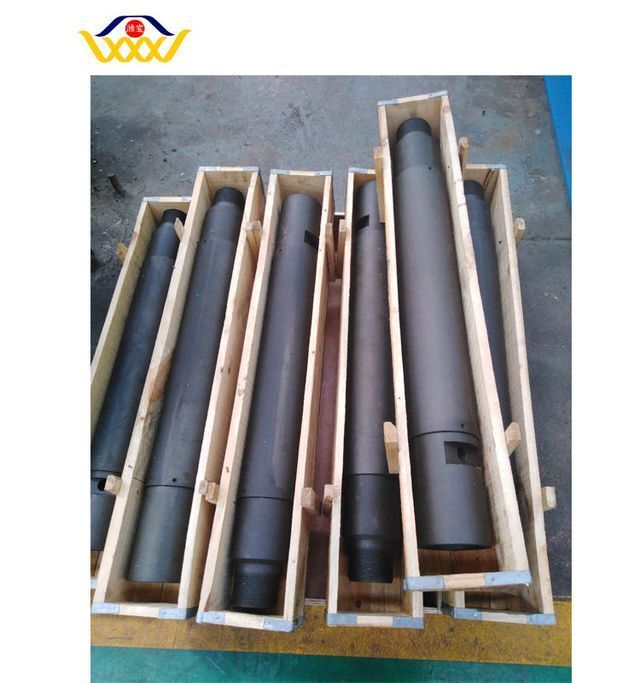

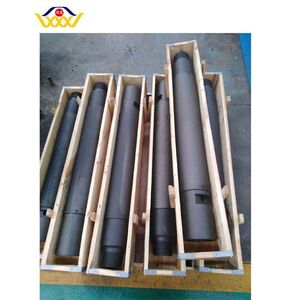

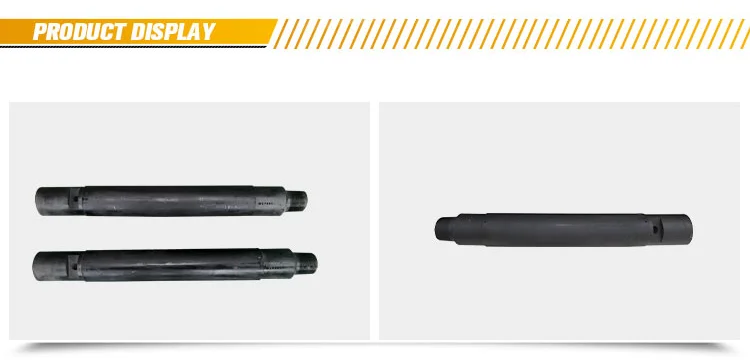

Product Display

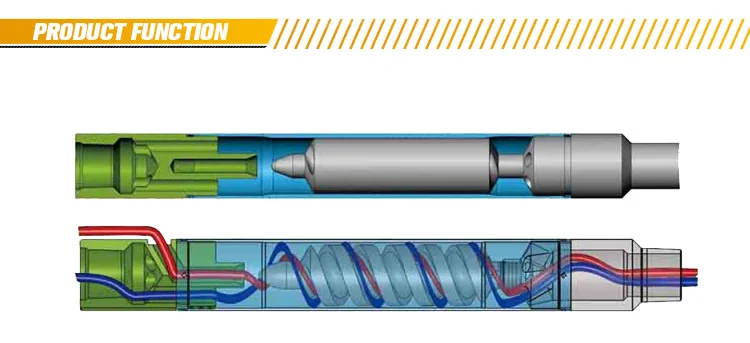

Product Function
To avoid large amounts of gas enter the PC Pump body causing airlocks, should install gas anchor in the gas content oil well and CBM well. It installed on the suction end of PC Pump,separating most gas out of pump body, improving pump efficiency and avoiding airlock even burning pump or other problems.
Related Product
Packing And Shipping

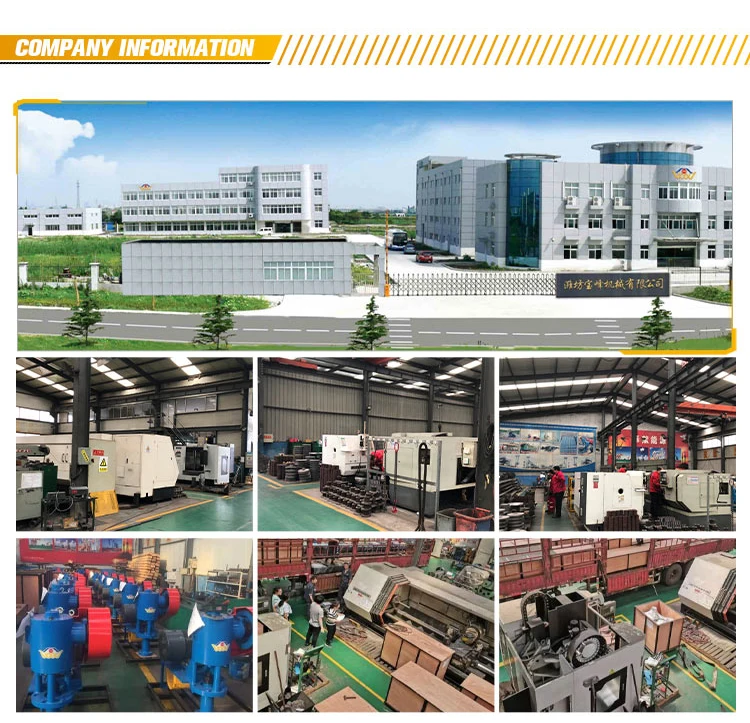

Company Information
Weifang Baofeng Machinery Co.,Ltd is located in a beautiful kite capital- Weifang, Shandong Province. With Convenient transportation, the company is located in the economic and technological development zone, 1km south of Jiqing expressway and 15km north of Rongwu expressway. our company is a collection of petroleum machinery, agriculture machinery, mining machinery production and sales in the integration of high-tech modern enterprise. The company covers an area of 15000 square meters for production and 3000square meters for office and living. The company has fixed assets of more than 100 million yuan, and now has more than 100 employees, including more than 30 professional and technical personnel. It is composed of 8 departments, including office, production department, purchasing department, sales department, quality inspection department, financial department, human resources department and R&D department.
In 2009,our company has passed the ISO 9001-2008 quality system certification;ISO14000-2004 environmental management system certification and OHSAS18001:2007 occupational health and safety management system certification. Dominated by petroleum machinery products of the company, mainly including: Progressive Cavity Pump (PCP) ,Long plunger sand control pump, the whole barrel oil well pump, ground heat pump, drilling mud pump, high pressure water pump, oil special tools and various petroleum machinery accessories.
The Progressive Cavity Pump (PCP) and accessories produced by our company not only widely used in CNPC, SINOPEC, domestic oil fields and local CBM well sites, but also exported to Indonesia, Kazakhstan, Mongolia, Russia, Australia, Canada ,Columbia and other countries.
Companies has won high praise from customers at domestic and abroad for its high quality products, best price and thoughtful after-sales service. We warmly welcome friends at domestic and abroad and new and old customers to negotiate cooperation and business.
FAQ
Q: What are the advantages of your company?
A: We are specialized in PCP products and technology of oil field and CBM projects for almost 20 years. we have many professional and technical personnel. Beside standard products , we supply the customized products , you supply the well information to us , we design the whole set PCP Pump for you . OEM and ODM products.
Q: How can you guarantee your quality ?
A: Every product will be tested individually in our test lab and test report and test video can be provided.
Q: How can I place the order ?
A: You can contact us by email, or place order online .
Q: What is the lead time and delivery time?
A: If standard products , we always have the ready stock , if not , the delivery time is provided according to quantity.
