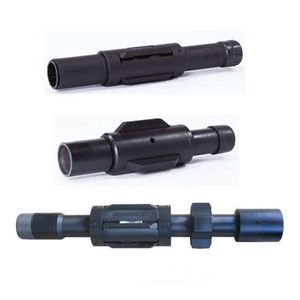

2021 Ex Works Oilfield Dynamic Torque Anchor
- $400.00 /set
- 1 set
- Dongying Robust Petroleum Equipment Co., Ltd.
- Shandong, China
- Ms Leila Yang
PRODUCT DETAIL
| Packaging Details: | Standard export wooden box | Applicable industries: | Energy and Mining |
| type: | cam lock | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Showroom location: | Philippines, Kazakhstan, Uzbekistan, Australia | Health status: | new |
| Supply capacity: | 10000 sets per month | size: | 6 5/8'' |
| Core components: | blade | standard: | API |
| usage: | Tubing string | Package preview: | |
| Warranty: | 1 year | Package: | wooden box |
| model: | 6 5/8 inches | Core component warranty: | 1 year |
| Marketing Type: | normal product | brand: | strong |
| port: | Qingdao | Mechanical test report: | if |
| thread type: | European Union | Video shipment inspection: | if |
| product name: | torque anchor | Local service location: | Philippines, Indonesia, Mexico, Australia, Uzbekistan |
| After warranty service: | online support |
Product Description
torque anchor
size | fuselage diameter mm | minimum path mm | overall length mm | The scope of work mm | Wire | ||
side EUE/NUE | the other side EUE/NUE | ||||||
5 1/2" | 114 | 48 | 610 | 116-130 | 2 3/8” pins | 2 3/8” box | |
6 5/8" | 137 | 60 | 610 | 140-156 | 2 7/8” pins | 2 7/8” boxes | |
7" | 137 | 60 | 610 | 150-168 | 3 1/2” pin | 3 1/2” box | |
9 5/8" | 190 | 98 | 711 | 208-232 | 4 1/2” pins | 4 1/2” box | |
We always focus on good quality and excellent service, strictly abide by international
Trade practice, to be a world-class petroleum equipment supplier. us
Warmly welcome our business partners to establish
Long term relationship with us.

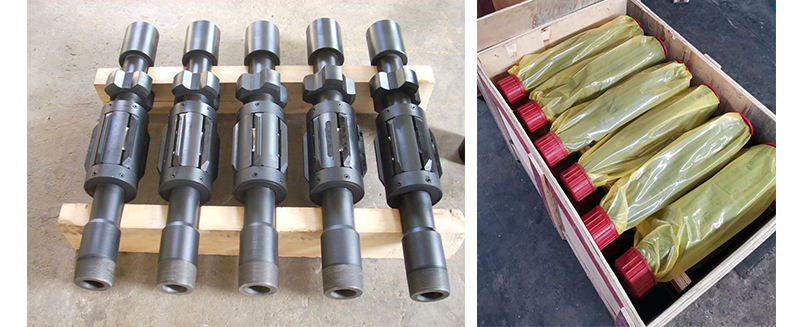

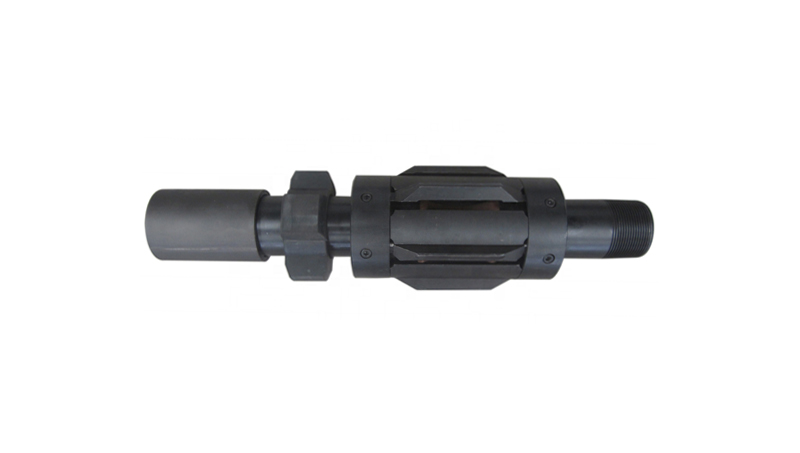

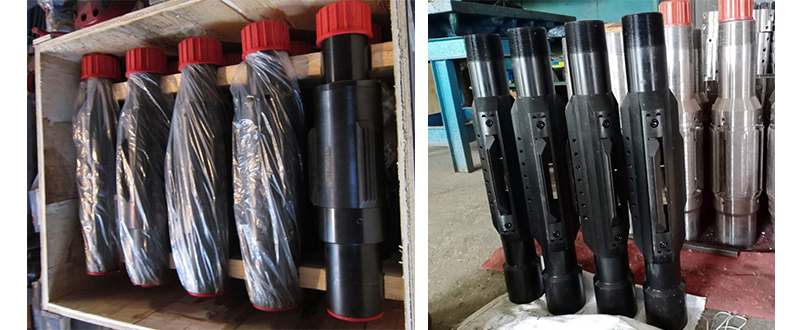

detailed drawing
Torsion anchors are special anchors for PC pumps. Good centering performance, the anchor is fixed in the well without lifting. Simple operation and good stability. The anchor block is anchored on the inner wall of the casing at the same time, and the three points are pressed against the casing with the same pressure to avoid damage to the casing. In order to avoid tripping of the tubing thread, the anchoring force of the anchorage is as large as the reaction torque.
Torque ≥5000N/m. Bolt alloy materials are suitable for corroding oil and gas wells. The anchor has good anchoring performance, convenient operation and good centering performance. Torque anchors are exported to Peru, Venezuela, Kazakhstan, Russia, Sudan, Chad and Algeria.

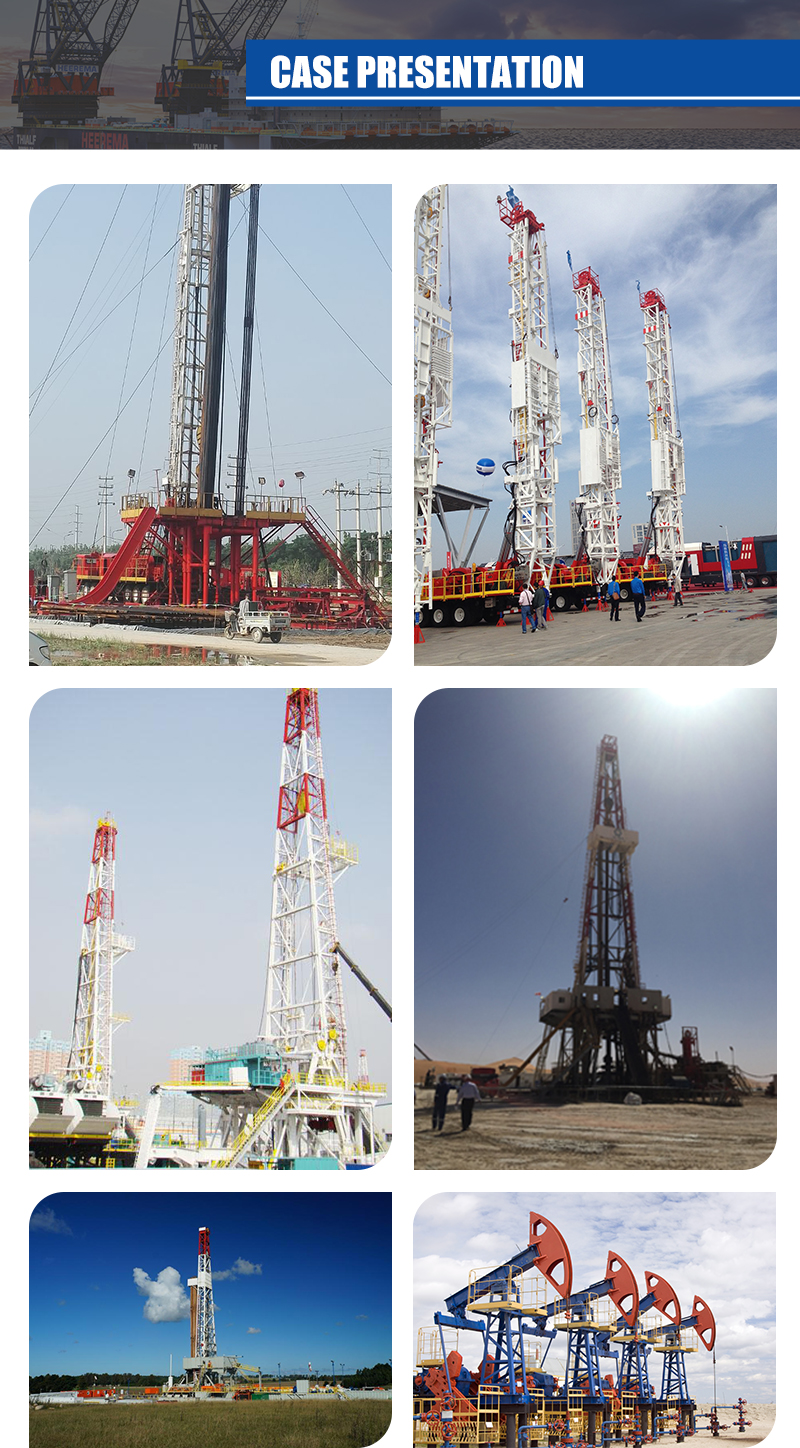

Case presentation
