High-quality mud mixing system for oilfield workover rigs

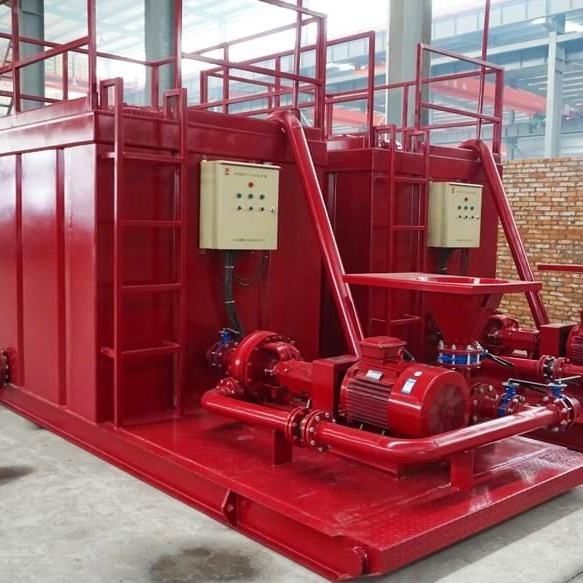

The mud mixing system will mix new mud or stored mud depending on the mud tank size. A complete mud mixing system will include a mud mixing tank, mixing pump, mixing hopper, mud agitator, pipes and valves, etc. The mud tank size and equipment model selection will depend on the mixing requirements of the construction site. ROBUST only provides the agitator, but also comes with a mixing pump and hopper, mounted on skids to provide an affordable option.

Main specifications of mud mixing system:

1. Determine the mud mixing speed requirements. The mud mixing speeds are 200GPM, 500GPM, 800GPM, and 1000GPM. Different mud flow rates require matching mud mixing pumps and mud mixing buckets of different sizes, as well as pipes of appropriate sizes.

2. Mixed mud tank size is customized but 4000x2000x2000mm, 20ft and 40ft are 3 main popular options. Or customers can list the mud tank capacity and AIPU will provide mud tank size options for suggestion.

3. The size, shaft depth and impeller size of the mud agitator will be determined as recommended by the engineer based on the tank size and drilling mud conditions.

4. The mixing pump will be installed on the mixing tank slide rails, and the mixing hopper can be optionally installed on the tank slide rails or tank top. The tank top can be installed with a grille or patterned plate as required.

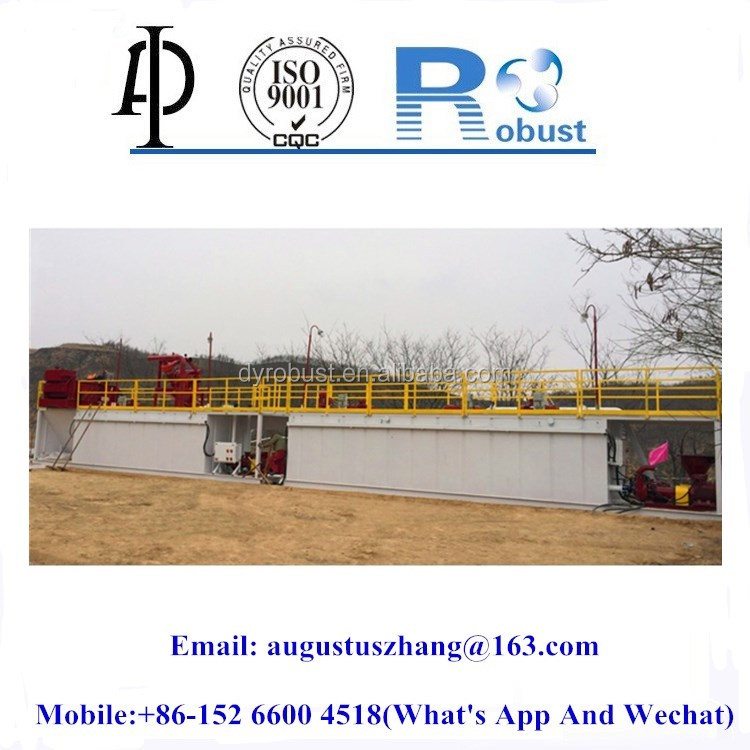

Layout of mud mixing tank:

The mud mixing tank is usually located at the end of the mud tank and closes the mud chemical storage to facilitate mixing. The mixing pump suction and discharge lines will be connected to all clean mud storage tanks and the mud pump suction line. The connection between the tanks is usually a union connection to allow for quick movement and connection. The mud mixing tank will retain additional valves at each connection for easy operation.

1. 24 hours online.

2. Strict production and quality control process according to your requirements.

3. Provide samples for you to check and trust.

4. Standard export packing or as your requirement to protect the product intact and beautiful.

5. Fast delivery.

6. Track your order and inform you of the shipment information on a regular basis.

7. Any problems can be solved for you in time.

8.100% professional service attitude sincerely serves you during and after sales.
