UC-3 Type Varco Oilfield Casing Skids
- $200.00 / >=100 pieces
- 100 pieces
- Dongying Robust Petroleum Equipment Co., Ltd.
- Shandong, China
- Ms Leila Yang
| Warranty: | 1 year | Showroom location: | UK, Russia |
| model: | UC-3 casing slips | Package preview: | |
| After warranty service: | Video Technical Support | Origin: | Shandong China |
| Supply capacity: | 10000 pieces per month | type: | security sheet |
| Packaging Details: | 1. Packaged wooden box, also can be packaged according to customer requirements. 2. By sea, by air or by land, of course, a small amount can also be delivered by express. | port: | Qingdao port or Shanghai port |
| Health status: | new | Local service location: | UK, Russia |
| Applicable industries: | Energy and Mining | Package: | standard packaging |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | brand: | strong |

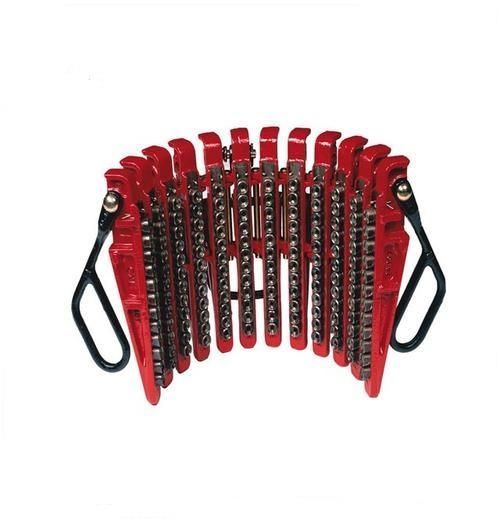

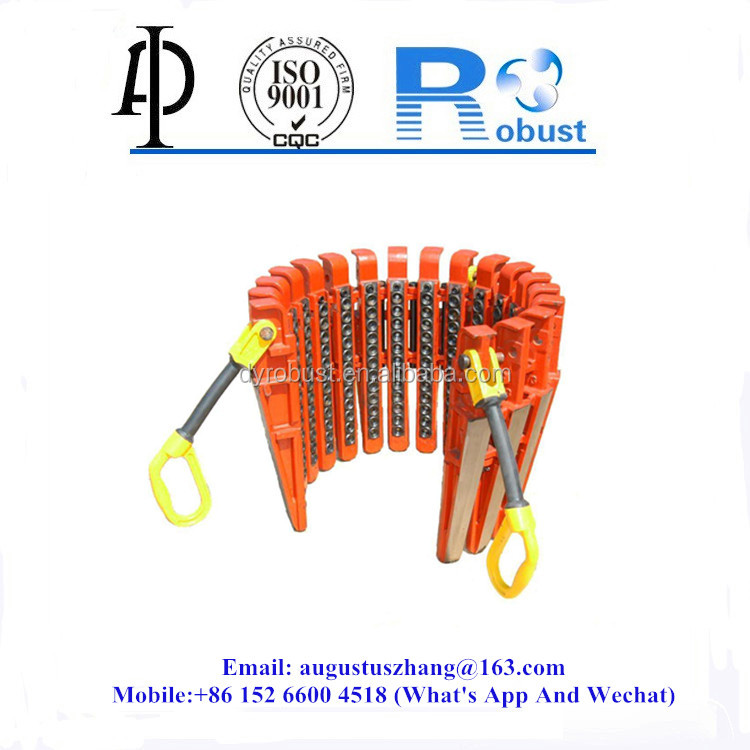

Oilfield varco type UC-3 casing slips
describe:
Style CMS casing slips accommodate casing sizes from 4.1/2 to 30 inches (114.3 to 762 mm). They are designed and manufactured according to API Spec 7K.

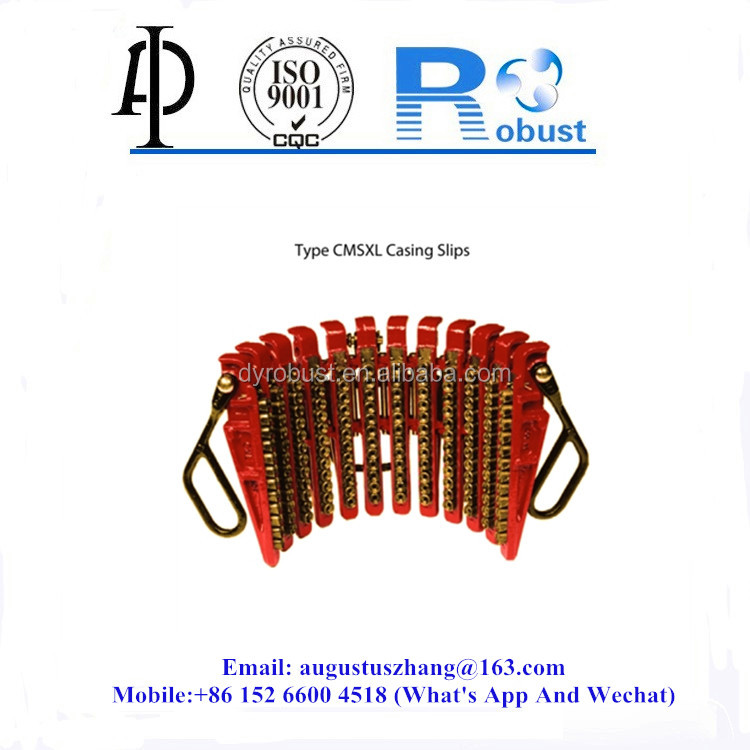

CMS-XL slips are made of castings, reinforced to withstand severe service conditions. Self-centering full-wrap clamp prevents damage to the case. With some simple adjustments, the CMS-XL can accommodate casings from 6-5/8" to 42" OD and 4" taper.

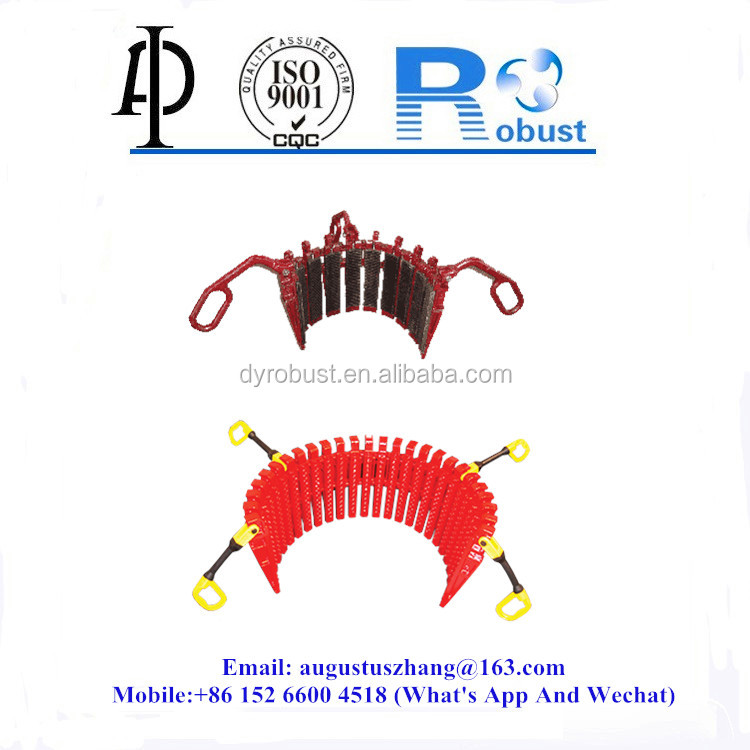

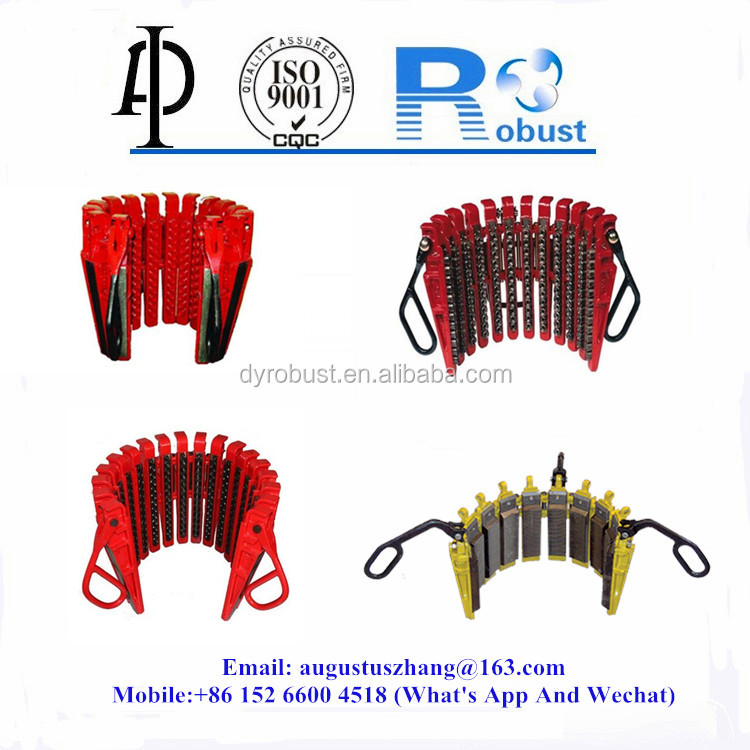

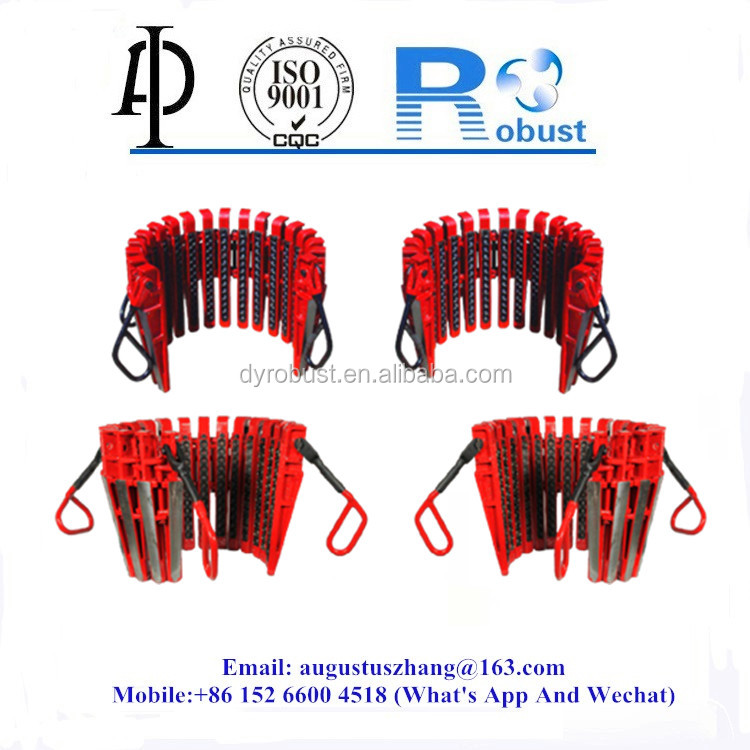

Casing slips (varco style) are full wrap around slips for heavy duty, they use button inserts for maximum grip and come in sizes 6.5/8" - 30" casing.

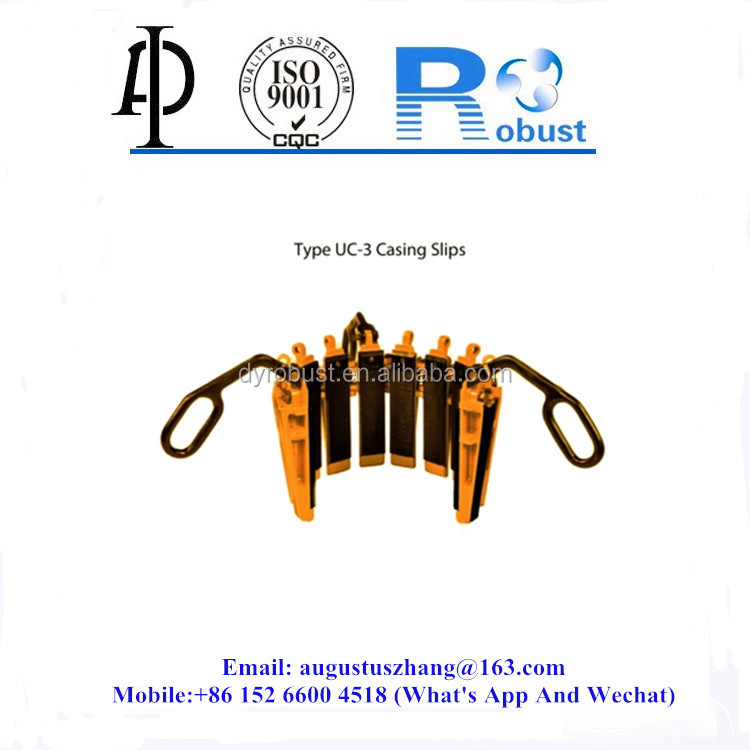

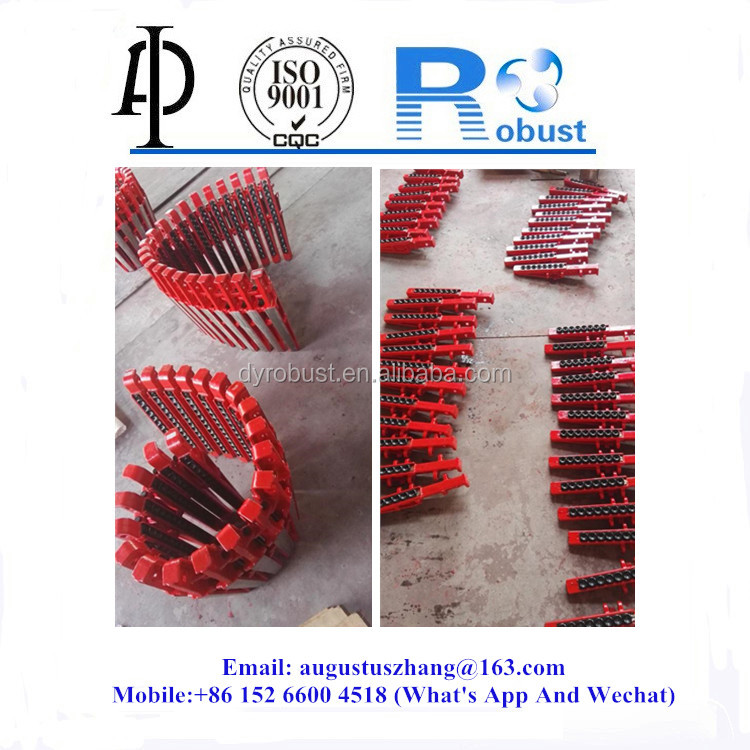

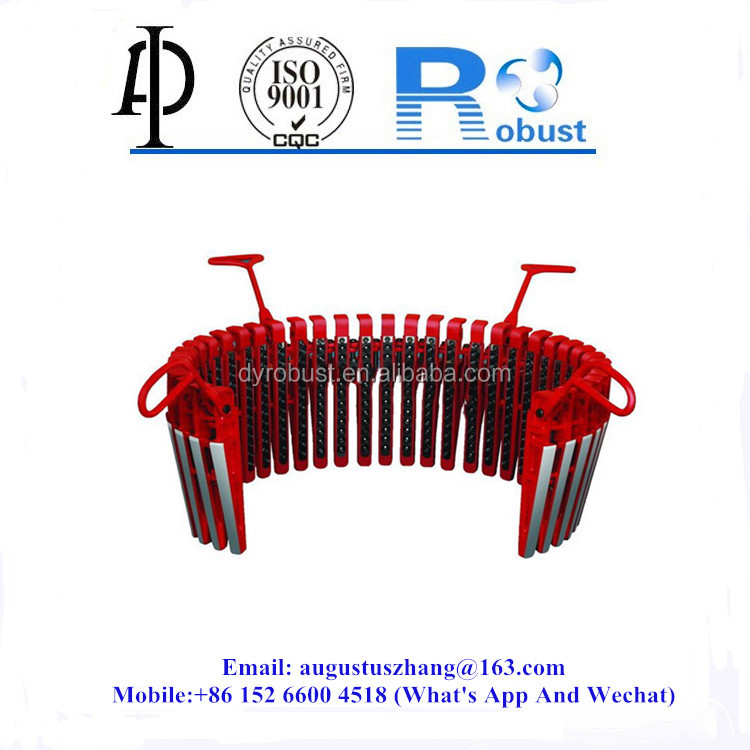

The weight and relatively thin walls of most casing strings make it important for the support slips to provide full circumference grip. The UC-3 slips achieve this with many narrow sections. They hinge together to wrap around the shell and apply more even pressure. With each segment carrying the same load, they automatically center the casing string within the casing or star. UC-3 has a 3 inch taper. It will handle orchestras from 16″ OD to 42″ OD with varying number of sections and liners. The liner is held in place by a liner retention key and cotter pin.
technology:
Casing outer diameter | exist | 41/2-5 | 51/2-6 | 65/8 | 7 | 75/8 | 85/8 | 95/8 | 103/4 |
| mm | 114.3-127 | 139.7-152.4 | 168.3 | 177.8 | 193.7 | 219.1 | 244.5 | 273.1 |
weight | Kilogram | 76 | 71 | 89 | 83.5 | 75 | 82 | 87 | 95 |
| pound | 168 | 157 | 196 | 184 | 166 | 181 | 192 | 209 |
total number of segments | 9 | 9 | 12 | 12 | 12 | 13 | 14 | 15 | |
for inserting bowl number | API or No.3 | number 2 | |||||||
Package:

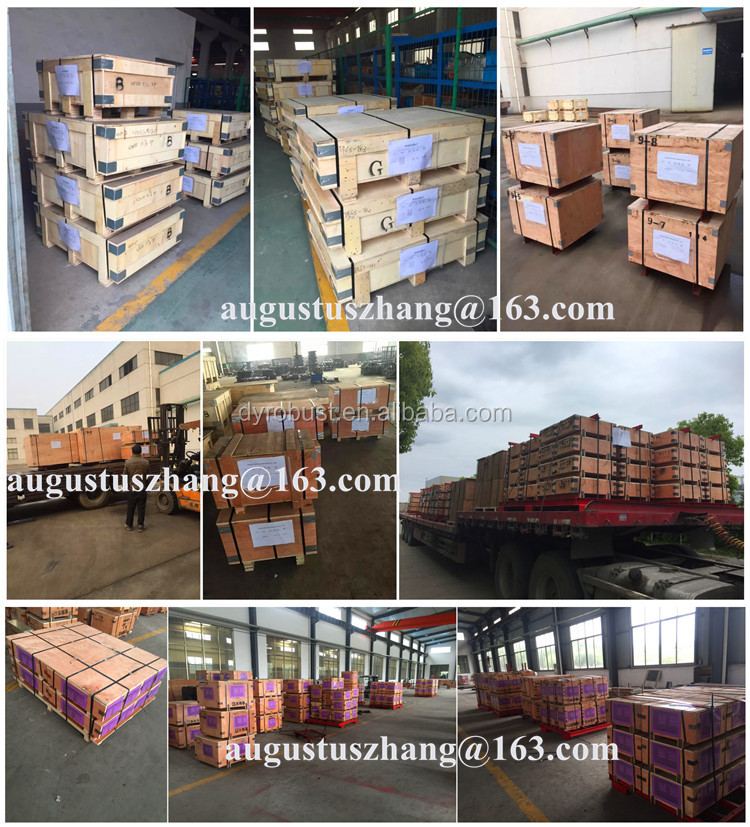

Wooden case is the most popular export packaging, we also accept special packaging requirements before shipment or production. For example, a carton design with your company name on it.
deliver goods:
Usually we have enough stock for normal size, so lead time is 2-3 working days, we need this time for painting and packing. If we have no stock or insufficient stock, we will need 7-15 working days to produce according to your request.
our service:
1. We have a 24-hour response system to provide convenient, fast and effective pre-sales, sales and after-sales services.
2. Our commitment: we will provide timely and efficient after-sales service for any equipment sold by Dongying Robust anywhere in the world. For any equipment parts damaged due to manufacturing defects or quality problems during the warranty period, Dongying Robust will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the date the unit leaves the factory or 12 months from the date the unit is put into use (whichever comes first).
