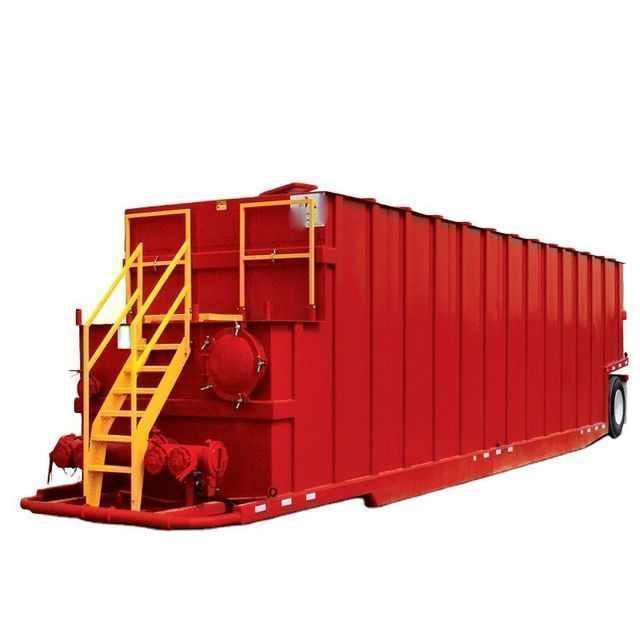

500BBL Oilfield Mobile Storage Fracturing Tank Mud Tank and Tractor
- $13000.00 /set
- 1 set
- Dongying Robust Petroleum Equipment Co., Ltd.
- Shandong, China
- Ms Leila Yang
| weight: | customizable | Marketing Type: | normal product |
| model: | FG and ZG | Showroom location: | Spain, Thailand |
| After-sales service provided: | Engineers can repair machinery overseas | Local service location: | Kenya, Argentina, Kyrgyzstan |
| Certification: | API | Mechanical test report: | if |
| Warranty: | one year | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Core components: | Pump | Supply capacity: | 10000 sets per month |
| port: | Qingdao | application: | oilfield |
| Core Components Warranty: | 1 year | Voltage: | 460V/380V/600v/660v |
| brand: | powerful | Dimensions (L*W*H): | customer request |
| Video external inspection: | if | Applicable industries: | Energy and Mining |
| place of origin; place of origin: | Shandong China | Health status: | new |
| Packaging Details: | packed in crates |
500BBL Oilfield Mobile Storage Fracturing Tank Mud Tank and Tractor
1. Product number:fracturing tank
2. Standard/Code: CCS
3. Design pressure: AMB
4. Operating pressure: AMB
5. Test pressure: AMB
6. Leakage pressure: AMB
7. Full volume: 63m3
8. Effective volume: 63m3
9. Design temperature: -20ºC~+50ºC
10. Storage medium: water
11. External fracturing tank size: 12192mmX2438mmX 2896mm
12. Internal fracturing tank size: 11290mmX 2292mmX 2540mm
13. Empty weight: 11,279kg
14. Max. Payload Weight (Static): 63,000kg
15. Max. Gross Weight (Static): 74,279kg
16. Material: carbon steel
17. Leak test: full water inspection
18. Paint and packaging: Container: White, ≥120um Frame: Blue, ≥120um
19. Do you need wheels: N/A

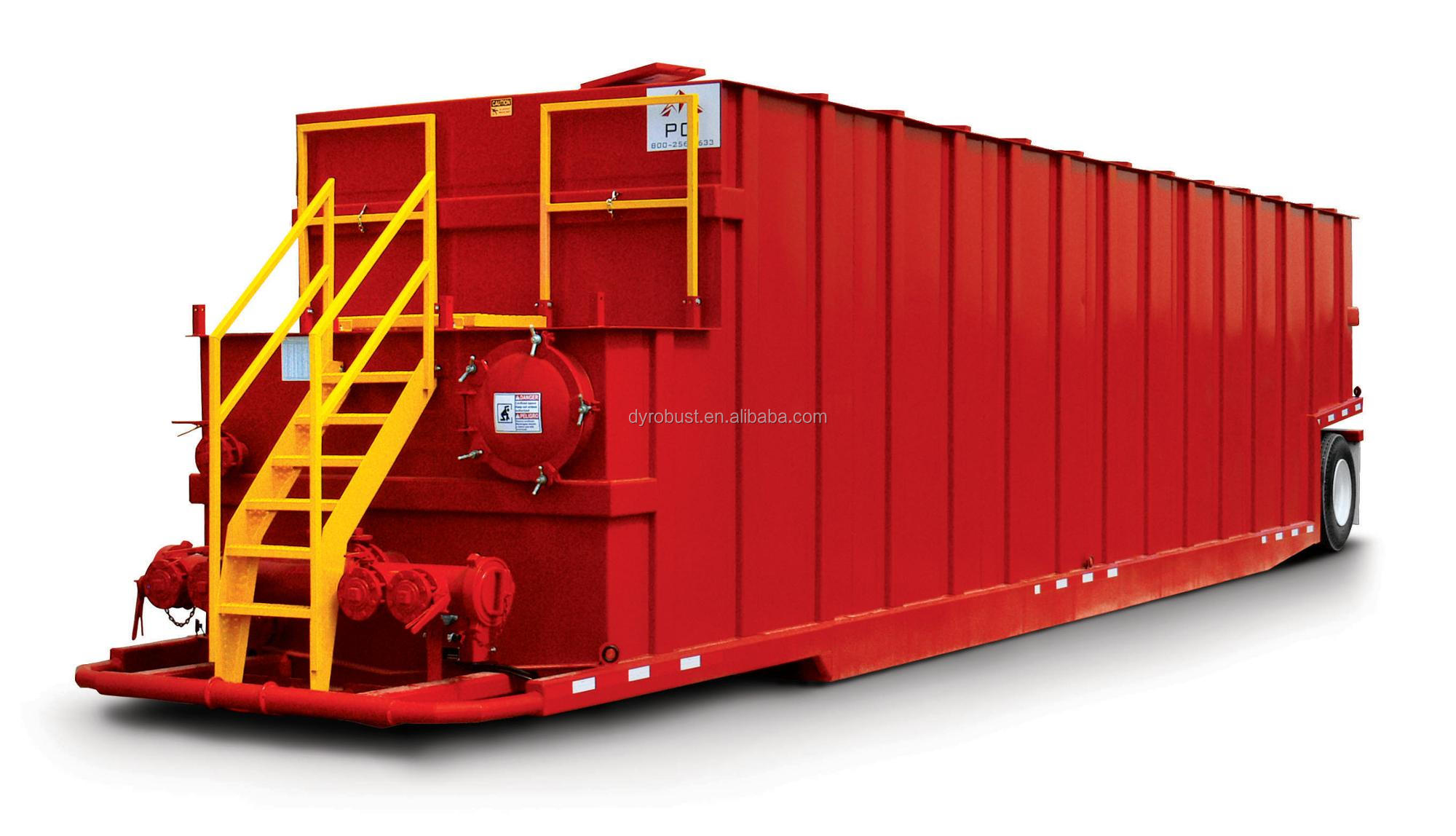

220 barrels fracturing tank detailed specifications
Floor: 1/4 PL, 4" V-bottom with integral side channels
Floor Support: 10" Channel Longitudinal Slides with Molding
1/4 PL beam
Wall: 1/4 PL solid welded, corrugated steel, corrugated 15"
In the center
Roof: Flat top, 1/4 PL solid welded, with channel supports on the outside
Front/Rear: 1/4 PL solid welded corrugated steel with 10" vertical outside corner radiusfracturing tank
Drain/Fill: 4" floor drain at rear, 3" intake pipe to roof at rear, 4" suction line to sump at front, 8" flanged front manifold connection, going down to floor . 8" External Manifold with 4 - 4" Fittings and Plugs, Hammer Fitting Fittings, Nuts and End Caps
GEL LINE: Curbside 4" mid-high connection, 4" inner tube, 3/4" hole at 12" center toward floor center, capped at rear end (end near side manhole)
Manholes: Front and side 21" manholes, 3 - unsealed hatch on roof220 barrels of fracturing tank
PICK UP: Standard 5th Wheel Kingpin
Welds: All welds are continuous except for substructure beams
Packing: FCL & LCL export standard container 20GP/40GP/40HQ.
- FCL: Mainframe Cyclone Separator Desander Bare Packaging and Bulk Containers, Spare Parts in Wooden Cases or According to Your Special Requirements
- LCL: The machinery is packaged in a steel frame, and the base and deck are packaged separately.
Shipping:By sea, air or express, it's up to you.
payment terms:
- T/T or L/C are preferred.
- T/T: 30% deposit and balance before delivery
- We will take a picture of your product after completion and show it to you before delivery. Please also let you know before you receive any updates (including shipping) for your peace of mind
Delivery time: Ship within 15 days after payment
