Atlantic CHE40 Welding Rod Electrode Stick 6013 Brand Manufacturer Price

PRODUCT DETAIL
Welding Current:90-250A;Standard:AWS A.5.1 E6013;
Type:High Titania;Brand Name:Great Bridge;
Model Number:AWS E6013 E7018;Material:Mild Steel Welding Electrode;
Packaging Detail:2.5kgs/box, 8boxes/carton;5.0kgs/box,4boxes/carton;1000kgs/pallet;Color:Red, Green, Blue, Grey;
Samples:Free;Certification:ISO9001 ISO14001 BV;
Port:TIANJIN;Operating Temperature:10-50℃;
Application:mild carbon steel;Transportation:By sea;
OEM:OEM Packing;Item:AWS E7018 Welding Electrode / AWS E6013 Welding Electrode;
Business type:Manufacturer;Place of Origin:Hebei, China;
Warranty:3 years;Operating Current:50-250A;
Product Name:Atlantic Welding Electrode;Payment Terms:L/C,Western Union,T/T;
Supply Ability:1500 Tons per Month Welding Electrode Brand;Customized support:OEM;

Atlantic CHE40 Welding Rod Electrode Stick 6013 Brand Manufacturer Price

Product Description

Welding electrode E6013 is a kind of mild steel welding rod with rutile sand or titanium type coating. The current can be AC or DC. Our welding electrode E6013 is able to provide both excellent welding and operating performance. It's easy to ignite and restrike the arc. The slag is fluid and when harded it

is impact and easy to remove. Besides it has less smoke.  Our welding electrode E6013 can also provide fast melting rate, high deposition efficiency, more stable arc, less spatter and beautiful welding line shape.



Chemical Composition of Deposited Metal(%).

Chemical Composition

C

Mn

Si

S

P

Guarantee Value

≤0.12

0.3-0.6

≤0.35

≤0.035

≤0.040



 Mechanical Properties of Deposited Metal.

+

Test Item

Rm(Mpa)

Rel(Mpa)

A(%)

KV2(J)

KV2(J)

Guarantee Value

≥420

≥330

≥17

-(normal temperature)

-(0℃)

Gegeral Result

460-540

≥340

18-26

50-80

≥47



Welding electrode E7018 is a kind of carbon steel with iron powder of low hydrogen

potassium type coating.It can improve deposition efficiency because of the iron powder

in the coating.Its arc is more stable with less spatter.It is easy to remove  the residue.

It can provide both beautiful welding line shape and good deposited metal mechanical

performance.And the current can be AC or DC.It can be used for all position welding.



Chemical composition of deposited metal(%)

+

C

Mn

Si

S

P

Ni

Cr

Mo

V

≤0.12

≤1.60

≤0.75

≤0.035

≤0.040

≤0.30

≤0.20

≤0.30

≤0.08



 Reference current(AC,DC)

+

Diameter(mm)

Φ2.5

φ3.2

Φ4.0

Φ5.0

Welding current(A)

60-100

80-140

110-210

160-230







Application

Welding electrode E6013 is widely used for welding low carbon steel structures, especially suitable for welding thin plates and cosmetic welding which requires the welding beads to be beautiful and glossy. It is sutable for all position welding. Welding Electrode E6013 is often used for welding structure of steel sheets, vehicles, buildings, vessels, machinery-manufacture and various structures of low carbon steel. It has excellent fabrication weldability, suitable for welding on the plate of low carbon steel or light strucures where beautiful bead appearance is requested.

Advantages

1 Easy to ignite and restrike the arc.

2 More stable arc, Less spatter.

3 High deposition efficiency.

4 Beautifu welding line shape.



Attention

1 Generally welding electrodes don't need bake before welding.

2 If damped, the electrode should be baked for 0.5-1.0 hour at the temperature of 150-170 ℃ before welding.

Production process





Size and Packaging

2.5 × 300mm, 2.5 ×350mm

3.2 ×350mm, 3.2 ×400mm

4.0 ×400mm, 4.0 ×450mm

5.0 ×450mm, 5.0 ×500mm

2.5kg×8box=20kg/carton, 50 or 100 cartons per pallet.

5.0kg ×4box=20kg/carton, 50 or 100 cartons per pallet.

We can also make packages as your requests.

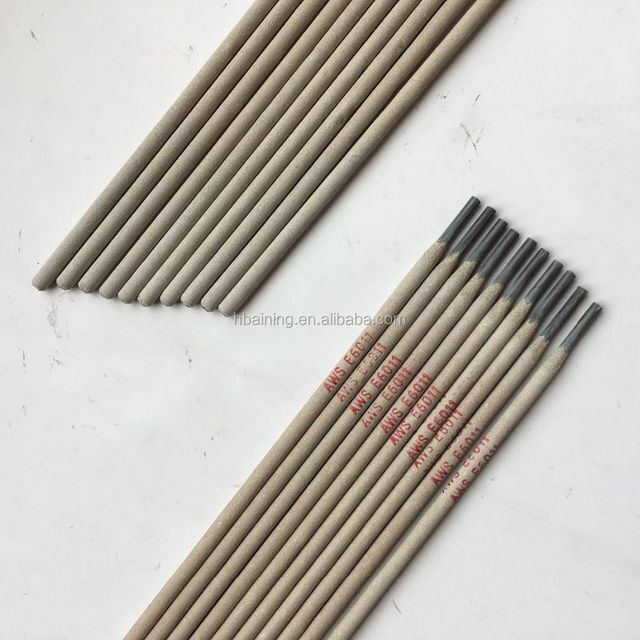

Detailed Images





Factory informantion
Factory Size (Sq.meters): 5,000-10,000 square meters
  Factory Location: East Gaoqian Street, Sijiazhuang Town, Luquan Shijiazhuang city Hebei province China
  Number of Production Lines: 6
  Number of R&D Staff: 10-15 People
  Number of QC Staff: 10-15 People
  Contract Manufacturing: OEM Service Offered   Design Service Offered



We maily produce and export the following products:

Carbon steel strcture welding rods ,like E6013 E7018 E6010 E6011 E7016,

Stainess steel electrode, Cast iron electrode.

We can satisfy customers' needs according to their national standards:

2.0*300mm, 2.5*300mm

2.5*350mm, 3.2*350mm

4.0*400mm, 5.0*400mm

MIG welding wire,Flux-cored welding wire,Sumbered arc welding wire,

CO2 Gas Shielded Welding Wire,ect.

We can also provide nearly every national standards:

AWS ER70S-6 0.8MM, 1.0MM, 1.2MM, 1.6MM.
