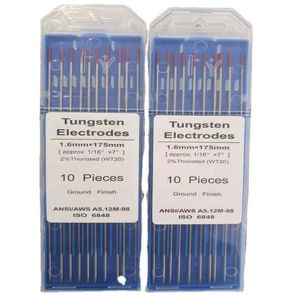

Zibo factory 1.6mm*175mm 1/16"*7" WT20 Thorium/thoriated tungsten electrode DC for tig welding

PRODUCT DETAIL
Customization support:OEM productionbrand:real
surface:ground treatmentOrigin:Shandong China
Material:tungstenmodel:1.6X175MM,1/16"X7"
Working current:50-100usage:Argon arc welding
sample:freelypayment terms:L/C, Western Union, T/T
Welding current:standardModel:WT20/EWTh-2
Packaging Details:Inner packing: 10 pcs/plastic box with label, 10 pcs plastic box/ordinary carton Outer packing: 10 pcs ordinary carton/big carton, the size of the big carton is 26cm x 45cm x 17cm We can also pack the goods according to customer's requirements.MOQ:1
color:Redapplication:Argon arc welding, arc welding, direct current
standard:EN26848/ISO6848Supply capacity:20 metric tons per month
port:Qingdao/TianjinWarranty:3 years
Operating temperature:standarddiameter:1.6 mm, 1/16"
Package preview:
Product Description

WT20 tungsten electrode



Thoriated tungsten electrodes are widely used as additive oxide electrodes. The operation is convenient, the load current is large, and the arc is easy to stabilize. In addition, the arc breaking gap is large, the loss is small, and the service life is long. Tungsten WT20 has a higher recrystallization temperature, better electrical conductivity and machinability, and is suitable for welding carbon steel, stainless steel, nickel alloy and titanium. Thoriated tungsten electrodes become the material of choice for high-quality welding



Technical data



trademark



Add impurities



Impurity content%



Impurity content%



tungsten

content%



color sign



standard



WT10

Sulfur oxide2

0.90~1.20%

<0.2

balance

yellow

IS06848

AWS A5.12M

WT20

Sulfur oxide2

1.8~2.2%

<0.2

balance

Red

WT30

Sulfur oxide2

2.80~3.20%

<0.2

balance

purple

WT40

Sulfur oxide2

3.80~4.20%

<0.2

balance

orange



Packaging and Shipping
