Automatic CNC Metal Slot Bending Machine for 3d Aluminum Profile Letters

PRODUCT DETAIL
year:2022Material Specifications:Thickness < 1. 2mm
Dimensions (mm):L2478*W1050*H1583.1Bending system:Integral casting double edge alternate bending
Supply capacity:50 pieces per monthCore components:PLC, motor
Warranty:1 yearGas source:0.6 m3/min
port:Shanghaibrand:JD.com
place of origin; place of origin:Jiangsu, ChinaMaterial/Metal Finishing:Aluminum Alloy, Aluminum, Alloy, Brass/Copper, Stainless Steel, Carbon Steel
Showroom location:not anyWeight (kg):480
automation:automaticMarketing Type:New product
Main selling point:high accuracyaccuracy:0.1mm
Servo configuration:Four Japanese Fuji servosPackaging Details:wooden box
product name:3d aluminum profile letter metal slot character bending machinepayment terms:L/C,Western Union,D/P,D/A,T/T
Health status:newMinimum bending angle:R6
Applicable industries:Printing plants, manufacturing plants, advertising agencies, construction worksMechanical test report:if
Core Components Warranty:1 yearstrength:AC 220V 50Hz 3.5KW
Video external inspection:ifMaterial width:10-130mm

Automatic CNC Metal Slot Bending Machine for 3d Aluminum Profile Letters

Product advantages

application



specification

mold

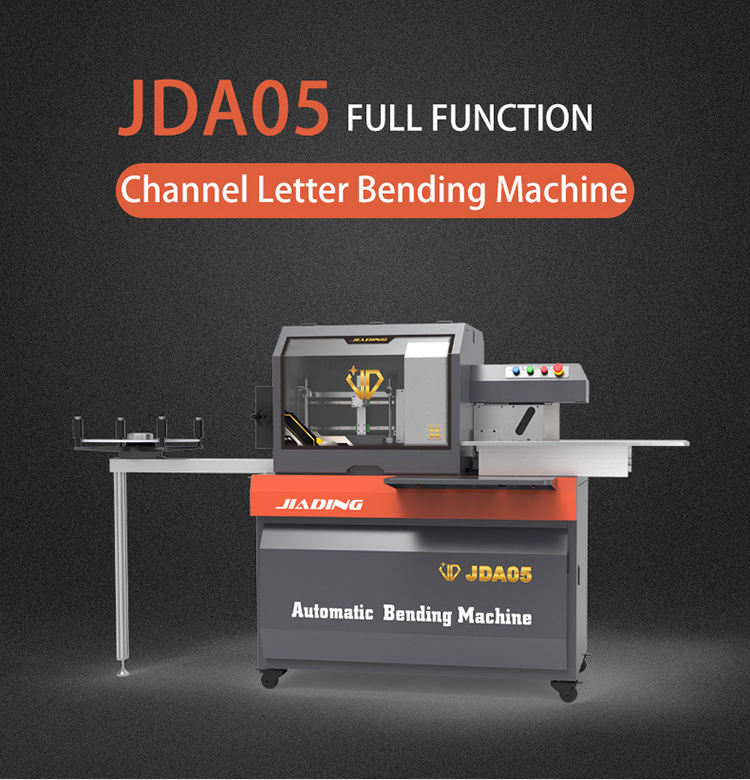

JDA05

Applicable materials

Stainless steel, galvanized steel, aluminium, aluminium profiles

Material Specifications

Thickness < 1. 2mm flat aluminum/aluminum profile/single side

high

10-130mm

Scope of application

Seiko Stainless Steel Letters/Epoxy Letters/Endless Acrylic Letters/Light Box Letters/Party Building/3d Beveled Signs/Mini Square Letters/Super Bright Letters/Aluminum Trim Letters/Channelume Luminous Letters

Minimum bending angle

R6

Servo configuration

Four Japanese Fuji servos

feeding system

Integral cast and robotic arm

Grooving system

Integral cast face mills and milling cutters

Bending system

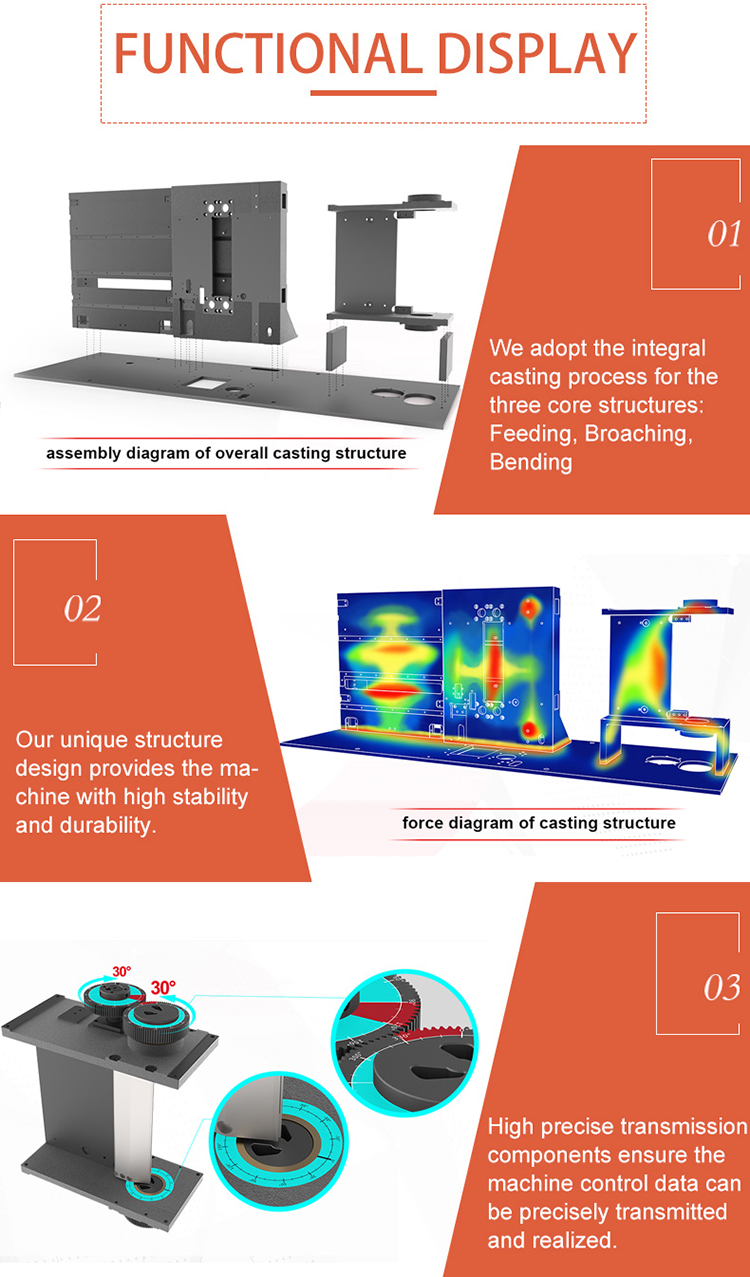

Integral casting double edge alternate bending

Punching system

Automatic punching system

accuracy

0.1mm

strength

AC 220V 50Hz 3.5KW

Gas source

0.6m3/minute

Dimensions (mm)

L2478*W1050*H1583.1

weight

480KG
