Tianjin EJON T13 3D Letter Sign Making Multi-channel Letter Bending Machine

PRODUCT DETAIL
Weight (kg):500Packaging Details:The normal packing is wooden box (size: L*W*H). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use pe film packaging or according to customer special requirements
brand:EjonCore Components Warranty:1 year
Material/Metal Finishing:Aluminum alloy, aluminum, alloy, stainless steel, galvanized sheetyear:2022
Mechanical test report:ifVideo external inspection:if
Applicable industries:Printing shops, hotels, household goods, manufacturing plants, food stores, advertising agencies, restaurants, building materials storesWarranty:1 year
Showroom location:Egypt, Canada, Turkey, Italy, Germany, Vietnam, Mexico, Russia, Morocco, South Koreapayment terms:letter of credit, wire transfer
Health status:newautomation:automatic
Core components:Engine, motor, servoPackaging Preview:
Main selling point:multifunctionalAfter-sales service provided:online, video support
Certification:ceMarketing Type:New Products 2020
Supply capacity:8800 units per yearport:Tianjin
place of origin; place of origin:Tianjing, China

Overview

detail

Place of Origin: Tianjin, China                                          Brand Name: EJON

Condition: New Model Type: T13 Applicable Materials: Stainless Steel, Galvanized Sheet, Aluminum Sheet and Profile Automatic: Automatic

After-sales service: video/online support, engineer service force: CNC

Slotting method:Face and Wheel MillsGrooving stroke: 10-130mm

bending method:Dual Tool Alternate Bending System                                Core Warranty: 1 year

Material thickness: 0.4-1.2mm Minimum bending angle:R6

Certification:Chief ExecutiveMachine weight: 500kg

Supply capacity

Supply capacity: 8800 sets/year



Packaging and Shipping

phosphorusPackaging details: export fumigation-free wooden box

Port: Tianjin Port or other Chinese ports

Delivery time: 10-20 working days



Product Description

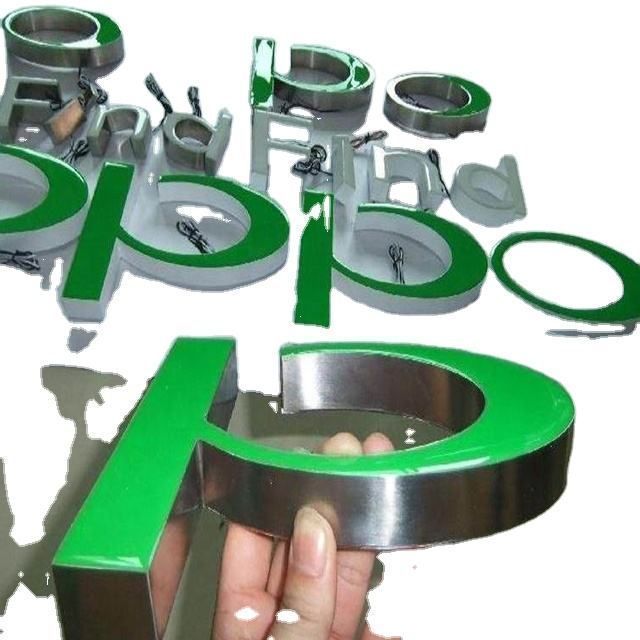

  EJ0N S13 machine hasMultifunction Automatic bending machine, widely used in Seiko characters, resin characters, borderless characters, aluminum edge characters and other characters. Applicable materials are stainless steel, galvanized sheet, aluminum sheet, and aluminum profile.

Alternate feeding structure of manipulator, tHis material clips are castIt can avoid scratching the material while improving the feed retention. The air pressure is used to press the material to avoid uneven material and ensure smooth feeding. Double ball screw with nylon gear drive, accurate positioning, greatly improve the feeding speed and the stability of the machine. specially designedThe super-long alternate feeding mechanism adopts

Servo control control systemAdopt high-quality twin-screw drive, with the following advantages

Large torque, high precision and fast speed ensure smooth feeding process and avoid

Material deformation.

Face milling cutters can groove a variety of materials. Linear guides are matched to ball screws and have750W high power servoThe motor greatly improves the feed speed and stability.

Slotting knives use high-strength alloy knives, each knife has 8 angles, no need to sharpen knives, and greatly improve the service life.

Double-blade alternating bending structure, machete structureDuctile Iron, good shock absorption, high structural strength, reduce the number of parts splicing,High power servo motor, High-speed bending is performed under the bending mechanism, and the bending mechanism is permanently deformed, which effectively improves the positioning accuracy and stability of high-speed bending.















Specification
system 4 Full Delta servo axis control
feeding system Circular Clamp Feeding System
Grooving system Flat Knife Slotting & Milling Wheel Slotting System
Bending system Dual Blade Alternate Bending System
Applicable materials Stainless steel, galvanized sheet, aluminum sheet, aluminum profile
Slotting height

Planer: 10-130mm

Milling wheel cutter: 20-100mm

Material thickness 0.4-1.2mm
Control System 4 Full Delta servo axis control
Minimum bending angle R6
file format Dxf.Plt.Ai
strength AC220V, 50HZ, 3.0KW
Gas source 0.6 m3/min
Package dimensions 1410*750*1560mm 660*660*1110mm
Workspace 2500*1100*1560mm
machine weight 500kg



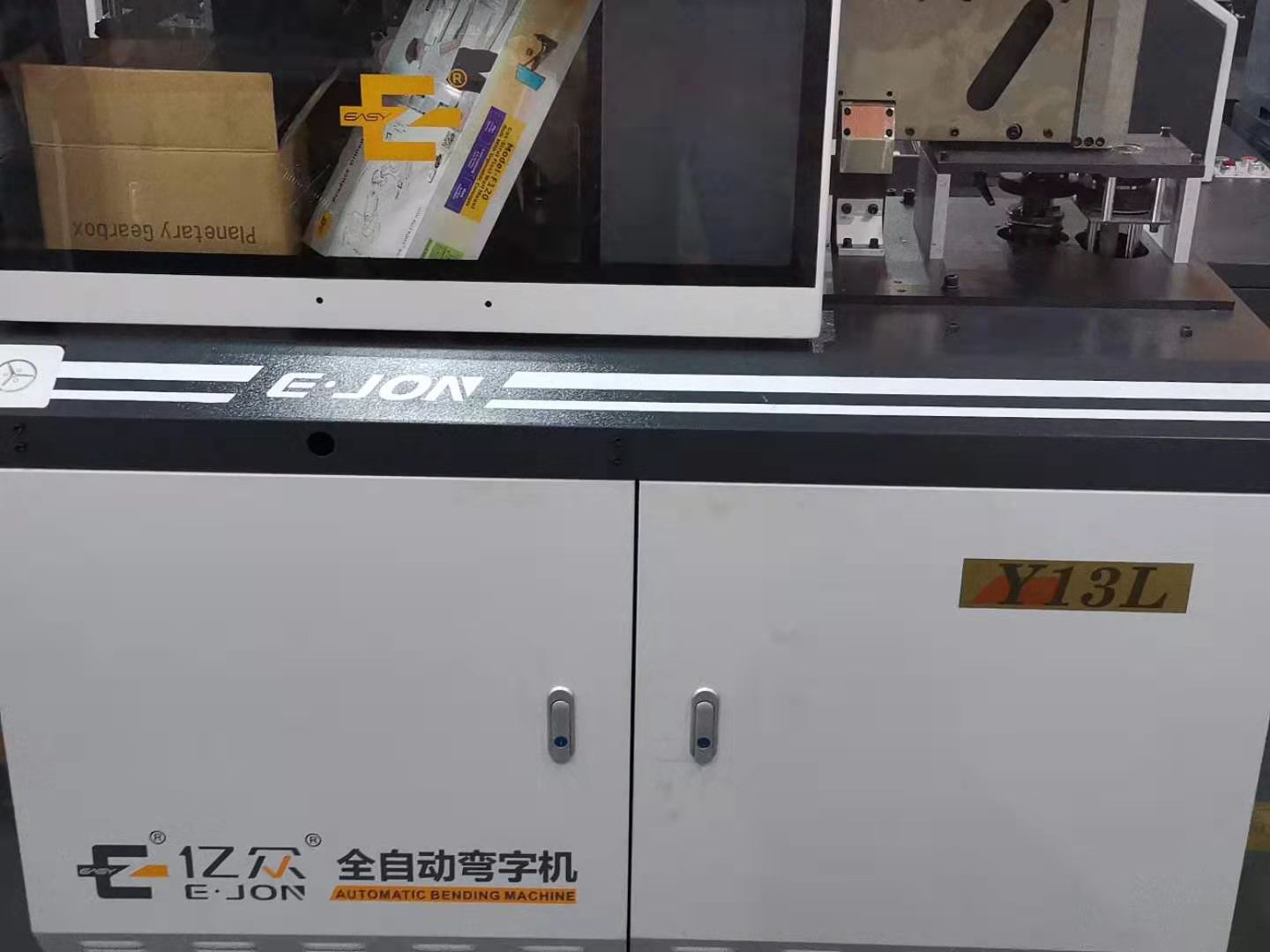

T13 Machine Part Details

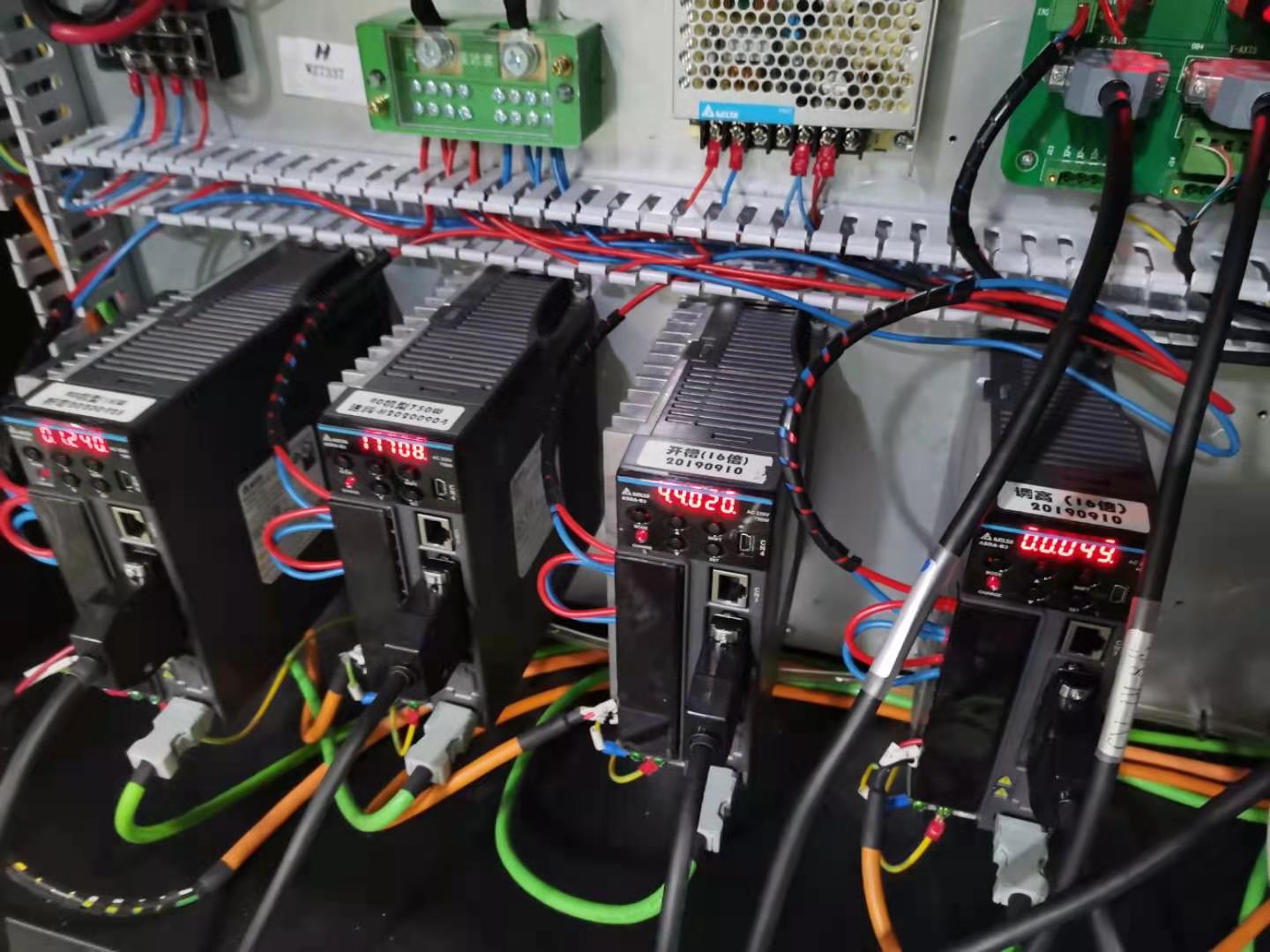

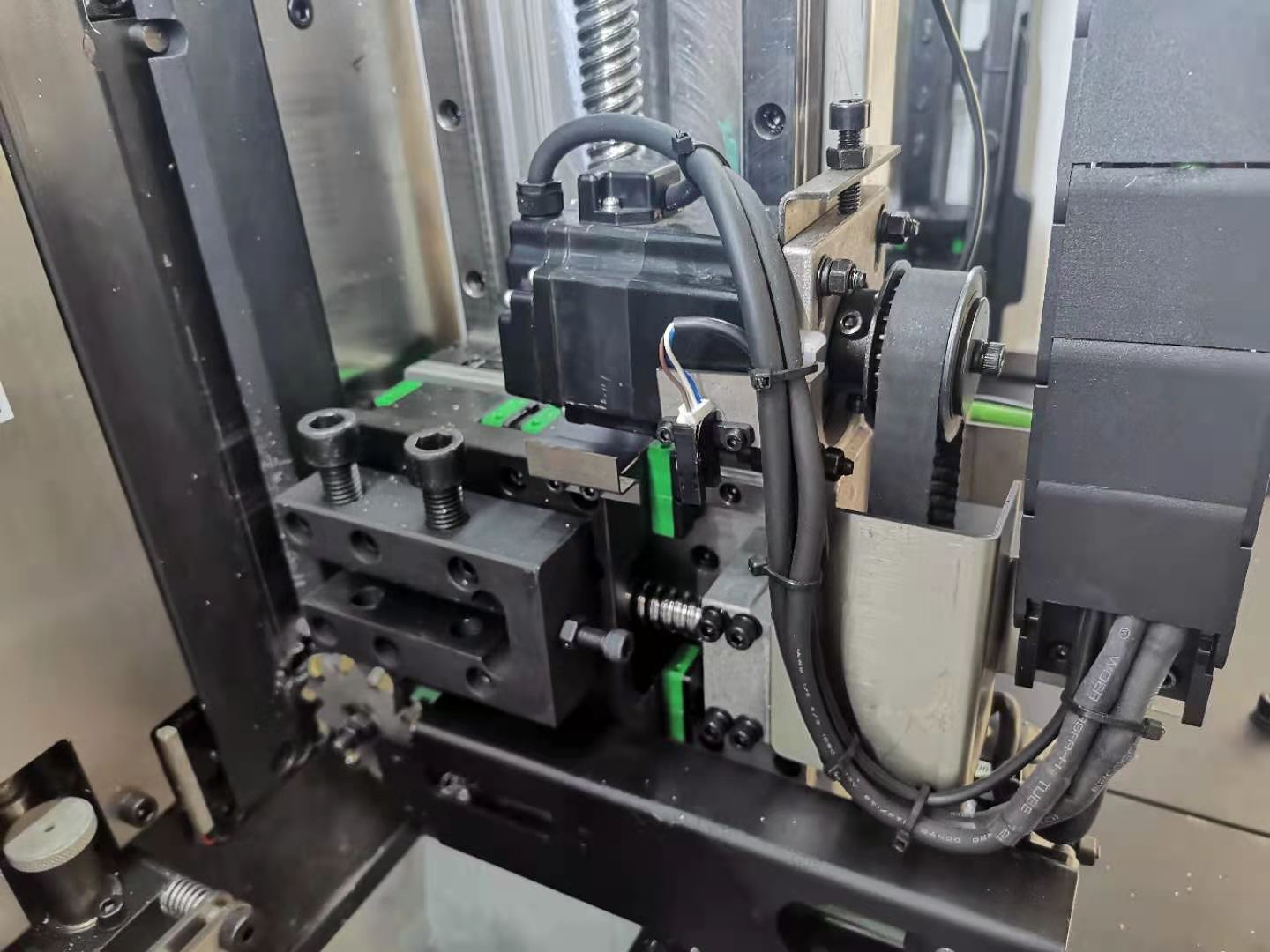

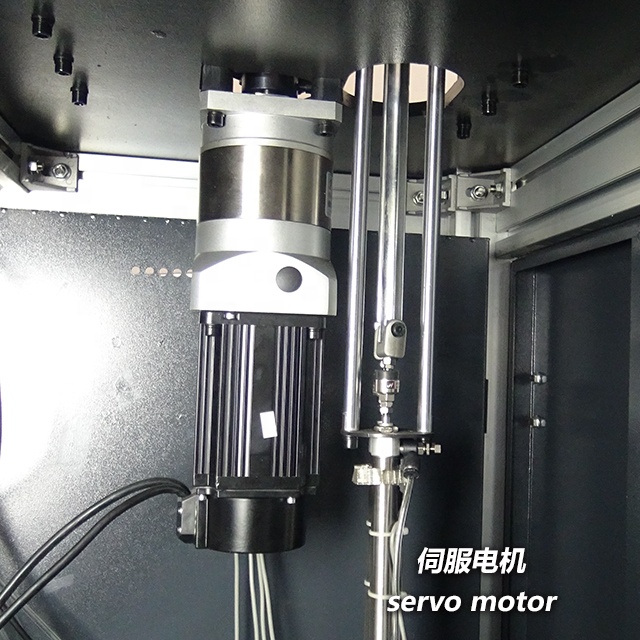

Equipped with 4-axis high-power 750W full Delta servo control systemTono Ensure the accuracy and stability of feeding, grooving, heightening and bending.

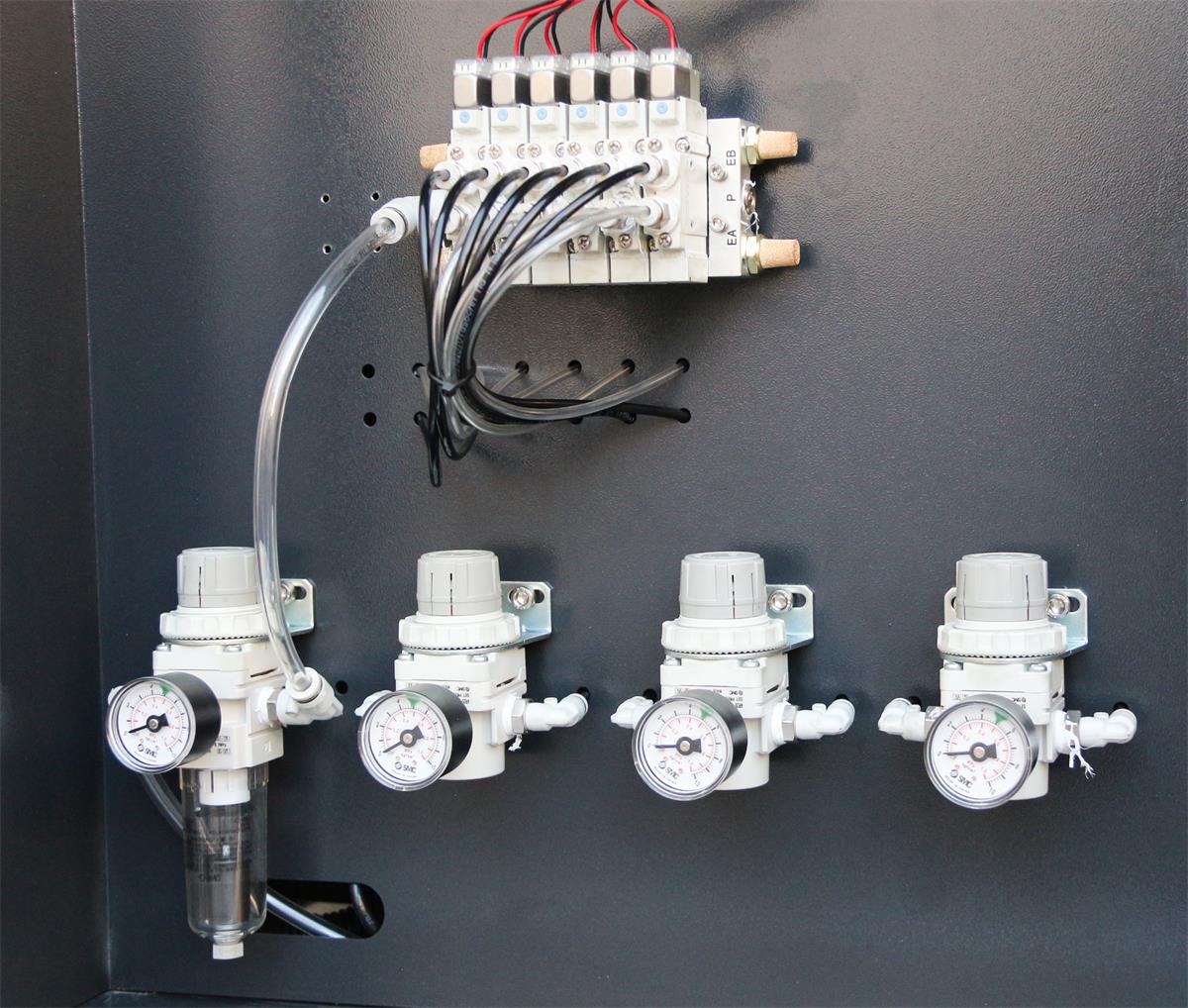

Imported SMC electrical components, high stability

Durability.

















Extra long bending span, lengthened by 20cm, effectively avoid

Affects the forming angle during processing.

Punch function for your choice.

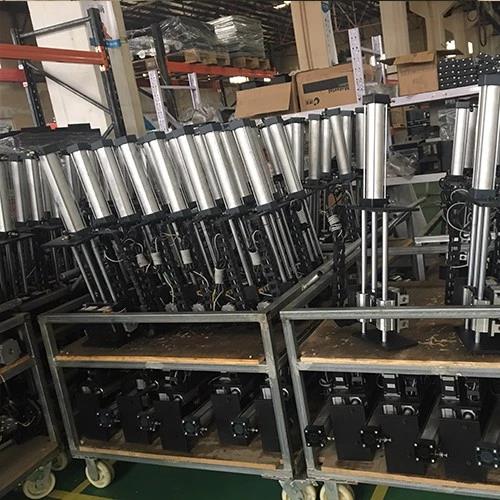

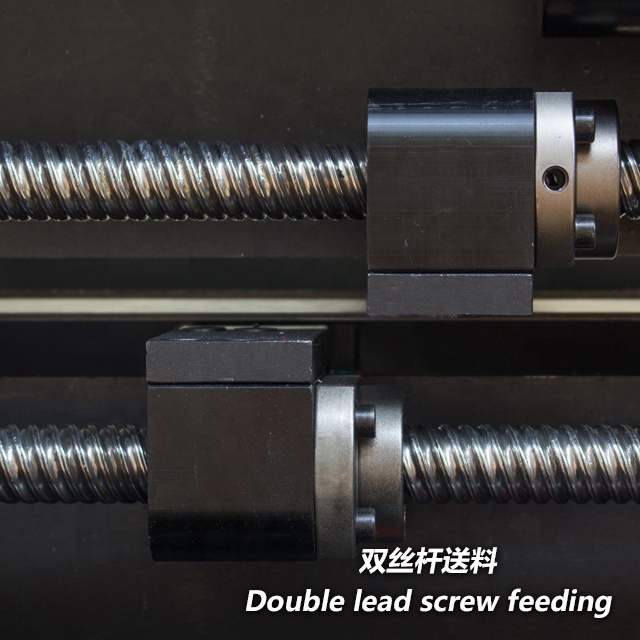

                                                                                                    Feeding parts :TThe feeding structure adopts double balls

The screw is matched with nylon gear drive to ensure

Precise positioning, smooth feeding, greatly improved

Feed speed and stability.

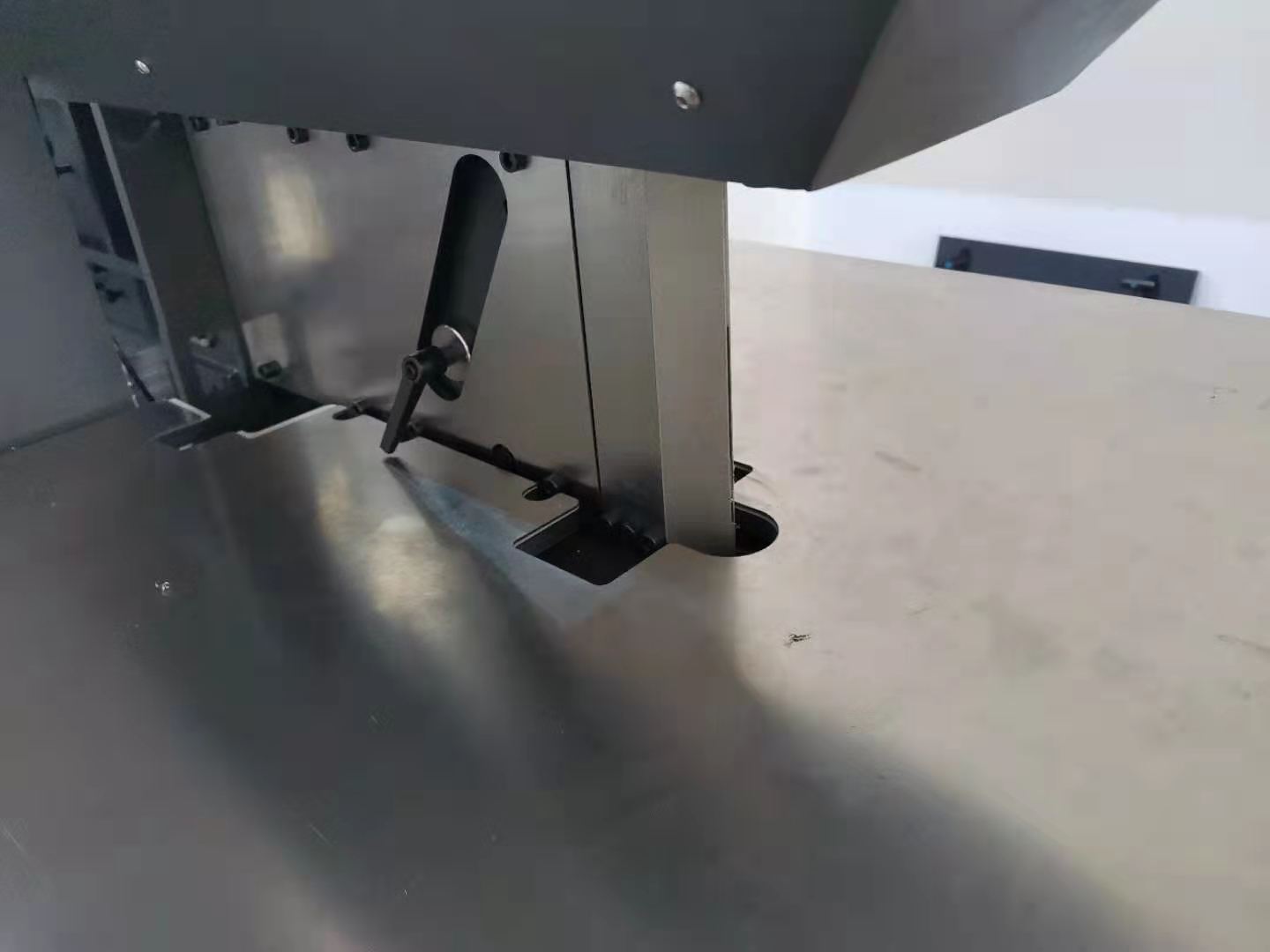

Grooving parts: double blade alternately grooving,were able

Production of stainless steel, galvanized sheet, aluminum sheet











































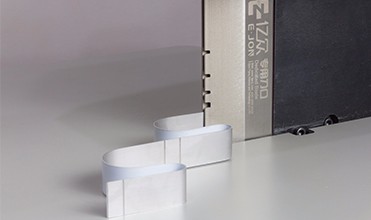

Bending parts: Double-blade alternating bending system, using servo motor for bending, high torque, high forming

degree.

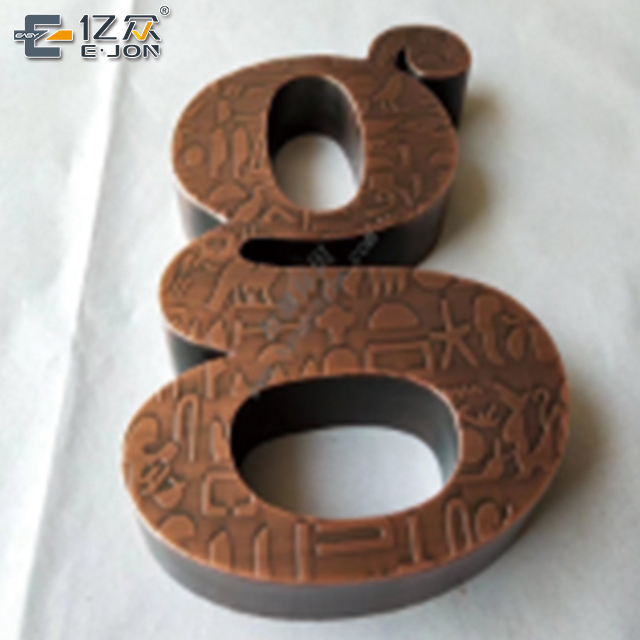

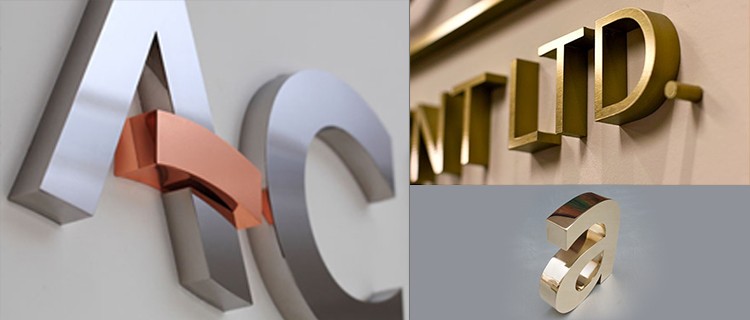

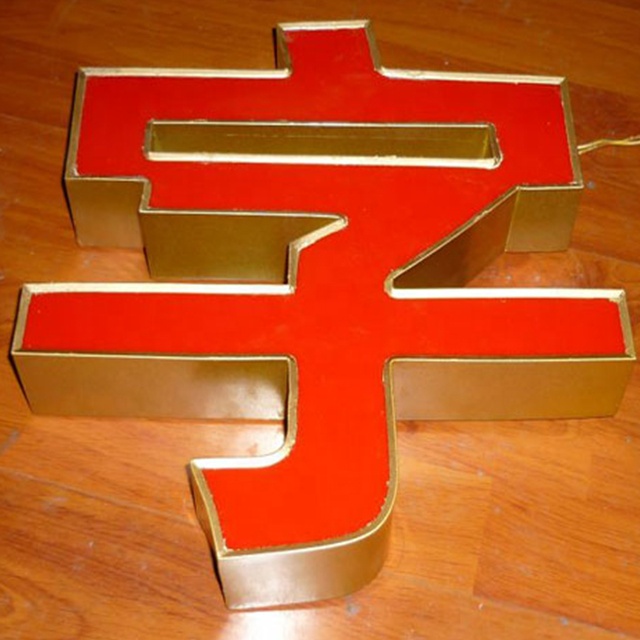

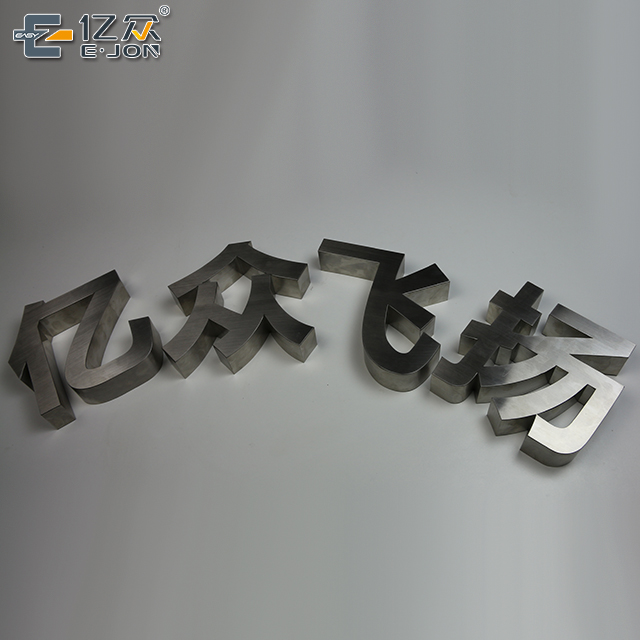

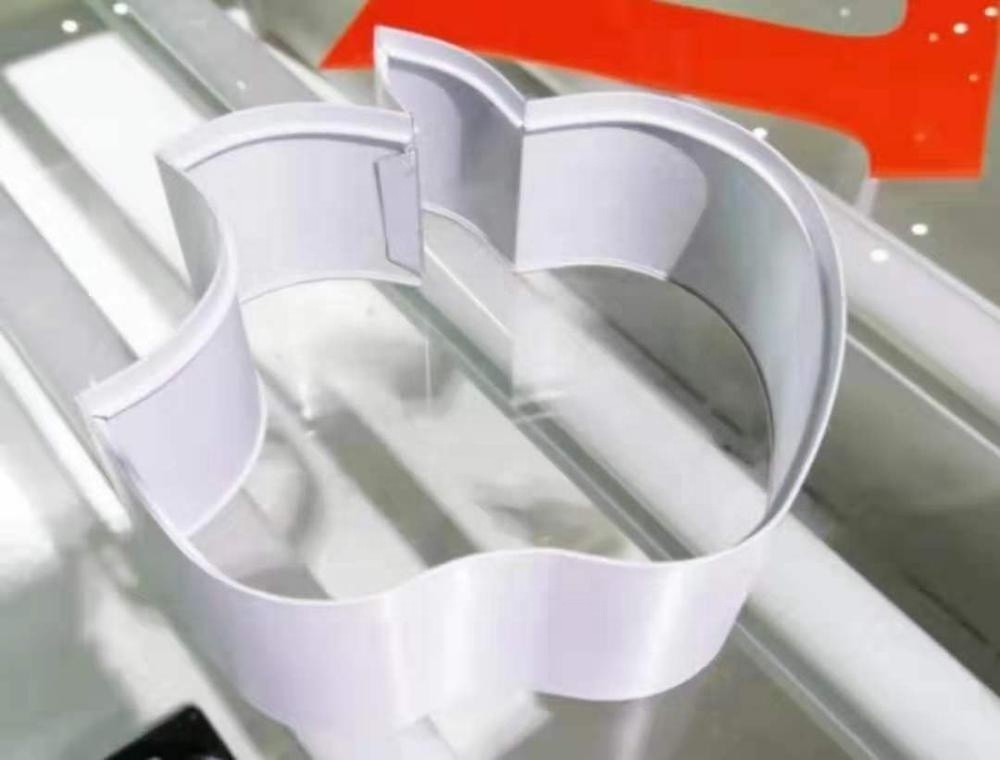

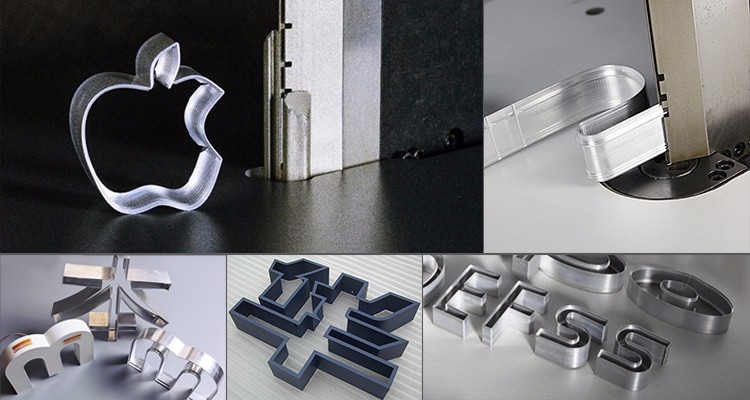

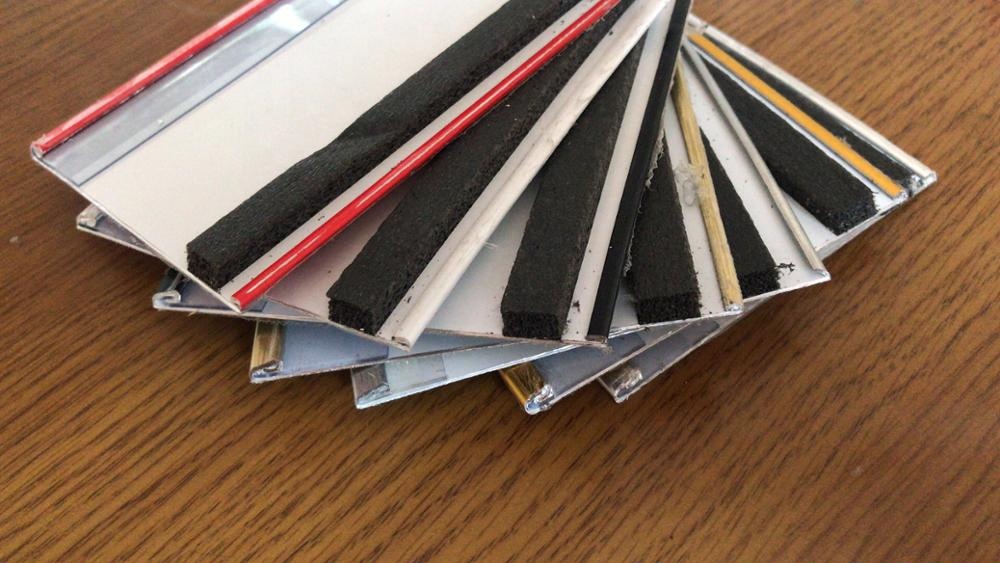

Sample display

























































How to learn machine operations



1. Operation manual U disk

   Provide machine U disk, with detailed and specific English operation manual and video.



2. Network Services

Provide online services through WeChat, Whatsapp, Skype, E-mail, Team viewer.



3. Factory tour

Welcome customers to visit our factory to learn how to operate the machine.









Supporting facilities















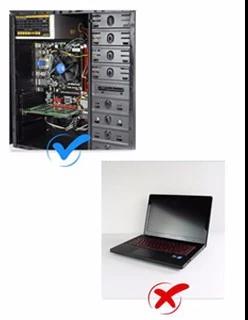

Computer Pump File Format

To use the device you need to use the device should bend the software

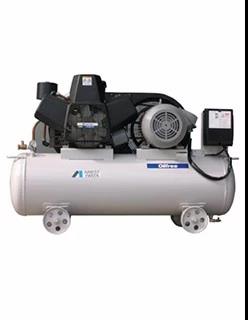

Install the control card in your device      The machine is self-developed. computer, then connect toAir compressor,We recommend importing supported formats

More options for press brakes and installationsDxf.Plt.Ai. we recommend

software computer. Compare4kW, the airflow uses Coredraw or adobe

Configuration:XP system or 0.6m3/Min illustrationto finish

window7 32-bit system, andfile after export

needa pcl card slotConvert to Dxf.Plt.Ai format. Then

Install controlscard.Open the operating software,

select document





exhibition



















our company

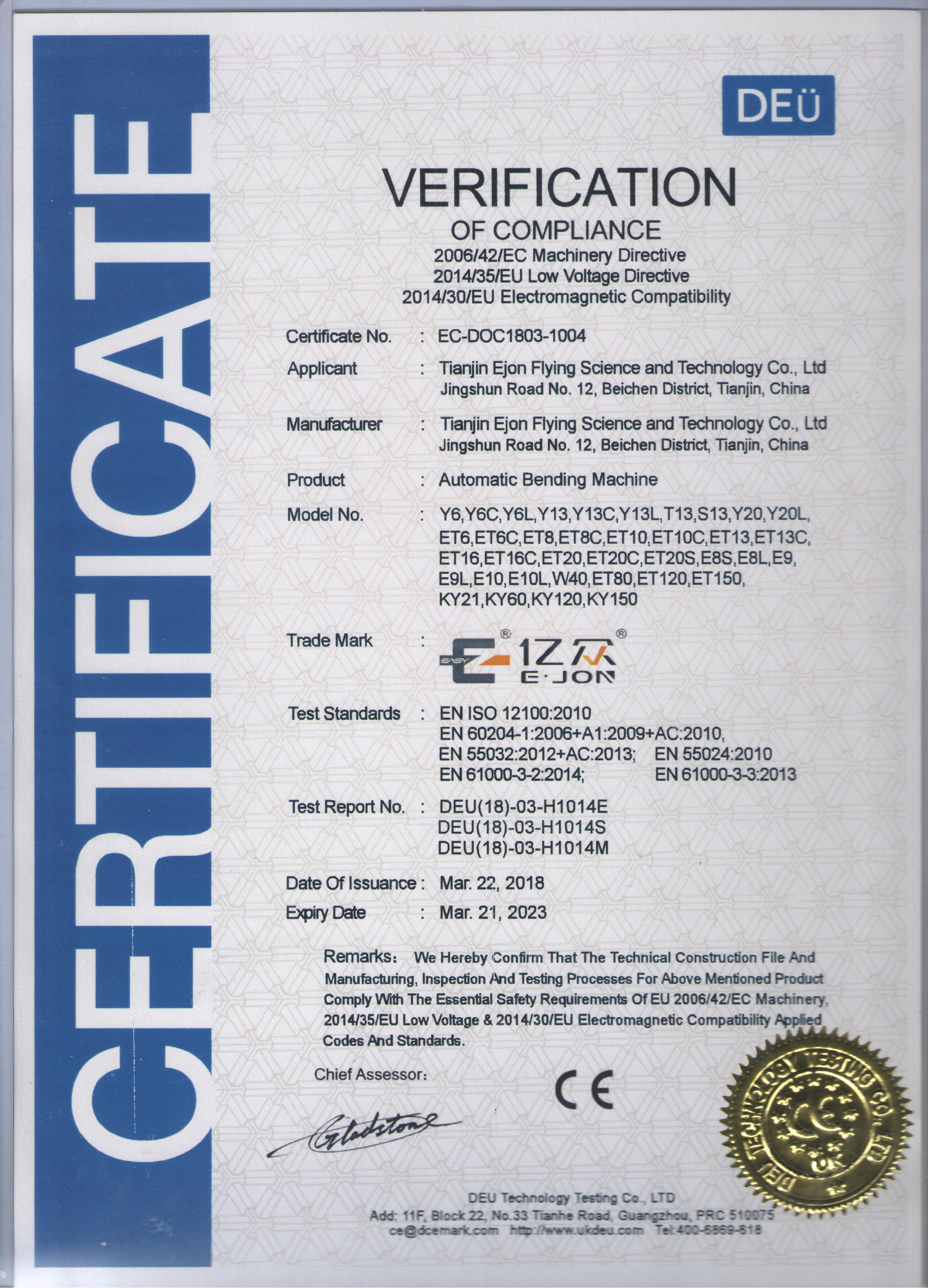

 Certification

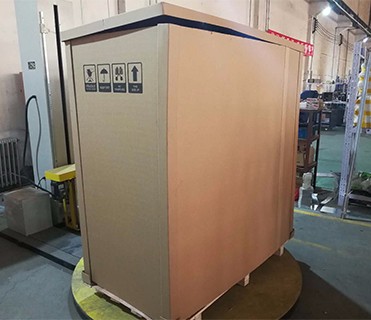

 Packaging and Shipping





























our service





1. The whole machine is guaranteed for one year.

2. Free training courses in our factory or online.

3. After the warranty period, we will provide wearing parts

Purchase at agency price when replacement is required.

4. Before the machine is shipped, we will install all the parts and test machine for you. We will take the working video of the machine and the machine phone for you to check, if it is confirmed that there is no problem, we will ship it.

5. After the machine arrives, just connect the power supply, software, etc., it is easier for you. If you're concerned, we can shoot instructional videos for you. By the way, during the production of the machine, we can also share the process with you.

6. In terms of training, firstly we will shoot more teaching videos for you, we can also control remotely, and most importantly, if you need, we can provide our technicians for on-site training and on-site teaching. If you have time, welcome to visit our company, you can operate and learn the machine by yourself.

7. After the machine is shipped, I will prepare some documents, such as bill of lading, packing list, commercial invoice, sales contract, CE certification, to help you pick up the machine.
