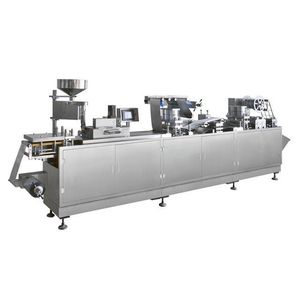

Automatic Medicine Tablet Pill Softgel Capsule Blister Packing Machine for Honey DPP250
- $18800.00 / 1 - 2 sets
$18000.00 / 3 - 4 sets
$17200.00 / 5 - 7 sets
$16400.00 / >=8 sets - 1 set
- Hangzhou Shengde Machinery Co., Ltd.
- Zhejiang, China
- Ms SED Machinery
PRODUCT DETAIL
Video outgoing-inspection: | Provided; | Automatic Grade: | Automatic; |
Type: | Blister Packaging Machine; | Machinery Test Report: | Provided; |
Keyword: | Medicine Blister Packing Machine; | Marketing Type: | Ordinary Product; |
Brand Name: | SED; | After-sales Service Provided: | Video technical support,Online support; |
Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Pharmaceutical; | Name: | Automatic Tablet Pill Softgel Capsule Blister; |
Condition: | New; | Packaging Detail: | Export standard packing; |
Warranty of core components: | 1 Year; | Warranty: | 1 Year; |
Driven Type: | Electric; | Usage: | Blister Packing Machine for Honey; |
Package Preview: | ; | Adjustable Pulling Length: | 30-120mm; |
Tropical Foil Packaging Material: | (0.10-0.12)*260*(Dia.400)mm; | Core Components: | PLC,Engine,Motor; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Dimension(L*W*H): | 4450*800*1600mm; |
PTP Packaging Material: | (0.02-0.15)*260*(Dia.250)mm; | Showroom Location: | None; |
Weight: | 1700kg; | Voltage: | 380V 50HZ; |
Port: | Ningbo/Shanghai, China; | Certification: | ISO CE; |
Key Selling Points: | High Productivity; | PVC Packaging Material: | (0.15-0.4)*260*(Dia.400)mm; |
After Warranty Service: | Video technical support,Online support,Spare parts; | Local Service Location: | None; |
Application: | Food,Medical,Chemical; | Supply Ability: | 30 Sets per Month; |
Model: | DPP-250F; | Paper Packaging Material: | (50-100)g/m2*260*(Dia.300)mm; |
Place of Origin: | Zhejiang, China; |
Machine Description

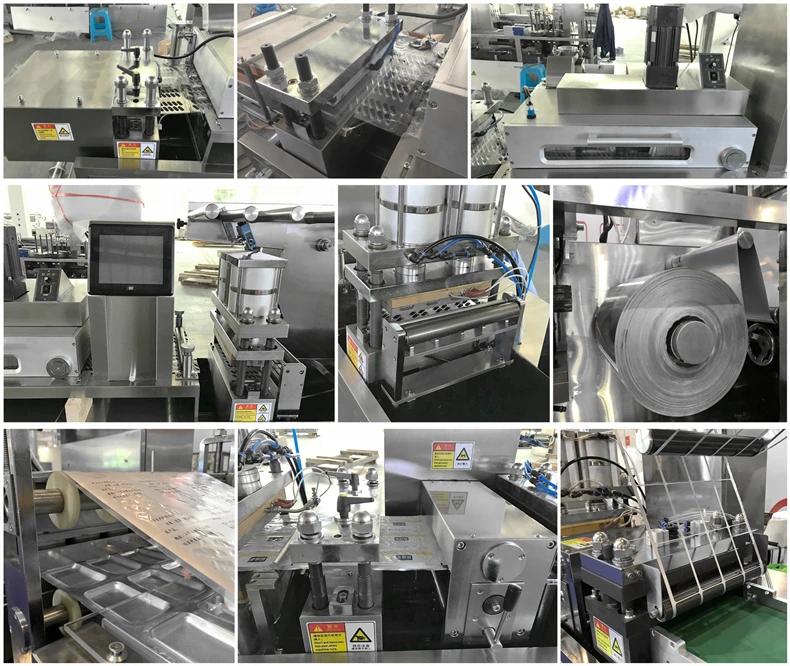

The automatic blister packing machine is a combination of electrical and pneumatic systems, controlled by PLC, and operated by touch screen, including automatic preheating, compressed air blow forming, feeding, detection system, PRC system, first sealing station, batch number embossing, tropical aluminum foil forming, second sealing station, perforation station, servo pulling system, cutting station, rejection system and wasted material rewinding station, etc. It is suitable for alu-plastic, alu-alu, alu-plastic-alu blister packaging.
Product Paramenters
Model | DPP-250F | ||||
Double Function | ALU-PLASTIC-ALU | ALU-PLASTIC | |||
Cutting Frequency (ideal size 57*80) | 15-30times/min | 20-45times/min | |||
Max. Forming Area and Depth(mm) | 250*120*15 | 250*120*15 | |||
Pulling Length (mm) | 30-120mm | ||||
Packaging Material (I.D.Φ75) | PVC(mm) | (0.15-0.4)*260*(Φ400) | (0.15-0.4)*260*(Φ400) | ||
PTP(mm) | (0.02-0.15)*260*(Φ250) | (0.02-0.15)*260*(Φ250) | |||
Tropical Foil(mm) | (0.10-0.12)*260*(Φ400) | ||||
Paper(mm) | (50-100)g/m2*260*(Φ300) | ||||
Power | 380V 50Hz 11.5kw | 380V 50Hz 8.5kw | |||
Air Compression (self-prepared) | ≥0.5m³/min Pressure:0.6-0.8Mpa | ||||
Cooling | Recycle water or circulating water consumption: 60-100L/h | ||||
Overall Dimension (L*W*H) | 4450*800*1600(Including foundation) | ||||
Dimension of Each Part | 1400*800*1600mm (front) | ||||
1650*800*1450mm (middle) | |||||
1400*800*1450mm (back) | |||||
Weight | About 1700kg |
Main Features
1- Pulling length can be input by touch screen, while air frothing forming and cold forming are controlled by the encoder.
2- It adopts with universal feeder for packaging object feeding; the feeder also can be designed as the client’s requirement.
3- The speed is controlled by the inverter, which can input by touch screen.
4- It equipped with an automatic detection system for object absence in blisters by mechanical detecting system or optical sensor or camera system(it is required by clients).
5- The pulling is controlled by a servo motor to ensure the accurate pulling length and saving materials.
6-The heating molds separate automatically when the machine stops to protect the packaging material from the heated molds.

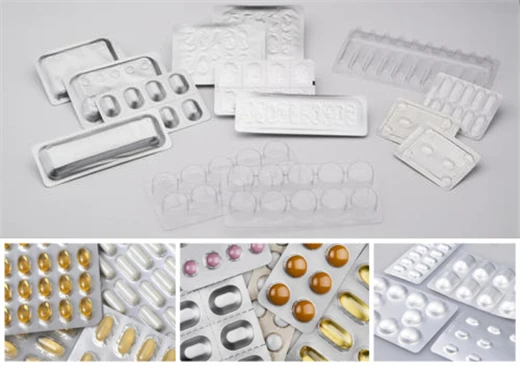

Final Product
