Automatic doffing sewing thread winding machine
- $1000.00 /set
- 1 set
- Jiangsu Tangshi Textile Machinery Group Co., Ltd.
- Jiangsu, China
- Mr TONY PING
PRODUCT DETAIL
| air pressure: | 2 pieces | Automatic level: | semi-automatic |
| port: | Shanghai/Ningbo | Stop device: | Yarn stop |
| Spindle number: | 4 ingots | weight: | 600KG |
| Dimensions (L*W*H): | 1882×1010×1820mm | strength: | 1.2kw, 220v/1.2kw |
| size: | 1882×1010×1820mm | Supply capacity: | 50 sets per month |
| Certification: | CE certification | payment terms: | L/C, T/T |
| Packaging Details: | export packing | Winding speed: | 400-1000m/min |
| Voltage: | 220V | Length counter: | Each spindle has a length counter |
| Oil roller: | include | place of origin; place of origin: | Jiangsu, China |
| brand: | south wind | State of health: | new |
| After-sales service provided: | Engineers available to service machinery overseas | application: | Sewing thread/embroidery thread twine |
| model: | NF5200 | Warranty: | 1 year |

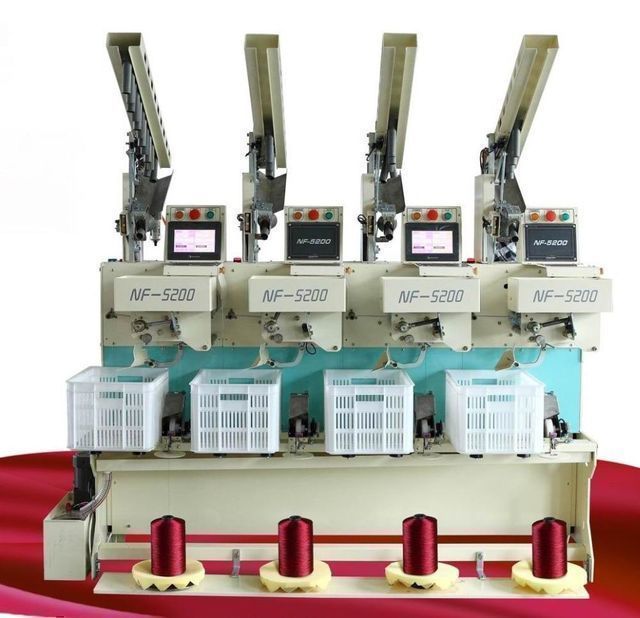

name:NF5200 Automatic Sewing Thread Winding Machine
1. This machine is a high-speed production winding machine. It is 4~5 times of ordinary rewinder.
2. The automatic bobbin changing function can save 70% of labor. This is a highly efficient machine.
Specification:
| Model | NF-5200 |
| Winding shape | Conical, King Spool (Cap) |
| Number of spindles | 4 ingots |
| drive | Independent motor system |
| way to control | computer program |
| yarn speed | 1000m/min |
| air pressure | 2 cells |
| Take-up diameter | Φ140mm |
| strength | 380V three phase. 1.2KW |
| size | 1882×1010×1820mm |
| weight | 480KGS |
