Textile Cone to Cone Yarn Winder Machine with Winding Drum
- $280.00 / 1 - 3 units
$260.00 / 4 - 47 units
$220.00 / 48 - 107 units
$190.00 / >=108 units - 1 unit
- Wuxi Xindawei Textile Machinery Co., Ltd.
- Jiangsu, China
- Mr Dean Dai
| Certification: | Certification; | Package: | Wooden case; |
| Brand Name: | Xindawei; | Automatic Grade: | Semi-automatic; |
| Supply Ability: | 540 Unit/Units per Month; | Num of Spindles: | 1-108; |
| Warranty: | 1 Year; | Port: | Shanghai/Ningbo; |
| COLOR: | Grey, green, white, blue; | Payment Terms: | L/C,D/A,D/P,T/T; |
| Packaging Detail: | Wooden Case, we have several kinds of packages, we will according to your demands to design.; | Name: | High speed hard cone winding machine/rewinding machine/hard winder; |
| Application: | Winding Yarns,Waxing, rewinding, weaving; | Production Capacity: | HIGH SPEED; |
| Place of Origin: | Jiangsu China; | Memory Capacity: | 999999m; |
| Weight: | 39kg; | Dimension(L*W*H): | 450*450*500mm; |
| Delivery Detail: | 10 days after payment; | Power: | Spindle; |
| Model Number: | Xindawei; | Voltage: | 220v; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Condition: | New; |
| Material: | Steel; |

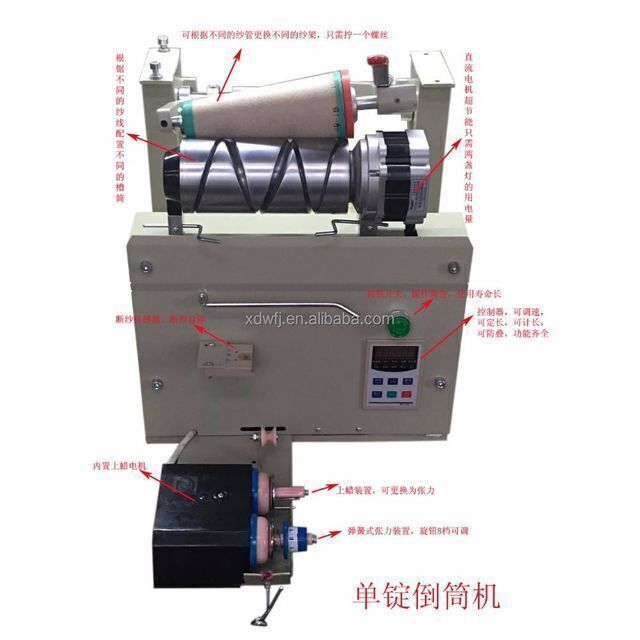

Single Spindle(Unit)
1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.
4 or 6 Spindles(Units)
1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.
LZ-M-L-G
2. Tension adjustment via 2 pressure controllers with springs,they also have waxing function.
Ni-P Alloy Grooved Drum
Lead: 147mm
Outer diameter: 82mm
Length: 185mm
Turns: 2
Ni-P Alloy Grooved Drum
Lead: 147mm
Outer diameter: 82mm
Length: 176mm
Turns: 2.5
Ni-P Alloy Grooved Drum
Lead: 130mm
Outer diameter: 90mm
Length: 147mm
Turns: 1.5
