Best New Brands C Type Rechargeable Battery LCD Display Touch Screen True RMS DMM Tester Multimetro Digital Smart Multimeter

PRODUCT DETAIL
Operating temperature:0 to 40°Cport:Shenzhen or Hong Kong or Guangzhou or Shanghai
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramMeasuring voltage range:DC 1000V AC 750V
aspect:150 x 70 x 25mmmodel:188VT
OEM/Design Manufacturer:welcomeproduct name:Smart Multimeter
Diode triode test:YesMeasuring inductance range:Not applicable
Packaging Details:Box + carton.NCV test:Yes
Supply capacity:10000 pieces per monthbrand:Youyi cream
Measuring current range:10A AC/DCplace of origin; place of origin:Guangdong, China
Measuring capacitance range:99.99 millifaradsMeasuring resistance range:60M
Product Description
New Brand Type C Battery Rechargeable LCD Display Touch Screen True RMS DMM Tester Multimetro Digital Smart Multimeter
Features:
Automatic selection of measurement functions and ranges. Full scale overload protection. The maximum voltage allowed between the measuring terminal and the ground is 1000V DC or 750V AC. The maximum LCD display value is 5999 digits. Polarity indication: automatic indication, '-' means negative polarity. Overrange display: 'OL' or '-OL'. Sampling time: about 3 times/second Automatic shutdown time: 15 minutes Power supply: 3.7V/2800mAh lithium battery Operating temperature: 0°c - 40°c
Function
scope
accuracy
DC voltage
99.99 mV / 999.9 mV; 9.999 V / 99.9 V / 1000 V
± (0.5% + 3)
AC voltage
99.9 mV / 999.9 mV; 9.999 V / 99.9 V / 750 V
± (0.8% + 3)
DC
9.999mAh / 99.99mAh / 999.9mAh
± (0.8% + 3)
9.99 Ann
± (1.2% + 3)
Alternating current
9.999mAh / 99.99mAh / 999.9mAh
± (1.0% + 3)
9.99 Ann
±(1.5%+3)
resist
99.99 / 999.9 ohm / 9.999 k / 99.99 k / 999.9 kOhm
± (0.8% + 3)
9.999 m/​​ 99.99 mΩ
± (1.2% + 3)
capacitance
9.999 / 99.99 / 999.9 nF / 9.999 / 99.99 / 999.9 uF
± (4.0% + 3)
9.999 mF/99.99 mF
± (5.0% + 5)
frequency
99.99 / 999.9 / 9.999k / 99.99k / 999.9kHz / 9.999mHz
±(1.0% + 3)
responsibility
01.% – 99.99%
± (1.0% + 2)
Temperature °C / °F
-40 ~ 1000°C; -40 – 1832°F 2°C
count
5999 count
exhibit

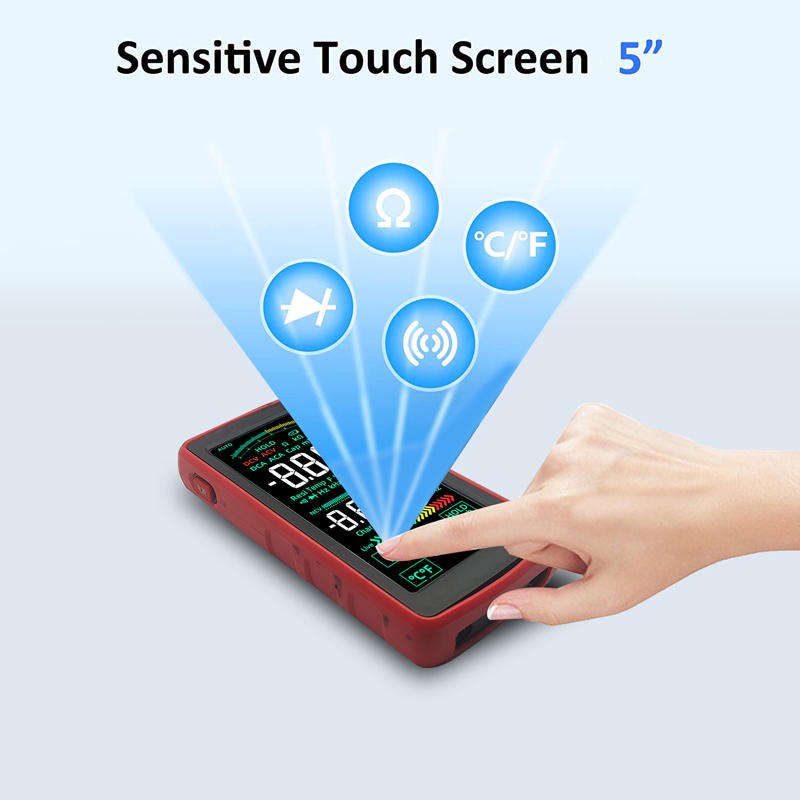

VA color display touch screen

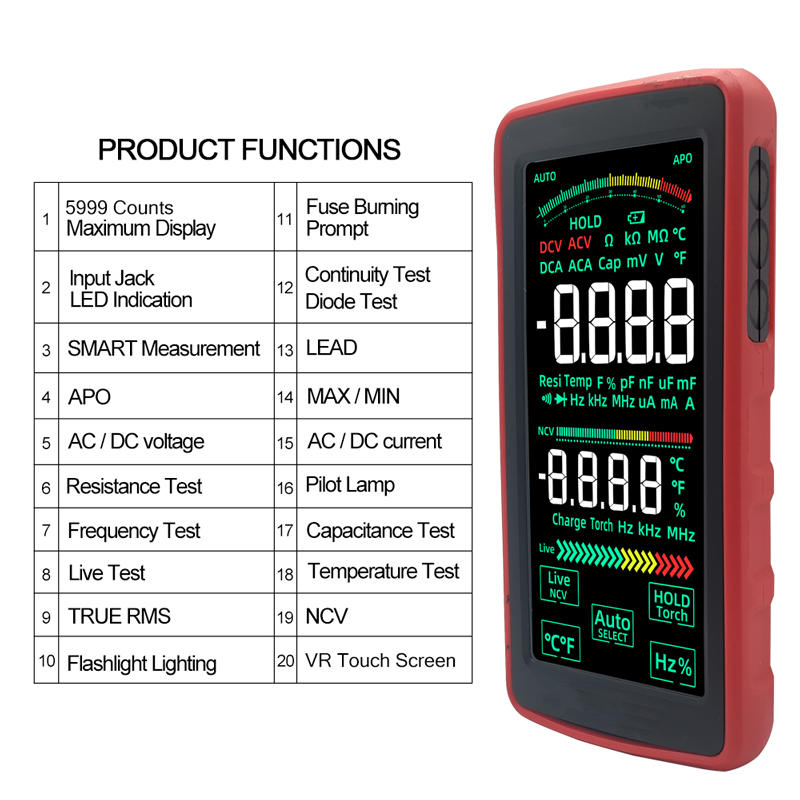

Smart functions (AC/DC voltage,
V
resistance and continuity)
Automatic identification of current input
V
relative measurement
V
Max/Min/Avg.
V

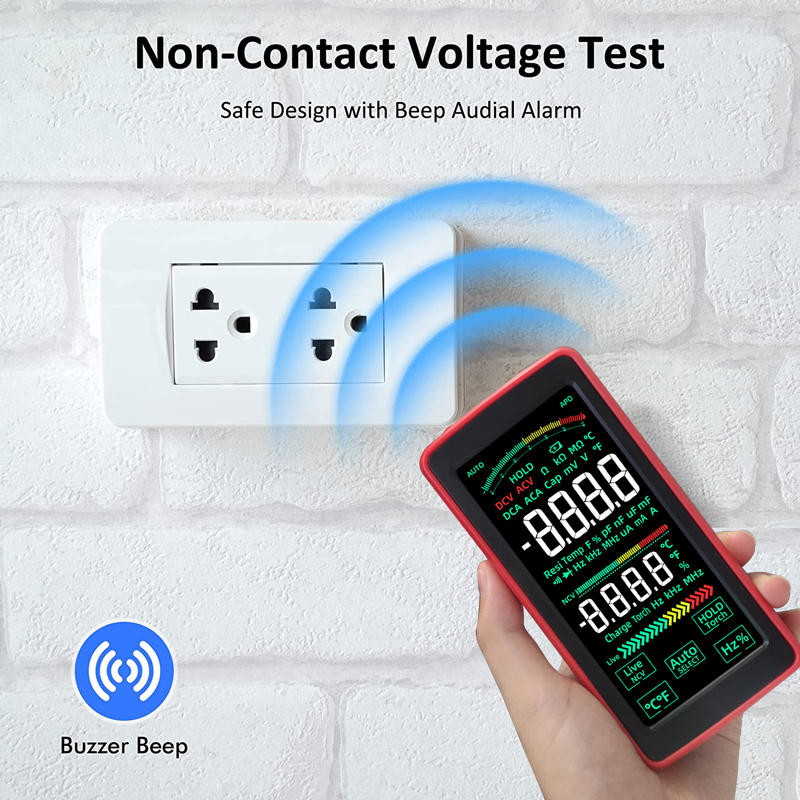

NCV / Real Time / Continuity Test
V (sound and light alarm)
Diode test
V (audible alarm)
Bar Graph/Data Hold/True RMS
V
Fuse burning reminder
V
Input Jack LED Indication
V
low battery indicator
V
Auto Power Off / Torch
V
power supply
C-type rechargeable battery
product weight
about 210 grams
Product Size
150 x 70 x 25mm

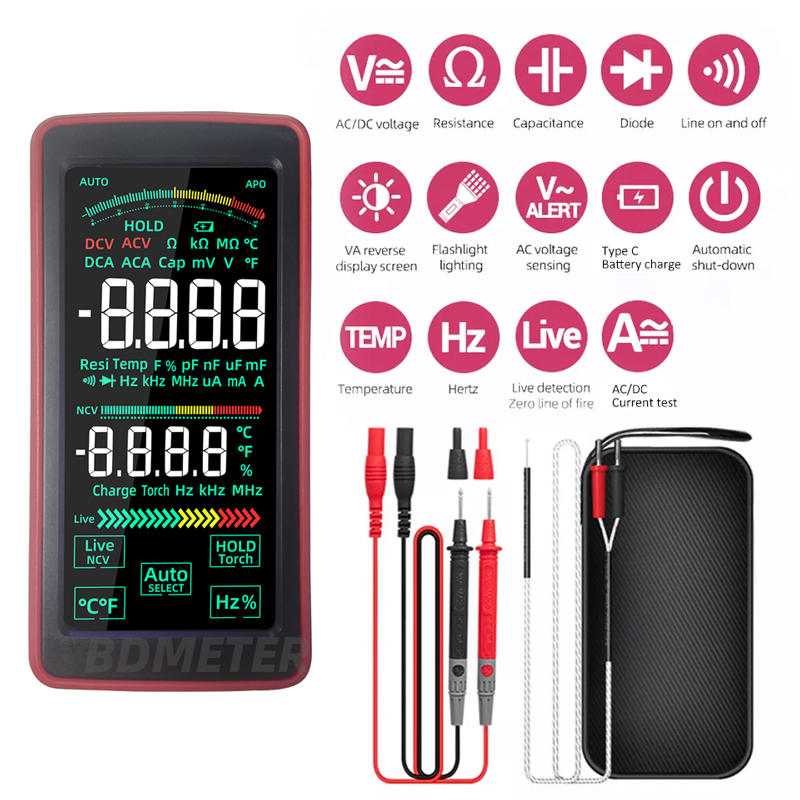

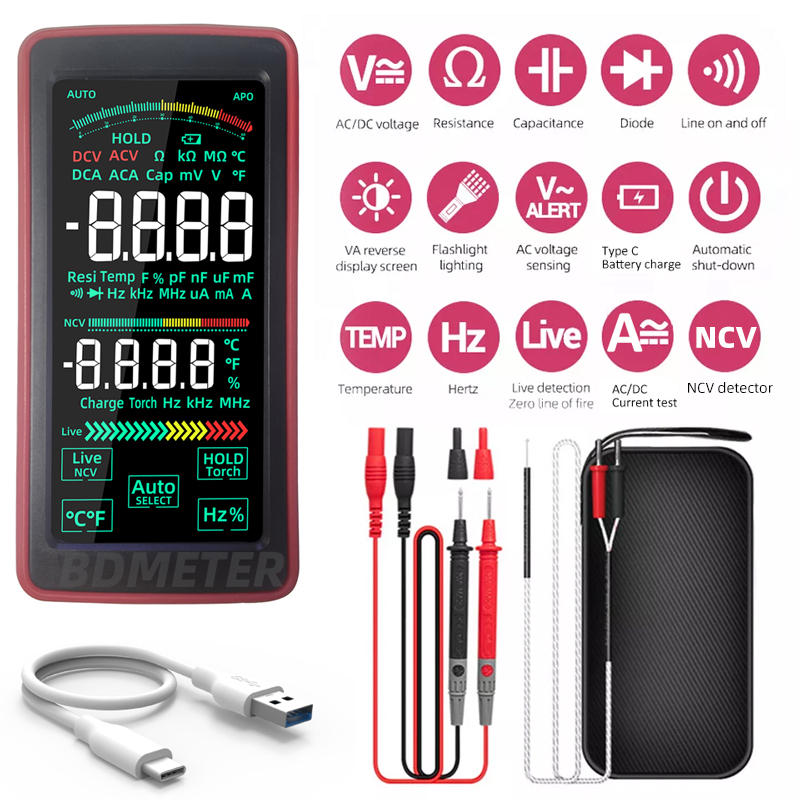

Package Contents
1 multimeter / 1 set of test leads / 1 thermocouple probe
Specification
DC voltage:
1000V
AC voltage:
750V
DC:
10A
Alternating current:
10A
revolt:
0~60MΩ
capacitance:
1nF~100mF
temperature:
0°~1000°
