Best Price X-ray Fluorescence Spectrometer Metal Element Testing Handheld XRF Explorer 5000 EXP5000 Analyzer
- $500.00 /set
- 1 set
- Napco Precision Instruments Co., Ltd.
- Guangdong, China
- Ms Connie Z
PRODUCT DETAIL
Warranty: | 1 year | product name: | Handheld Xrf Analyzer |
brand: | Napco | strength: | Electronics |
color: | yellow | port: | Shenzhen |
Supply capacity: | 2000 sets per month | Package preview: | |
model: | Explorer 5000 | Wavelength range: | Production Planning Management |
Packaging Details: | The outside is a plastic box, surrounded by sponge protection. | weight: | 1.7 kg |
Function: | Metal Purity Analyzer | detector: | BOOST Si-PIN Detectors |
payment terms: | L/C, Western Union, T/T, MoneyGram | Customization support: | OEM、ODM |
Origin: | Guangdong, China | size: | 244mmx90mmx330mm |
Best price metal element testing X-ray fluorescence spectrometer handheld XRF analyzer explorer 5000 EXP5000

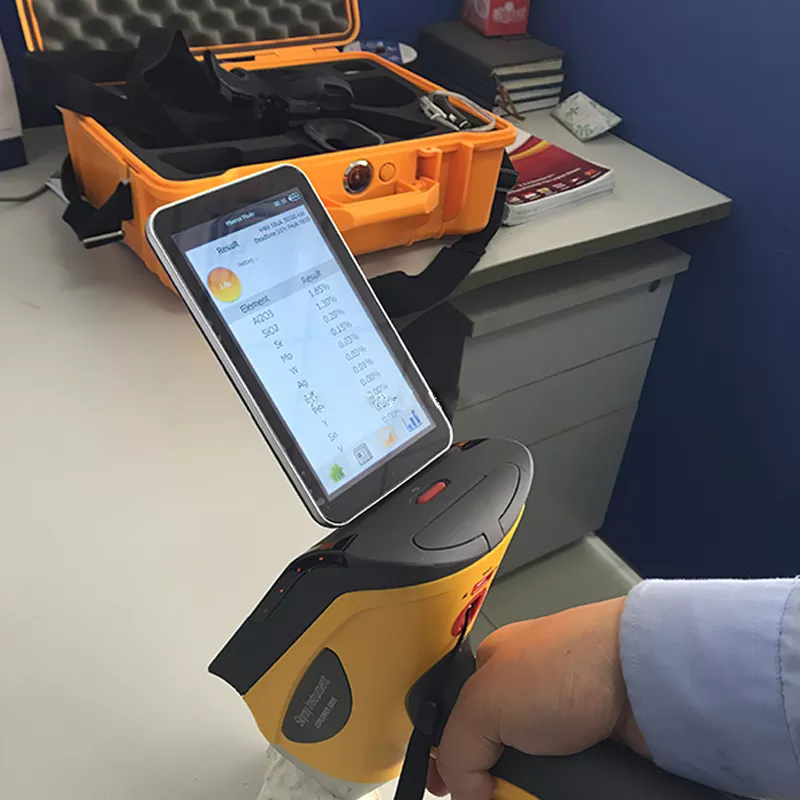

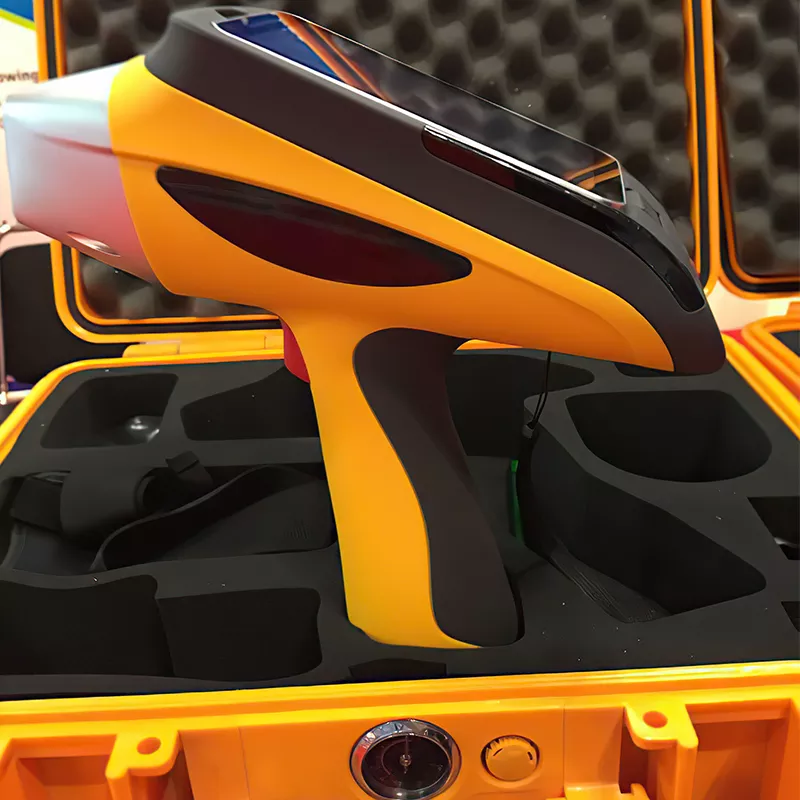

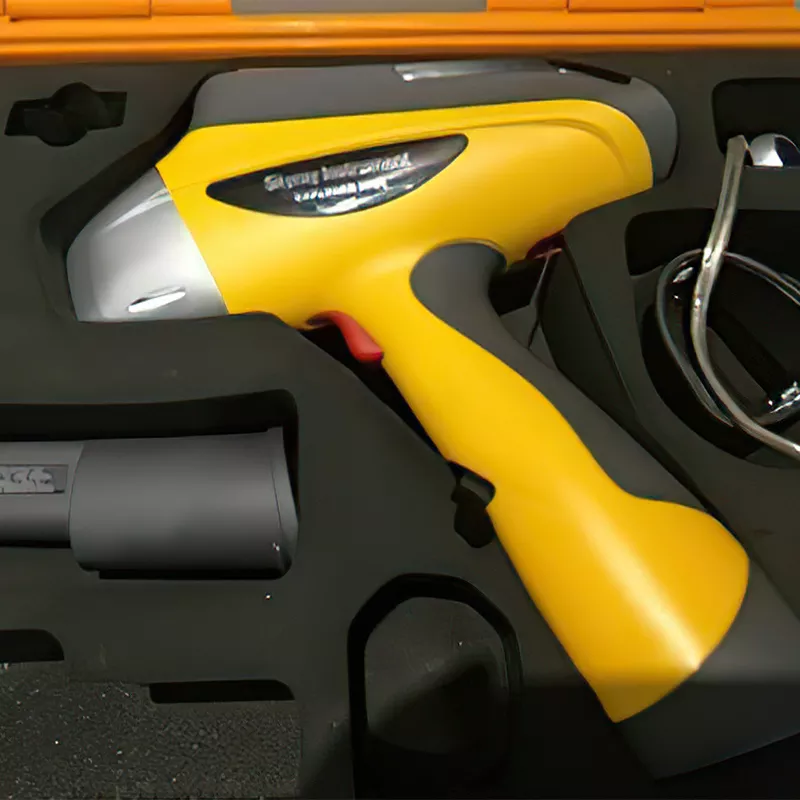

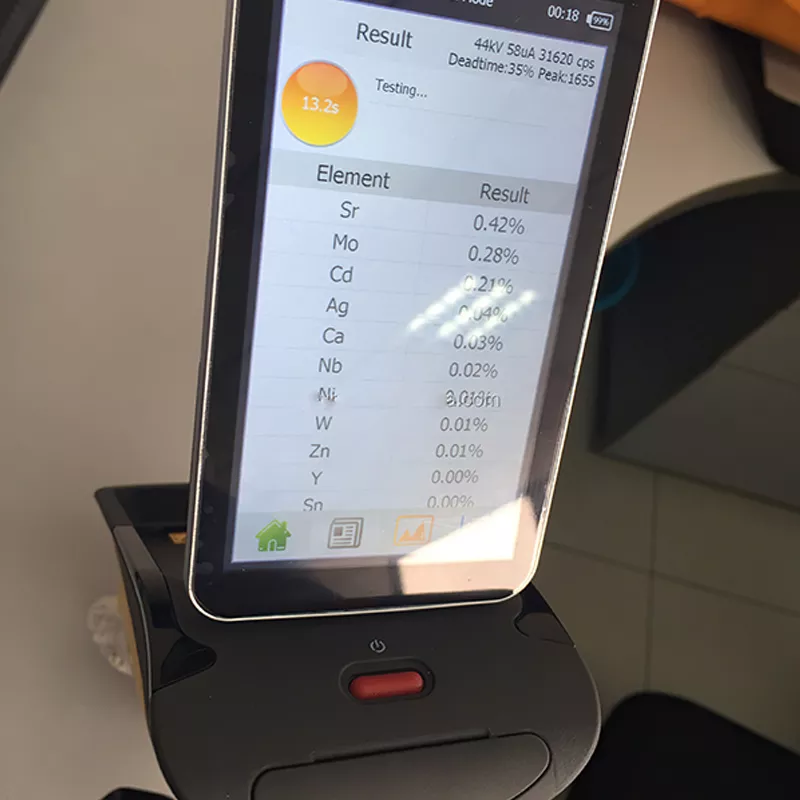

Explorer 5000 Handheld XRF Analyzers
- EXPLORER 5000 handheld alloy analyzer is the first to adopt large screen, high-resolution LCD display and new digital signal processor. The lowest detection limit makes it perform as well as a desktop. EXPLORER is small in size and light in weight, easy to carry and test, and suitable for analyzing different types of alloys.

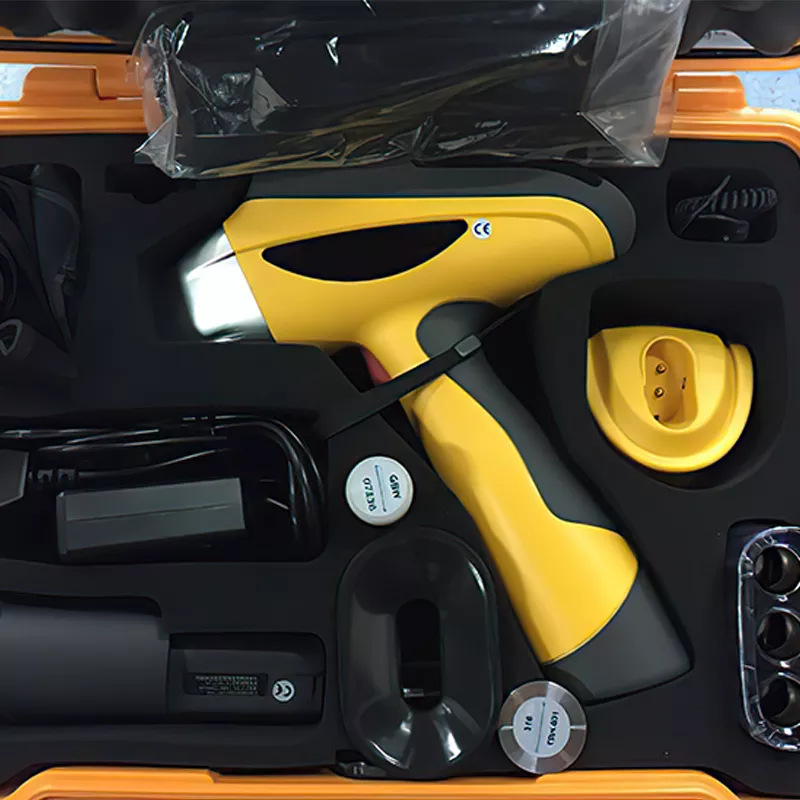

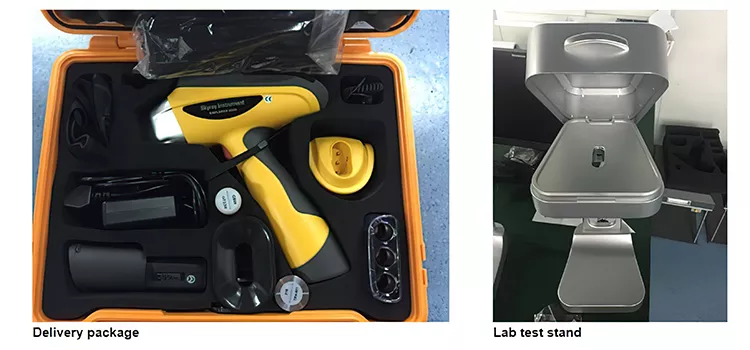

EXP-5000 product configuration:
- 24 hours/7 days uninterrupted service
- reply within 4 hours
- Remote Online Troubleshooting
- Long-term spare parts inventory
- Free new machine installation training
- The warranty period can be customized according to customer requirements
- The new machine is guaranteed for one year, and the software is free for life.
EXP-5000 technical parameters and indicators:
No. | index | describe |
1 | Model | EXPLORER Handheld XRF Analyzer |
2 | Analytical method | Energy Dispersive X-ray Fluorescence Analysis Method |
3 | Element measurement range | Can measure atomic numbers from 12 to 92 [elements from magnesium (Mg) to uranium (U)] |
4 | Synchronous Detector Element | Simultaneous analysis of 40 elements |
5 | microcomputer system | Customized system, CPU: 1G, system memory: 1G, extended storage up to 32G, standard 4G mass storage data |
6 | content scope | ppm~99.99% |
7 | detection time | 1-60 seconds (second report result) |

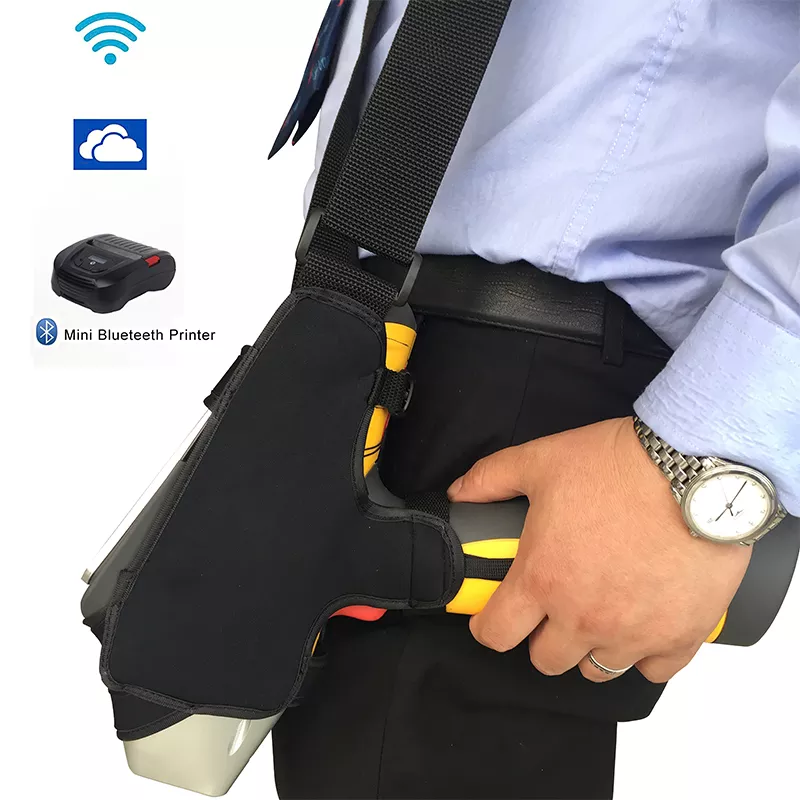

8 | built-in system | GPS, WIFI, Bluetooth. |
9 | power supply | Rechargeable lithium battery, standard 9000mAh, can work continuously for up to 12 hours; optional 27000mAh super battery, wide voltage 110V~220V universal adapter charging power supply. |
10 | Detection purpose | solid, liquid, powder |
11 | detector | SDD detector or Fast-SDD detector (optional) |
12 | Detector resolution | The lowest can reach 125eV |
13 | excitation source | 50KV/200uA-Ag/Rh target end window integrated micro X-ray tube and high voltage power supply |
14 | Collimators and Filters | Collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching function |
15 | video system | 500W pixel high resolution camera |

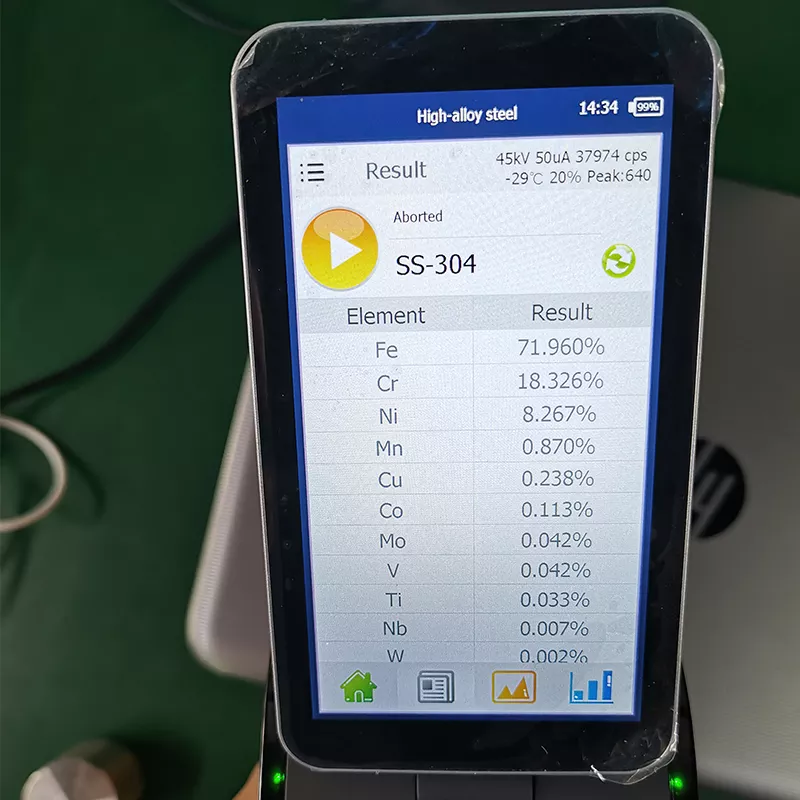

16 | display screen | Brand new 5-inch transflective LCD touch screen with a resolution of 1080*720. |
number 17 | detection limit | The lowest detection limit is between 1 and 500 ppm. |
18 | Safety | Multiple safety protection, no testing, no radiation, the radiation level is far lower than the international safety standard when working, and it has the functions of no sample telemetry and automatic shutdown of X-ray tube. Standard Radiation Shield, Thick Wall Alloy Tester. |
19 | major | Ore-specific analysis software, using intelligent one-key test |
20 | Application convenience | Button intelligently matches the best curve, no need to select the curve |
