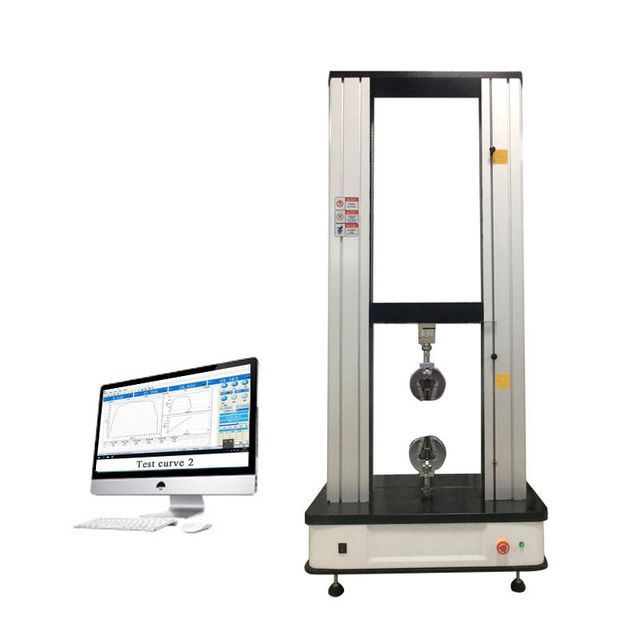

High Strength Compression Tear Testing Machine Universal Material Testing Machine Mechanical Tensile Testing Machine
- $99.00 /set
- 1 set
- Dongguan Hongjin Test Instrument Co., Ltd.
- Guangdong, China
- Mr Hongjin Test Machine
PRODUCT DETAIL
Test the maximum stroke: | Maximum 1200mm without fixture | brand: | Hongjin |
Warranty: | 1 year | Intensity resolution: | 1/50,000 |
Origin: | Guangdong, China | strength: | AC Motors, Electronics |
Packaging Details: | Fumigation-free export wooden box | Load Cell Accuracy: | Below 0.5% |
Extension unit: | mm, cm, inches, % | Test space: | 400mm diameter range |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | model: | Huajie |
Test speed: | 30~300mm/min can be adjusted freely | Intensity Units: | Kilograms, cattle, pounds, grams |
brand: | Hong Jin | Capacity options: | 1, 2, 5, 10, 20, 50, 100, 200, 500kg~10000kg |
Package preview: | Customization support: | OEM, ODM, OBM |
Product Description
1. The main scope of Hongjin testing machineElectronic universal testing machine, horizontal tensile testing machine, hydraulic universal testing machine, MFI, Charpy impact, Izod impact, hardness tester, torsion testing machine, metallographic series, oven, environmental test chamber (temperature and humidity chamber), ultraviolet Ozone, xenon aging test chambers, vibration testing machines, Hastelloy test chambers, waterproof test chambers, leak detection, optical detection series, etc. (We accept customization.)2. ProductsIntroduction: It adopts three closed-loop control of full digital power, displacement and speed, adopts AC motor and control drive system, cooperates with precision worm gear reducer and precision screw drive to achieve the best effect of transmission efficiency and signal-to-noise ratio. Function: This machine is used to test the physical properties of metal and non-metal materials such as elongation, compression, peeling, tear bending, three-point bending, and shearing. Meet the standard: It can be customized to meet the requirements of GB, ISO, JIS, ASTM, DIN and the testing and data processing standards provided by customers. Application range: This machine is often used for material analysis in industries such as auto parts, fasteners, aerospace, cables and wires, plastic rubber, and paper packaging.3. Features of control and data processing system1) The tester adopts advanced chip technology and a professionally designed data acquisition and amplification system, which is highly integrated, reliable and convenient. The control software automatically derives the data of tensile strength, yield strength, breaking strength, elastic modulus and elongation. The open formula editing function can automatically calculate the force, tensile displacement and deformation of any specified point. The standards in the process of control and data processing meet the national requirements for the detection of metal materials and non-metal materials. 2) Control mode: constant speed, constant displacement, constant load, constant load increase rate, constant tension, constant tension increase rate. 3) Automatic zeroing: After the test starts, the measurement system is automatically zeroed. 4) Automatic shifting: Automatically change the range when the load changes to ensure accurate data collection. 5) Automatically save: Test data and test conditions are automatically stored to avoid data loss due to forgetting to save. 6) Batch test: For the test pieces with the same setting, batch test can be carried out after setting the test sequence. 7) Display mode: display data and curves during testing. 8) Curve display: After the test is completed, you can view the curve again for analysis. Move the mouse over the curve to find relevant data for each point. 9) Curve: Parameters: stress-strain, force-displacement, force-time, displacement-time results are displayed and can be printed. 10) Parameters: Force parameters (g, kg, N, lb) Stress parameters (kg/mm2, N/mm2, Mpa, lbf/in2) Displacement parameters (m, mm, in) 11) Test report: Test report can be edited And print according to the format required by the customer, and can be exported as an Excel file. 12) Safety protection: The safety mechanism is triggered when the overload exceeds 2~10%. 13) The testing machine can automatically test and calculate the mechanical properties of the specimen. It is also possible to intervene manually in the analysis process. The test results are automatically analyzed and corrected according to relevant standards to improve data accuracy.

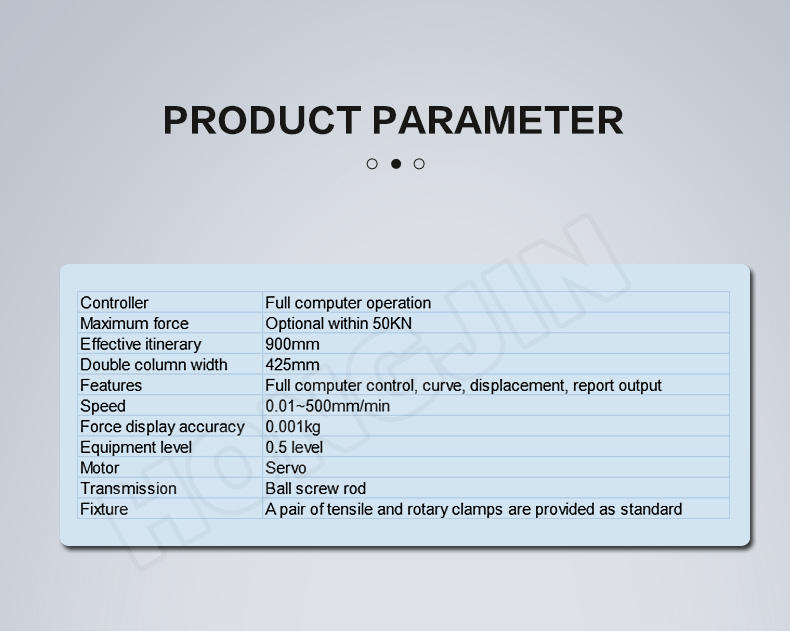

Specification
Test items | Strength and Selective Elongation |
intensity unit | kilograms, cattle, pounds, grams |
capacity selection | 1, 2, 5, 10, 20, 50, 100, 200, 500 kg, 1000 kg, 2000 kg, 5000 kg, 10000 kg, 20000 kg |
Load Cell Accuracy | Below 0.5% |
Test the maximum stroke | Maximum 1200mm without fixture |
test speed | 0.1~1000mm/min arbitrary adjustment |

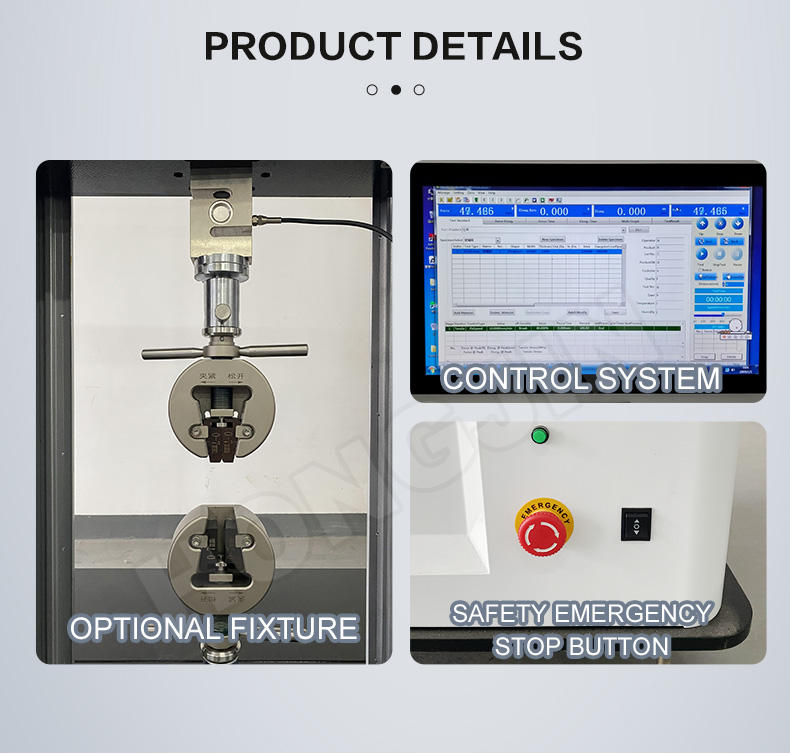

stop mode | Upper and lower limit safety settings, emergency stop button, Program force and elongation settings and specimen breakpoint sensing |

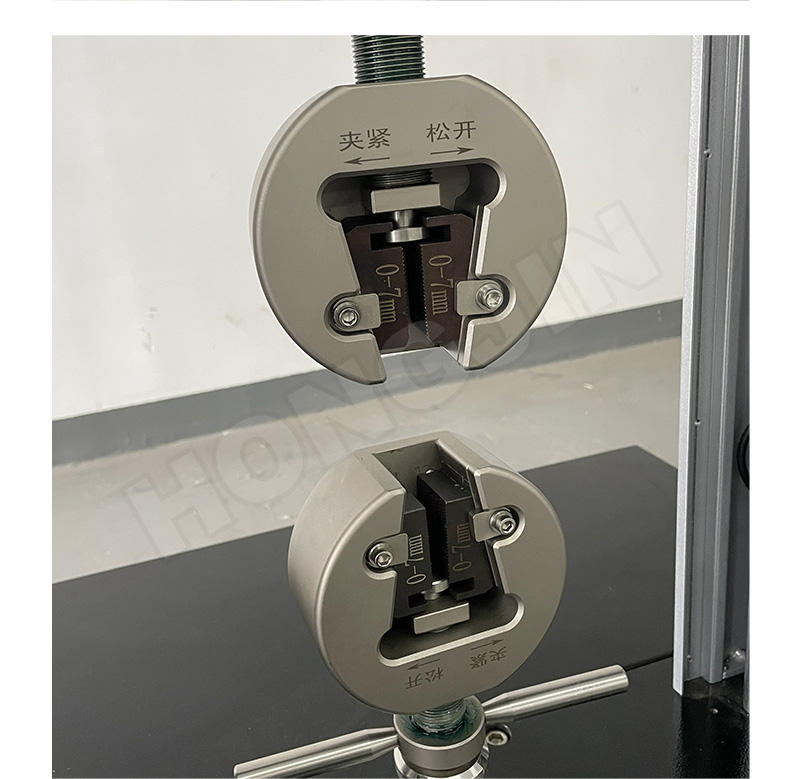

fully equipped | A set of standard fixtures, A user manual and a product warranty card |
strength | AC servo motor |

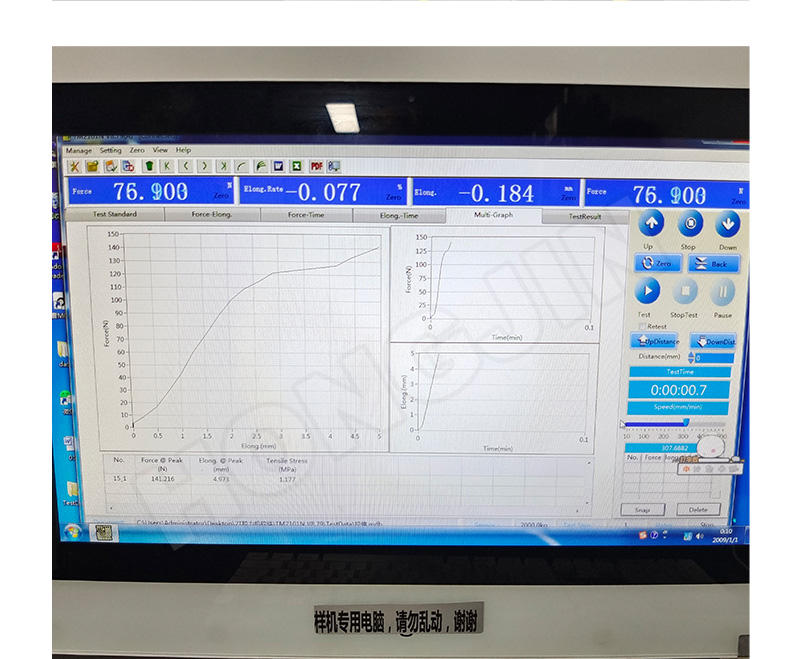

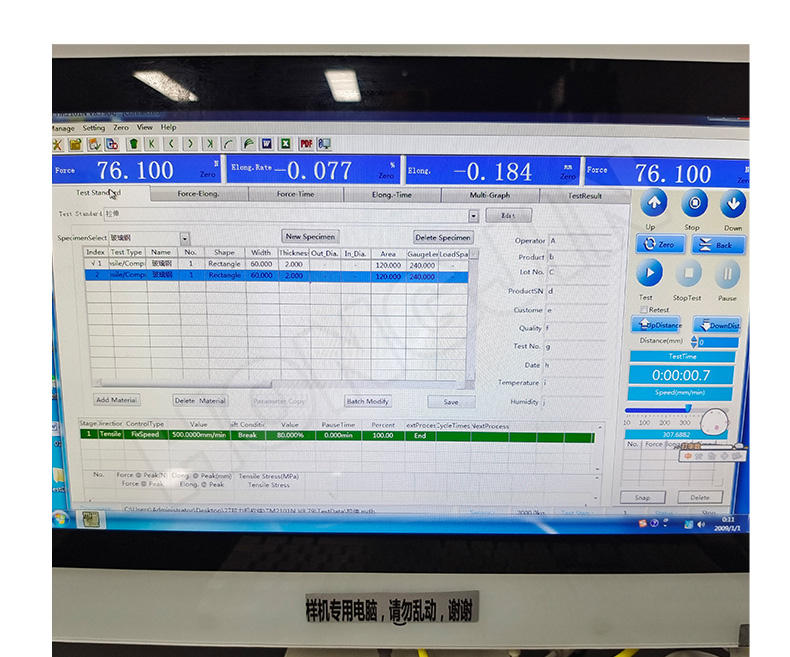

standard | Computer connection equipment (1 signal line, 1 decryption lock, 1 program CD) |
monitor | computer monitor |
extension unit | mm, cm, inches, % |
power resolution | 1/100,000 |
test space | 400mm diameter range |

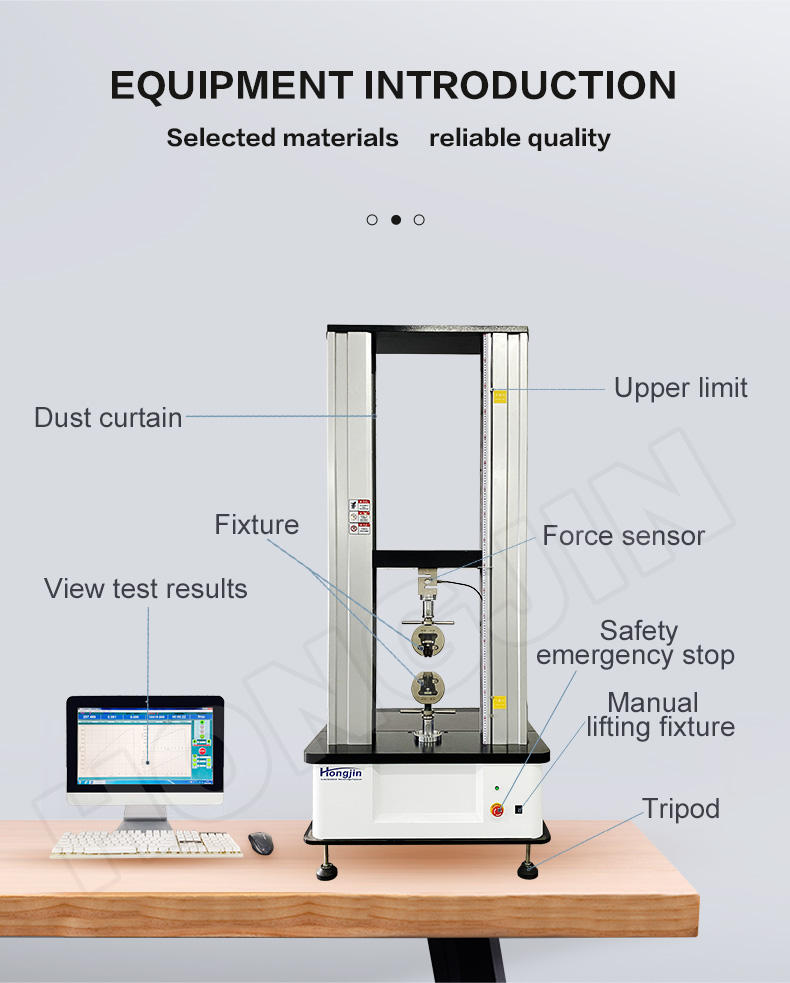

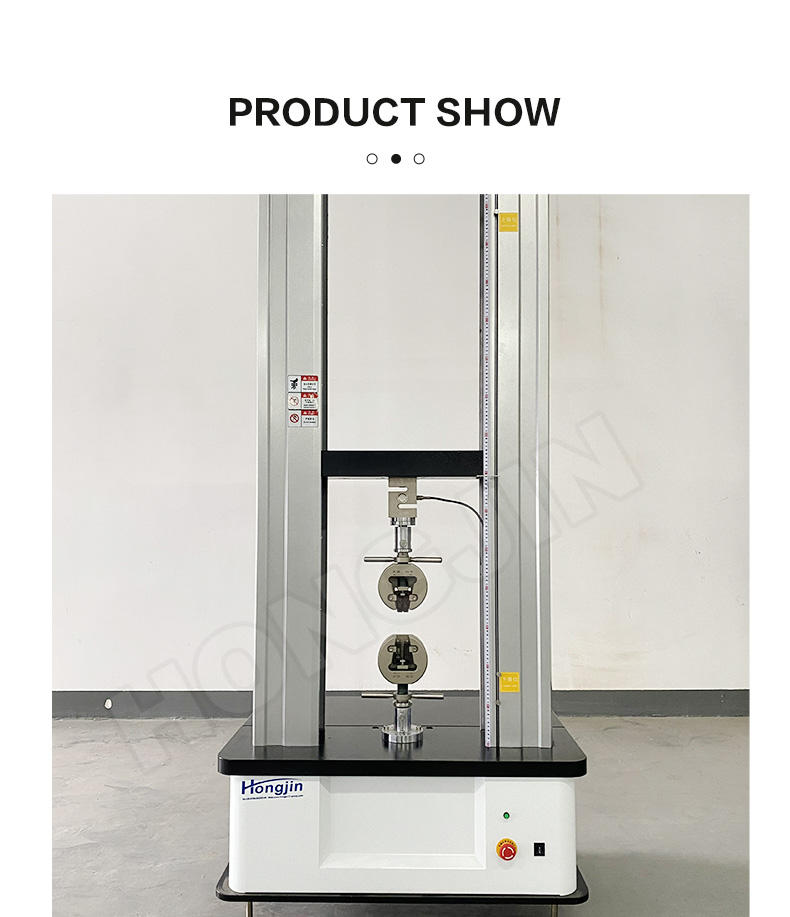

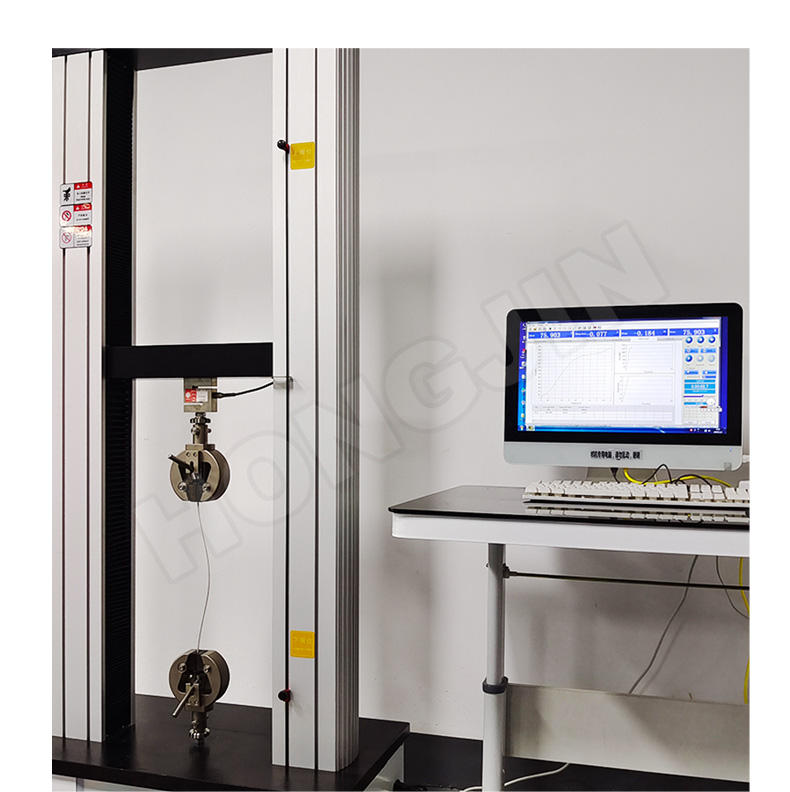

product display
